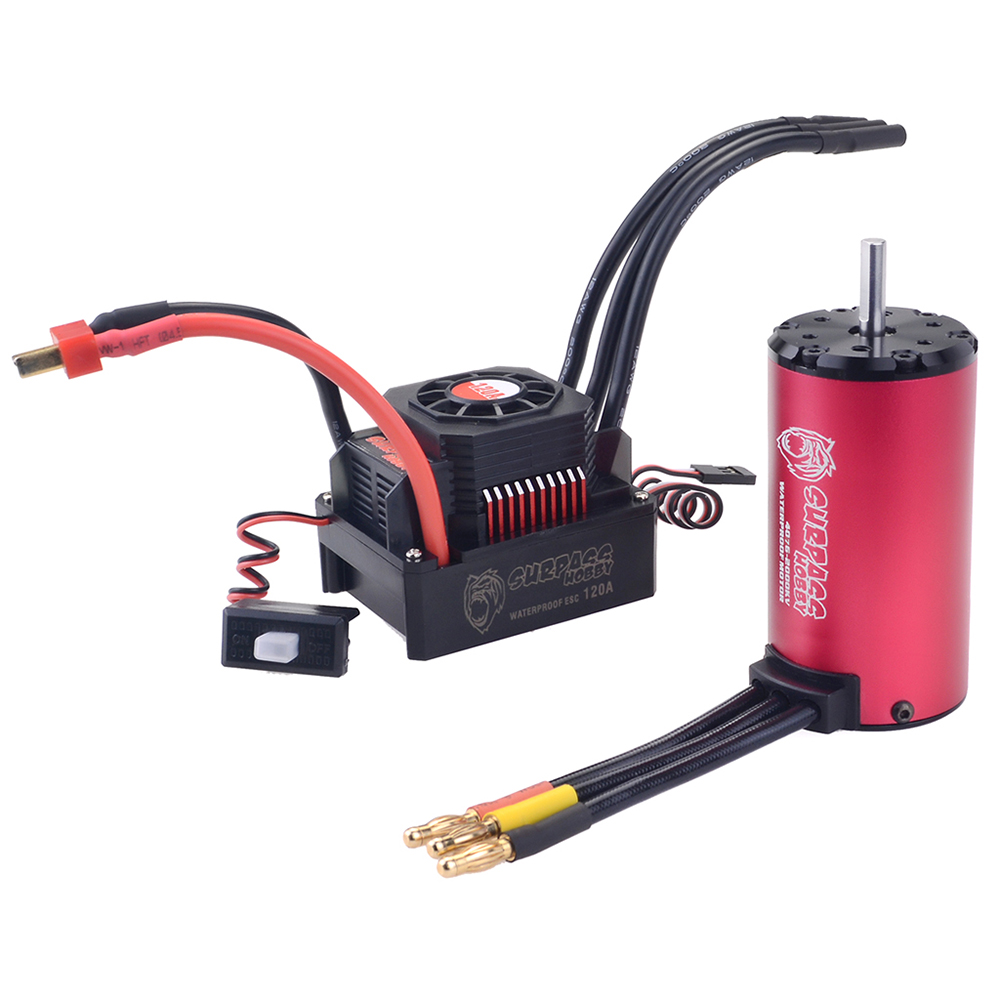

Surpass Hobby Diamond Seriers Waterproof 4076 2000KV Brushless Motor with 120A ESC for 1/8 RC Vehicles
Description:
Item Brand:Surpass Hobby
Item Number:4076 2000KV Brushless Motor with 120A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 76mm diameter 40mm shaft diameter is 3.175mm length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 423g/136g
Fit For:1/10 1/8 brushless rc cars

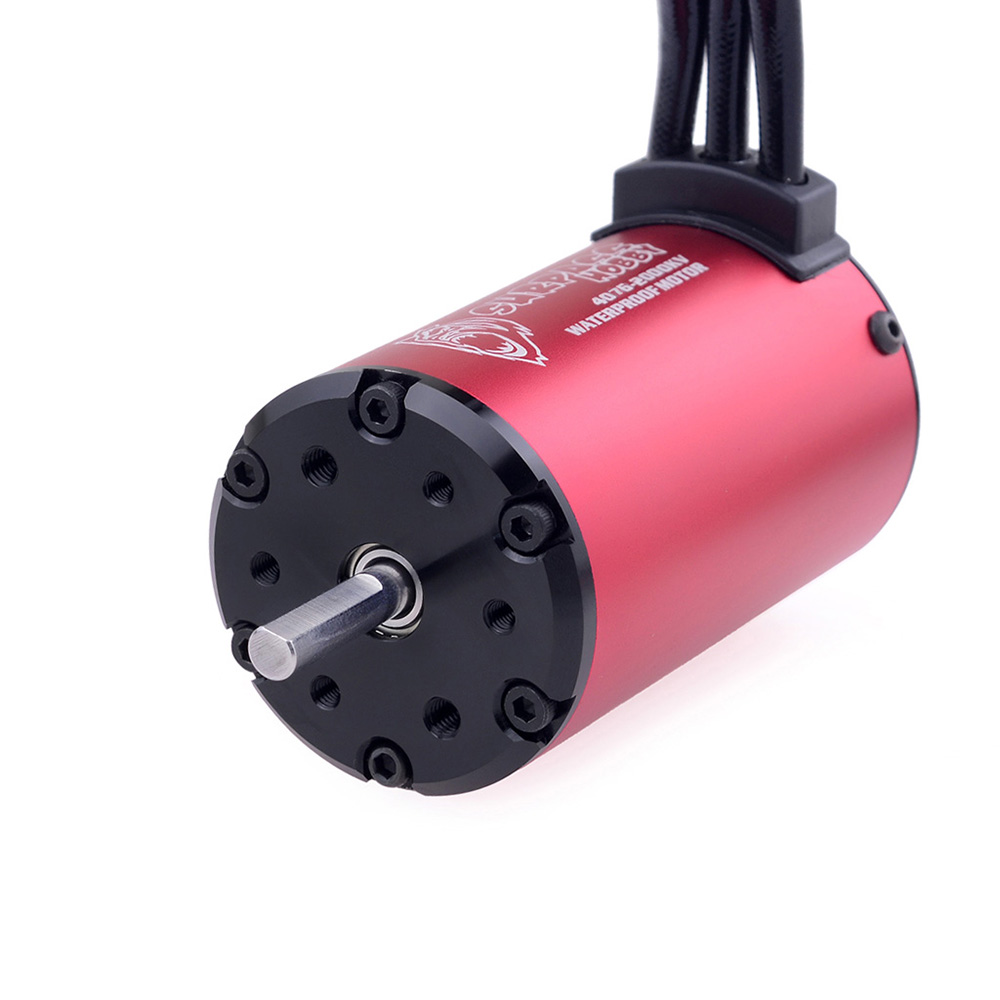

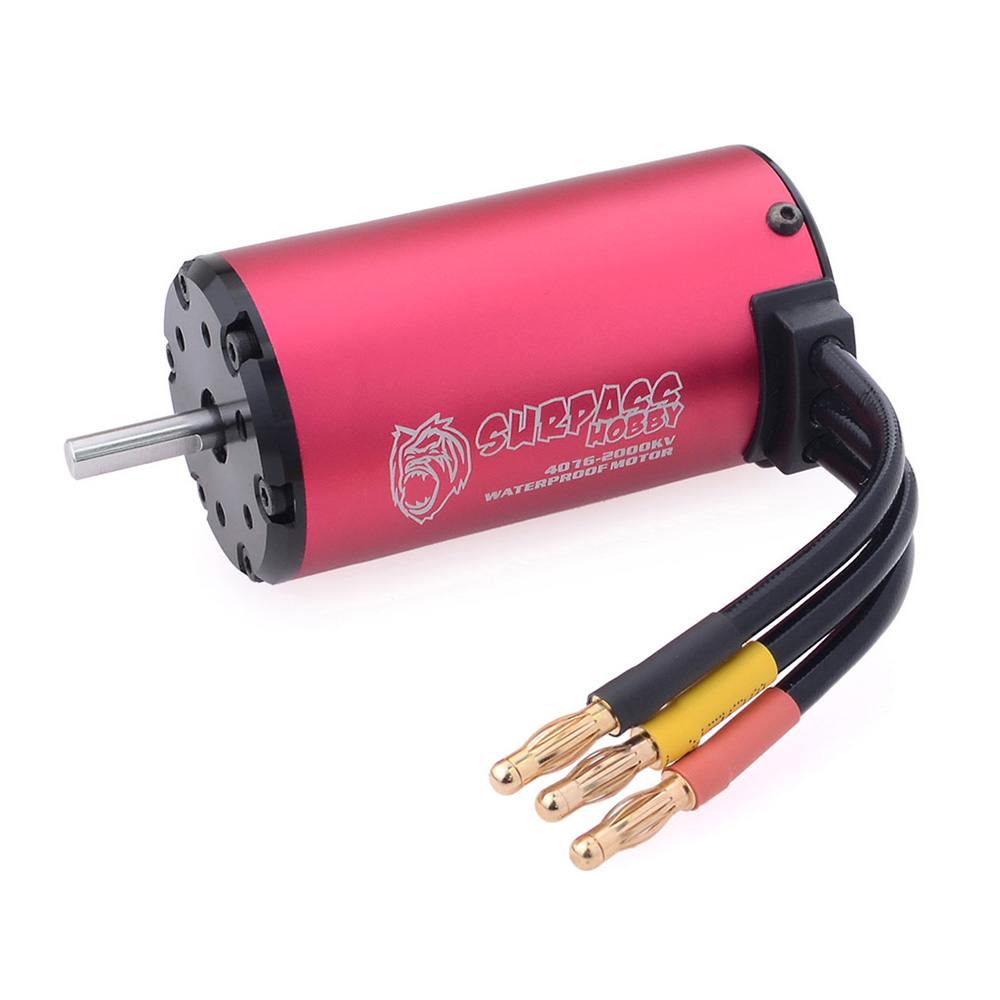

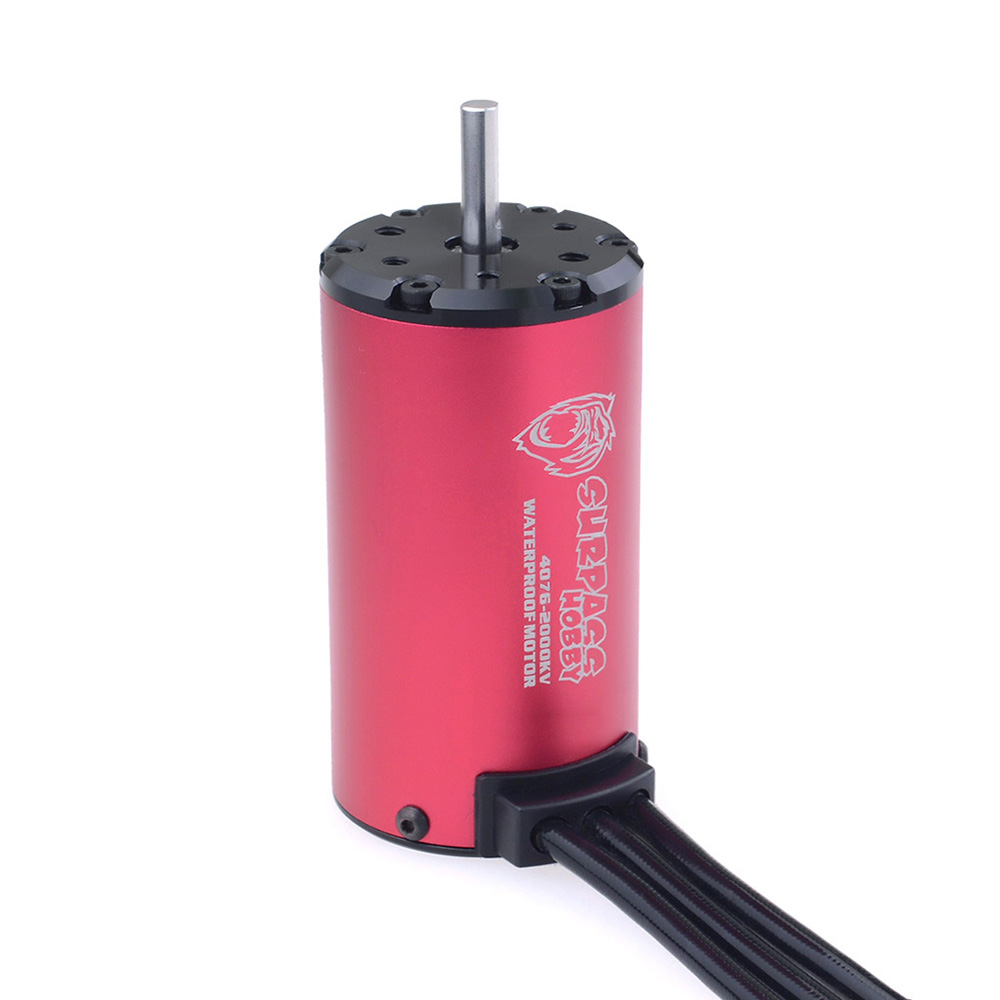

The Specification of the Motor:
KV:2000KV
Watts:2800
Max Voltage:<21V
Max Amps:135A
Rotor Poles:4
IO:2.3A
Resistance:0.0079
Max RPM:50000
Connector:4.0mm gold

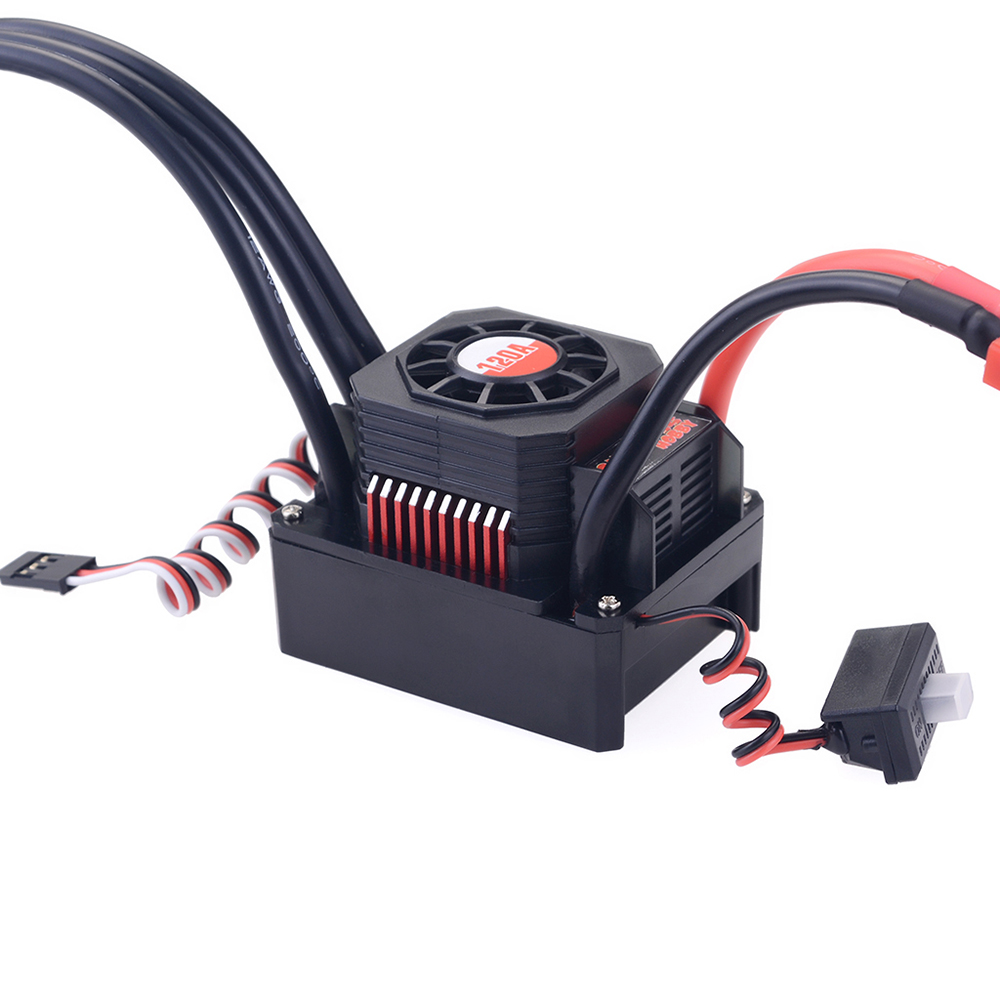

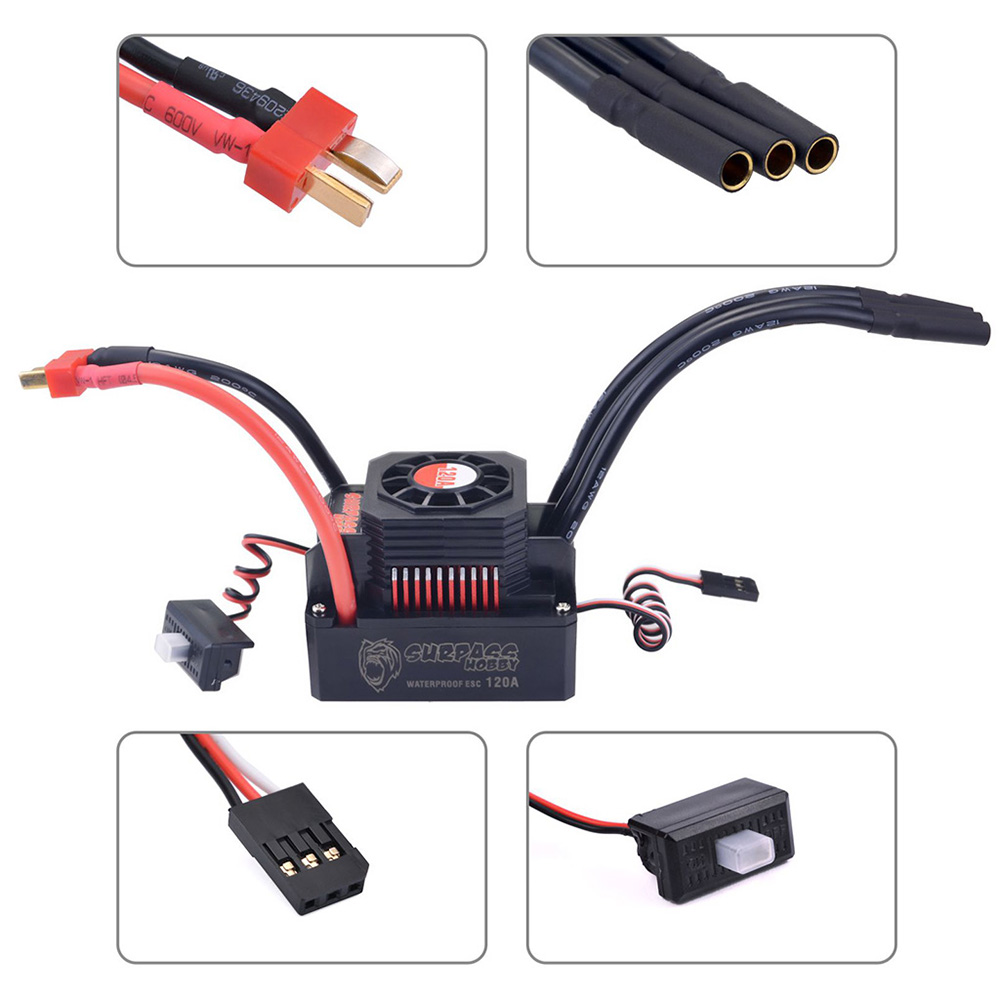

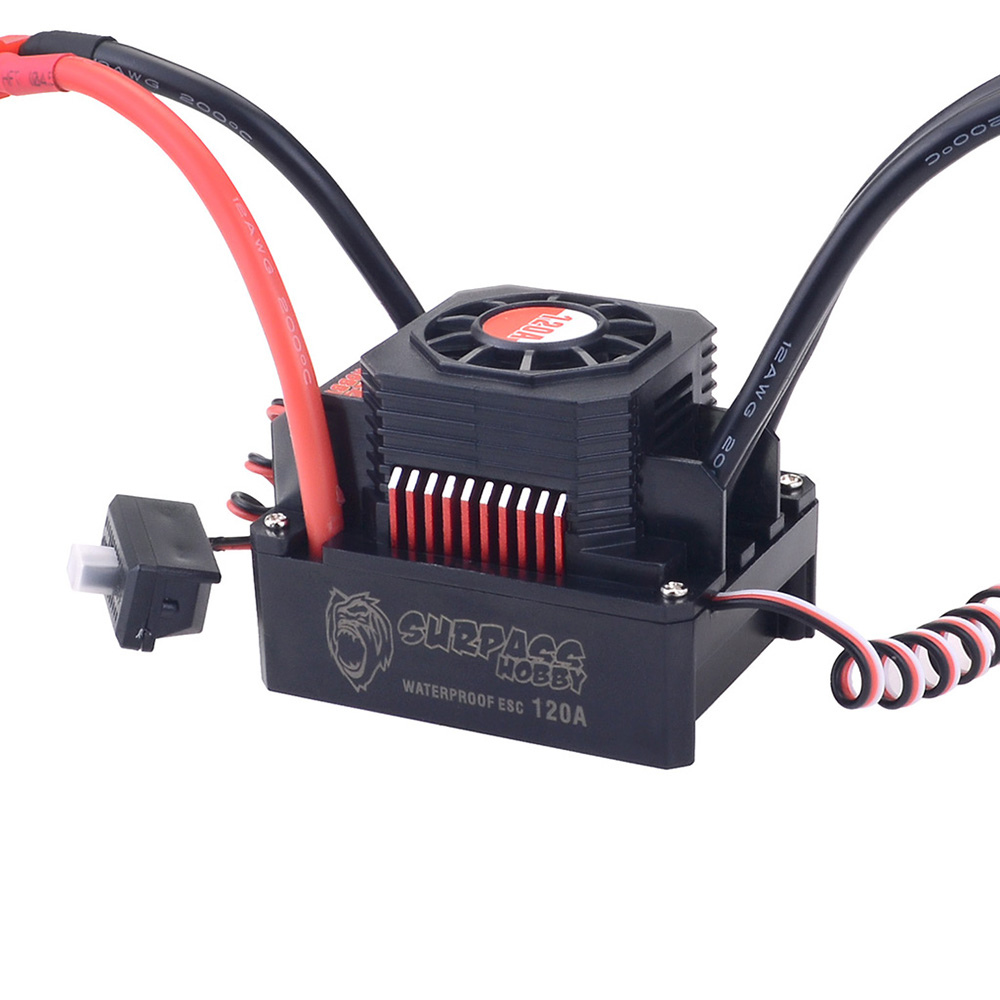

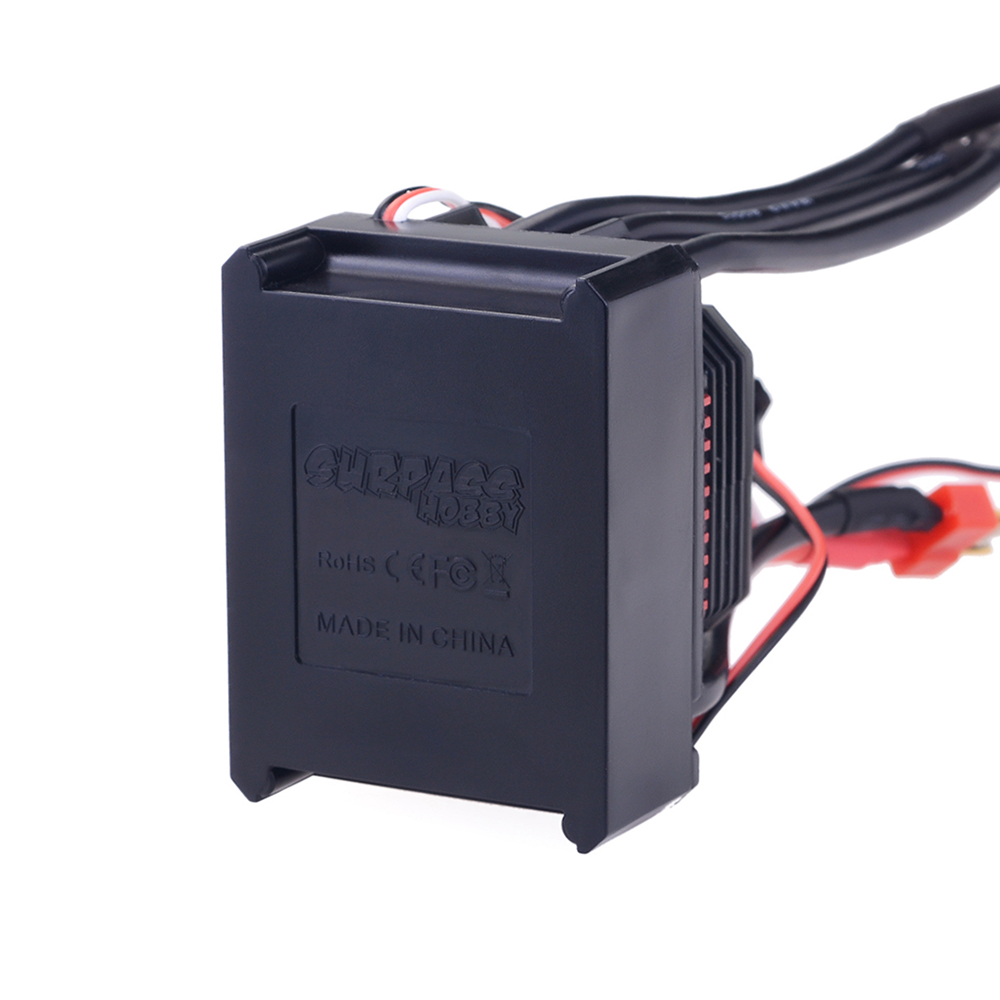

The Specification of the ESC:
Cont.Current:120A
Burst Current:600A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 40XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 40XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 40XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 40XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00035ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1V/3A(switch mode)
For the esc manual please click here
Features:
1X 4076 2000KV Brushless Motor
1X 120A ESC
1X Manual
Item Brand:Surpass Hobby
Item Number:4076 2000KV Brushless Motor with 120A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 76mm diameter 40mm shaft diameter is 3.175mm length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 423g/136g
Fit For:1/10 1/8 brushless rc cars
The Specification of the Motor:
KV:2000KV
Watts:2800
Max Voltage:<21V
Max Amps:135A
Rotor Poles:4
IO:2.3A
Resistance:0.0079
Max RPM:50000
Connector:4.0mm gold
The Specification of the ESC:
Cont.Current:120A
Burst Current:600A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 40XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 40XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 40XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 40XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00035ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1V/3A(switch mode)
For the esc manual please click here
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/10 1/8 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion

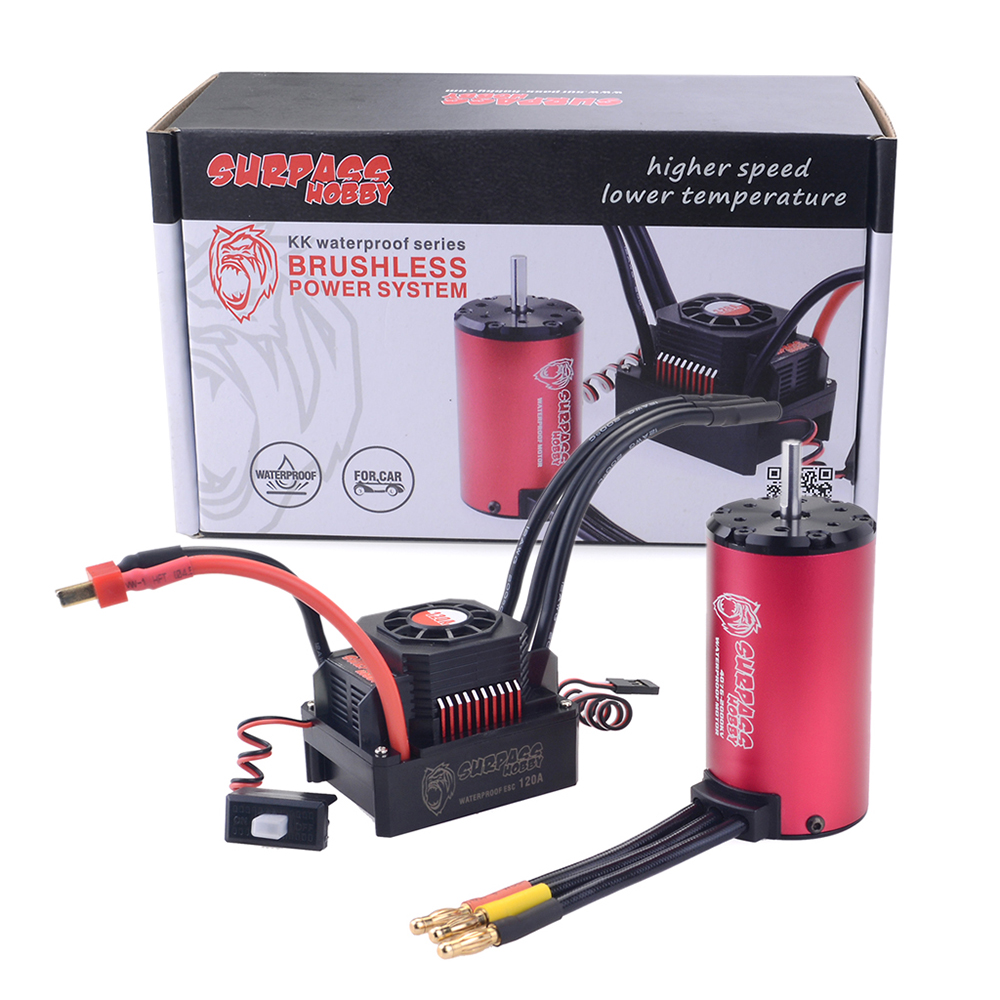

Package included:1X 4076 2000KV Brushless Motor
1X 120A ESC
1X Manual
