HobbyEagle A3 Mini 6-Axis Gyro System Flight Controller Support PPM For Fixed Wing RC Airplane

Overview:

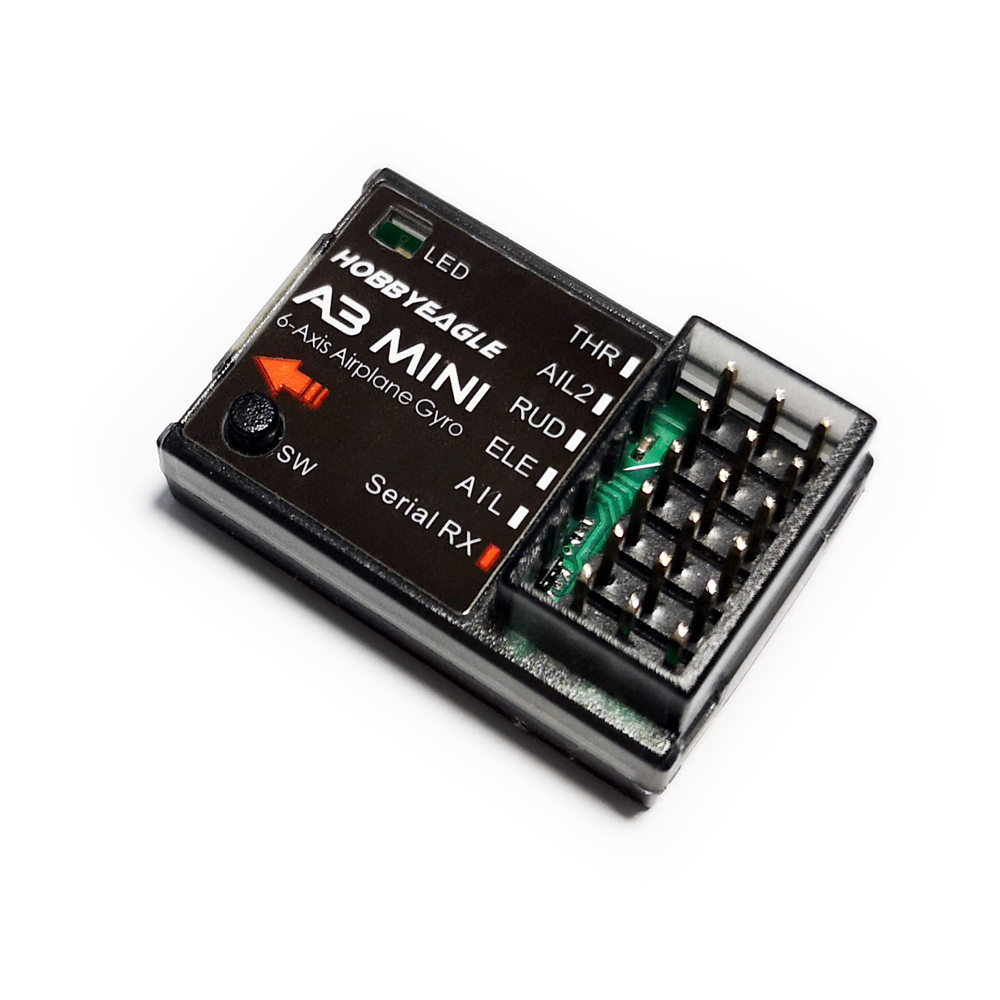

A3 Mini is a high-performance and functional 6-axis mini gyro and stabilizer designed for R/C airplanes. The smaller size and more compact design make it more suitable for the small electric airplanes. With the new feature of multi-protocol serial receiver support it could be compatible with most single line mini receivers on the market.

Specifications:

Main Controller: 32-bit MCU

Sensor: High-precision MEMS 6-axis sensor

Operating Voltage: DC 3.6V - 8.4V

Operating Current: 20mA@5V

Size: 30x19.5x7.5mm (LxWxH)

Weight: 4.8g (excluding wires)

Features:

- Mini size and 4.8g weight PPM and multi-protocol digital serial receivers supported.

- 32-bit MCU high-precision 6-axis MEMS sensor improved hardware platform and new firmware solution provide more reliable performance.

- 6 flight modes including GYRO-OFF NORMAL LOCK ANGLE LEVEL and HOVER modes.

- Flying-wing (for Delta-wing) V-Tail Remote Master Gain.

- Firmware upgradable and Programming Card supported.

Serial Receiver Protocols Supported:

PPM Receiver

For Futaba S.Bus (compatible with FrSky SBUS RadioLink SBUS and WFLY WBUS)

Spektrum DSM/DSMX 1024 Satellite Receiver

Spektrum DSM/DSMX 2048 Satellite Receiver

Spektrum SRXL

Multiplex SRXL / JR XBUS Mode B

Graupner SUMD

FlySky iBus

Receiver Connection:

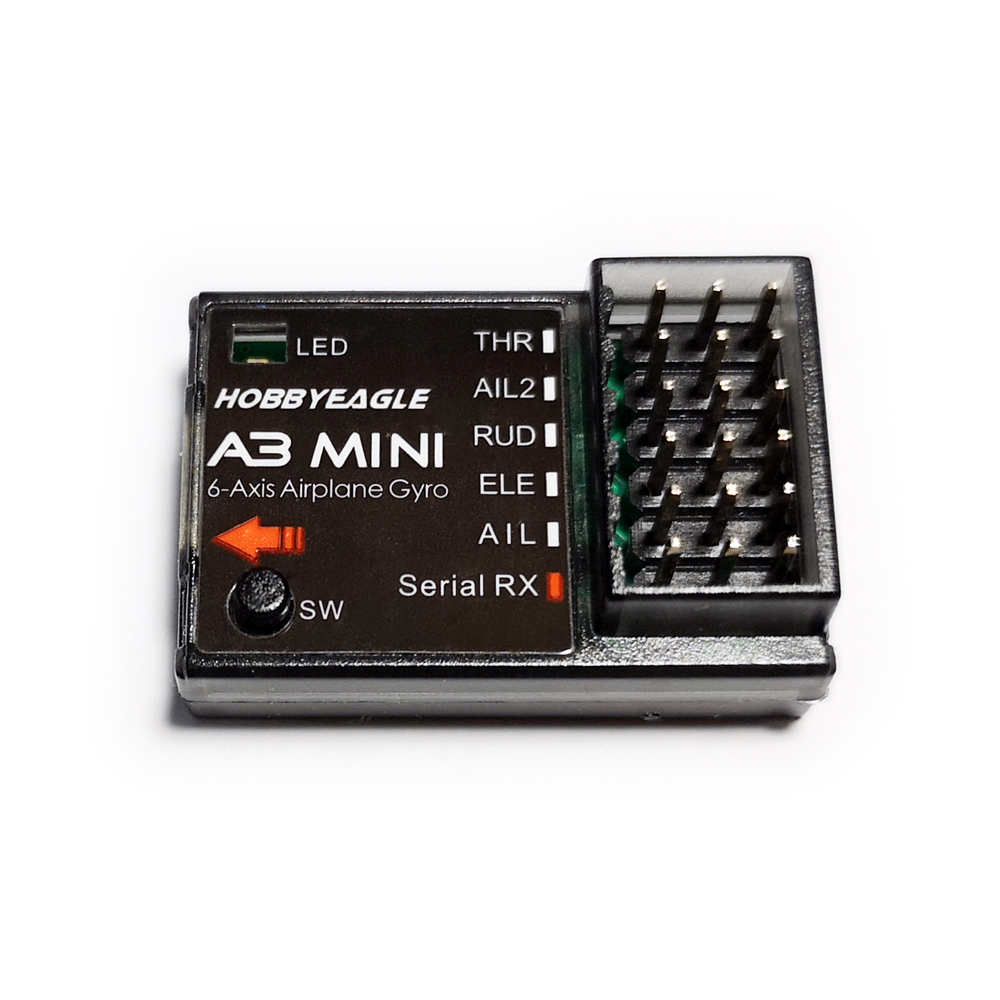

A3 Mini supports PPM and multi-protocol digital serial receivers which allows you to connect the receiver to the gyro with one single wire on the slot [Serial RX]. Depending upon the receiver type selected A3 Mini uses the preset channel assignment to recognize the channels from the receiver. Check if your radio transmits the channels in the correct order. After each time you have changed the receiver type the current channel settings will be reset to the default. Choose 'None' for those channels you do not use.

Servo Connection:

A3 Mini supports Standard Fixed-wing Flying-wing (for Delta-wing) and V-Tail.

English Manual Click Here

Related Documents Click Here

Software Click Here

USB Driver Click Here

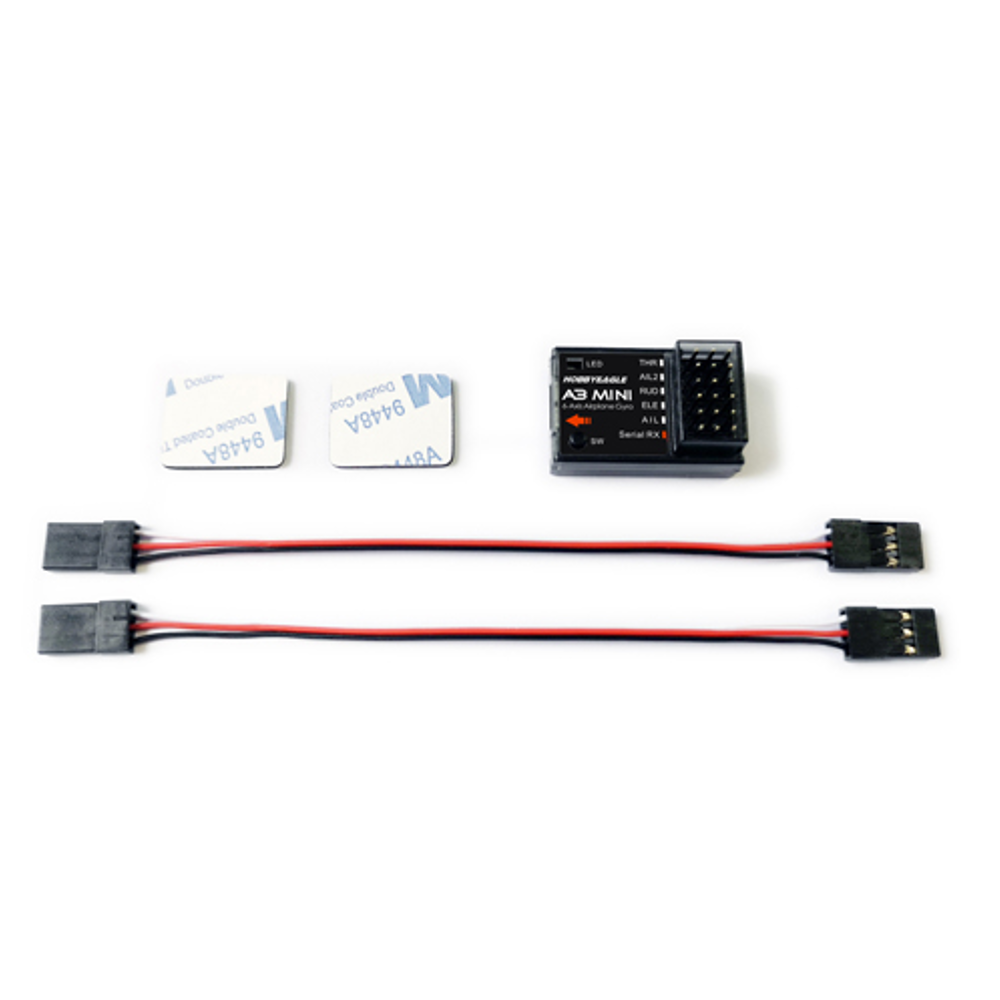

Lite Edition Included:

1x HobbyEagle A3 Mini Flight Controller

Note: USB Adapter and Data Cable are not included.

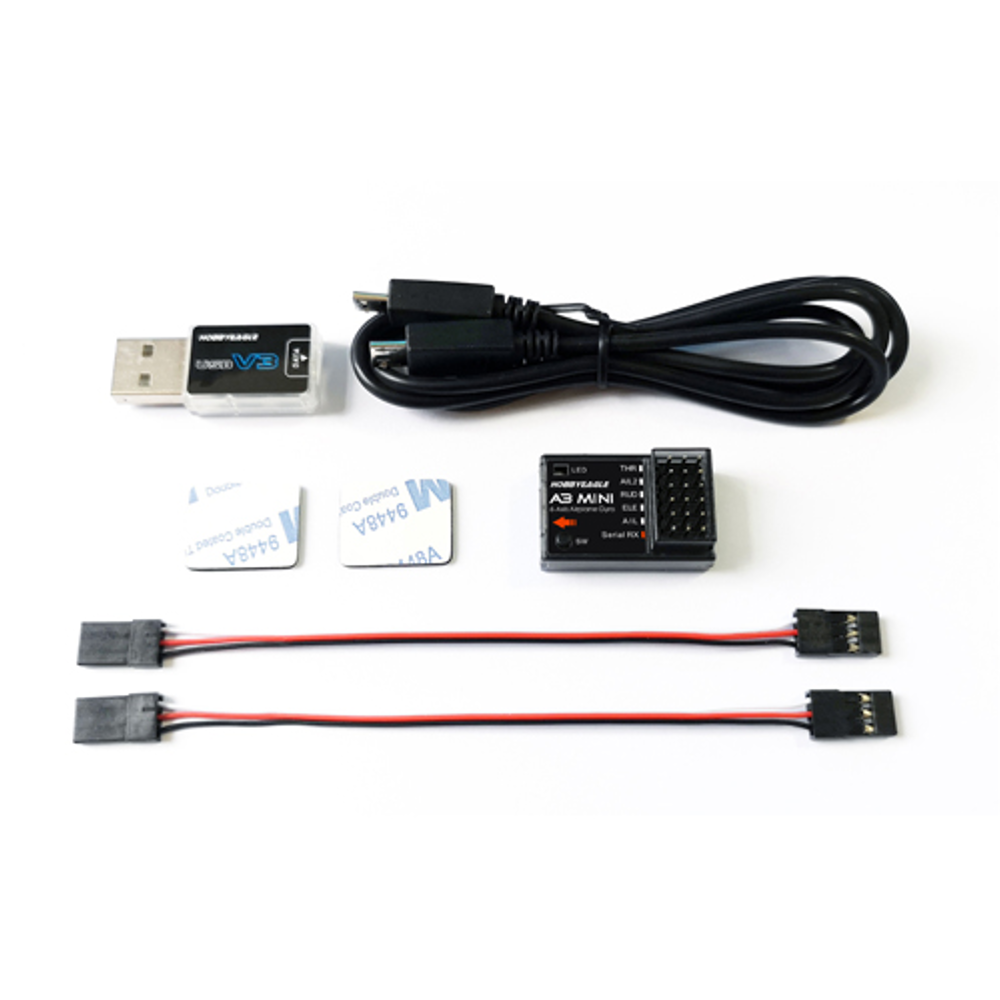

Standard Edition Included:

1x HobbyEagle A3 Mini Flight Controller

1x USB Adapter

1x Data Cable

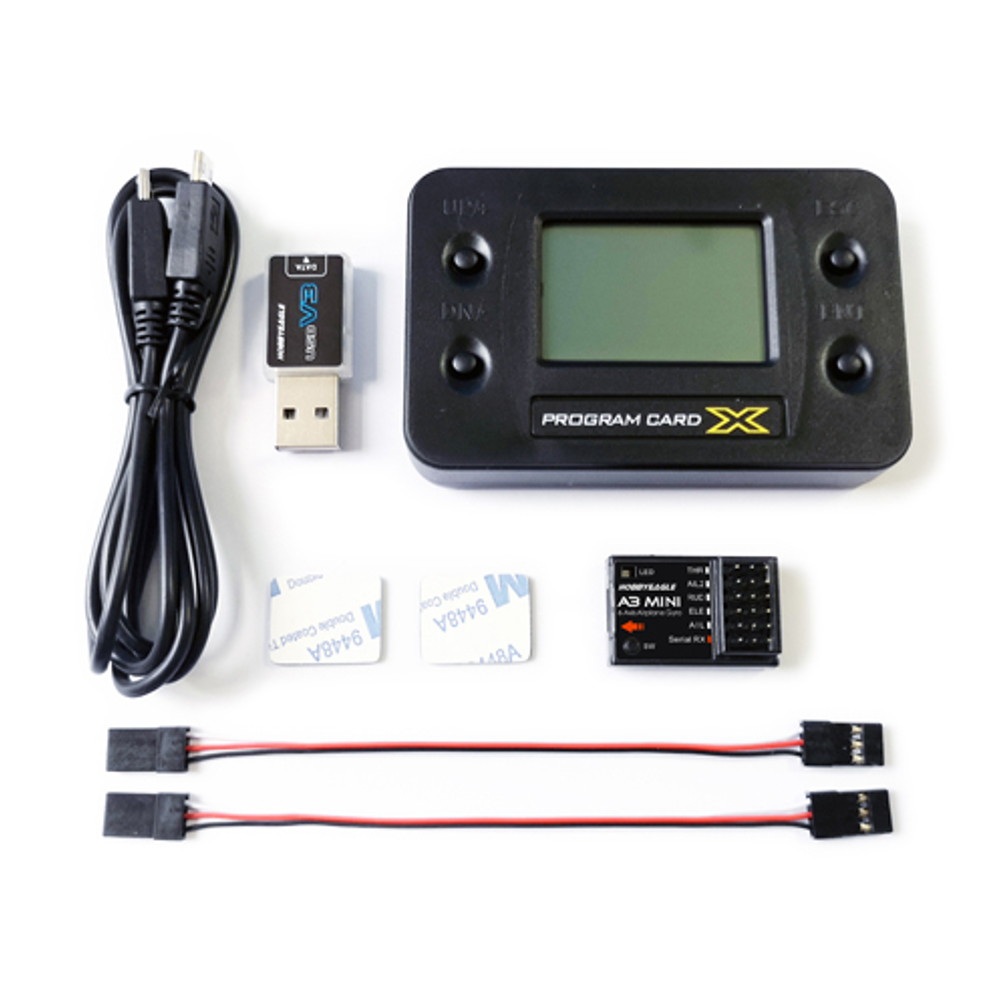

Full Set w/ Program Card Included:

1x HobbyEagle A3 Mini Flight Controller

1x USB Adapter

1x Data Cable

1x Program Card
