ZLL SG906 MAX2 BEAST 3E 3ES 5G WIFI 4KM FPV GPS with 4K EIS Camera 3-Axis Gimbal 30mins Flight Time Brushless RC Drone Quadcopter RTF
ZLL SG906 MAX2 BEAST 3E 3ES 5G WIFI 4KM FPV GPS with 4K EIS Camera 3-Axis Gimbal 30mins Flight Time Brushless RC Drone Quadcopter RTF
Description:
| Item | Specification | |
| SG906 MAX2 | Pressure sensor | Height setting |

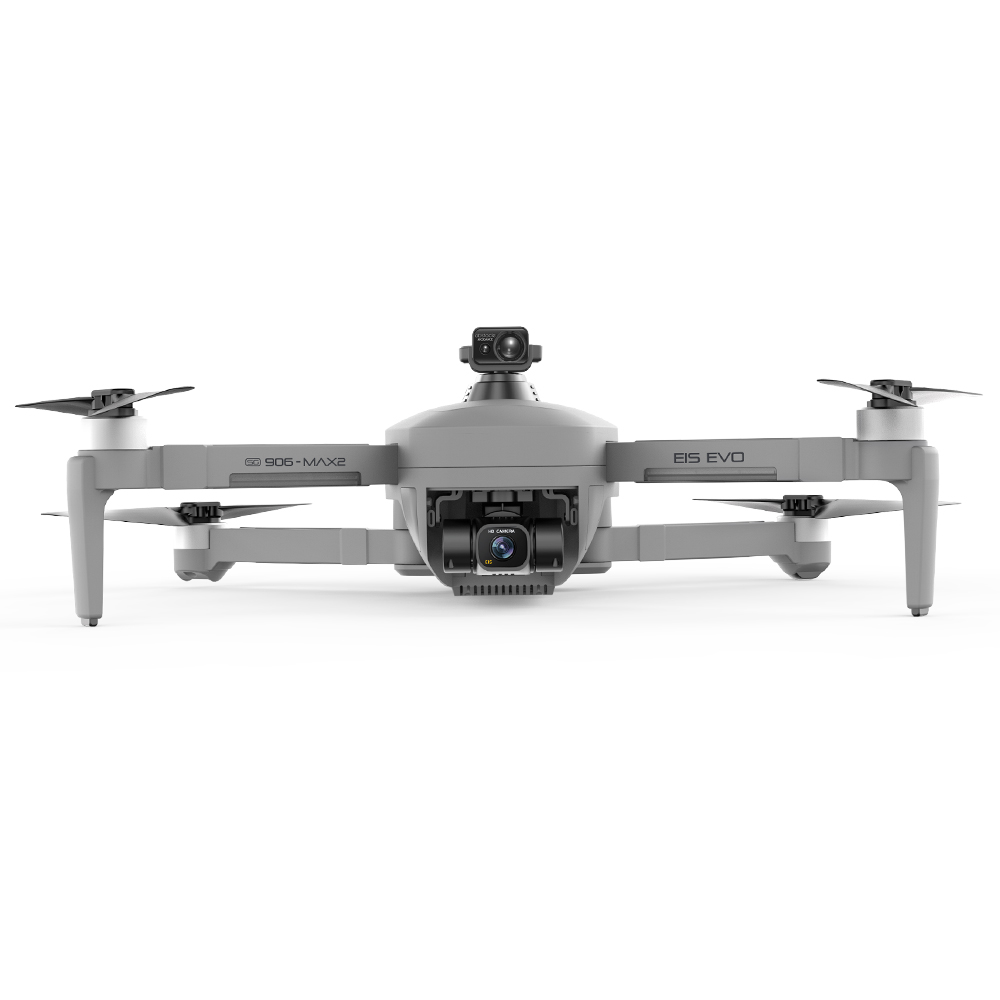

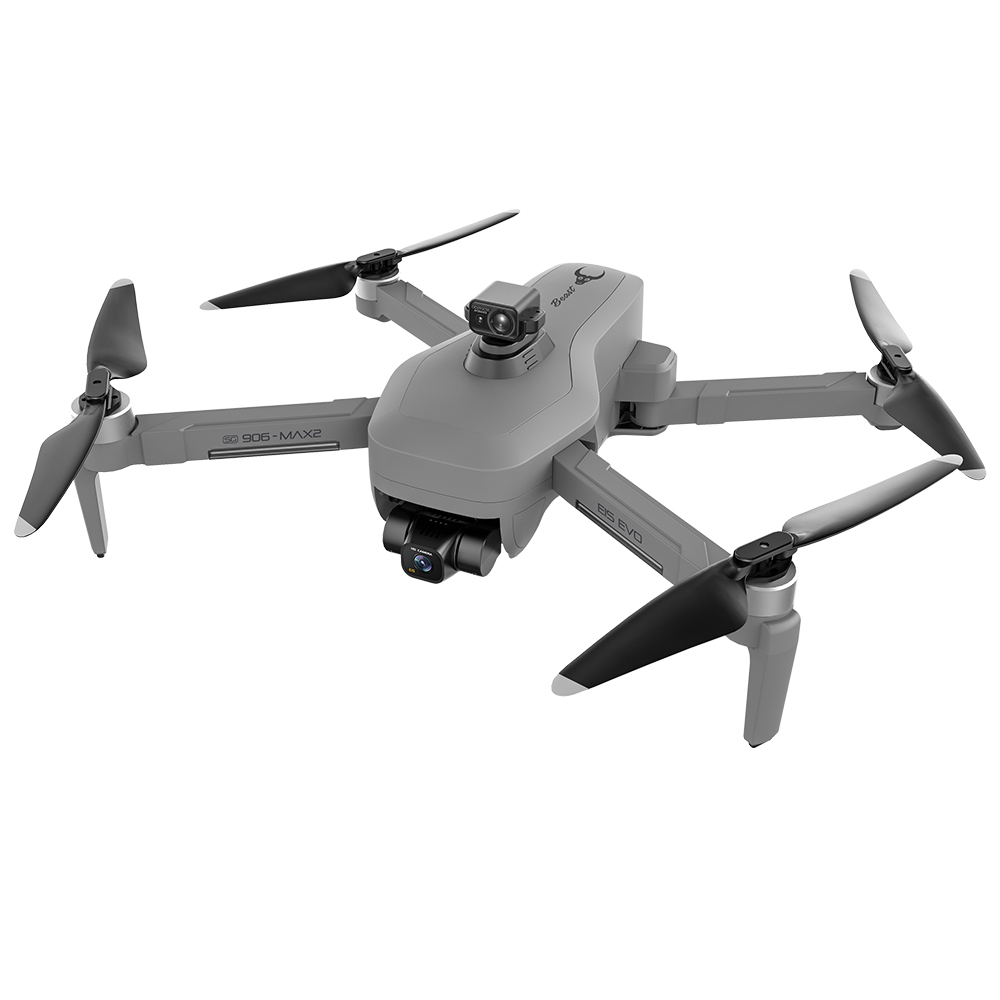

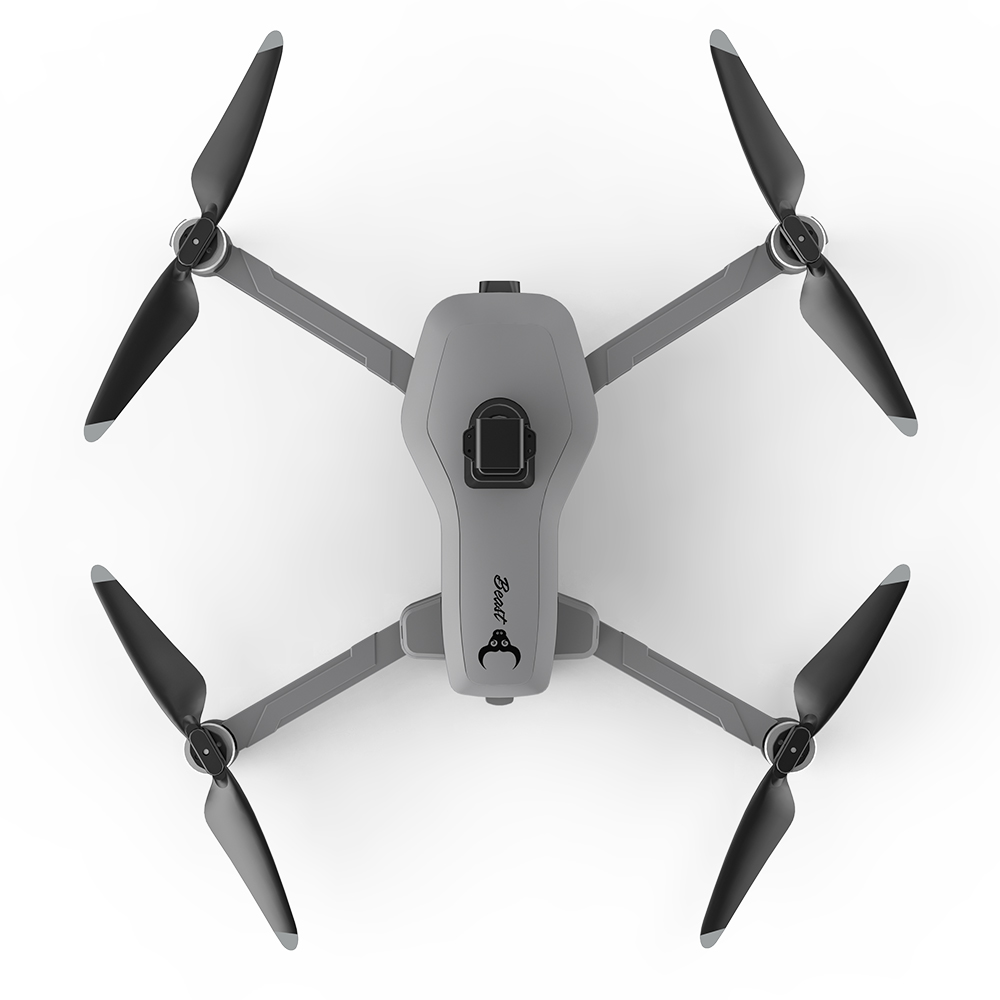

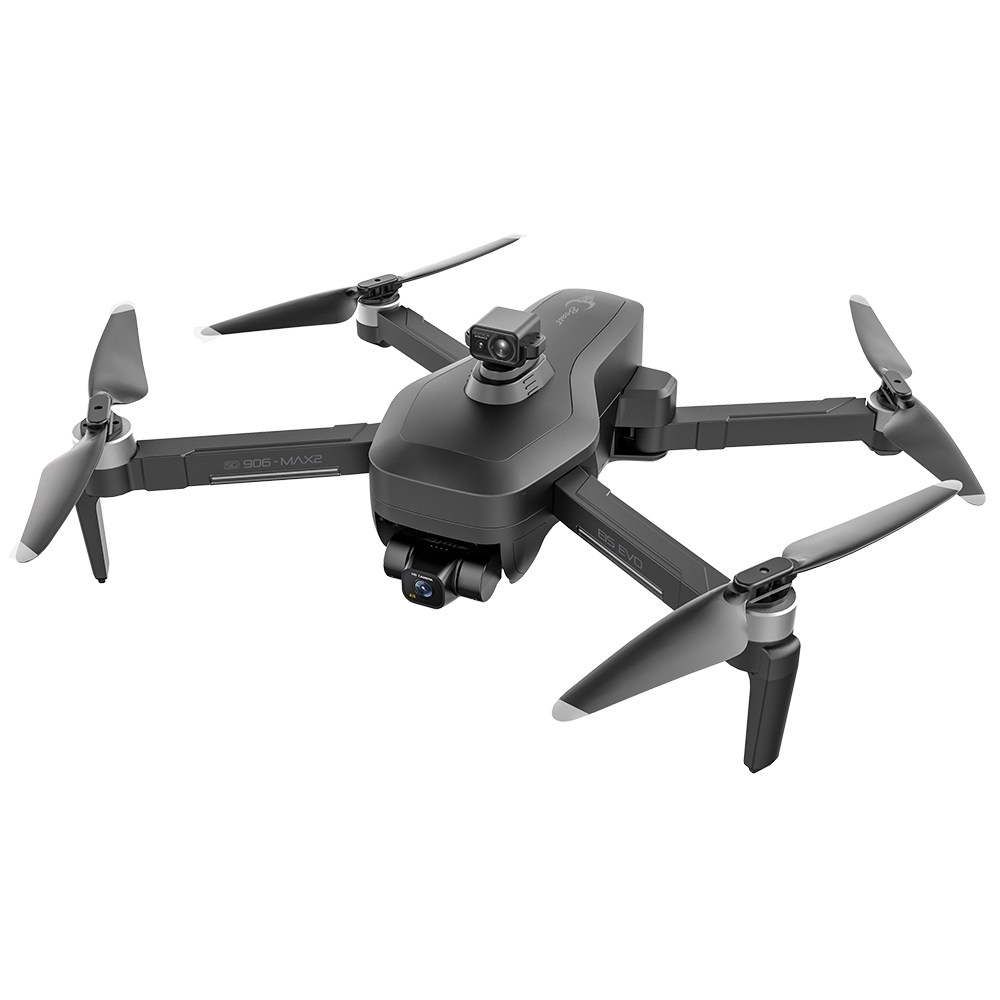

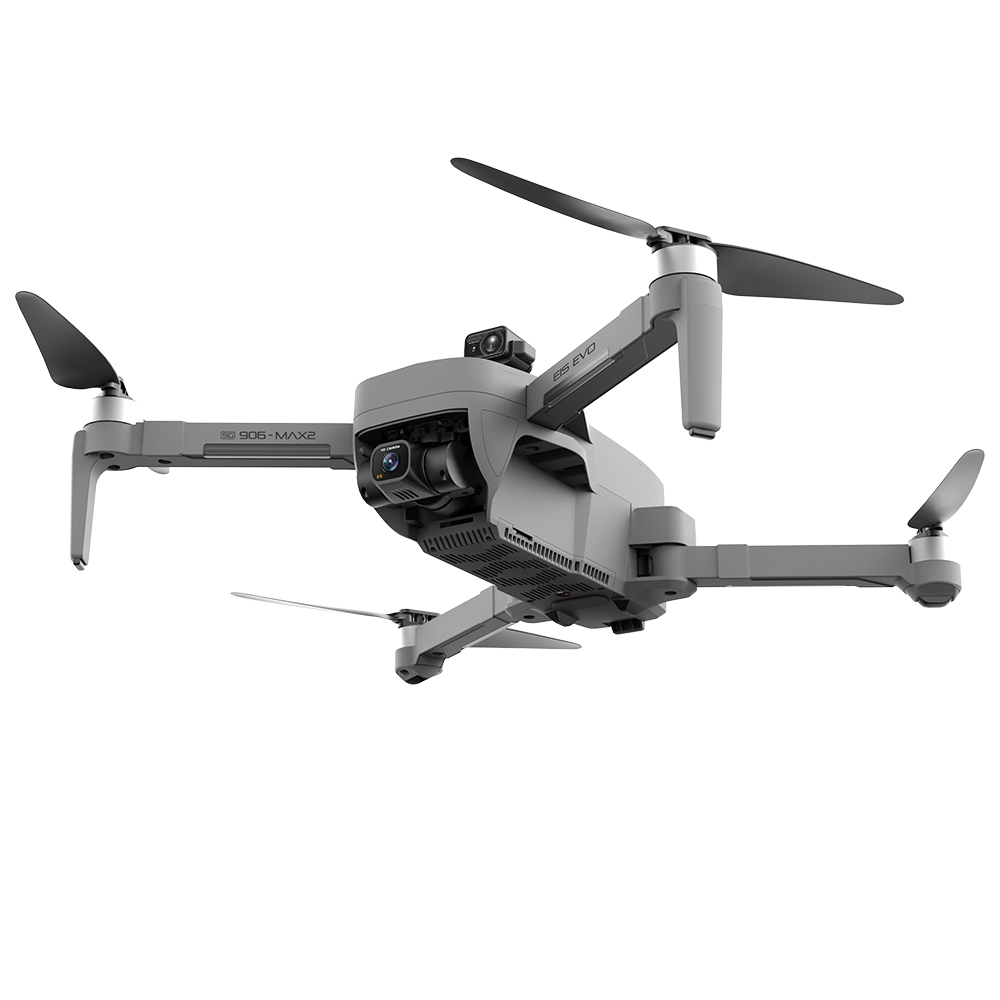

| Color | Grey(With Ambarella chip) | |

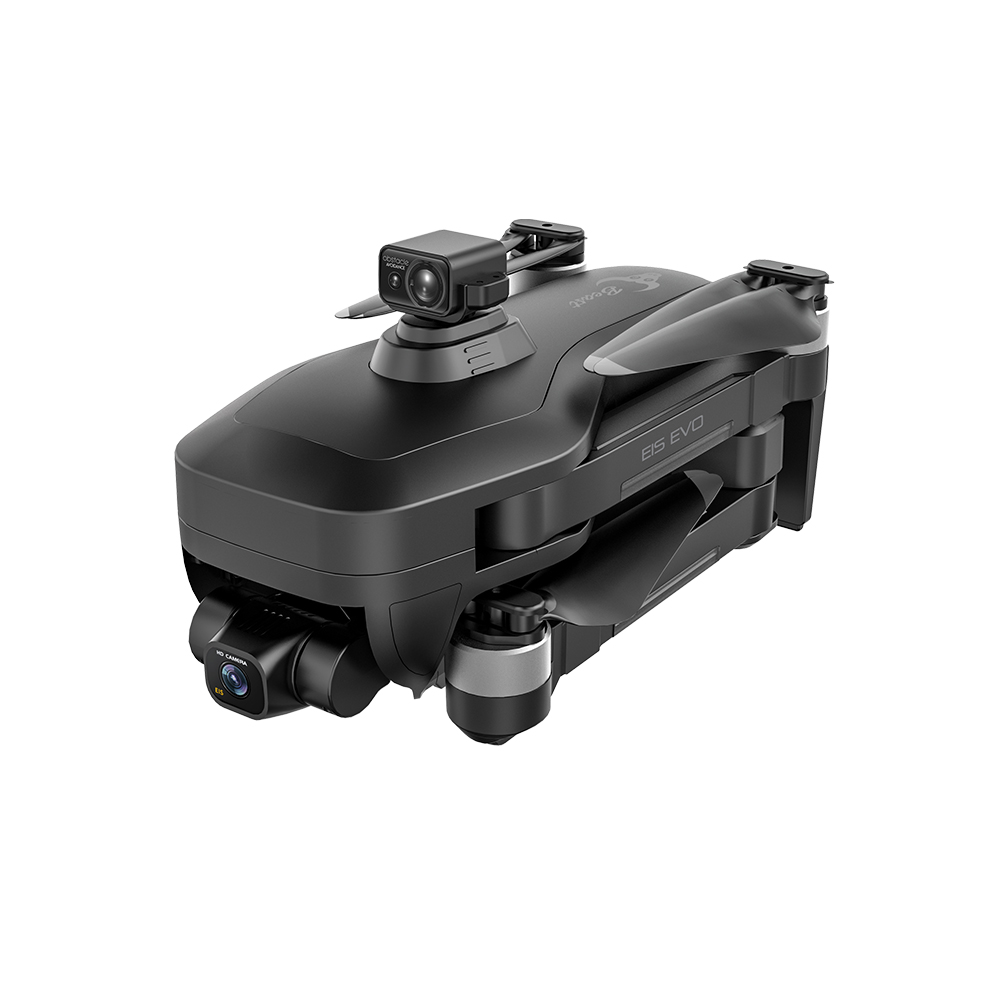

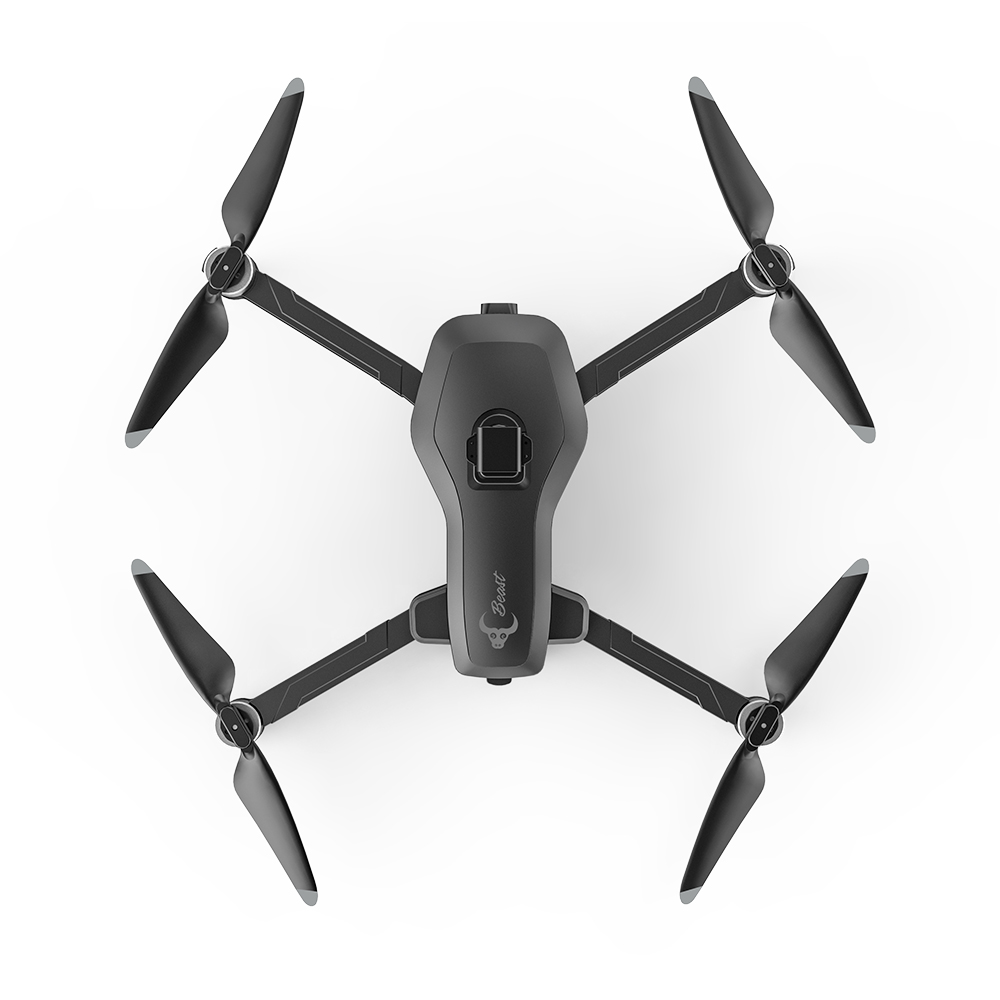

| Black(With HiSilicon chip) | ||
| Motor | 1806 brushless motor | |
| Motor power | 1700/KV | |
| Wheelbase | 36cm | |
| Electric power adjustment | 30A | |
| Image transmission receiving method | 5G WIFI+ repeater strong signal | |
| Gimbal | Three-Axis EIS Gimbal | |
| Lens | Self-stabilizing electronic anti-shake Lens | |
| Obstacle avoidance detection range | 360 deg | |
| Obstacle avoidance detection range | <=20M | |
| Max remote control phone clip size | 7inch | |
| Remote control battery | 3.7V 1300mAh Lipo Battery | |
| Capacity of smart lithium battery | 7.6V 5000mAh | |
| Control distance (Free interference and no occlusion) | 4000m | |
| Cruising mileage(max) | 8KM | |
| Wind resistance level(max) | level 6 | |
| Ascendant speed(max) | 4m/s | |
| Descent speed(max) | 3m/s | |
| Take-off altitude(max) | 4500m | |
| Flying speed(max) | 45km/h | |
| Flight time | About 30mins | |
| Charging time | About 8 hours | |
| USB Charging | 5V | |
| Product size | 17.4x8.4x7cm | |
| 28.3x25.3x7cm | ||
| Product's Weight | 651g(Included Obstacle Avoider) | |
| Battery Weight | 205g | |
| Storage Card | 256G(Max) | |
| Camera Gimbal parameters | Image sensor | 1/3.2 Inches |
| Pixel | 4K HD Camera | |
| APP Name | XIL MAX(IOS Android) | |
| Gimbal Angle(adjustment angle range) | 110 deg automatic restores (Vertical) | |
| 65deg automatic restores (Sideways) | ||
| 45deg automatic restores (Horizontal) | ||
| Camera lens | Adjustable camera by transmitter 110deg | |
| Wifi image transmission distance | About 4000m | |
| GPS Follow me | 15m | |
| IMAGE Follow me | 1-5m | |
| Focal length | 50X | |
| Hand gesture shooting/video reconization | 1-5M | |
| Video resolution(Front camera) | 2048*1080(TF) | |
| 1920*1080P (APP) | ||
| Photo resolution(Front camera) | 3840*2160P(TF) | |
| 3840*2160P(APP) | ||
| Video resolution(Down-looking camera) | 1280*720p | |
| Photo resolution(Down-looking camera) | 1280*720p | |
| Main camera video maximum stream | 60Mbps | |
| Frame rate | 30 fps | |
| Obstacle Avoider | Measuring mileage | 0.05-20 meters |
| Measurement accuracy | 2% | |
| Measuring speed | 100HZ | |
| Resolution | 1cm | |
| Operating Voltage | 3.5-5.5VDC | |
| Power Consumption | 60NA@5V | |
| Communication Interface | 12C | |
| Communication Baud Rate | Up to 400k | |
| Communication Level | TTJ3.3VDC | |
Note:
1. The maximum SD card supported by the drone: 256GB SDHC/SDXC UHS-I Speed Grade 1 or UHS-I Speed Grade 3 micro SD
2. It is recommended to use a mainstream brand microSD card with a minimum writing speed of 30MB/s or more. Other low-speed cards may not only cause videos and pictures to be unstorable but also cause video transmission freezes and APP flashbacks.
Features:
- Built-in repeater in the remote control
- 360deg obstacle avoidance function
- GPS/GLONASS double mode
- 4K HD adjustable camera
- Mechanical three axis EIS gimbal
- Optical flow positioning mode
- Real-time image transmission
- Intelligent follow
- Surround flight
- Waypoint flight
- Trajectory pointing flight

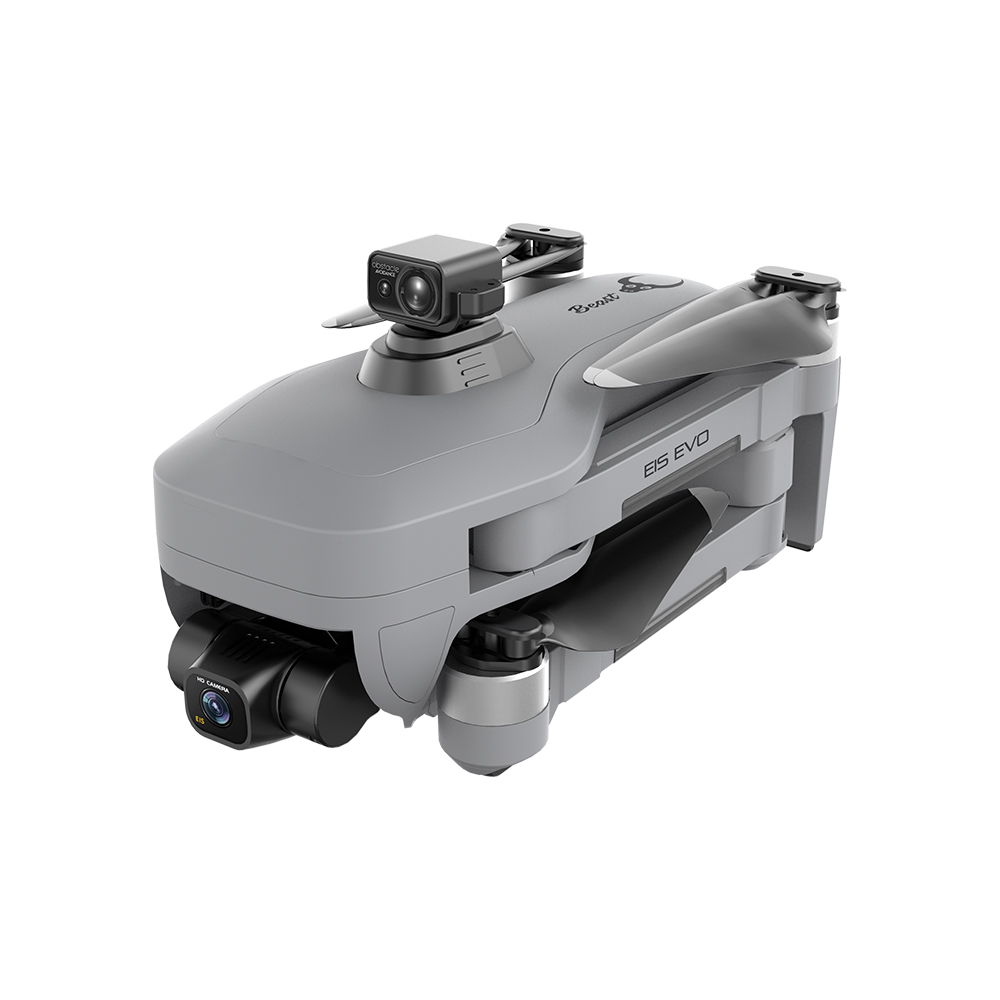

- Folding portable fuselage
- One key course reversal
- Creative video
- Brushless motor
- 50X Focal length
- Aircraft retrieval function
- MV functions: filters video effects add background music picture / video sharing

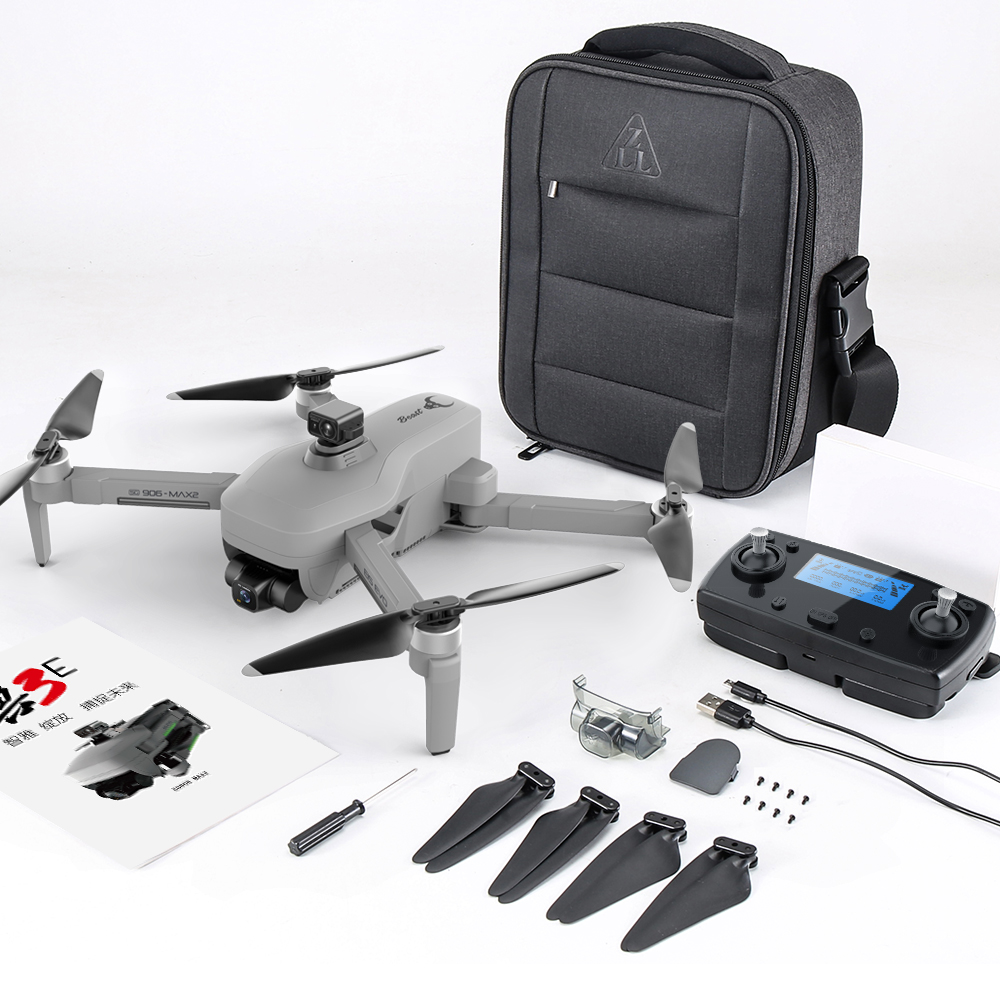

Package Included:

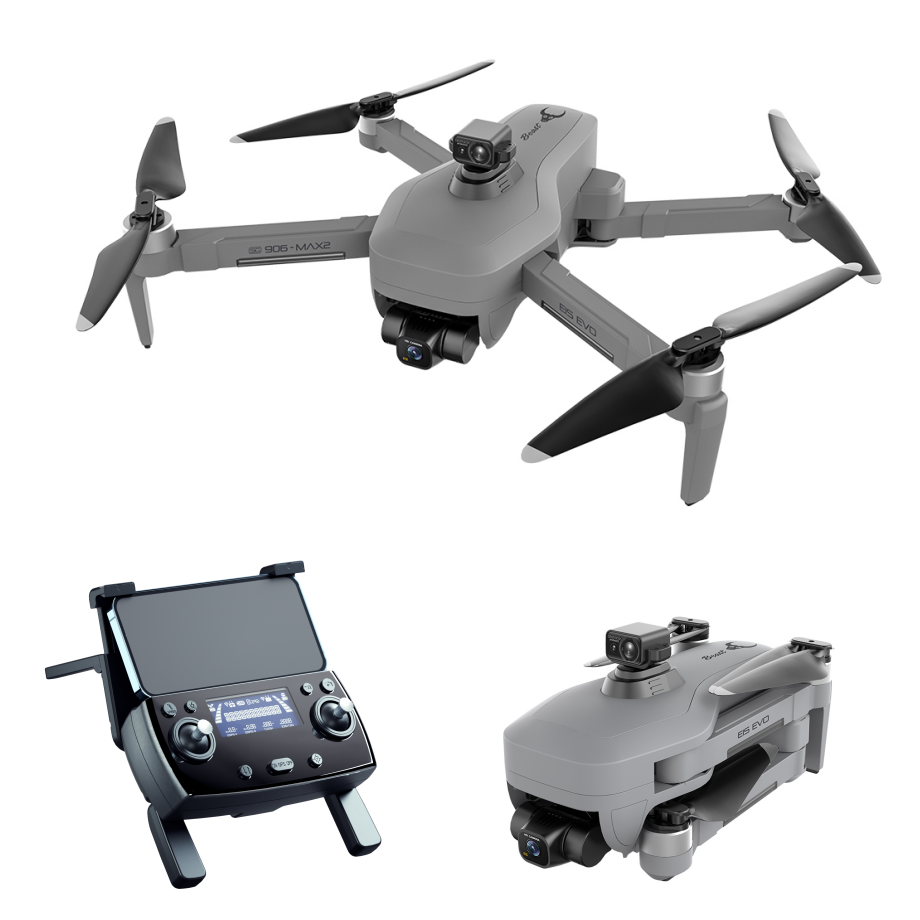

1 x SG906 MAX2 RC Quadcopter
1 x Remote Controller
1 x 7.6V 5000mAh Lipo Battery
4 x Spare Propellers
1 x USB Charging Cable
1 x Screwdriver
2 x Remote Control Stick
8 x Spare Screw
1 x Obstacle Avoider
1 x Obstacle Avoidance Hole Upper Cover
1 x User Manual
1 x Carrying Case
Specifications
| Mode | With Ambarella Chip or With HiSilicon Chip |
| Battery | One Battery or Two Batteries |
| Version | With Obstacle Avoider |
