  3. Autel Robotics EVO Lite+ Lite Plus 12KM FPV with 1" CMOS F2.8-F11 6K 30FPS Video 3-Axis Gimbal 40mins Flight Time Obstacle Avoidance RC Drone Quadcopter RTF
Public Pricelist

Autel Robotics EVO Lite+ Lite Plus 12KM FPV with 1" CMOS F2.8-F11 6K 30FPS Video 3-Axis Gimbal 40mins Flight Time Obstacle Avoidance RC Drone Quadcopter RTF

https://www.rcwarehouse.nl/web/image/product.template/6516/image_1920?unique=a2d6a01

2,090.97 € 2090.9700000000003 EUR 2,090.97 €

1,781.35 €

  • Color
  • Mode

This combination does not exist.

Autel Robotics EVO Lite Lite+ 12KM FPV with 1' CMOS F2.8-F11 6K 30FPS Video 3-Axis Gimbal 40mins Flight Time Obstacle Avoidance RC Drone Quadcopter RTF


Specifications:


Aircraft

Takeoff Weight
820 g
Dimensions (including blades)

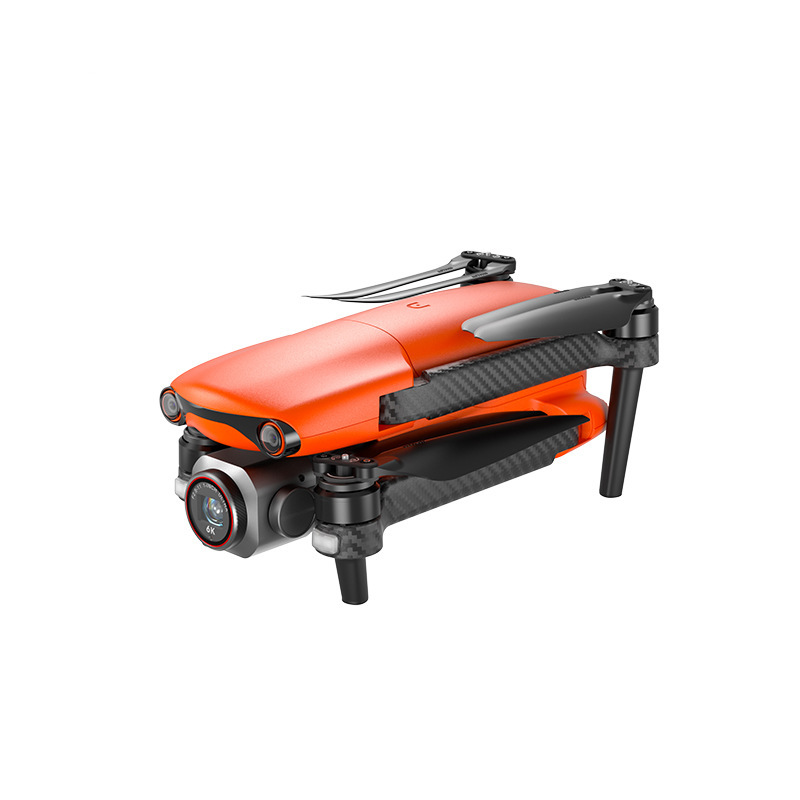

Folded: 210x104x85mm
Unfolded: 430x517x85mm
Wheelbase
368 mm
Max Ascension Speed8 m/s (S Mode)
5 m/s (N Mode)
3 m/s (C Mode)
Max Descent Speed4 m/s (S Mode)
3 m/s (N Mode)
2 m/s (C Mode)
Max Level Flight Speed

(near sea level no wind)

19 m/s (S Mode)
10 m/s (N Mode)
5 m/s (C Mode)
Maximum Takeoff Altitude
5000 m
Max Flying Time (no wind)
40 minutes
Max Hovering Time (no wind)
38min
Max Flying Distance (no wind)
24KM
Max Wind ResistanceLevel 7
Max Tilt Angle33deg (S Mode)
25deg (N Mode)
25deg (C Mode)
Max Angular Vellocity200deg/s (S Mode)
120deg/s (P Mode)
60deg/s (C Mode)
Operating Temperature Range-10degC ~ 40degC
Operating Frequency2.400-2.4835GHz 5.725-5.850GHz 5.150-5.250GHz
Transmitter Power (EIRP)FCC:<=30dBm
GNSSGPS
Hovering AccuracyVertical: +-0.1 m (when the Visual Positioning is active) +-0.5 m (with GPS Positioning)
Horizontal: +-0.3 m (with Vision Positioning) +-1.5 m (with GPS Positioning)

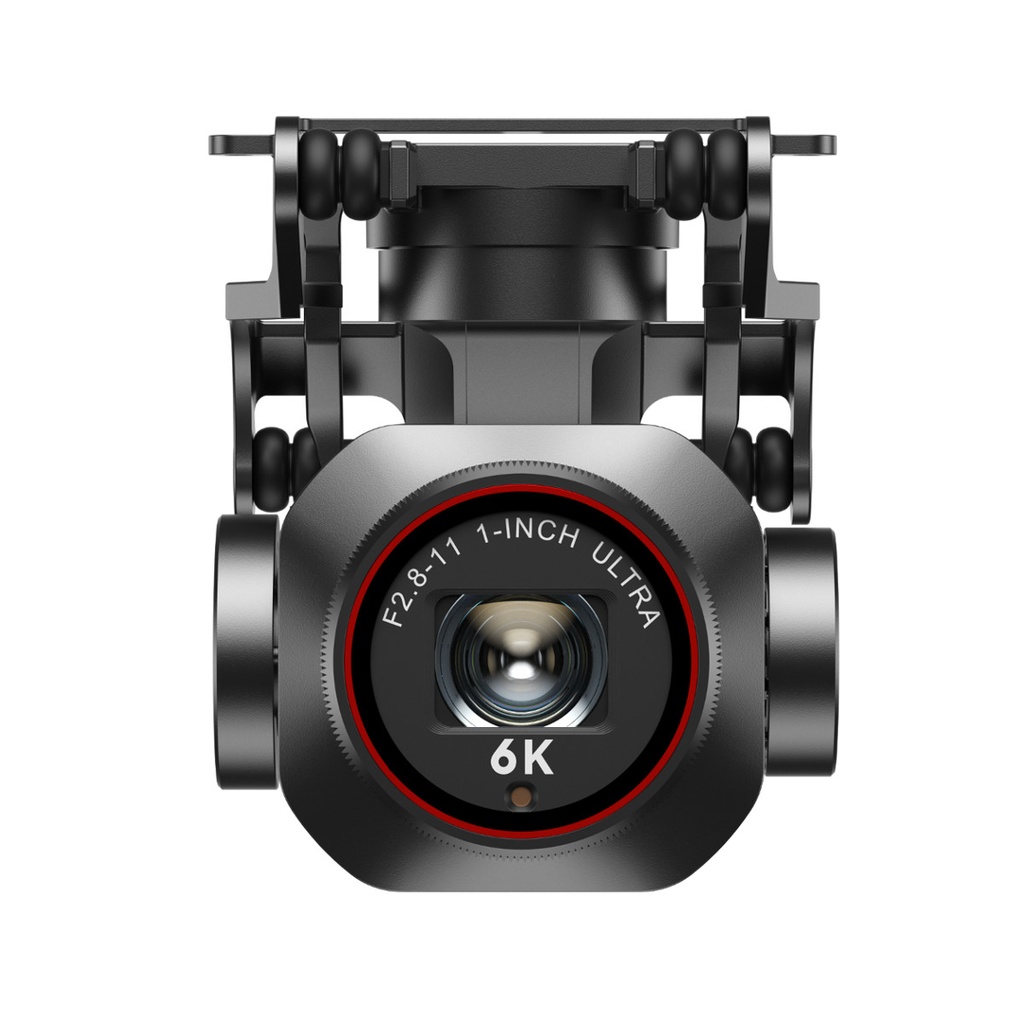

Gimbal

Mechanical RangeLite:
Pitch: -135deg~45deg
Roll: -45deg~45deg
Yaw: -90deg~90deg
Rotate: -400deg~400deg
Lite+:
Pitch: -135deg~45deg
Roll: -45deg~45deg
Yaw: -90deg~90deg
Controllable RangeLite:
Pitch: -90deg~30deg
Yaw: -80deg~80deg
Rotate: -360deg~360deg
Lite+:
Pitch: -90deg~ +30deg
Yaw: -80deg~ +80deg
StabilizationLite:
4-axis (Horizontal/Vertical/Tilt/Rotation Shooting)
Lite+:
3-axis
Max Control Speed (pitch)30deg/s
Angular Vibration Range+-0.003deg

Sensing System

ForwardAccurate Measurement Range: 0.5~18m
Effective Sensing Speed: <12m/s
FOV: Horizontal <70deg Vertical <88deg
Backward
Accurate Measurement Range: 0.5~18m
Effective Sensing Speed: <12m/s
FOV: Horizontal <40deg Vertical <30deg
Downward
Accurate Measurement Range: 0.5~22m
Visual Hovering Range: 0.5~40m
FOV: Horizontal <40deg Vertical <30deg
Operating EnvironmentForward Backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls trees people etc.)

Remote Controller &
Video Transmission

Operating Frequency2.400-2.4835GHz 5.725-5.850GHz 5.150-5.250GHz
Max Transmission Distance
(unobstructed free of interference)		FCC: 12KM
Operating Temperature Range0deg to 40degC
Transmitter Power (EIRP)FCC: <=30dBm
Battery Capacity3930 mAh
Max Battery Life3.5h (when connected to a mobile phone)
2.5h (when not connected to mobile phone)
Interface TypesType-C
Video Transmission SystemSkyLink
Max Transmission Quality2.7K(<1km)
Transmission Bitrate90 Mbps
Transmission delay
<=200ms

Intelligent Flight  Battery

Capacity6175 mAh
Voltage11.13 V
Max Charging Voltage12.75 V
Battery TypeLiPo 3S
Energy68.7Wh
Single Battery Charging Time90min
Max Charging Power78 W
Charging Temperature
5deg to 45degC

Charger

Input100-240 V 50/60 Hz
Output12.75V5A
Rated Power63.75W

APP


NameAutel/Sky
Mobile System RequirediOS 12.0 and above
Android 8.0 and above

Storage

Supported SD CardsBuilt-in 6GB Storage
Max. Support 256GB (UHS-3 Rating Required)


Camera Specifications:



Lite
Lite+
Sensor
CMOS: 1/1.28 inch
Effective Pixels: 50M
Pixel Size: 1.22mm*1.22mm
CMOS: 1 inch
Effective Pixels: 20M
Pixel Size: 2.4mm*2.4mm
Lens
FOV: 85deg
Equivalent Focal Length: 23mm
Aperture: f/1.9
Focus Range: 0.5m ~
Focus Mode: PDAF+CDAF/MF
FOV: 82deg
Equivalent Focal Length: 29mm
Aperture: f/2.8 ~ f11
Focus Range: 0.5m ~
Focus Mode: CDAF/MF
Shooting Mode
Automatic Mode (P Gear): EV Adjustable ISO/Shutter Automatic
Manual Mode (M Gear): ISO/Shutter Adjustable   EV not Adjustable
Shutter Priority (S Gear): Shutter/EV Adjustable ISO Automatic
Automatic Mode (P Gear): EV is Adjustable Shutter/Aperture is not Adjustable ISO is Automatic or Adjustable.
Manual Mode (M Gear): ISO/Shutter/Aperture is Adjustable EV is not Adjustable.
Shutter Priority (S File): Shutter/EV Adjustable Aperture Automatic ISO Automatic or Adjustable.
Aperture Priority (A Gear): Aperture/EV Adjustable Shutter Automatic ISO Automatic or Adjustable.
ISO Range
Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night Scene Mode: ISO up to 64000
Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night Scene Mode: ISO up to 64000
Shutter Speed
Photo Mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/Frame Rates
Photo Mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/Frame Rates
Portrait Blur
Real-time Image Transmission Portrait blur and Photo Portrait Blur
Real-time Image Transmission Portrait Blur and Photo Portrait Blur
Defog Mode
Support
Support
Zoom Range
Digital Zoom: 1 ~ 16 times
Lossless Zoom: 4K: 2 times; 1080p: 4 times
Note:
4K: more than 2 times the digital the following is lossless
1080P: more than 4 times the digital the following is lossless
Digital Zoom: 1 ~ 16 times
Lossless Zoom: 4K: 1.3 times; 1080p: 3 times
Note:
6K: Digital Zoom
4K: more than 1.3 times the digital the following is lossless
1080P: more than 3 times the digital the following is lossless
Photo Format
JPG / DNG / JPG+DNG
JPG (10bit) / DNG (12bit) / JPG+DNG
Photo   Resolution
50MP: 8192x6144 (4:3)
12.5MP (default): 4096x3072 (4:3)
4K: 3840x2160 (16:9)
5472x3648 (3:2 default)
5472x3076 (16:9)
3840x2160 (16:9)
Photo Shooting Mode
Single Shot
Burst Shooing: 3/5
Auto Exposure Bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
HDR Imaging: 8192x6144/4096x3072/3840x2160
HyperLight: 8192x6144/4096x3072/3840x2160
Single Shot
Burst Shooing: 3/5
Auto Exposure Bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s)
HDR Imaging: 5472x3648/3840x2160
HyperLight: 5472x3648/3840x2160
Video Coding Format
H265/H264
H265/H264
Video Resolution
3840x2160 p60/50/48/30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p120/60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 P60/50/48/30/25/24
5472x3076 p30/25/24
3840x2160 p60/50/48/30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p120/60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p60/50/48/30/25/24
Max Bitrate
120Mbps
120Mbps
Timelapse
Original Image: 3840*2160 JPG/DNG
Video: 4K P25
Original Image: 5472*3076/3840*2160 JPG/DNG
Video: 5.4K/4K P25
Panorama
Horizontal/Vertical/Wide-angle/Spherical
Original Image: 4096*3072 JPG/DNG
Horizontal/Vertical/Wide-angle/Spherical
Original Image: 5472*3648 JPG/DNG
Supported File System
Fat32 exFat
Fat32 exFat
Video Format
MP4/MOV
MP4/MOV
WIFI Transfer
20MB/s
20MB/s


Features:

- Support 2.4GHz/5.8GHz/5.2GHz tri-band
- Effective image transmission range up to 12KM (7.4Miles).
- Real-time image transmission resolution 2.7K/30FPS
- Obstacle Avoidance
- Maximum battery life up to 40mins
- Lite with RYYB Sensor / 50MP / 40HDR / 0.8' CMOS / PDAF+CDAF
- Lite+ with 1' CMOS / F2.8-F11 / 6K 30P / 20MP

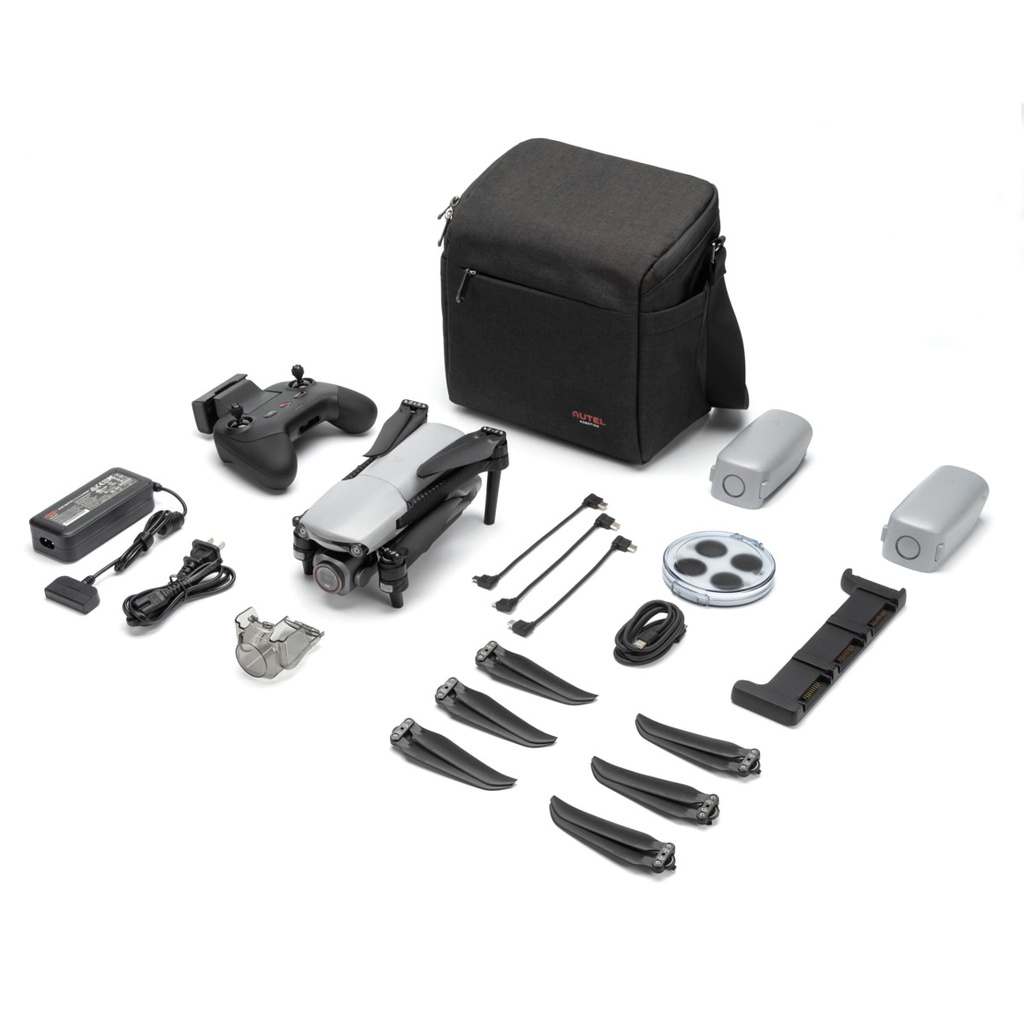

Package Included:


Standard Version:
1 x EVO Lite+ Aircraft
1 x Remote Control
1 x 6175mAh Battery
1 x Charger
1 x Remote Control Cable
2 x Spare Propeller
3 x USB Cable
1 x User Manual

Fly More Combo:
1 x EVO Lite+ Aircraft
1 x Remote Control
3 x 6175mAh Battery
1 x Charger
1 x Remote Control Cable
6 x Spare Propeller
3 x USB Cable
1 x Storage Bag
1 x User Manual



Specifications

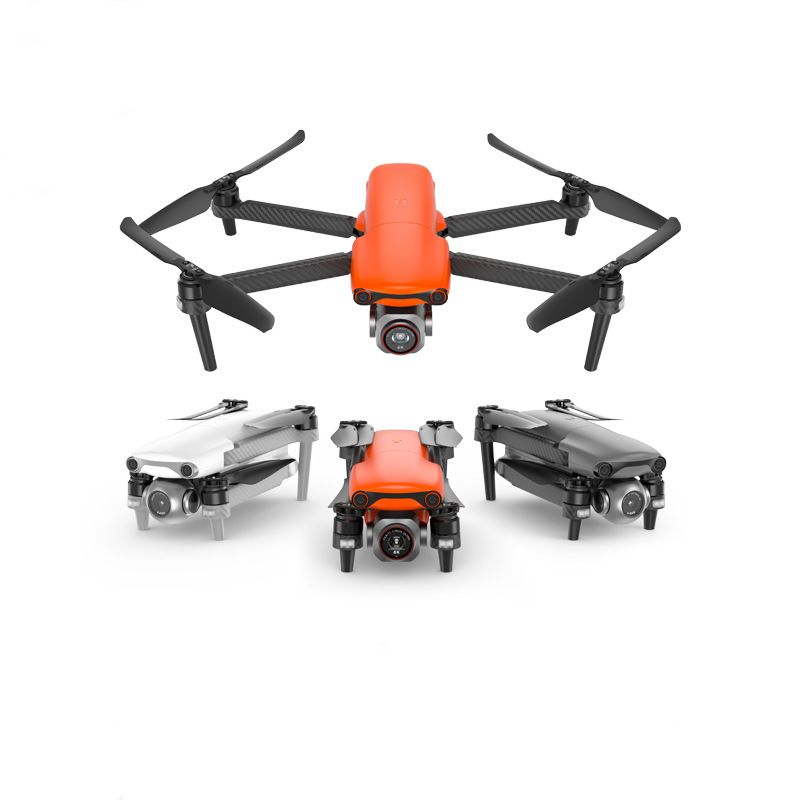

Color White or Grey or Orange
Mode Standard Version or Fly More Combo
