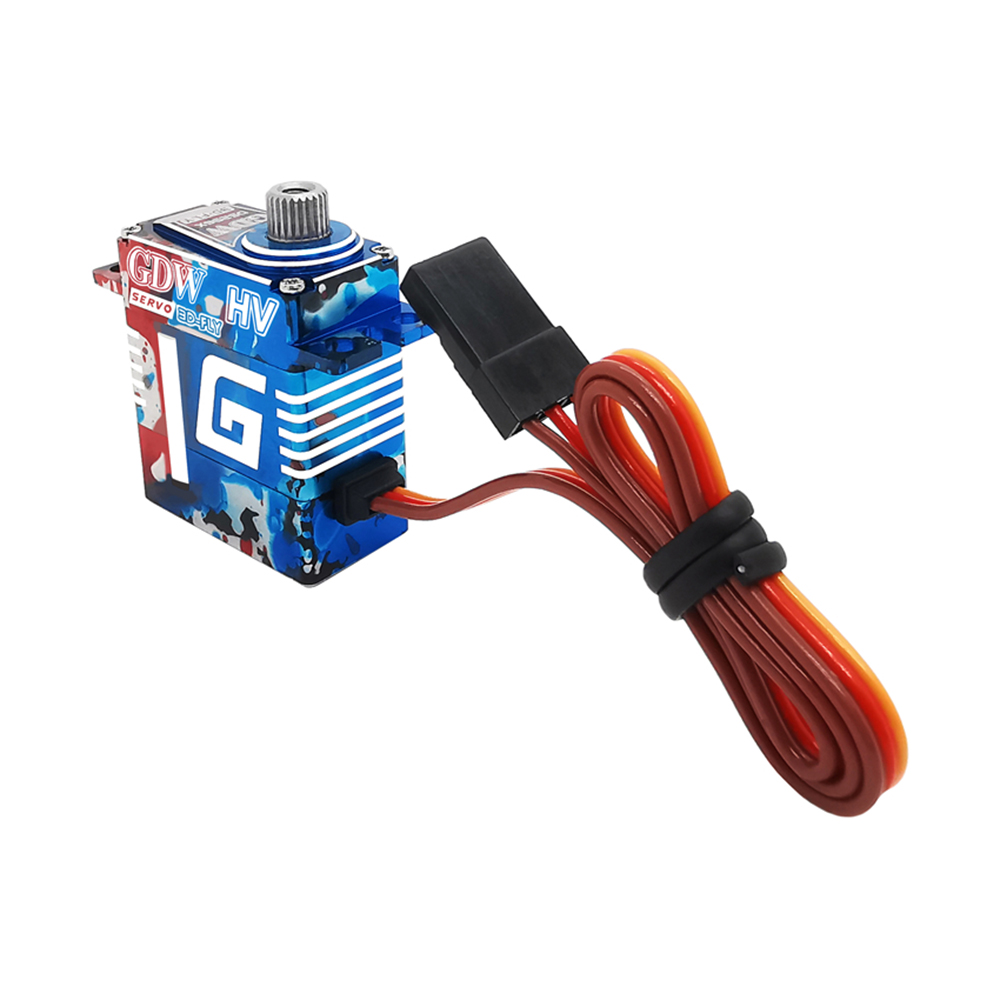

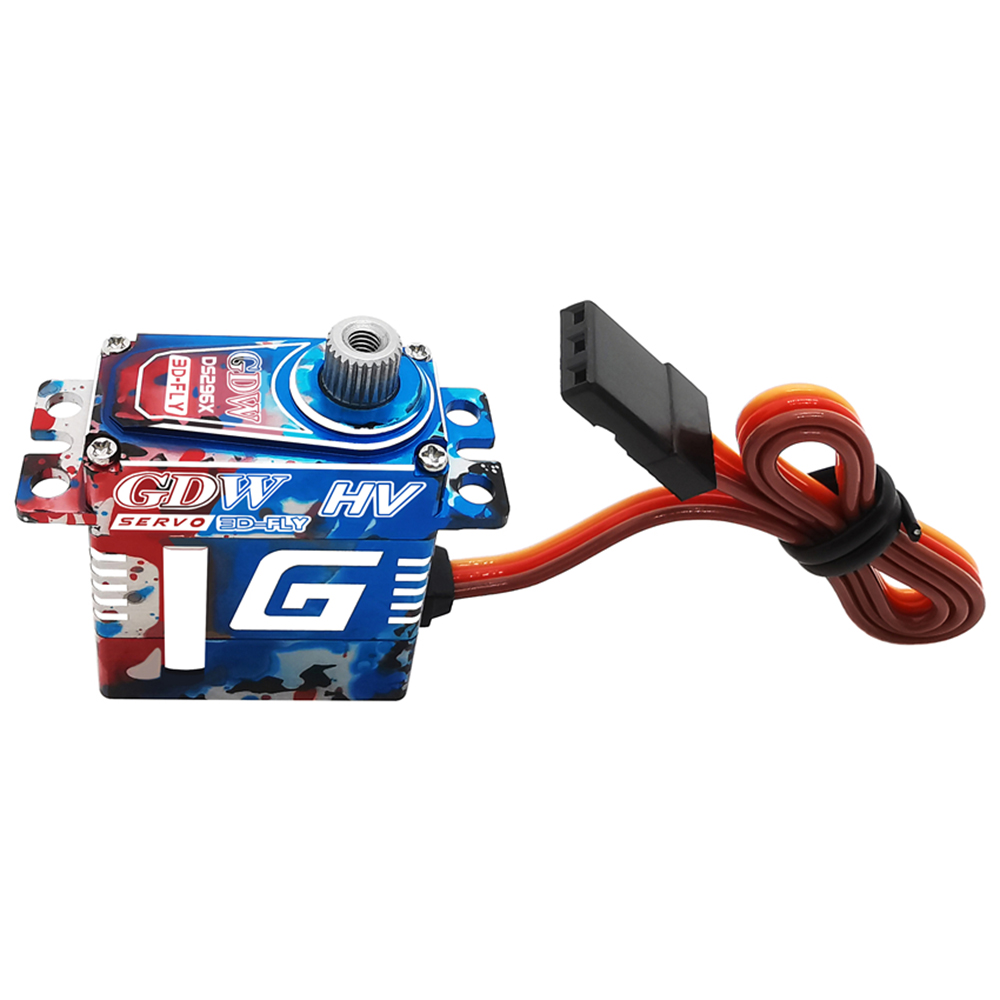

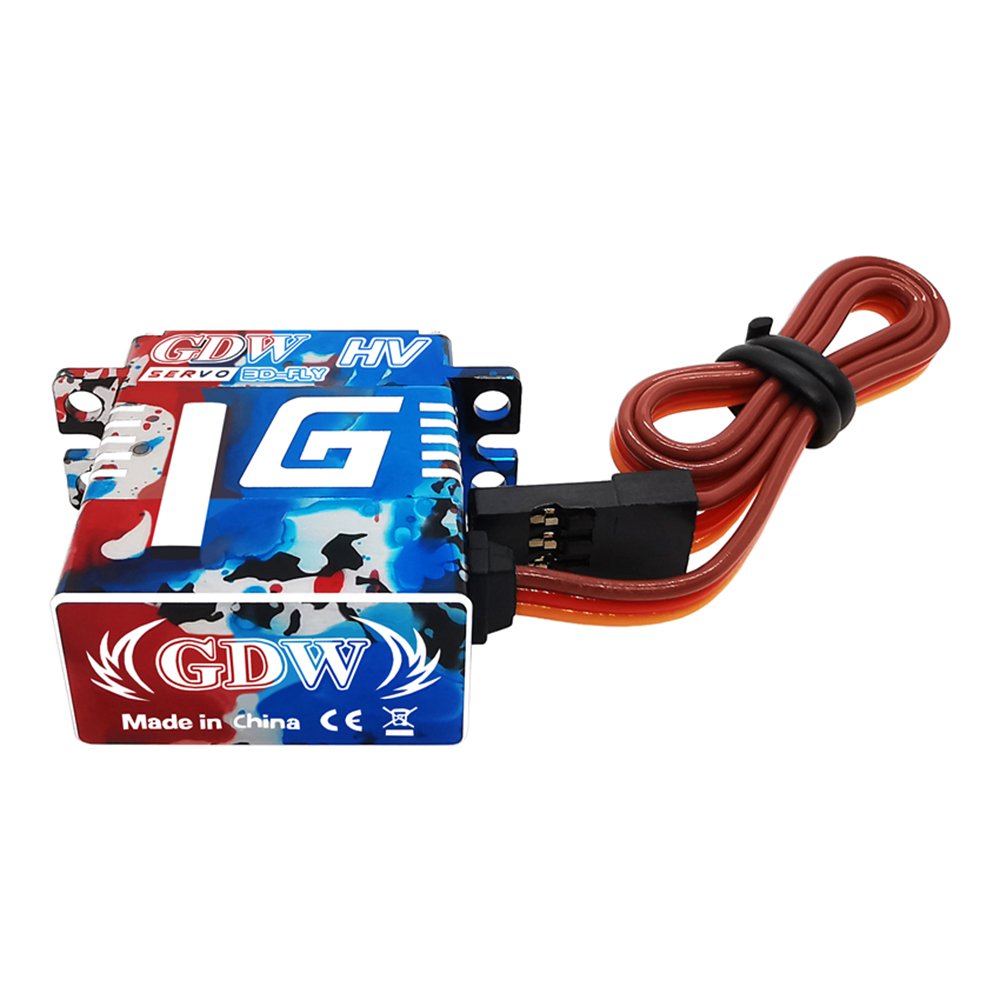

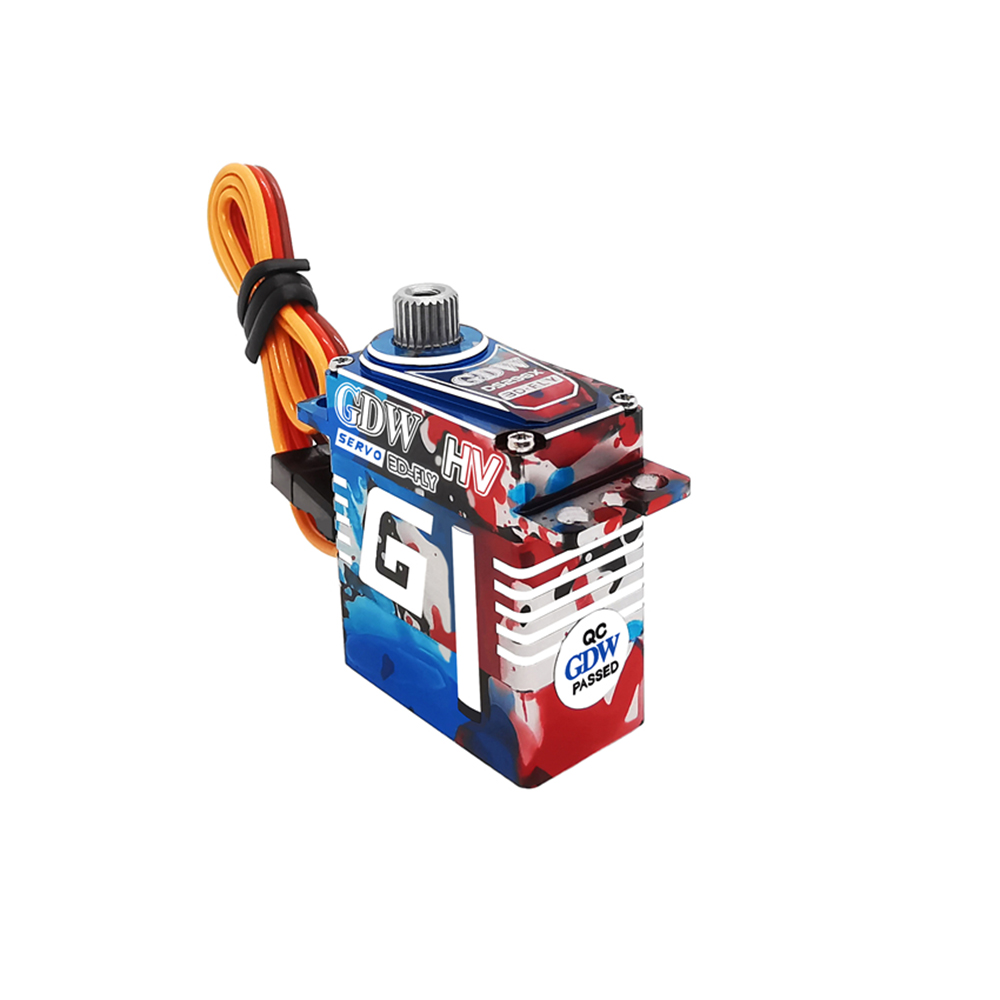

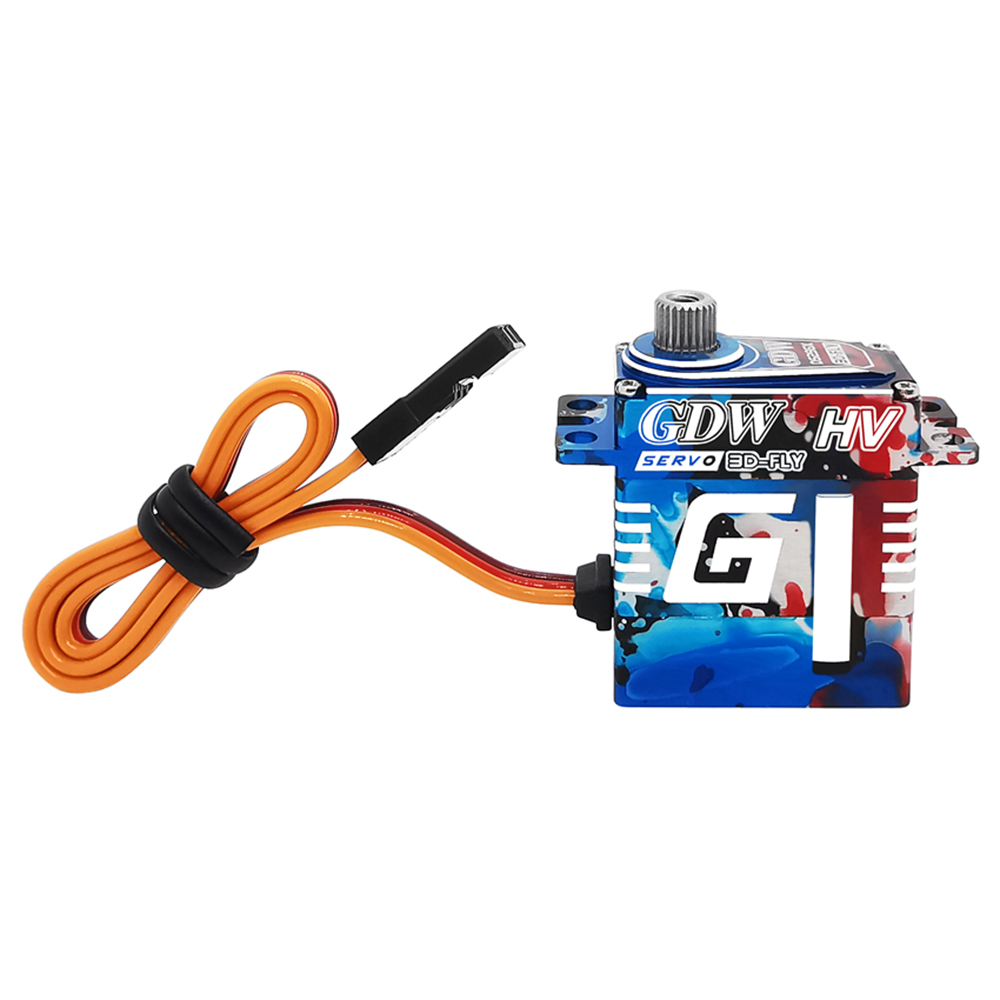

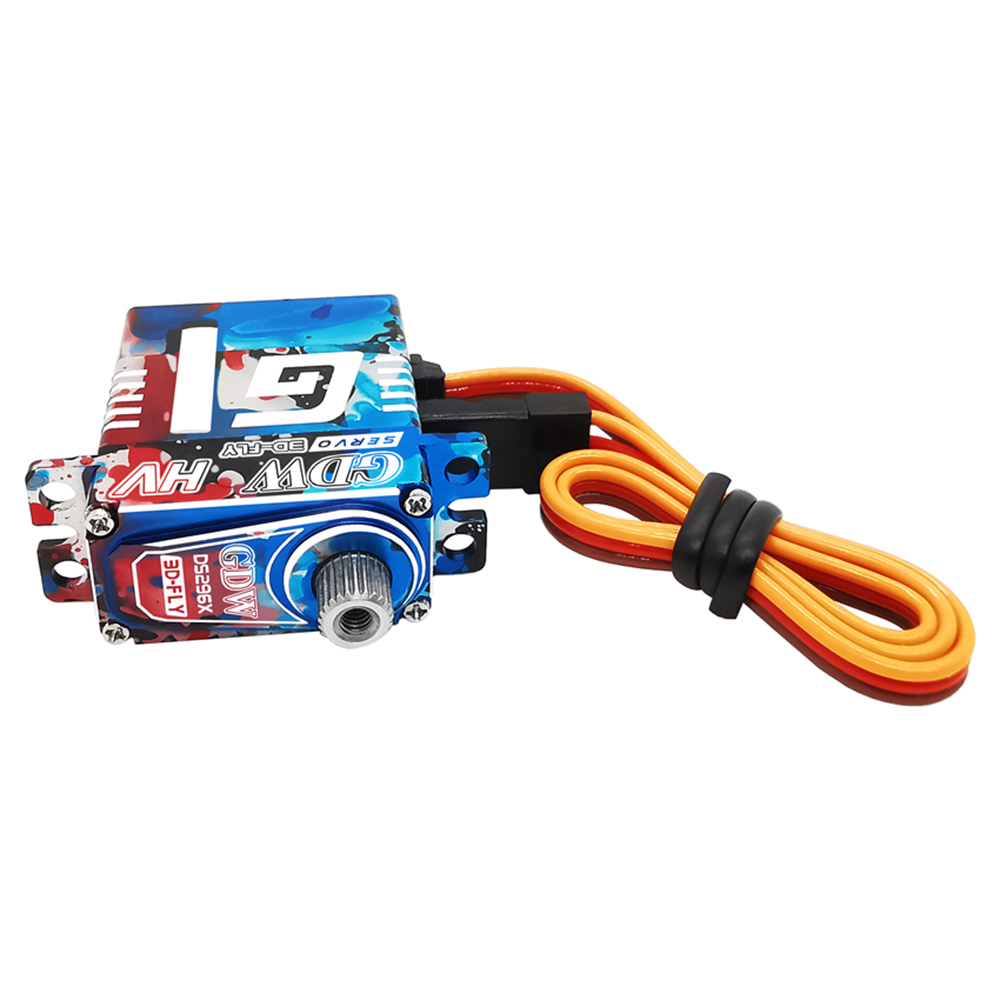

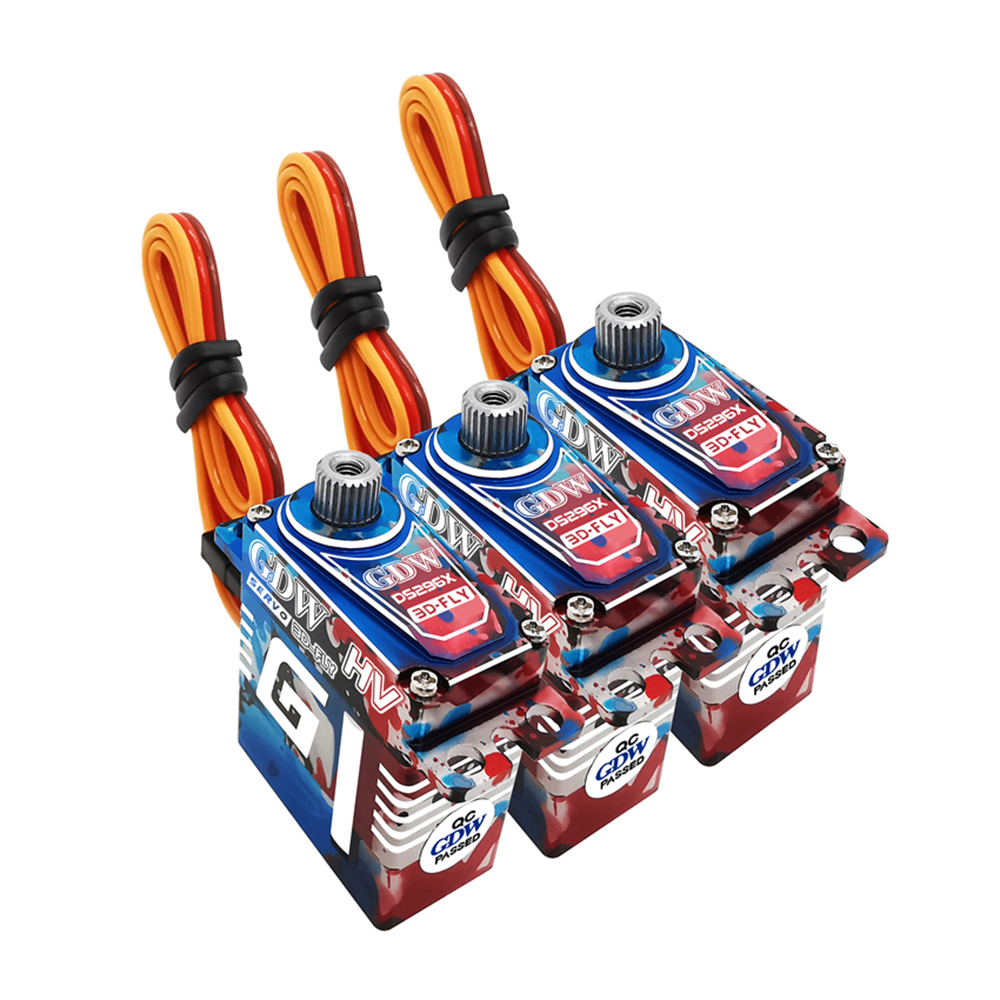

GDW DS296X 10KG 60 Degree High Torque Metal Gear Digital Servo for RC Airplane Fixed Wing Glider Helicopter RC Boat Robot
Specifiaction:
Brand: GDW
Model: DS296X
Operation Voltage Range: 4.8V up to 8.4V
Operation Temperature Range: -20Cdeg up to +60Cdeg
Working frequency: 1520us/333Hz
Version: 30E Fixed Wing Glider Turbo jet (Optional)
| Bench tests reported values | |||
| Test Voltage | 6.0V | 7.4V | 8.4V |
| Speed | 0.11sec/60deg | 0.10sec/60deg | 0.09sec/60deg |
| Torque | 7.8Kg.cm | 9.0Kg.cm | 10Kg.cm |
| Fast continuous operating current | 400mA | 500mA | 600mA |
| Stall current | 1500mA | 2000mA | 2400mA |
| Dead Band Width | 3m | ||
| General Data | |
| Motor Type: | Coreless motor 12*15mm |
| Potentiometer Type: | Japan noble 220deg |
| Chip type: | Digital |
| Weight: | 20+-1g |
| Gear Material: | Steel gear |
| Structural materials : | Internediate metal |
| Horn Gear Spline: | 25T Ph4.93mm |
| Wire length: | 220+-5mm/600+-5mm |
| Wire Diameter: | 0.15mm2 |
| Number of wire cores: | 30 |
Package Included
1x GDW DS296X 10KG 60 Degree High Torque Metal Gear Digital Servo
