Hubsan MINI GPS 6KM FPV with 1/1.3 CMOS 4K 30fps Camera 3-axis Gimbal 45mins Flight Time AI Tracking RC Drone Quadcopter RTF
Hubsan MINI GPS 6KM FPV with 1/1.3 CMOS 4K 30fps Camera 3-axis Gimbal 45mins Flight Time AI Tracking RC Drone Quadcopter RTF
Specifications:

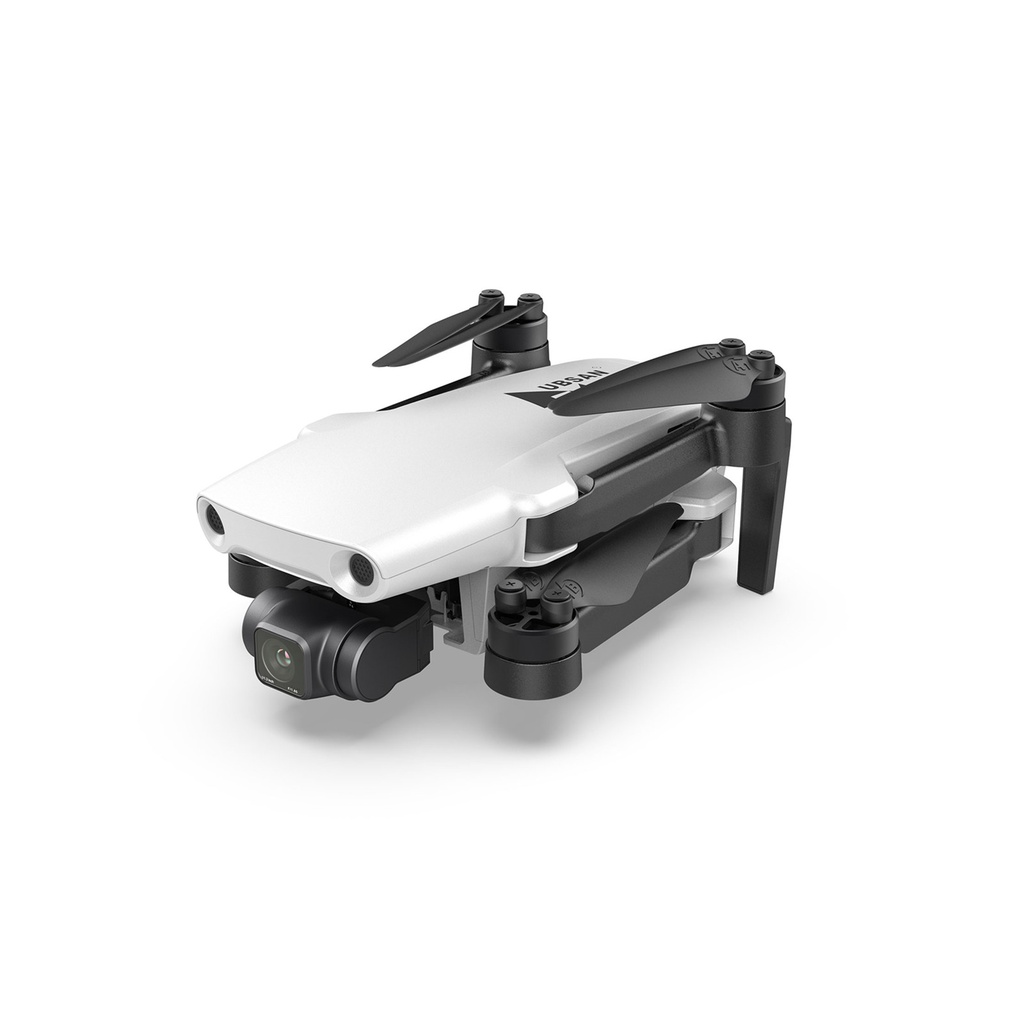

Aircraft | Dimensions | Expand: 202.54x161.2x61.6mm Folded: 137x88x61.6mm Folded with Propeller: 137x94x61.6mm |
| Diagonal Wheelbase | 220mm | |
| Color | White & Black | |
| Takeoff Weight (with battery) | 260g | |
| Hover Accuracy | Vertical: +- 0.1m (when the visual positioning is working normally) +- 0.5m (when GPS is working normally) Horizonta: +- 0.3m (when the visual positioning is working normally) +- 1.5m (when GPS is working normally) | |
| Max Ascension Speed | 3m/s (N) 4m/s (S) 2m/s (F) | |
| Max Descent Speed | 3m/s (N) 3.5m/s (S) 1.5m/s (F) | |
| Maximum Horizontal Flying Speed (Windless at Sea Level) | 8m/s (N No wind at sea level) 16m/s (S No wind at sea level) | |
| Maximum Take-off Altitude | 4000m | |
| Max Wind Speed Resistance | Level-5 (8.5-10.5m/s) | |
| Max Tilt Angle | 40deg(S) 25deg(N) 15deg(F) | |
| Positioning | GPS + GLONASS / BDS | |
| Max Flying Time | 45 minutes (measured while flying at 25km/h in windless conditions) | |
Power System | Maximum Working Current | 16A |
| Propeller | Model: Foldable & Diameter 125.6mm Color: Black | |
| Motor | Outward Rotation Brushless Motor 1503 KV2820 | |
| ESC | 4-IN-1 Digital ESC | |
Camera | CMOS Image Sensor | 1/1.3inch CMOS Sensor 2.4um mixed large pixel |
| Lens Specifications | FOV 84deg Aperture f/1.85 EFL: 6.8mm Focus Point: 5m to Distortion: <1.5% | |
| Maximum Photo Size | 4000 x 3000 4000 x 2250 | |
| Maximum Video Encoding | 4K@30fps | |
| Video Resolution | 4K: 3840 x 2160 @ 30fps 2.7K: 2720 x 1530 @ 30fps FHD: 1920 x 1080 @ 30fps | |
| Electronic Shutter Speed | 3-1/8000s | |
| Night Mode | Support | |
| Portrait Mode | Support | |
| Video Bitrate | 45Mbps-100Mbps | |
| Photo Format | JPEG | |
| Video Format | MP4 (H.264/MPEG-4 AVC) | |
| Firmware Upgrade | SD card or APP Online Upgrade | |
| Supported SD Cards | MicroSD Card U3 or Class10 above 16G/32G/64G/128G | |
Wireless Transmission System | Image Transmission System | SyncLeas 2 |
| Effective Range | FCC: 6KM CE: 6KM; SRRC: 6KM | |
| Average Bitrate | 2 Mbps | |
| Transmission Delay | Within 250ms | |
| Antenna | Built-in Dual Antenna | |
Gimbal | Stabilization | 3-Axis (tilt roll pan) |
| Degree of Freedom | Triaxial | |
| Max Pitch Speed | 120deg/s | |
| Mechanical Range | Pitch: -111.1deg to 45deg Roll: +- 35deg Yaw: +- 35deg | |
Flight Controller | FC Version | Third-generation Flight Controller |
| Basic Flight Mode | Sports Mode / Normal Mode / Movie Mode | |
| Altitude Hold Mode | Tof Barometer | |
| Fixed-point | Visual Optical Flow GPS | |
| Unlock/Lock | Outer 'Eight' Unlock/Lock | |
| One Key Take-off/Landing | APP Supported Remote Control Unsupported | |
| Headless Mode | ||
| Out of Control Protection | ||
| Low Battery Return | ||
Home Visual Recognition (search for drone apron) | ||
| Visual Tracking | Third-generation Tracking Technology (ATVT 3.0) | |
| Waypoint Flight | ||
| Flying Around | ||
| Ray Flight | ||
| Time-lapse Photography | ||
| Automatic Drifting | ||
| Motor Stall Protection | ||
| Firmware Upgrade | APP Online Upgrade | |
Sensing System | Forward | Binocular Visual Perception Precision Measurement Distance <12M Fluctuate <0.5M Perception Distance >15M |

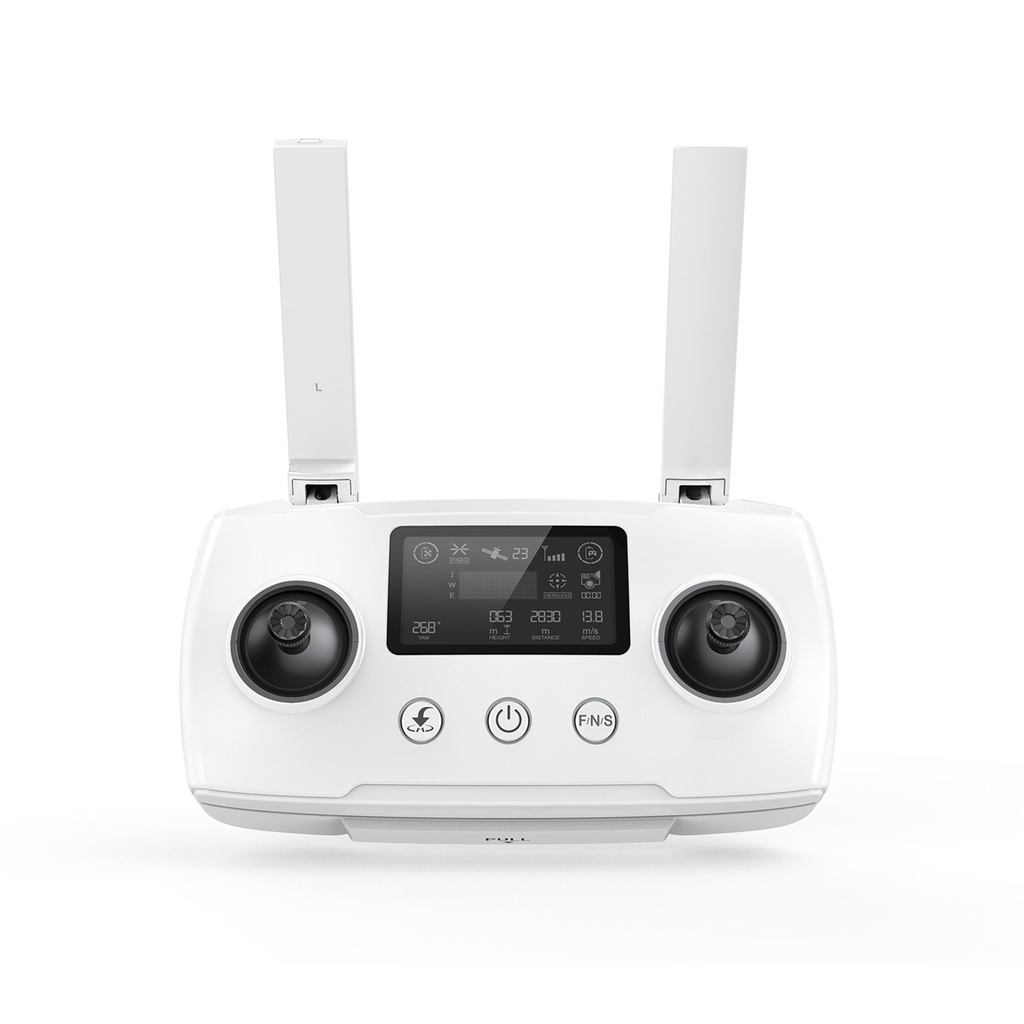

Remote Control | Color | White |
| Display | Highlight LED Display | |
| Operating Environment Temperature | -10 Deg.C- 60 Deg.C | |
| Effective Range | FCC: 6KM CE: 6KM; SRRC: 6KM | |
| Built-In Battery | 3350mAh | |
| Mode | Mode 2 (Left Hand Throttle) | |
| Buzzer | Support | |
| Support Mobile System | Android iOS | |
| Working Time | 2.5h (Normal Flight Time) | |
| Interfaces Type | Lighting / Micro USB / Type-C | |
Battery | Battery Type | Li-ion Battery |
| Capacity | 3000 mAh | |
| Standard Voltage | 3.6x2=7.2V | |
| Charging Limit Voltage | 8.4V | |
| Discharge Rate | 8C | |
| Charging Time | 90 minutes | |
| Weight | 99.8g | |
| Working Environment Temperature | 0 Deg.C- 50 Deg.C | |
| Charging Environment Temperature | 0 Deg.C- 40 Deg.C | |
| Smart Battery Balance | ||
| Intelligent Power Management | ||
| Automatic Discharge Protection | ||
APP | APP Name | X-Hubsan 2 |
Mobile Device | Requirements | iOS 10.0 or higher |
Features:
- Lightweight & Foldable Design
- 1/1.3inch CMOS 4K
- 1080P 30fps Video Transmission
- Hubsan Syncleas 2.0 1080P/30fps 2 Mbps 6 KM
- Up to 45 Minutes of Flight Time
- 6KM Remote Control Distance
- Optical-flow night light
- ATVT 3.0 Al Tracking Mode
Package Included:
1 x Hubsan MINI Drone
1 x Remote Controller
1 x Drone Battery
1 x Pair of Propellers
1 x Intelligent Charger
1 x Micro-USB Cable
1 x Micro-USB RC Cable
1 x USB Type-C RC Cable
1 x RC Cable for iPhones
1 x Screwdriver
1 x Manual
Specifications
| Mode | Without Storage Bag or With Storage Bag |
| Battery | One Battery or Two Batteries |
