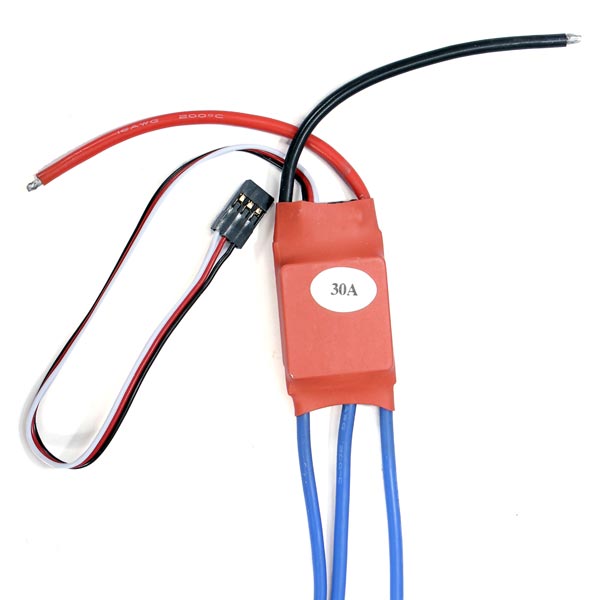

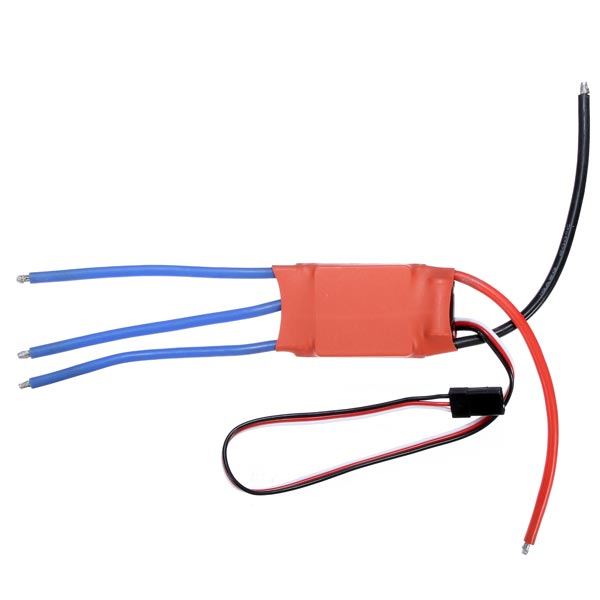

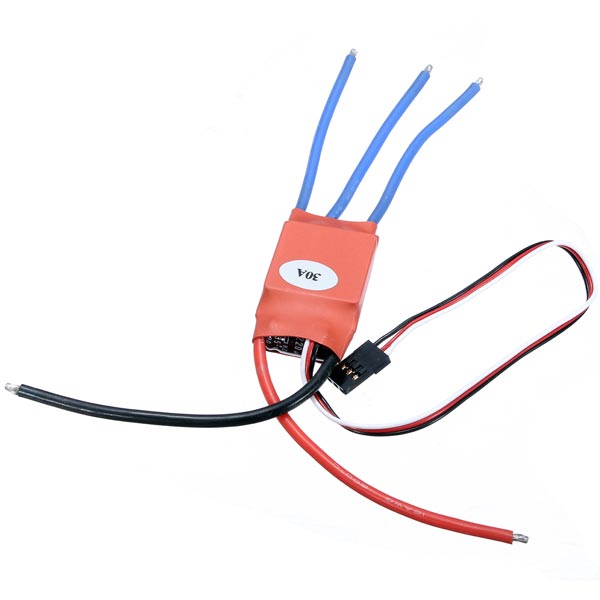

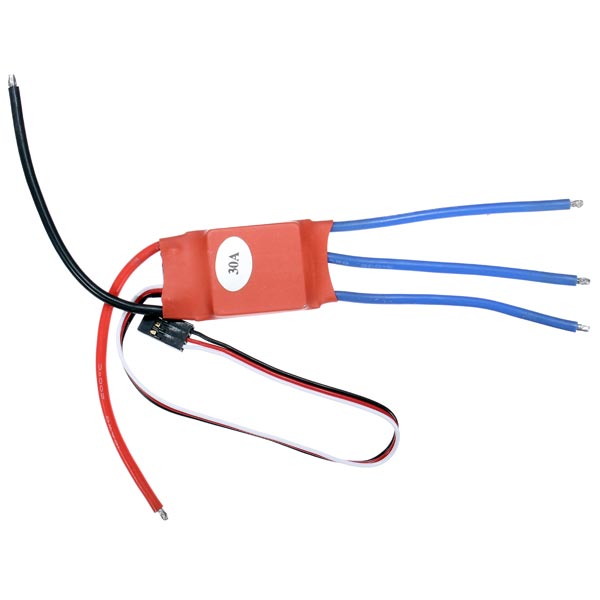

SimonK 30A 2-3S Brushless ESC With 5V 3A ESC For RC Model

SimonK 30A 2-3S Brushless ESC With 5V 3A ESC For RC Model

Description:

Item Name:30A SimonK Procedure Brushless ESC
Input Voltage: (2-3S Lixx red)
Drive Current: 30A (Max: 40A/10S)
Size 50x23x8
BEC:5V/3A
Weight: 25g

Features:

1).This hardware with the SimonK firmware gives you the perfect solution for multirotor use;
2).Highest efficiency 100% N-FET design;
3).Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's);
4).No low voltage cut off because any cutoff in a multirotor = crash;
5).No over temp cutoff because any cutoff in a multirotor = crash;
6).Super high refresh rate no buffering of the input signal resulting in more than 490Hz response rate;
7).16KHz motor frequency giving fastest response of the motor and quietest operation as well (no 8KHz squeal);
8).Super simple foolproof operation! Nothing to program other than the throttle range;
9).It is suitable for rc helicopter and four axis plane.

Package Included:

1 x 30A Brushless ESC
