  2. Voltage Capacity Display 5 LED Battery Indicator Board to 1S 2S 3S 4S 3.6V-16.4V Li-ion LiPo Battery
Allgemeine Preisliste

Voltage Capacity Display 5 LED Battery Indicator Board to 1S 2S 3S 4S 3.6V-16.4V Li-ion LiPo Battery

https://www.rcwarehouse.nl/web/image/product.template/1726/image_1920?unique=0483037

11,49 € 11.49 EUR 11,49 €

11,49 €

    Diese Kombination existiert nicht.

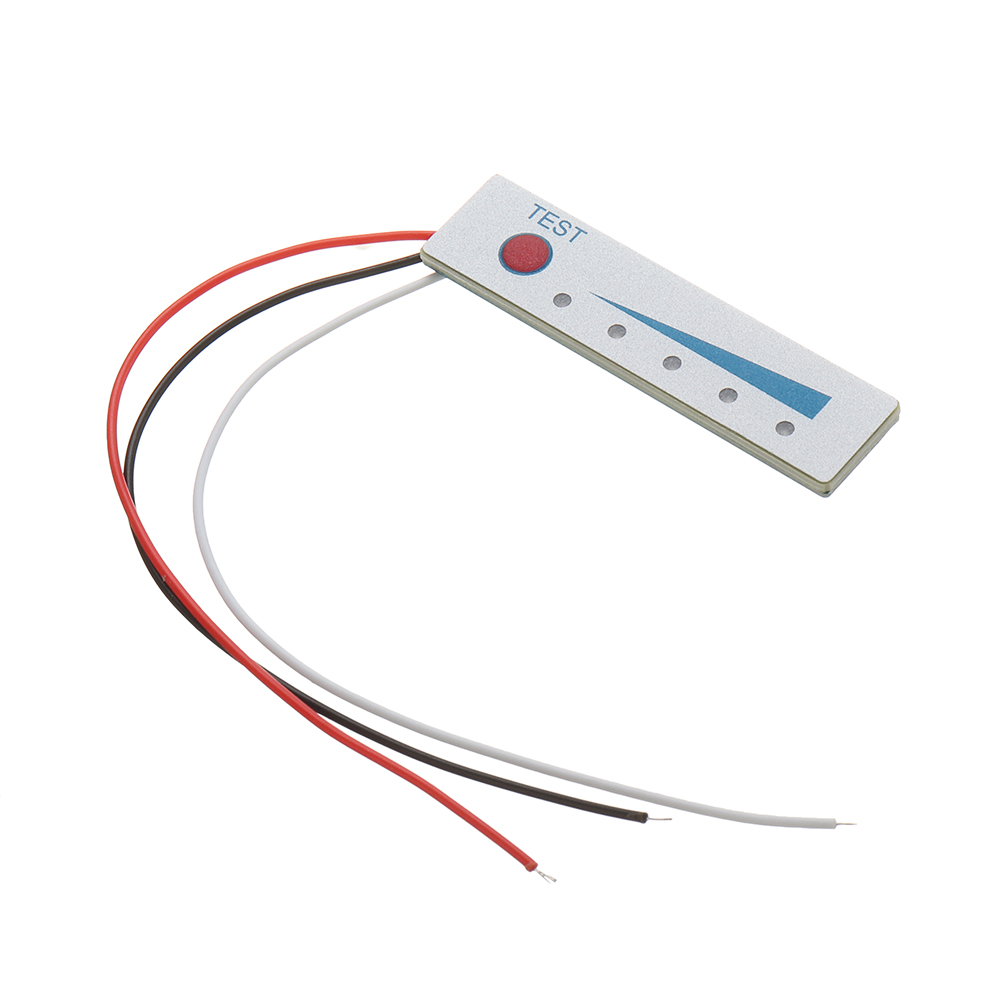

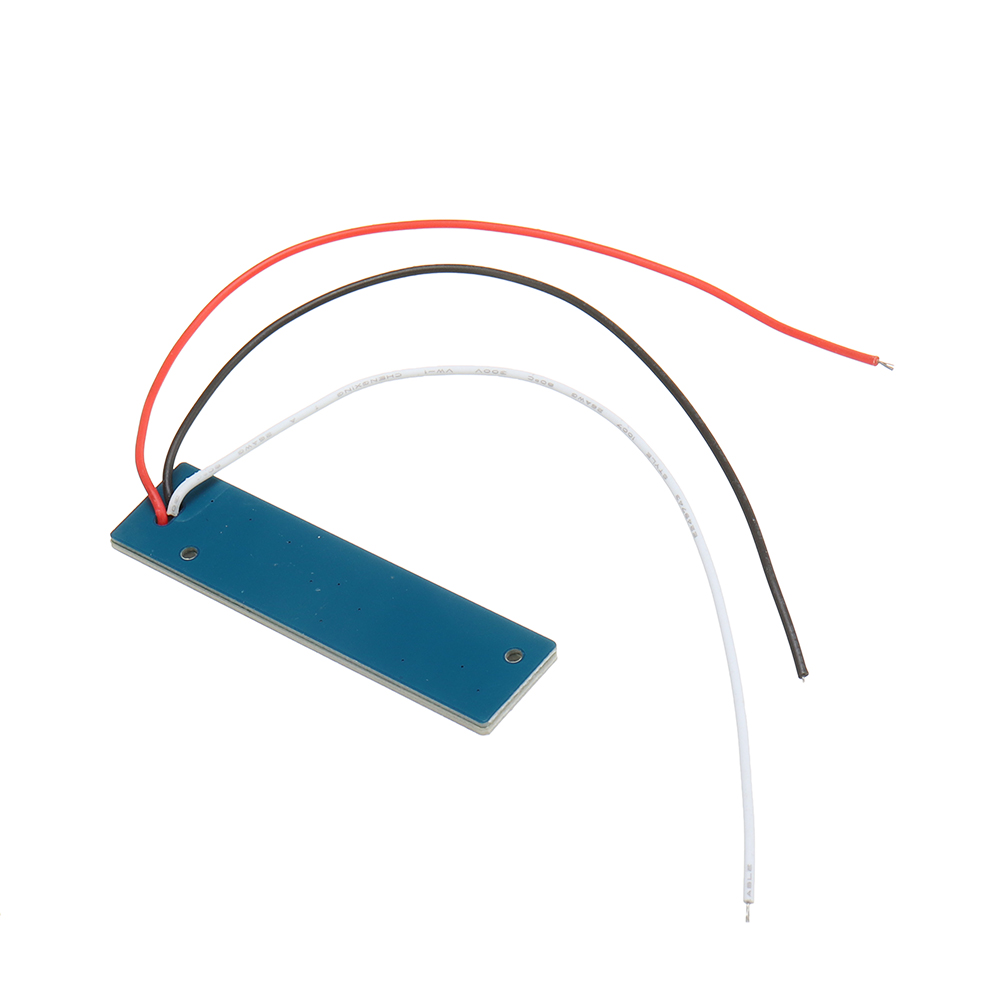

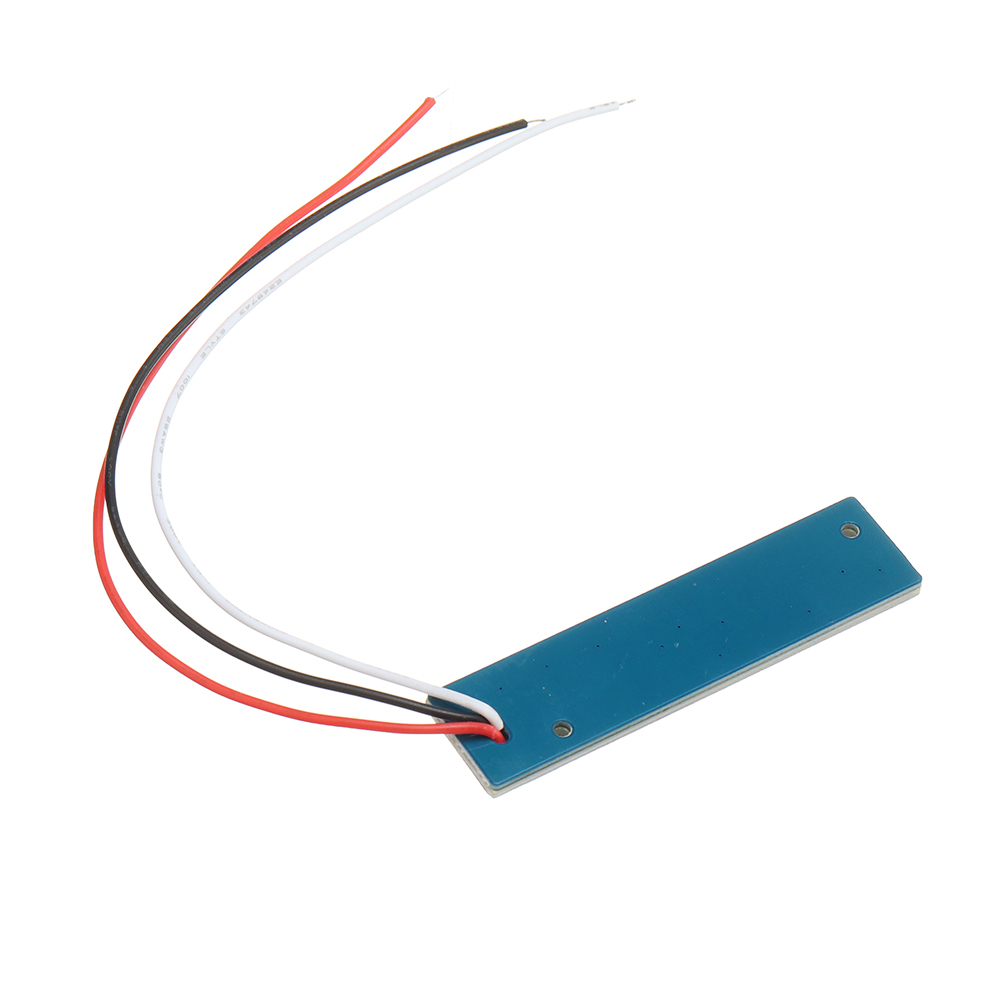

    Universal Voltage Capacity Display 5 LED Indicator to 1S 2S 3S 4S 3.6V-16.4V Li-ion LiPo Battery For RC Drone


    Features
    Used for Li-ion or Li-Po battery voltage or capacity percent display
    This PCB can show the level of battery in five scale 10% 30% 50% 75% and 100%
    After pressing the button the level will show up. The LED is blue in color
    The indication will last for 3 seconds.

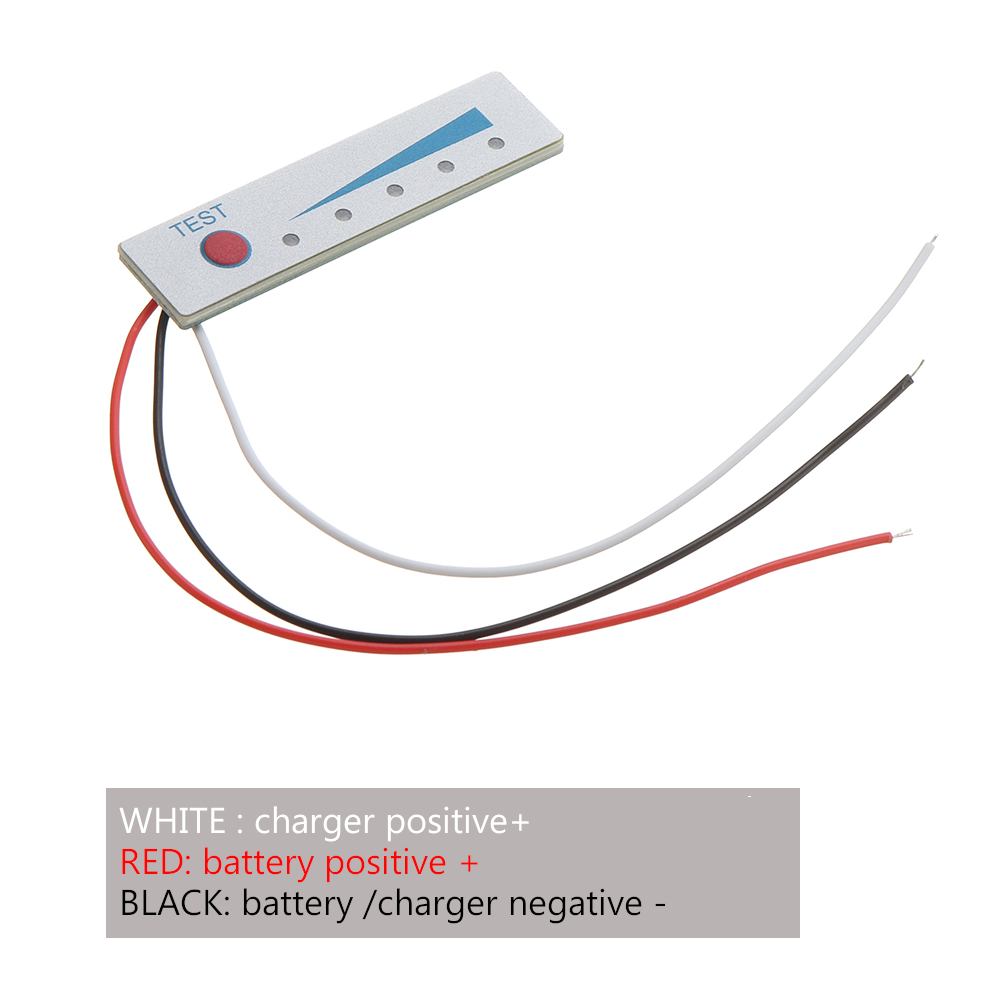

    RED: battery positive
    BLACK: battery negative/charger negative
    WHITE : charger positive

    Parameter
    Model : 1S (2.8V-1.4V) /2S(5.6V-8.2V) /3S(8.4V-12.3V)/ 4S(11.2V-16.4V) optional

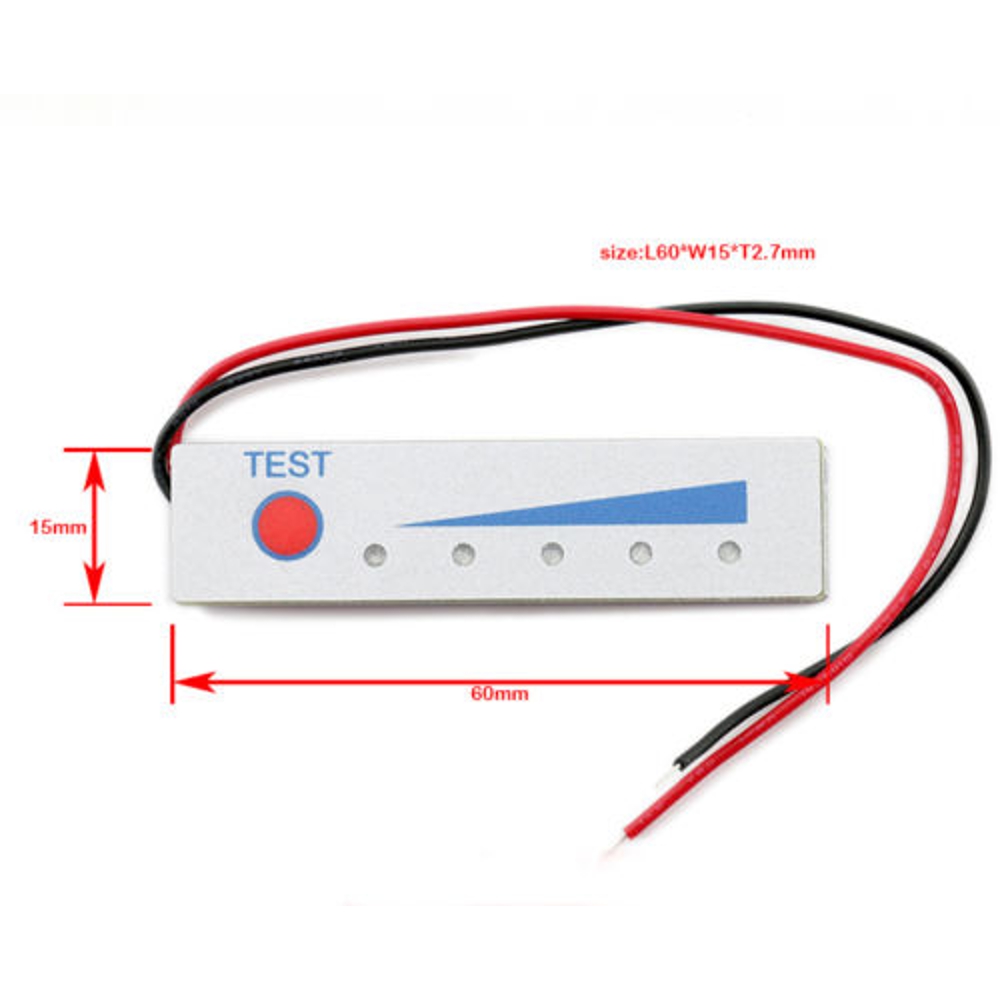

    Size:60mm(2.36')*15(0.59')mm*2.8(0.11')mm
    Active current : 10mA

    Note:
    If use it as charging indication a diode to isolate the charger and lipo is necessory.
    This protective board has anti-reverse connection protection function and built-in anti-static protection circuit yet do not touch the components on board while working so as not to damage the board by static electricity
    1. Please follow the connection schematic diagram strictly.
    2. After wiring is completed please charge first and then output can work.
    3.  When multiple battery packs are conencted in series please enssured that the voltage value of each battery pack is the same.If not please fully charge each lipo pack before using in series. During discharging test the battery pack's power dropping rapidly which is the bad battery.
    4. It requires activation by charging each time.
    5. Do not mix good battery with bad ones. The capacity values of 3 battery packs as close as possible.( the using effect of 2 good batteries+1 bad battery = 3 bad batteries)


    Product Gallery

    1S:


    •
      4.10V

      10%
      30%
      50%
      75%
      100%
      3.75V
      10%
      30%
      50%
      75%
      100%
      3.60V
      10%
      30%
      50%
      75%
      100%
      3.45V
      10%
      30%
      50%
      75%
      100%
      below 3.45V
      10%
      30%
      50%
      75%
      100%

    2S:

    8.2V

    10%
    30%
    50%
    75%
    100%
    7.5V
    10%
    30%
    50%
    75%
    100%
    7.2V
    10%
    30%
    50%
    75%
    100%
    6.9V
    10%
    30%
    50%
    75%
    100%
    below 6.9V
    10%
    30%
    50%
    75%
    100%


    3S:
    •
      12.3V

      10%
      30%
      50%
      75%
      100%
      11.25V
      10%
      30%
      50%
      75%
      100%
      10.8V
      10%
      30%
      50%
      75%
      100%
      10.35V
      10%
      30%
      50%
      75%
      100%
      below 10.35V
      10%
      30%
      50%
      75%
      100%
    4S:
    •
      16.4V

      10%
      30%
      50%
      75%
      100%
      15V
      10%
      30%
      50%
      75%
      100%
      14.4V
      10%
      30%
      50%
      75%
      100%
      13.8V
      10%
      30%
      50%
      75%
      100%
      below 13.8V
      10%
      30%
      50%
      75%
      100%


    Package Included
    1 x Universal Voltage Capacity Display 5 LED Indicator to 1S 2S 3S 4S 3.6V-16.4V Li-ion LiPo Battery For RC Drone
