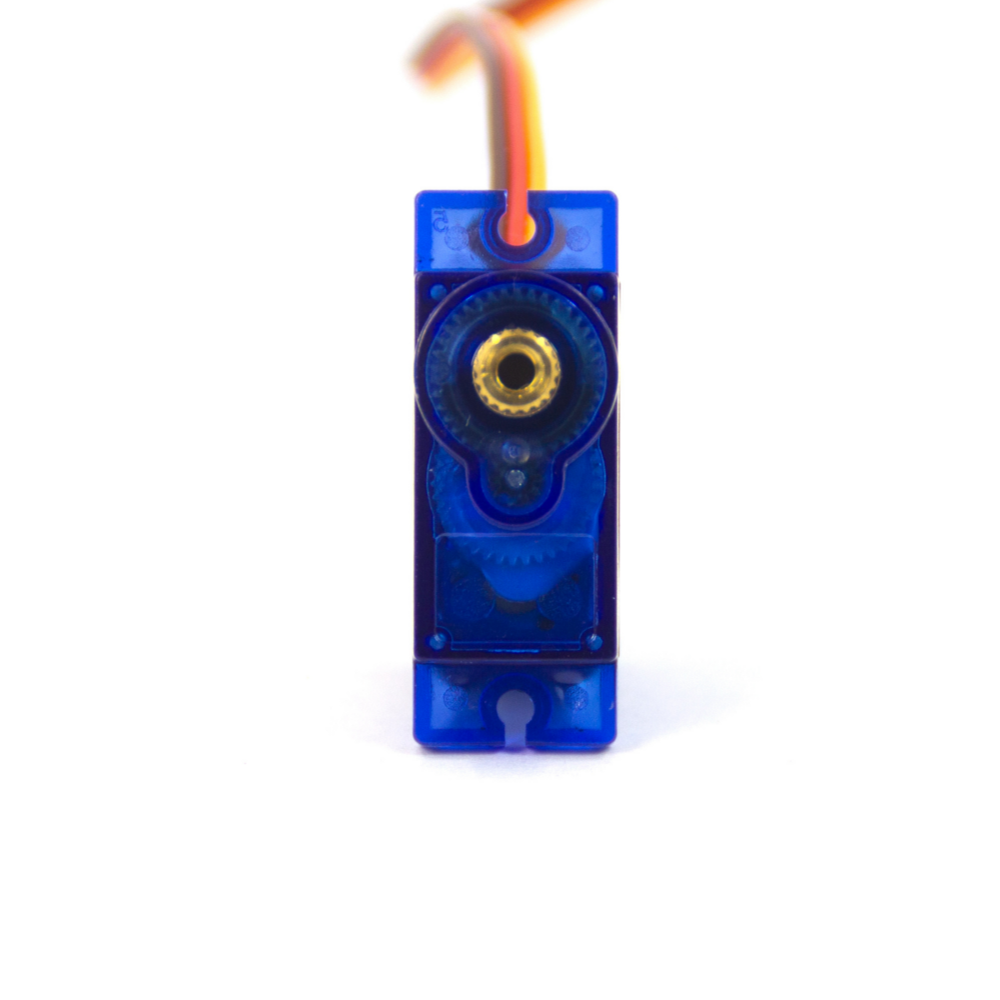

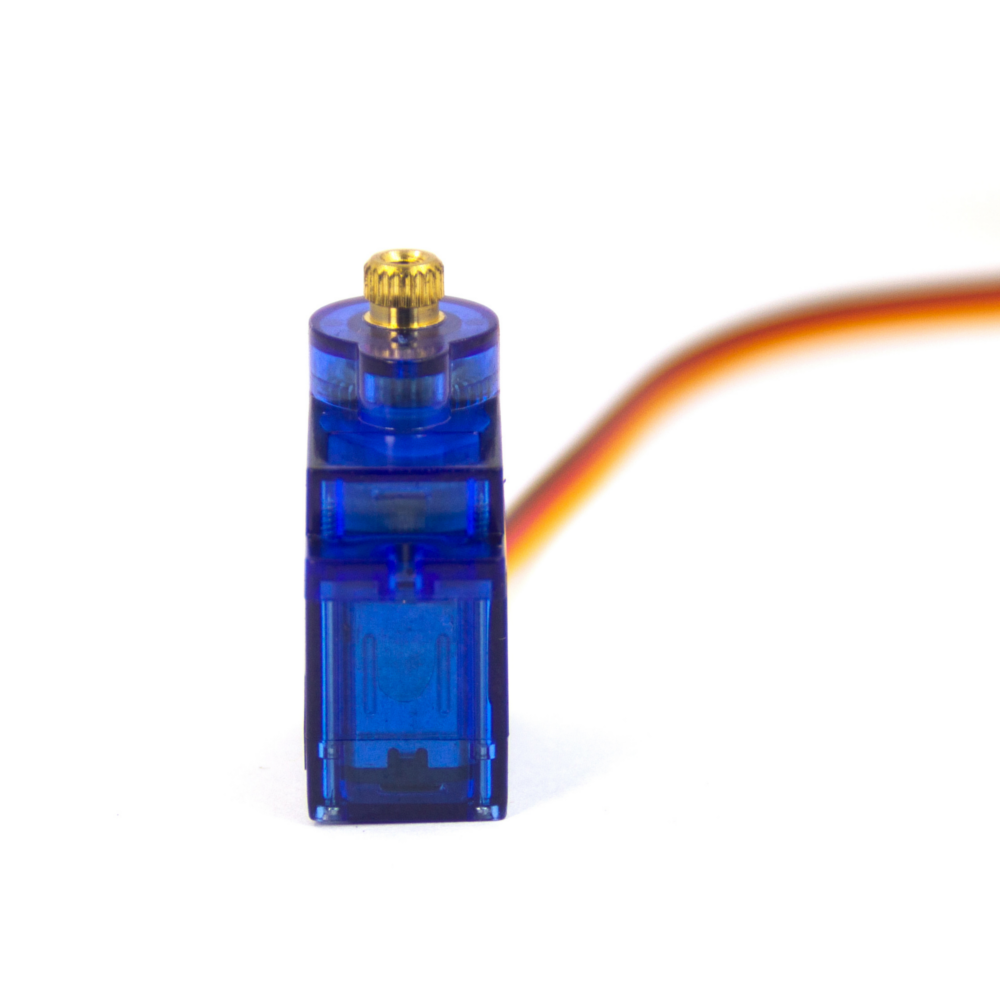

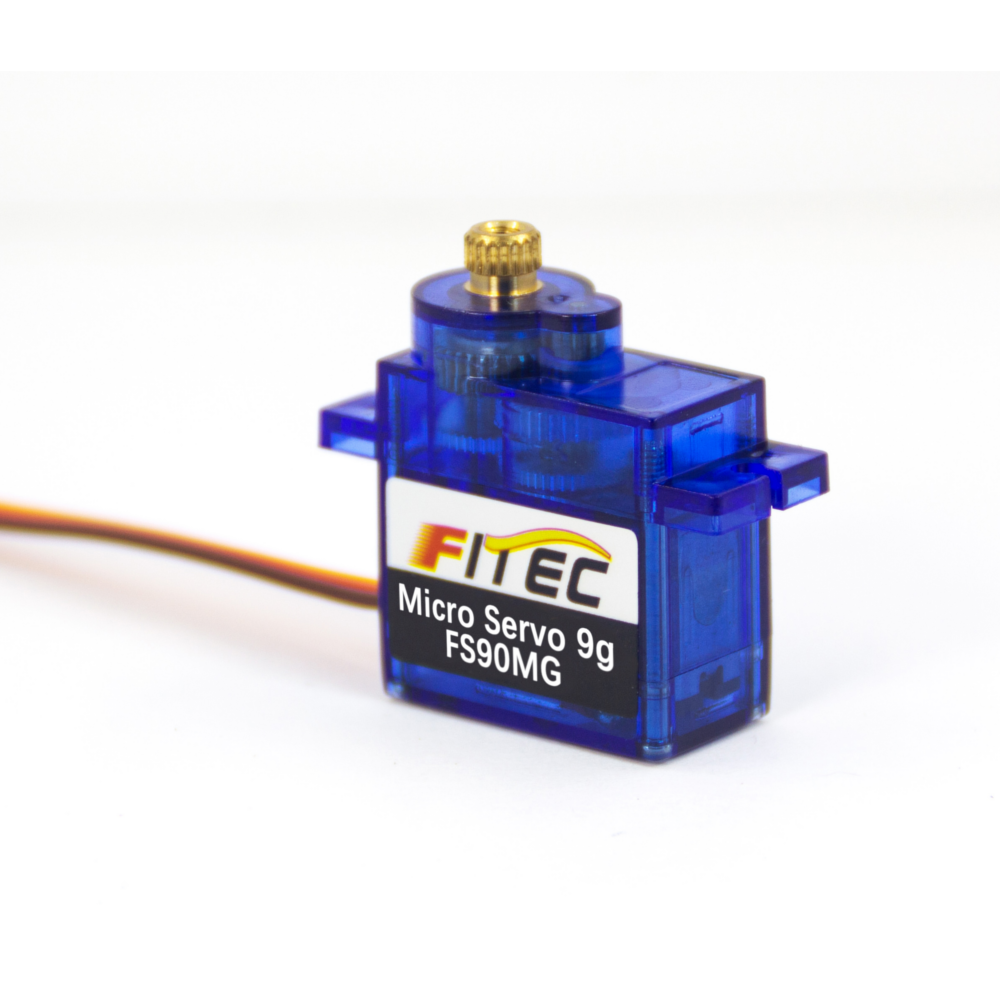

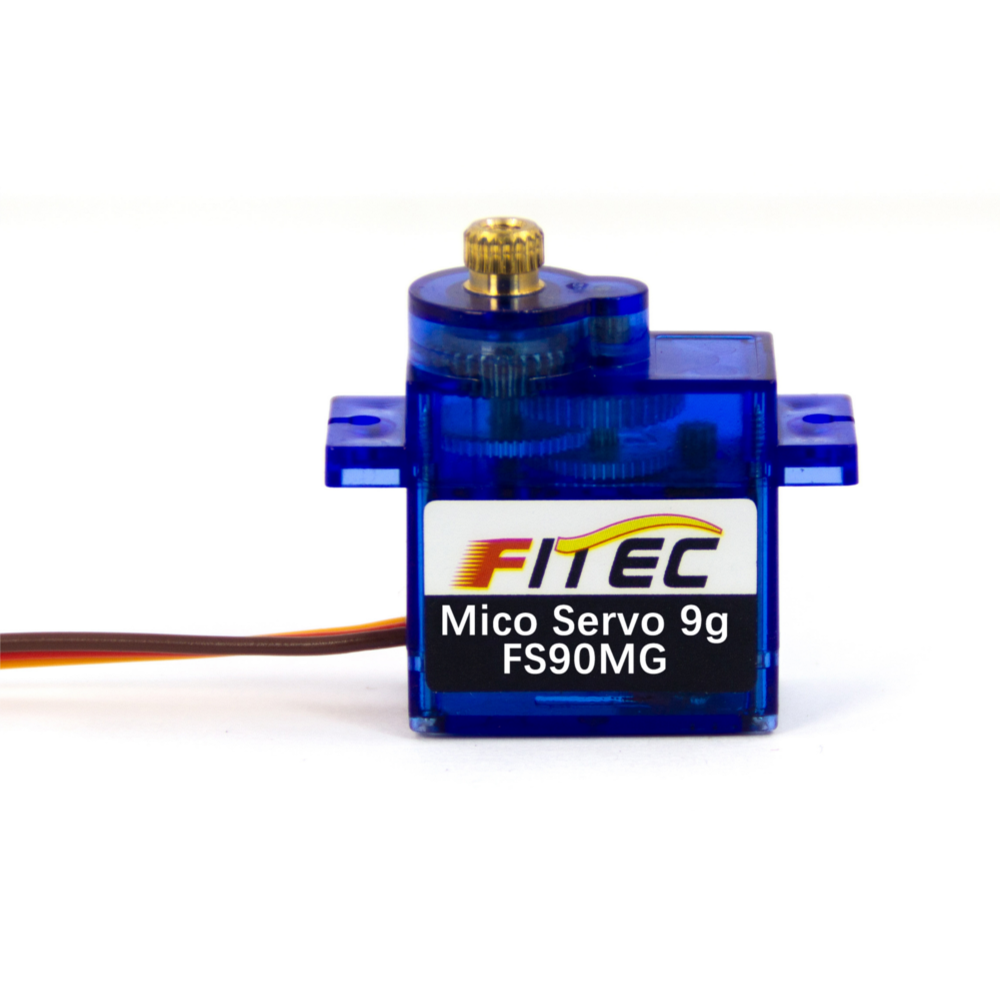

FEETECH FS90MG 9g 2.2kg 4.8-6V Metal Gear Digital Servo 180 Degree Rotation For RC Airplane
Specifications:
Brand Name: FEETECH
Item Name: FS90MG
Storage Temperature Range: -30~80
Operating Temperature Range: -1~70

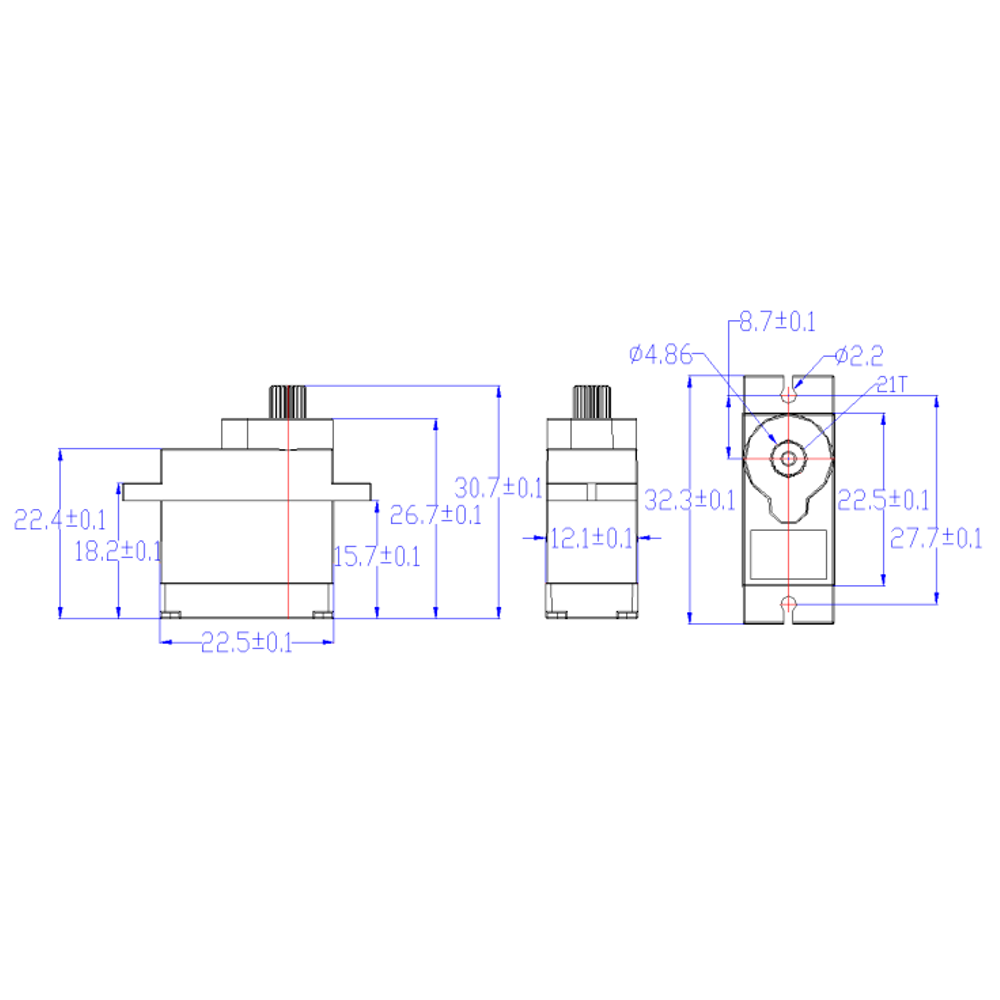

Size: 22.5*12.1*26.7mm
Weight: 12.5g
Gear Type: Metal Gear
Limit Angle: 180 Degree
Bearing: NO Ball bearings
Horn Gear Spline: 21T(4.86)
Horn Type: Plastic POM
Case: ABS
Connector Wire: 250mm
Motor: Metal brush motor
Operating Voltage Range: 4.8-6V
Idle Current(at stopped): 5mA-6mA
No Load Speed: 110RPM@6V
Runnig Current(at no load): 220mA @6V
Peak Stall Torque: 2.2kg.cm@6V
Rated Torque: 0.7kg.cm@6V
Stall Current: 800mA@6V
Running Degree: 180deg (when 500~2500 m sec)
Rotating Direction: CW(when 1500~900 usec) CCW(when 1500~2100 usec)
Download Detailed Specifications Click Here

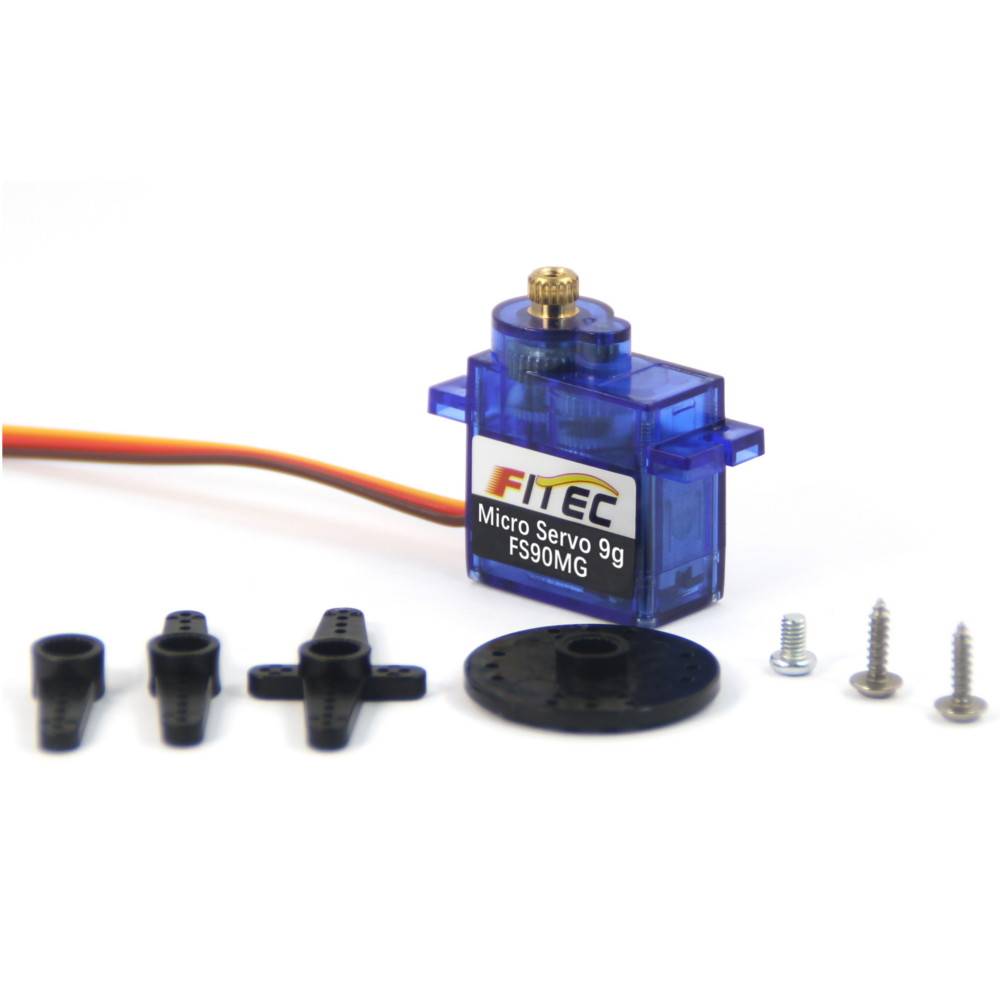

Package Included:
1x FEETECH FS90MG Servo
