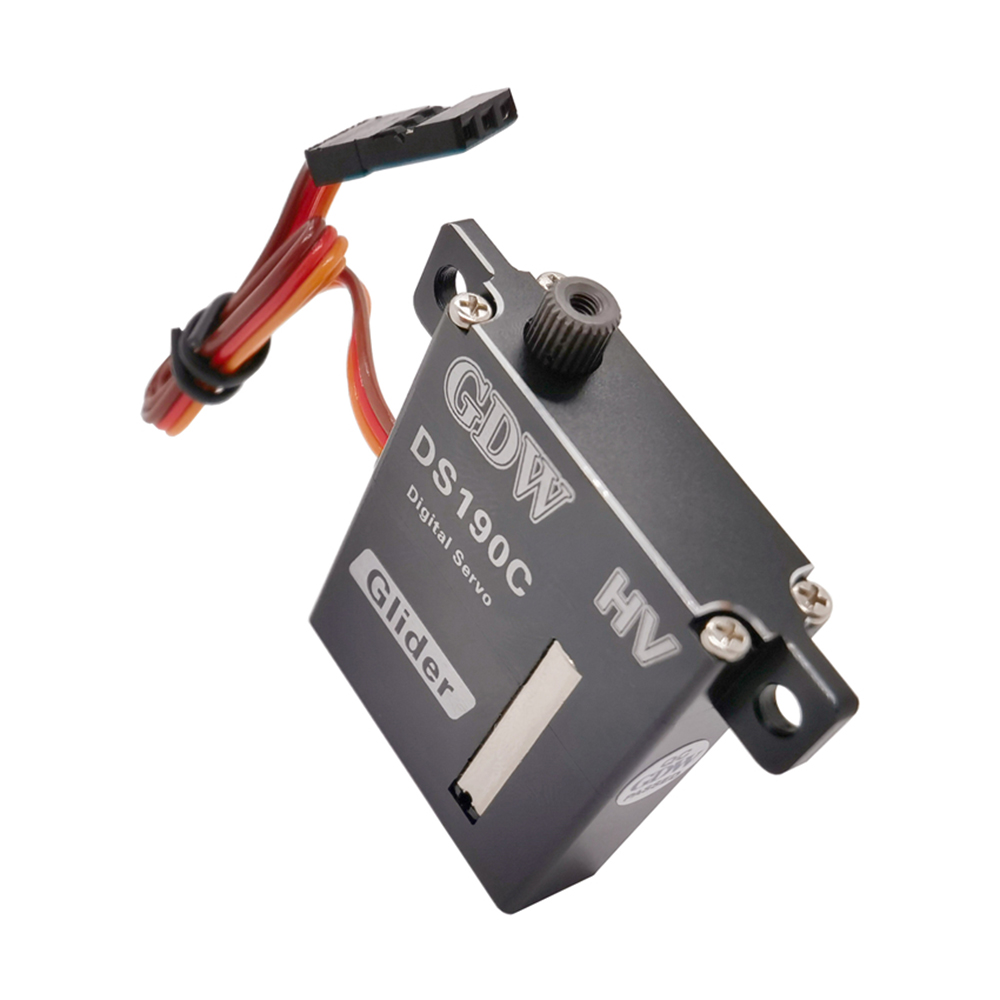

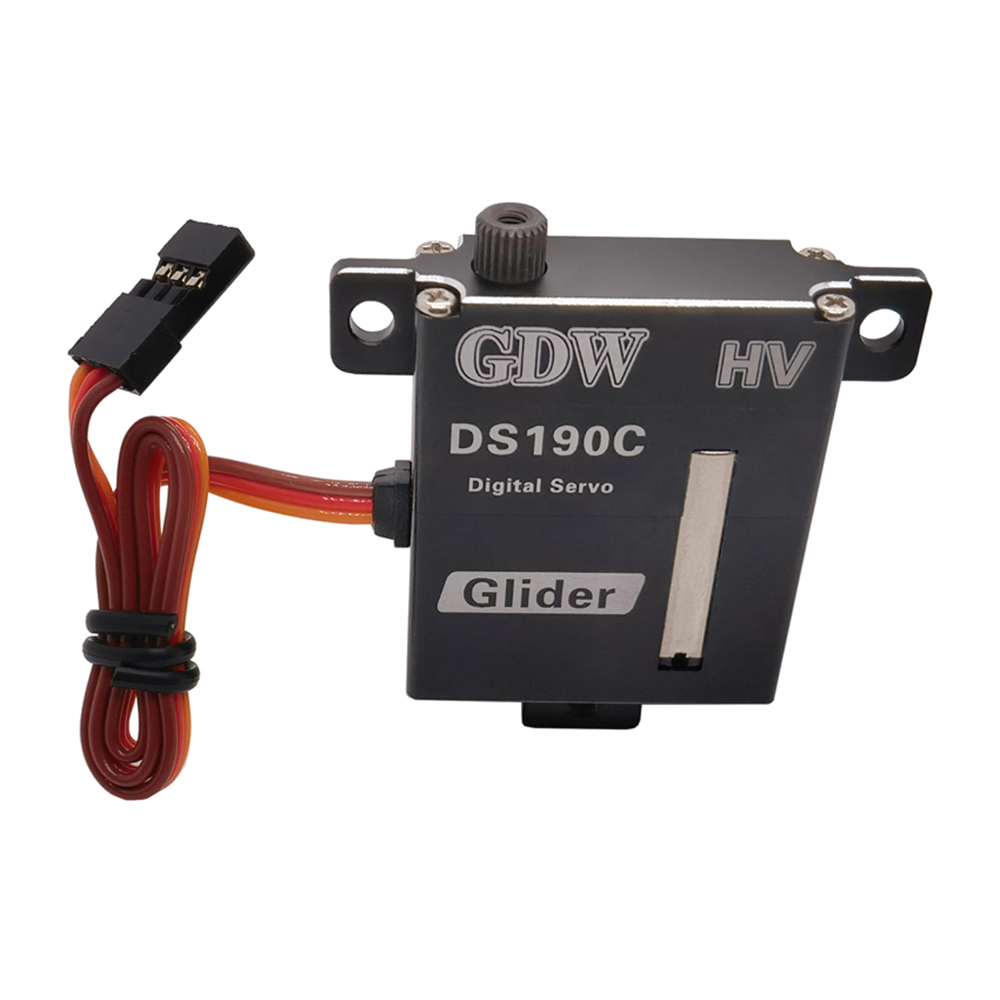

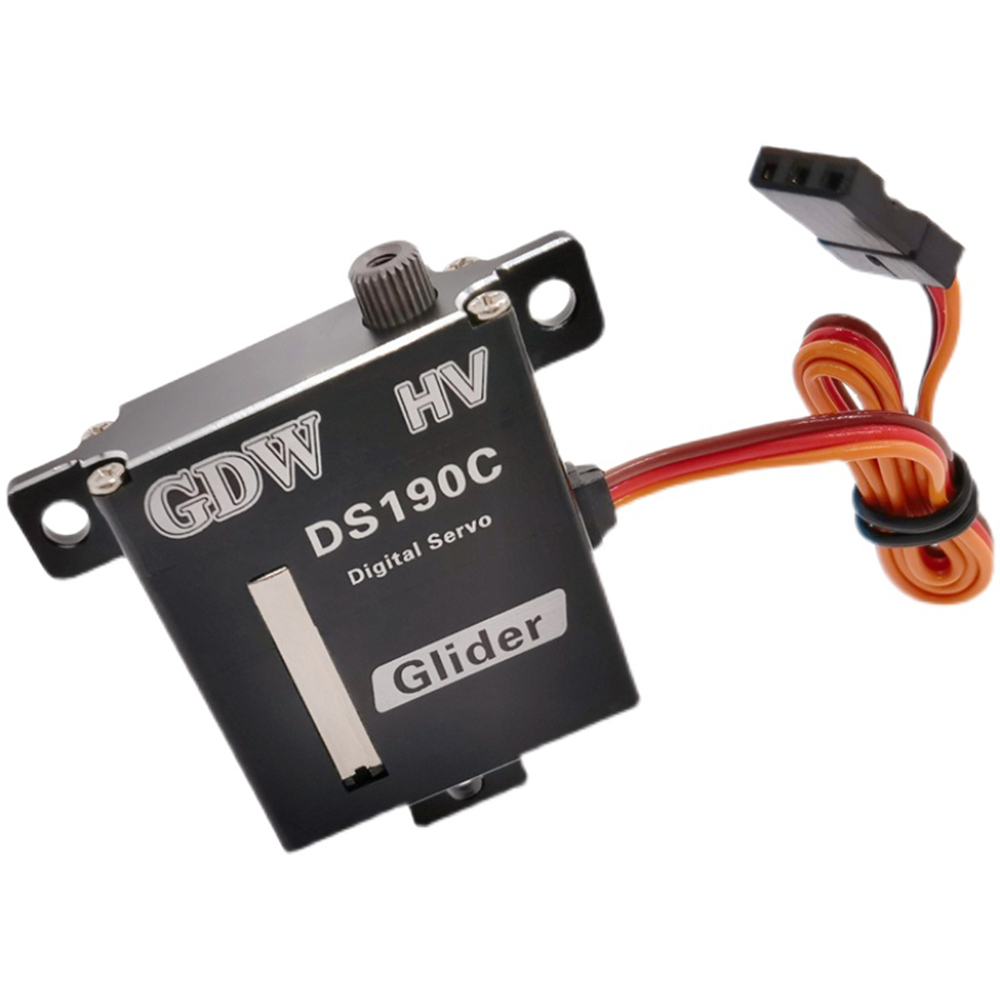

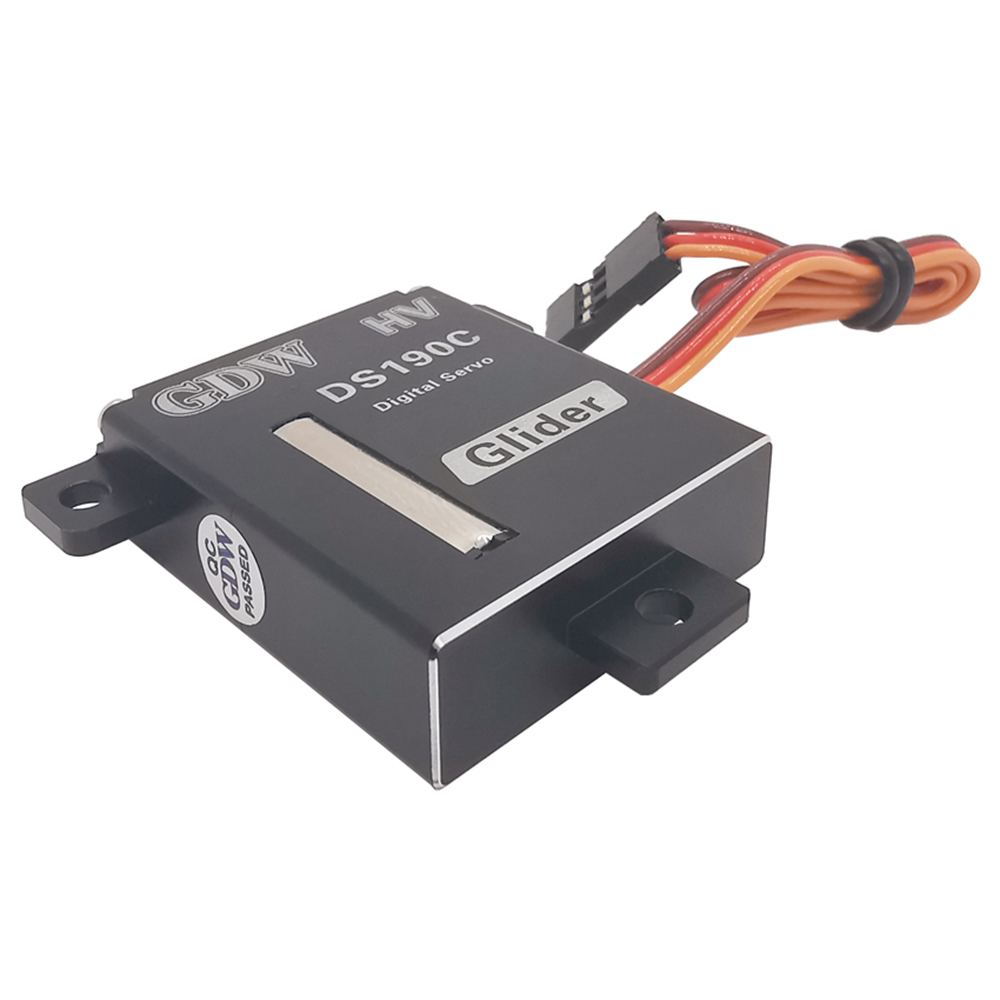

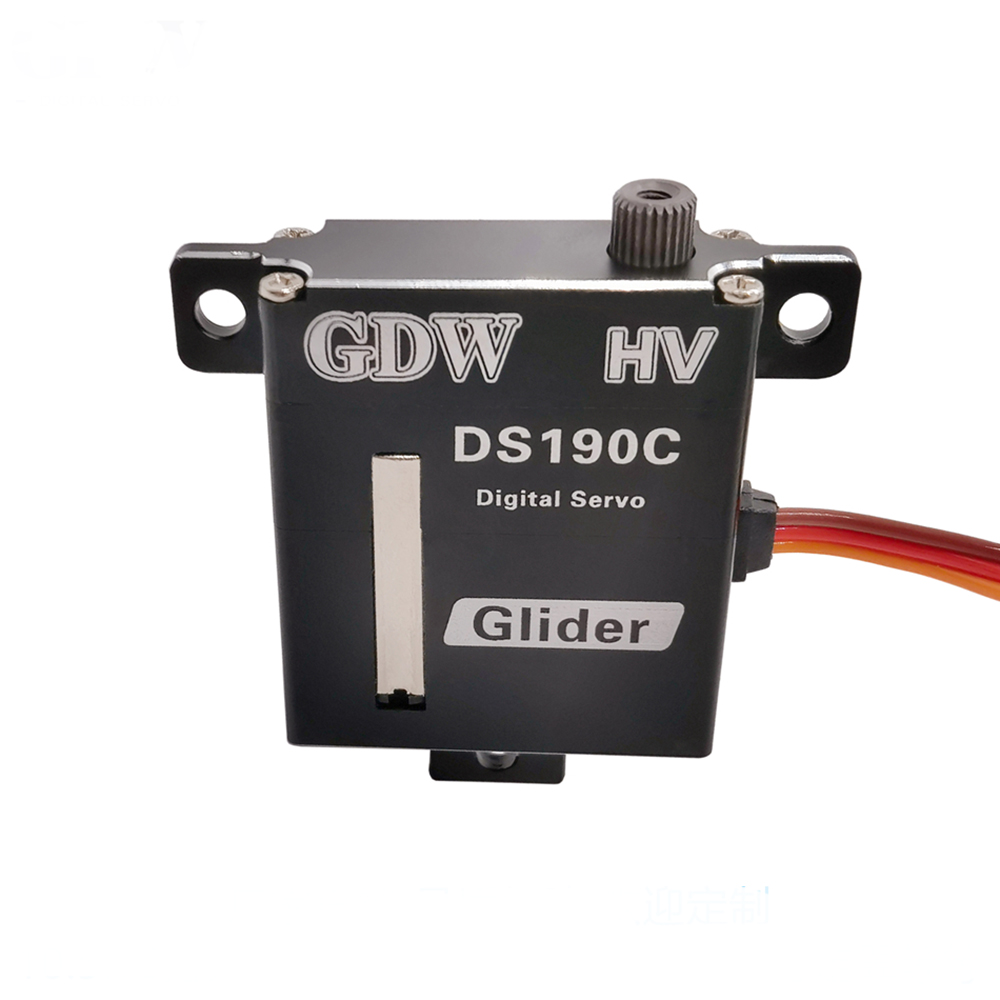

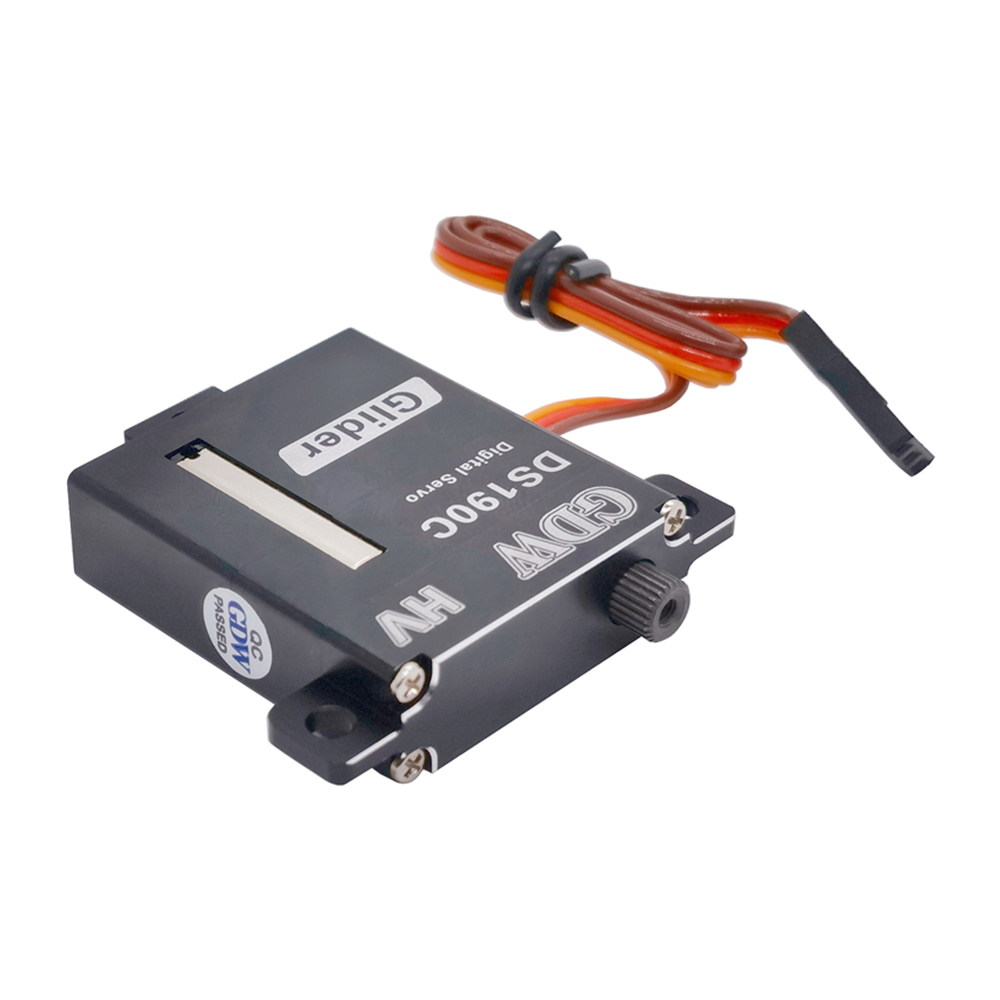

GDW DS190C 10.5KG 60 Degree High Torque Full Metal Gear Digital Servo for RC Airplane Fixed Wing Glider Helicpter RC Boat Robot
GDW DS190C 10.5KG 60 Degree High Torque Full Metal Gear Digital Servo for RC Airplane Fixed Wing Glider Helicpter RC Boat Robot
Description:
Brand: GDW
Model: DS190C
Operation Voltage Range: 4.8V up to 8.4V
Operation Temperature Range: -10Cdeg up to +60Cdeg
Working frequency: 1520us/333Hz
| Bench tests reported values | |||
| Test Voltage | 6.0V | 7.4V | 8.4V |
| Speed | 0.12sec/60deg | 0.10sec/60deg | 0.09sec/60deg |
| Torque | 7.5Kg.cm | 9.5Kg.cm | 10.5Kg.cm |
| Fast continuous operating current | 200mA | 300mA | 400mA |
| Stall current | 1100mA | 1300mA | 1500mA |
| Dead Band Width | 2m | ||
| General Data | |
| Motor Type: | Coreless motor 10*20mm |
| Potentiometer Type: | Japan noble 220deg |
| Chip type: | Digital |
| Weight: | 27+-1g |
| Gear Material: | The surface treatment of titanium |
| Structural materials : | Internediate metal |
| Horn Gear Spline: | 25T Ph4.9mm |
| Wire length: | 220+-5mm |
| Wire Diameter: | 0.15mm2 |
| Number of wire cores: | 30 |
Package Included
1* GDW DS190C 10.5KG 60 Degree High Torque Metal Gear Digital Servo
