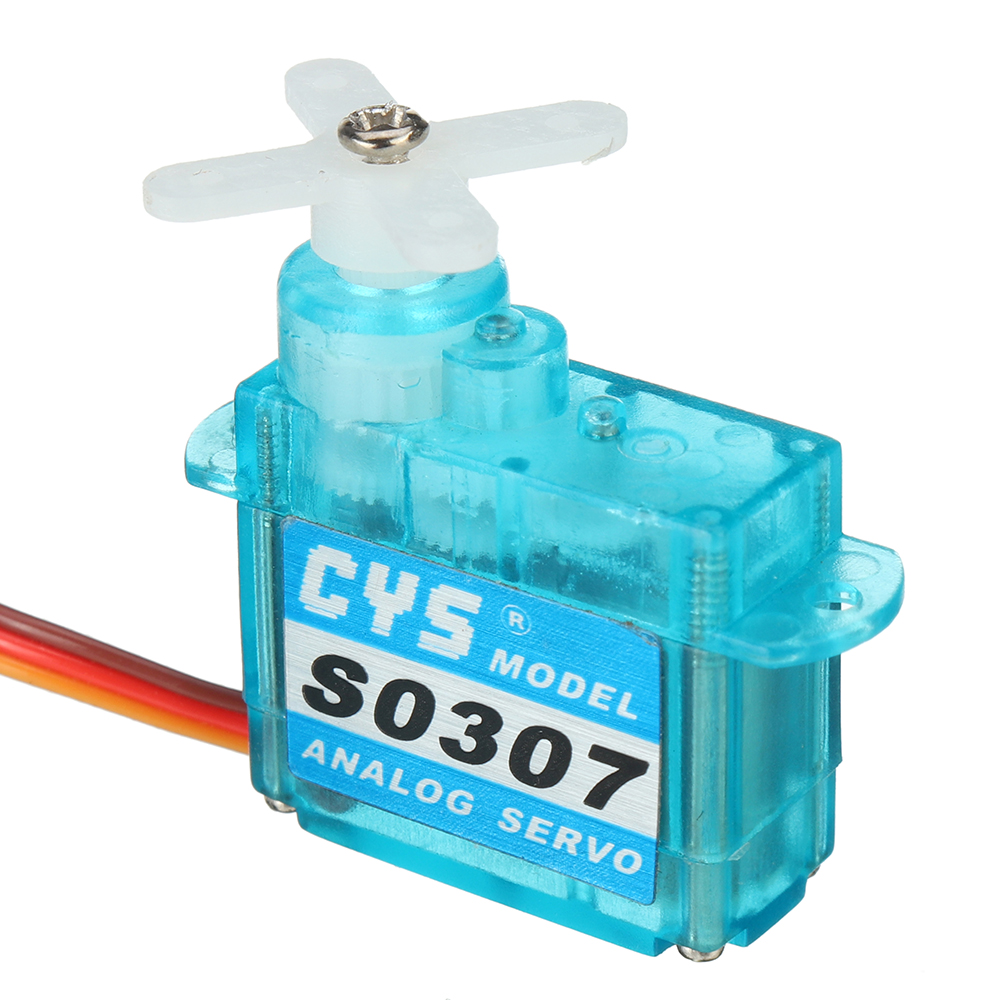

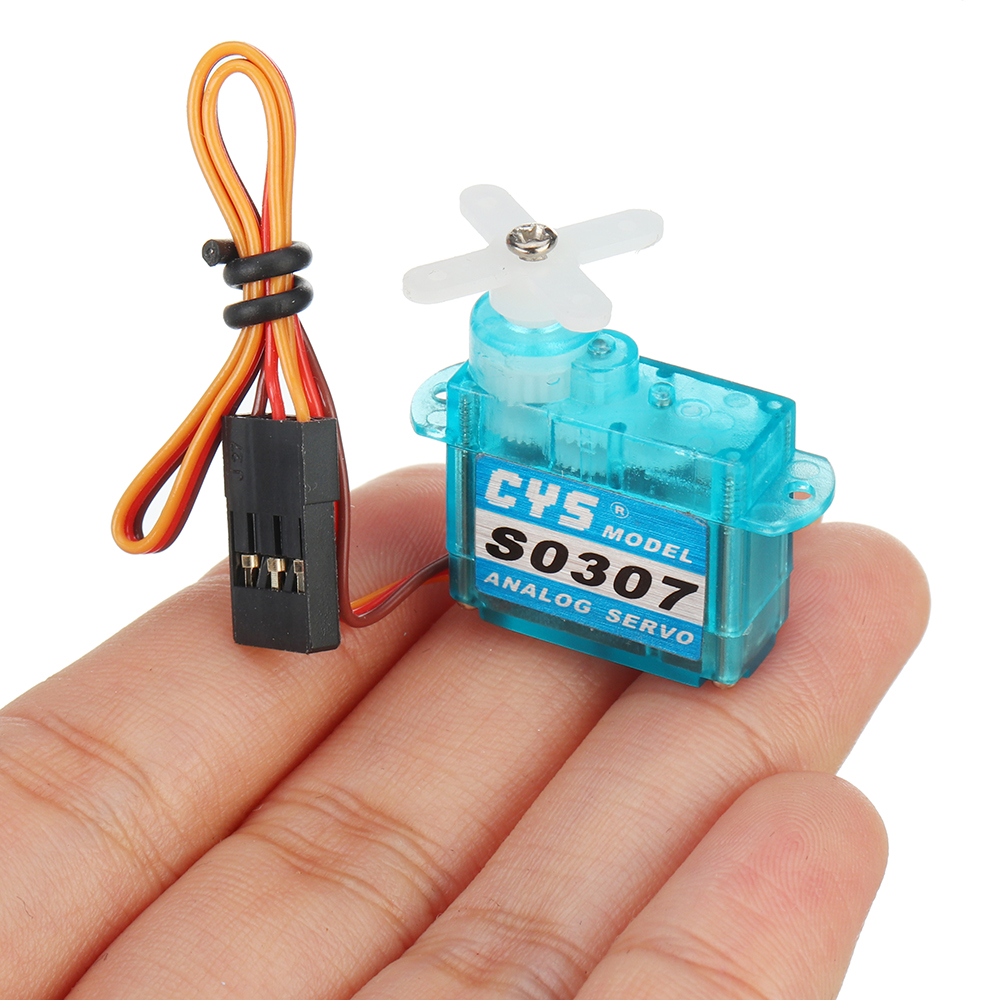

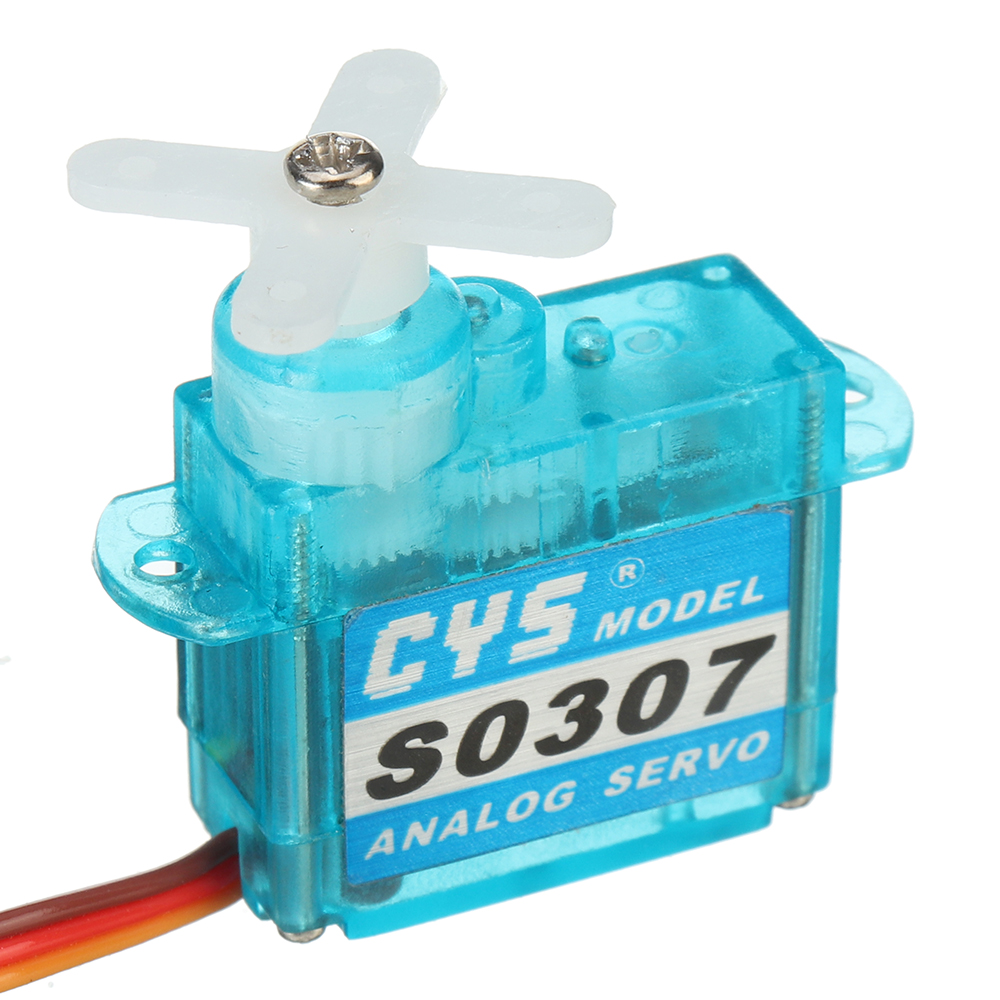

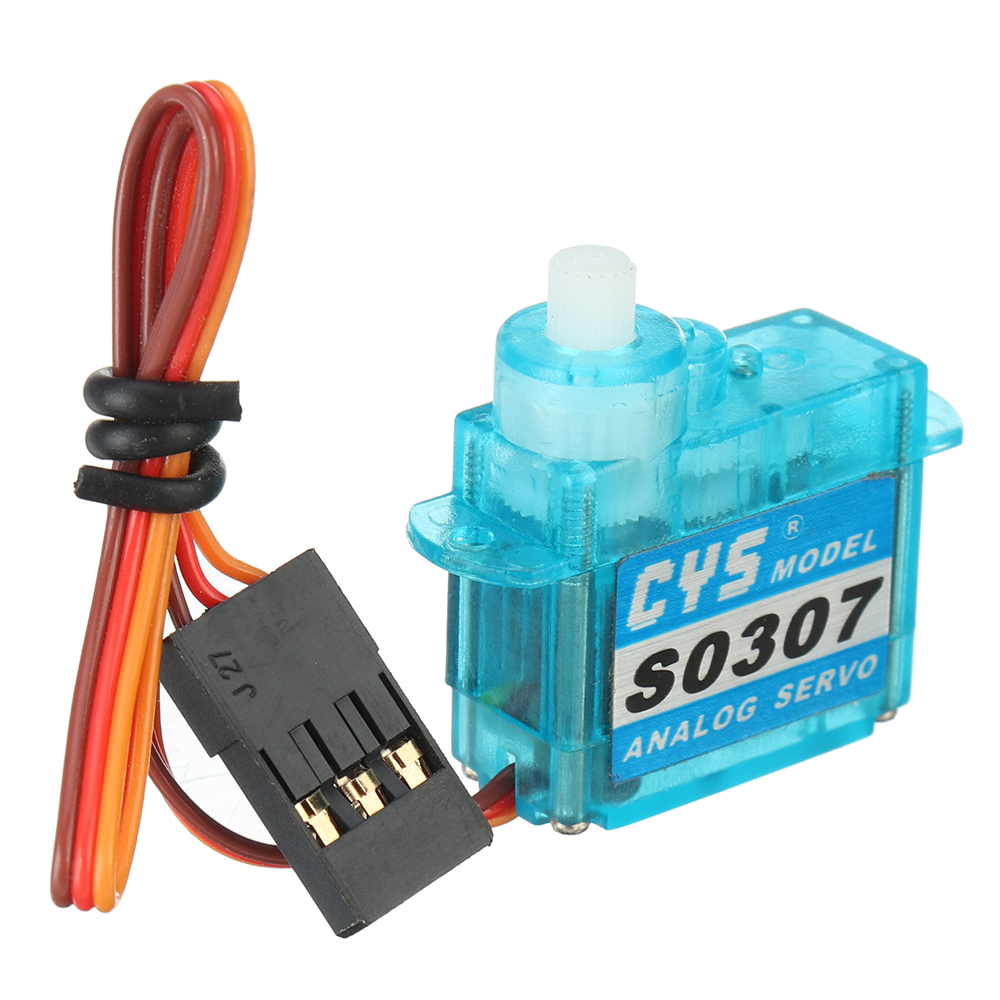

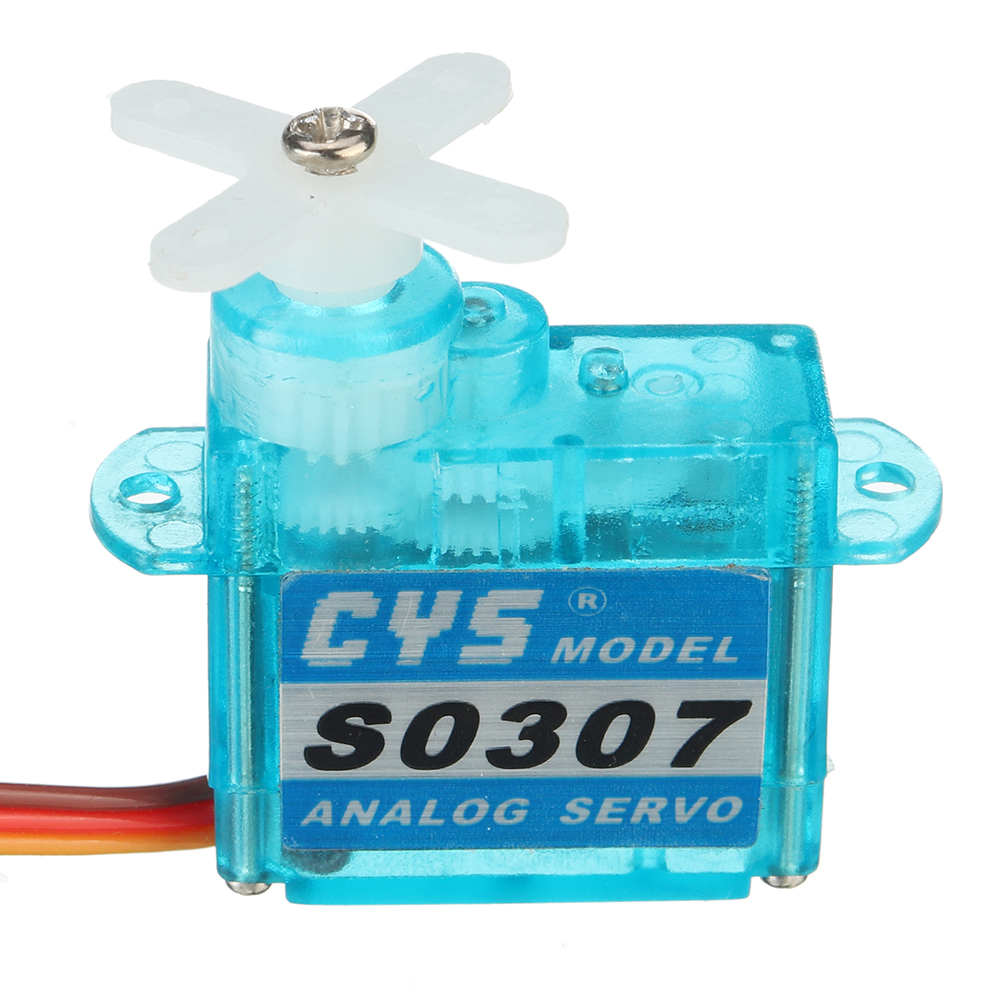

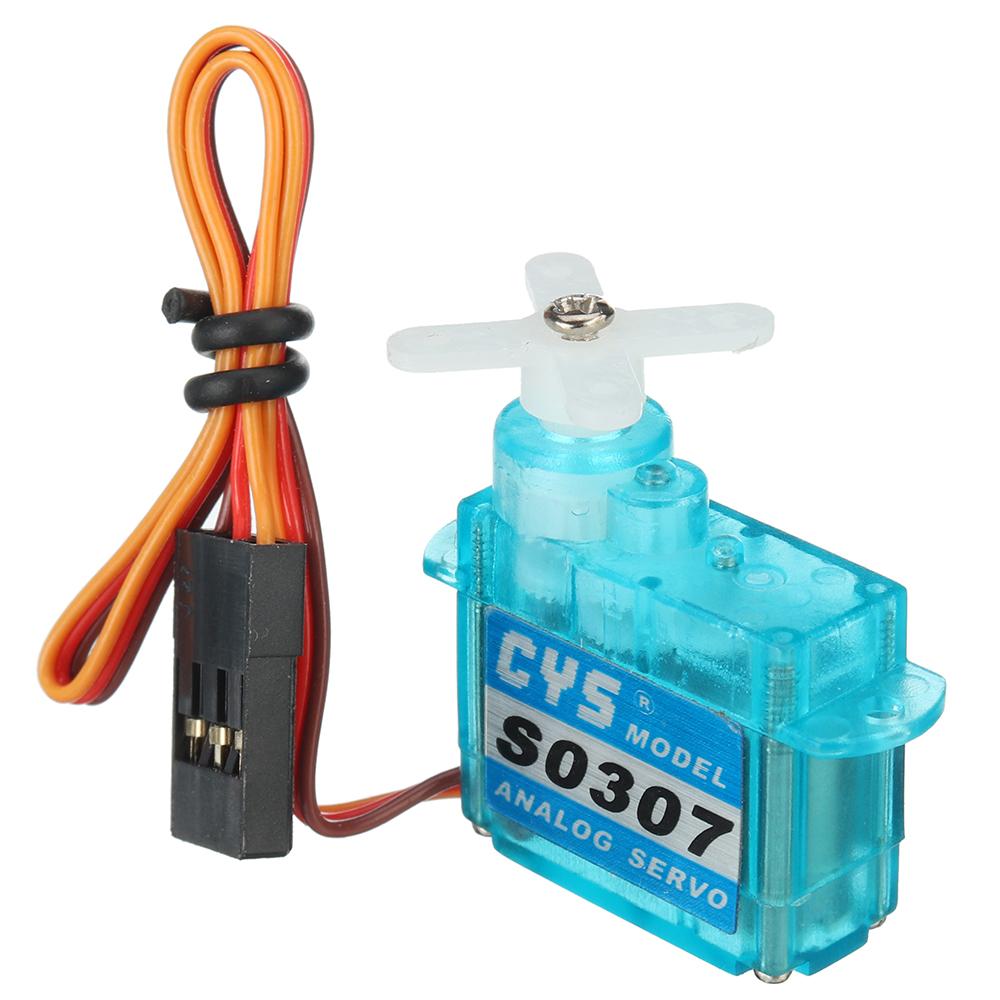

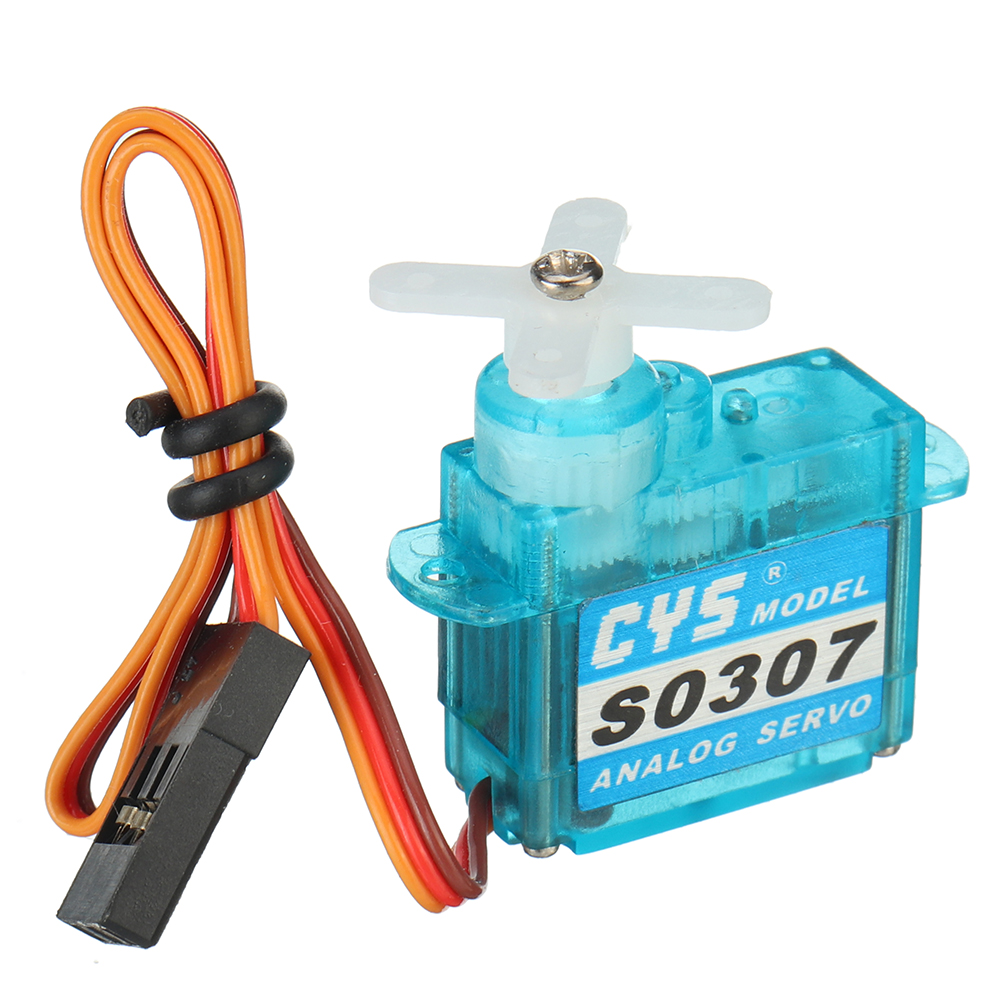

CYS-S0307 3.7g Plastic Gear Micro Analog Servo For RC Helicopter Airplane Robot

Specification:

Item Name: CYS-S0307 3.7g Analog Servo

Dimensions :19.8x8.4x21.3mm

Operating Voltage: DC4.2-4.8V

Dead band: 4sec

Operating Speed (4.2V): 0.14sec/60 degrees

Operating Speed (4.8V): 0.12sec/60 degrees

Stall Torque (4.2V): 0.5kg.cm (6.95oz/in)

Stall Torque (4.8V): 0.8 kg.cm (11.11 oz/in)

Running Current(4.2V): 100mA

Running Current(4.8V): 120mA

Stall Current(4.2V): 500mA

Stall Current(4.8V): 540mA

Idle Current(4.2V): 10mA

Idle Current(4.8V): 10mA

Weight: 3. 7g (0.13oz)

Package Included:

1x CYS-S0307 3.7g Analog Servo
