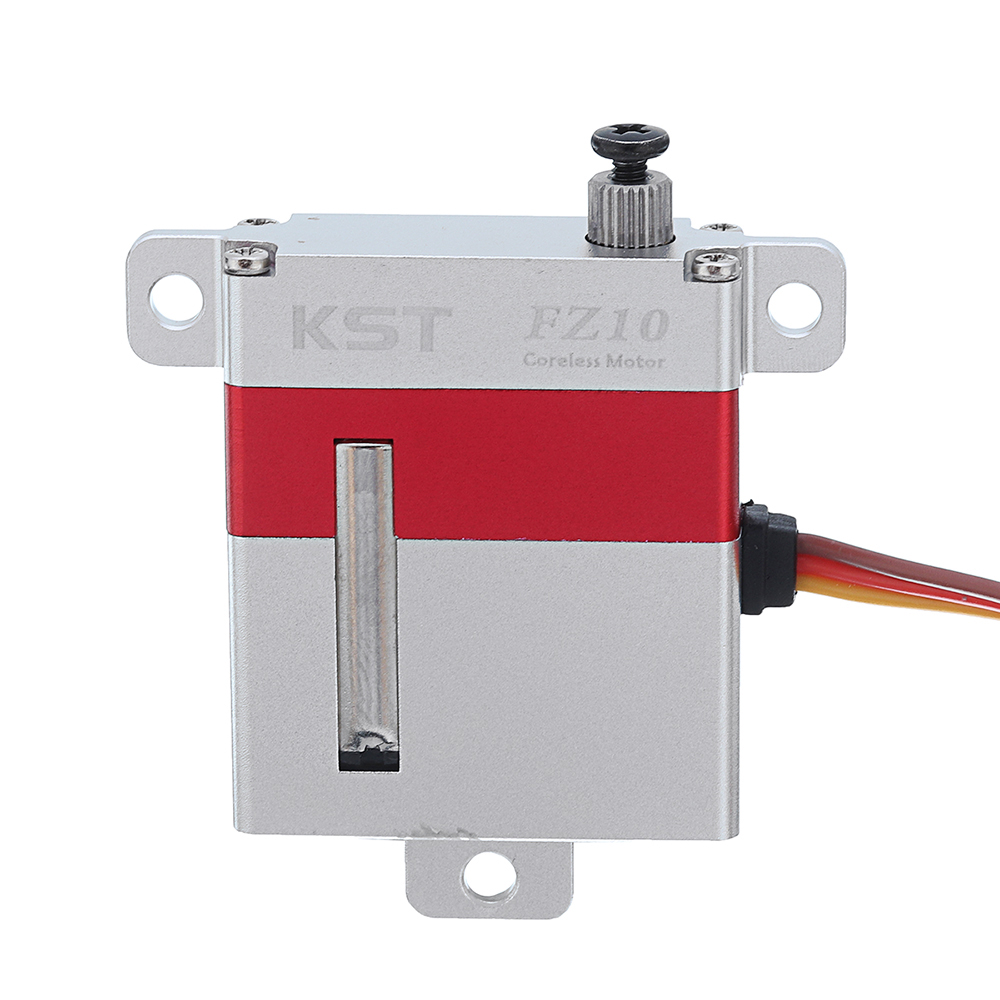

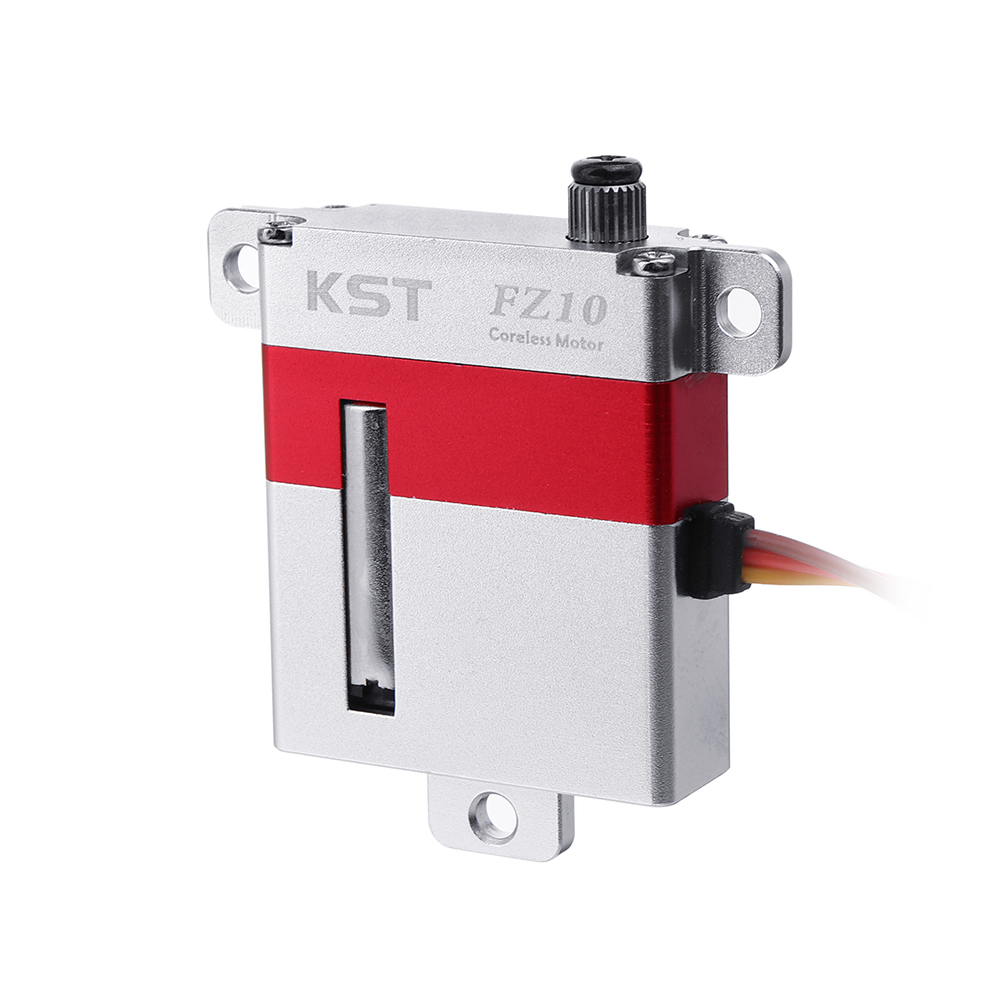

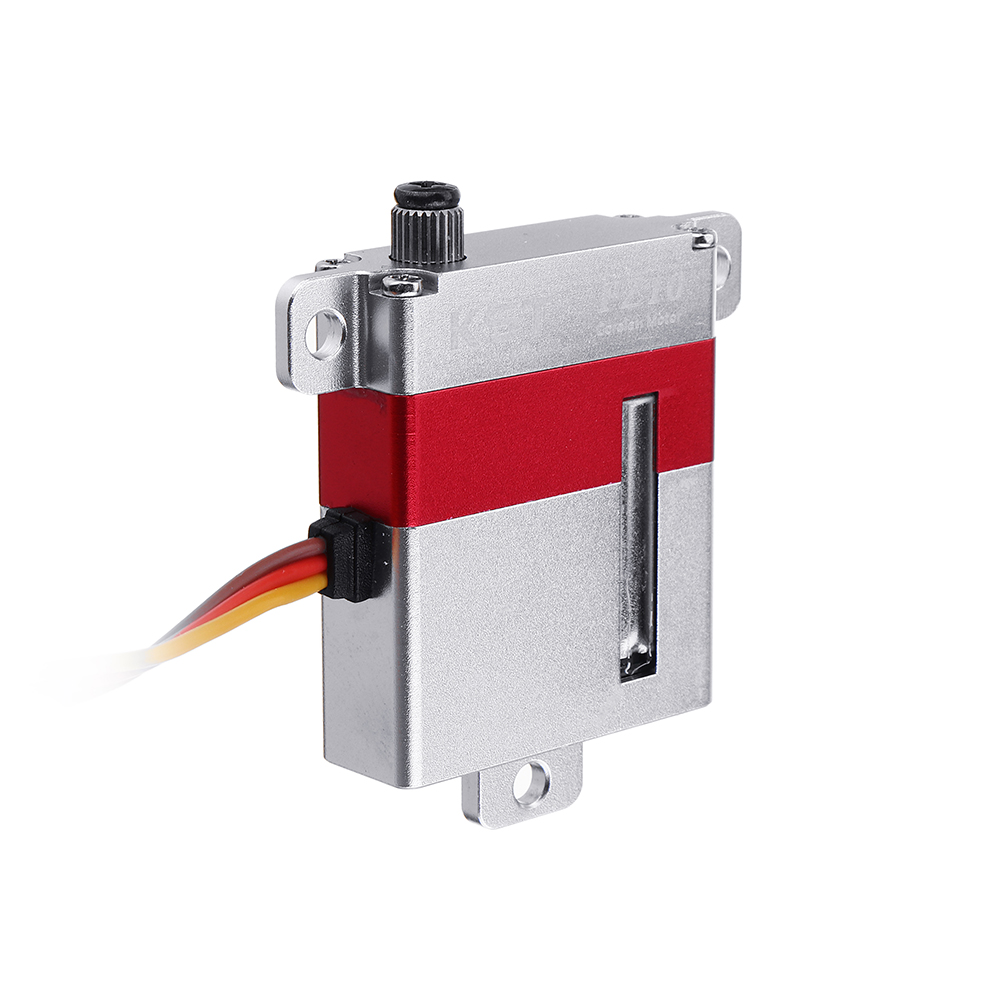

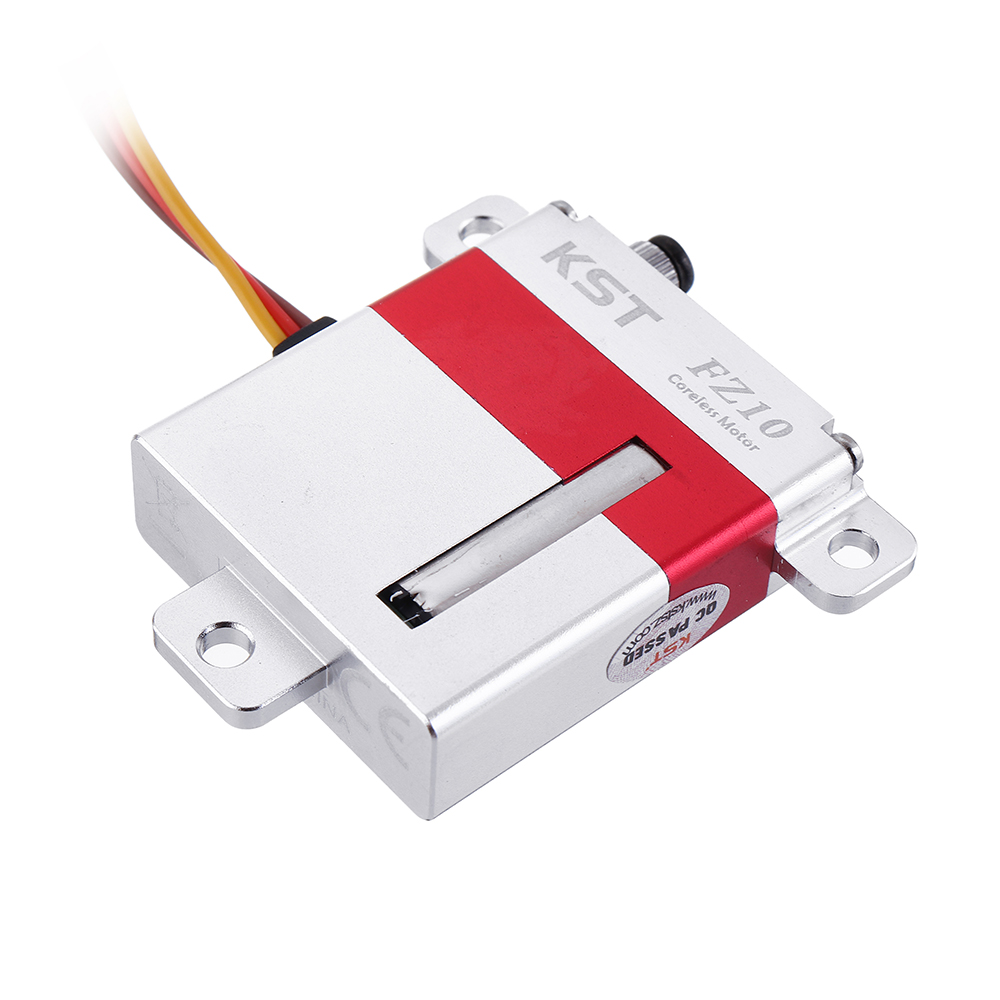

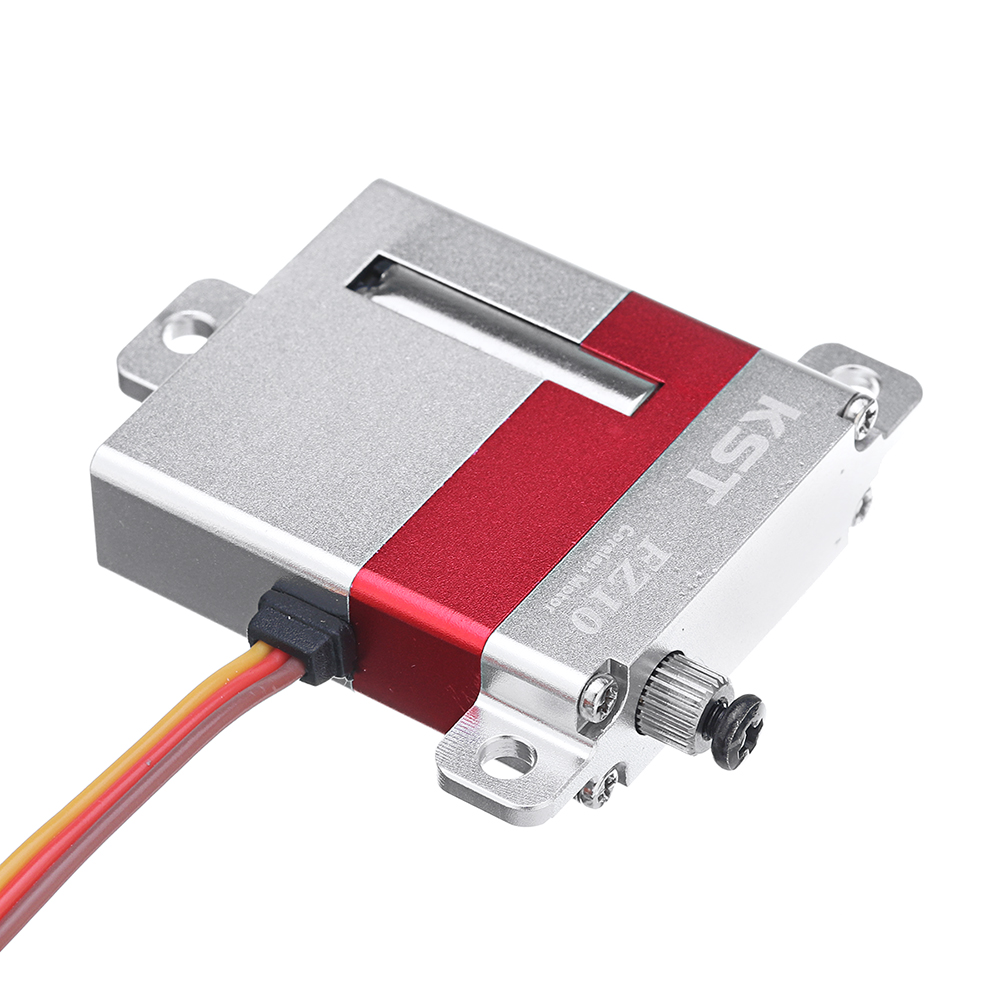

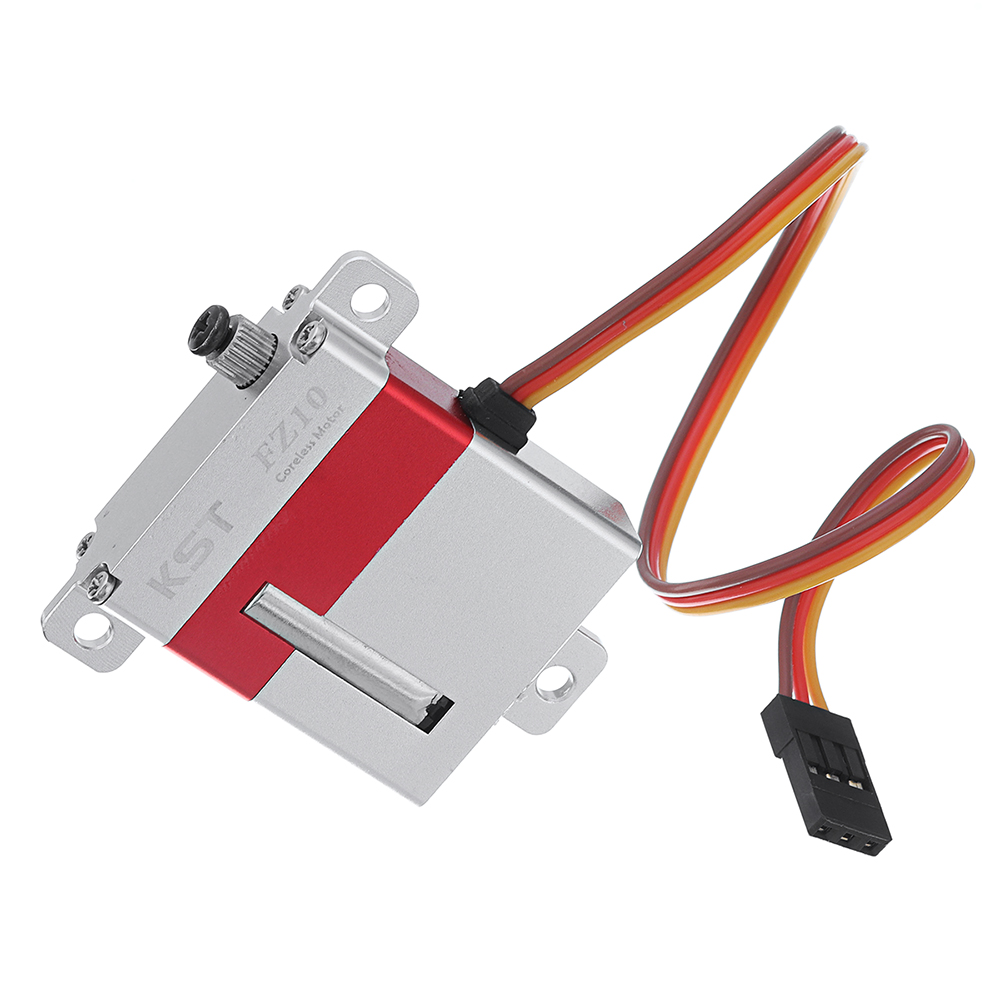

KST FZ10 9kg Coreless Metal Gear Digital Servo For RC Airplane Models
Description:
Brand: KST
Product: FZ10 Digital Servo
Operating Voltage: 4.8 ~ 8.4 DC Volts
Rated Torque(7.4V): 2.3kg.cm
Locked-rotor Torque(7.4V): 9kg.cm
Rated Current: 0.35A
Locked-rotor Torque Current: 1.2A
No-load Speed: 435°/Sec
Rated Speend: 330°/Sec
Pulse: 900-2100us
Angle: -50°/0°/50° - 1000us/1500us/2000us
Motor Type: Coreless
Gear Type: Metal
Servo Wire: 26AWG
Operating Temperature: -20~55
Weight: About 26g
Size: 30*10*32.5mm

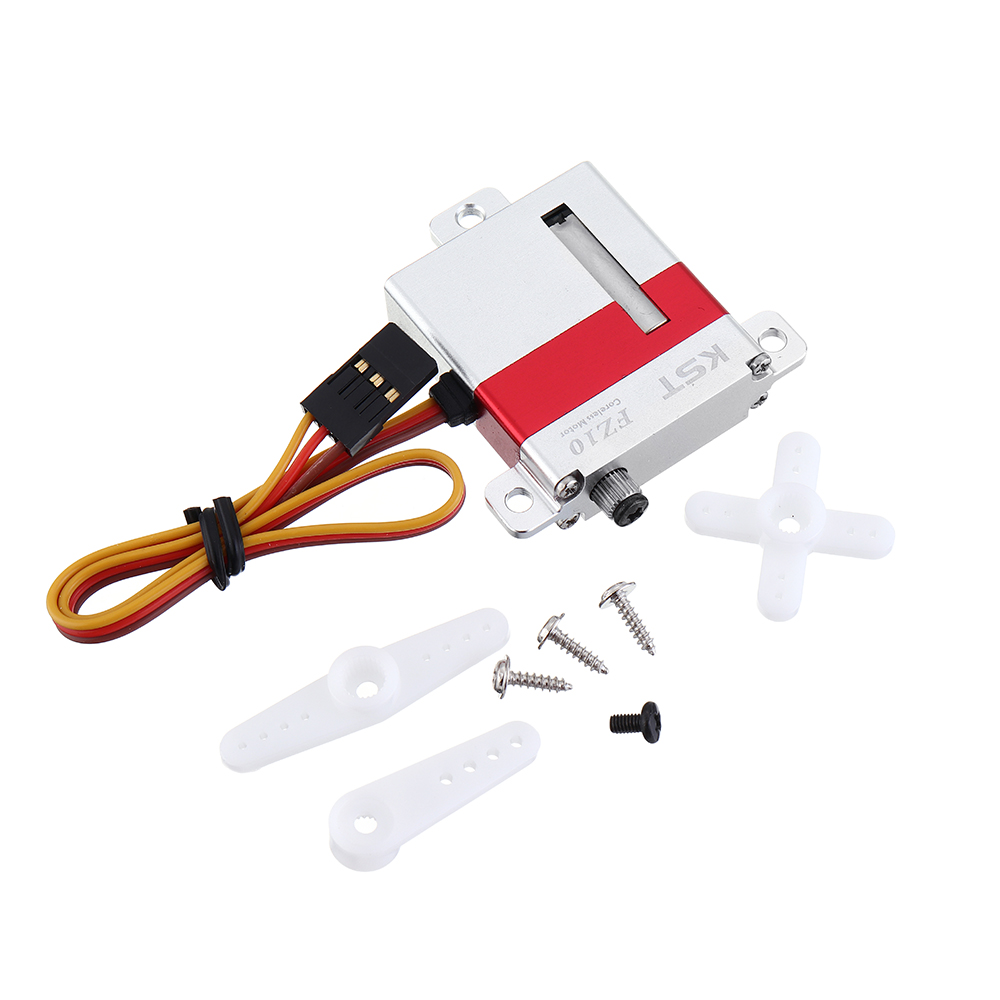

Package:
1* KST FZ10 Digital Servo
