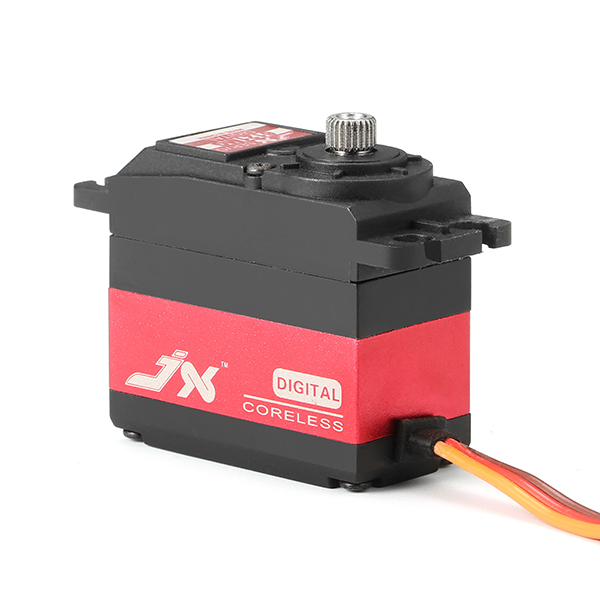

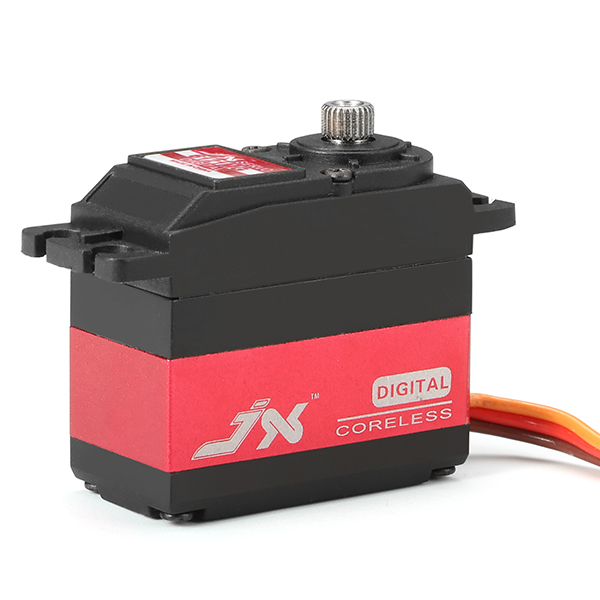

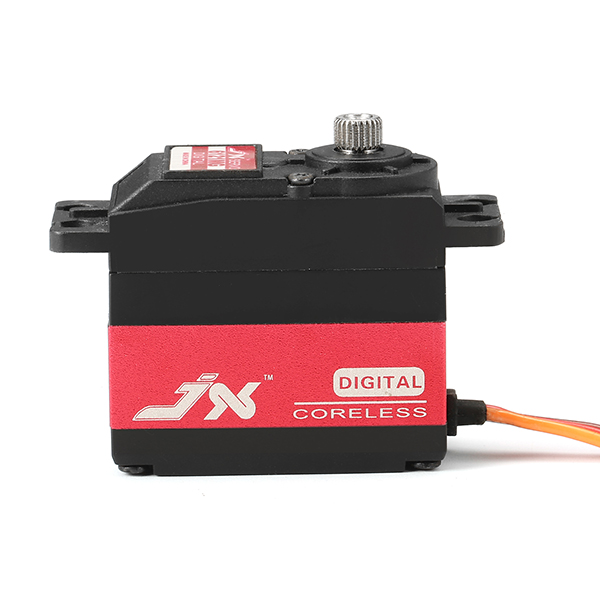

JX Servo PDI-6121MG 20kg Large Torque 120 Degree Digital Coreless Servo For RC Models
JX Servo PDI-6121MG 20kg Large Torque 120 Degree Digital Coreless Servo For RC Models
Description:
Dead band: 1μs
Maximum Pulse Width: 900-2100us
Maximum Angle: 120° Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.152sec/60°
Operating Speed (6V): 0.131sec/60°
Stall Torque (4.8V): 17.21 kg.cm (239.03oz/in)
Stall Torque (6V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)

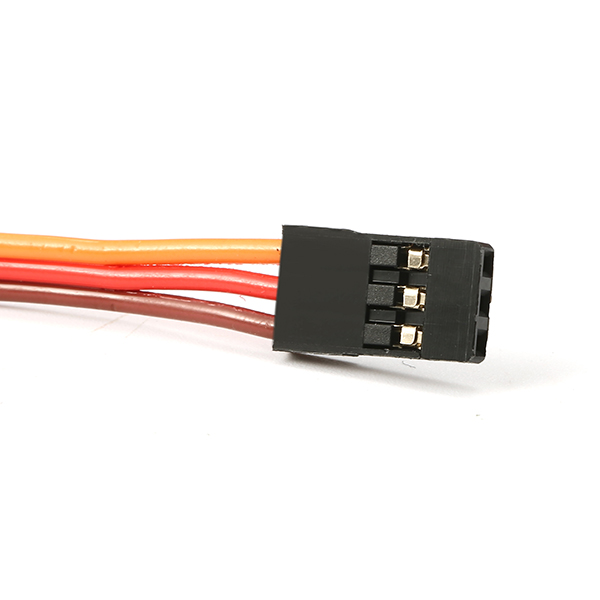

Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Fearture:
High-performance standard digital servo
High-precision metal gear
High-quality brushed motor
Dual ball bearing
Package included:
1x JX PDI-6121MG Servo
