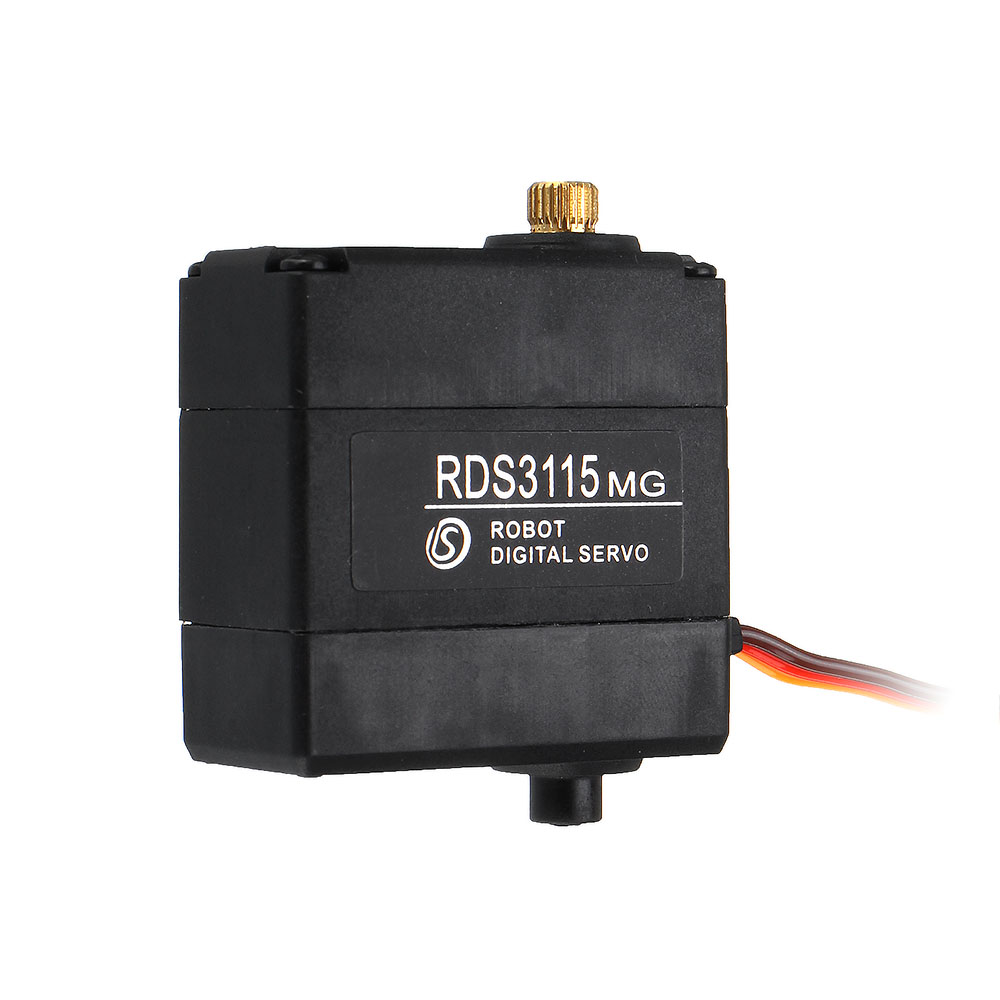

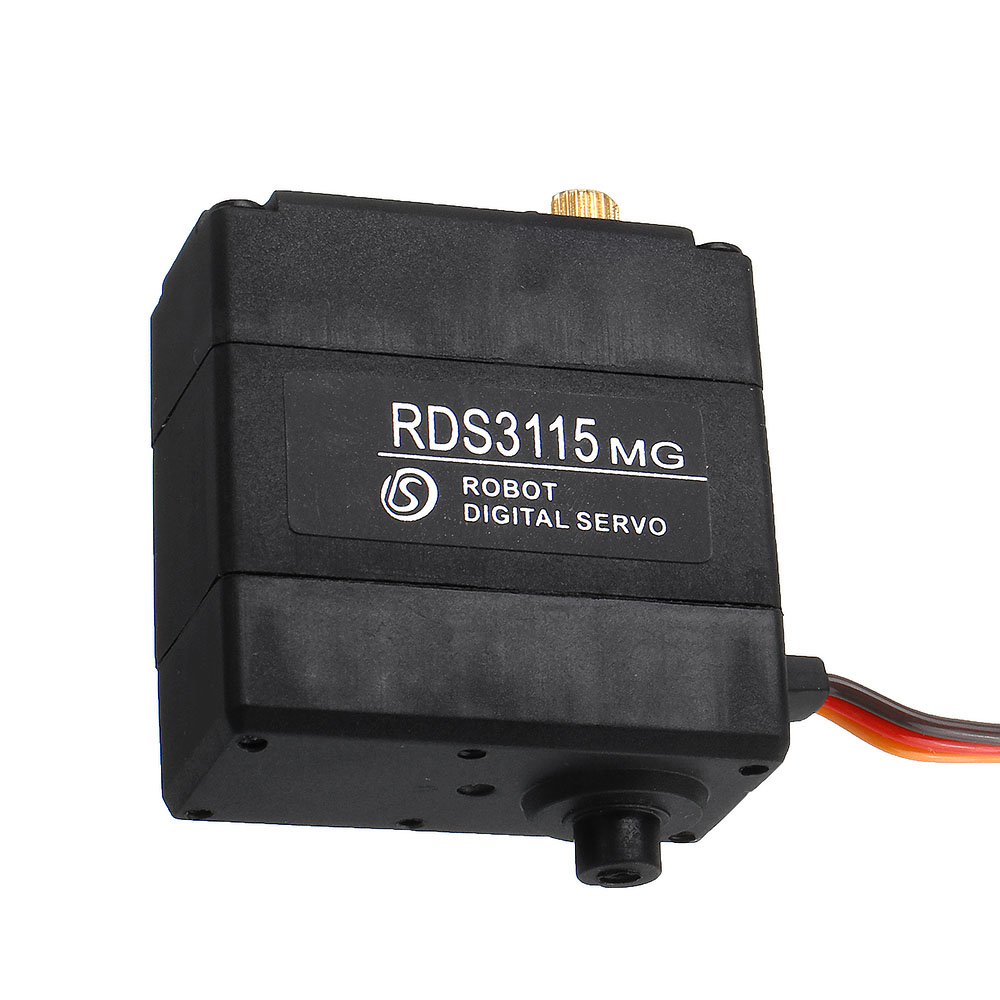

DSSERVO RDS3115MG 180deg 17kg Dual Ball Bearing Metal Gear Digital Servo For RC Robot DIY
Description:
Brand: DSSERVO
Item: RDS3115MG Digital Servo
Type: 1/2/3/4/5
Operating Voltage: 4.8-7.2 DC Volts
No-load Current: 1.3A
Stall Current: 2.0A
Torque: 13.5kg.cm(4.8V) 15kg.cm(6V) 17kg.cm(7.2V)
Speed: 0.16sec/60°(4.8V) 0.15sec/60°(6V) 0.14sec/60°(7.2V)
Pulse: 500-2500us
Dead Band: 2us
Neutrol Position: 1500us
Gear: Metal Gear
Screw: M3

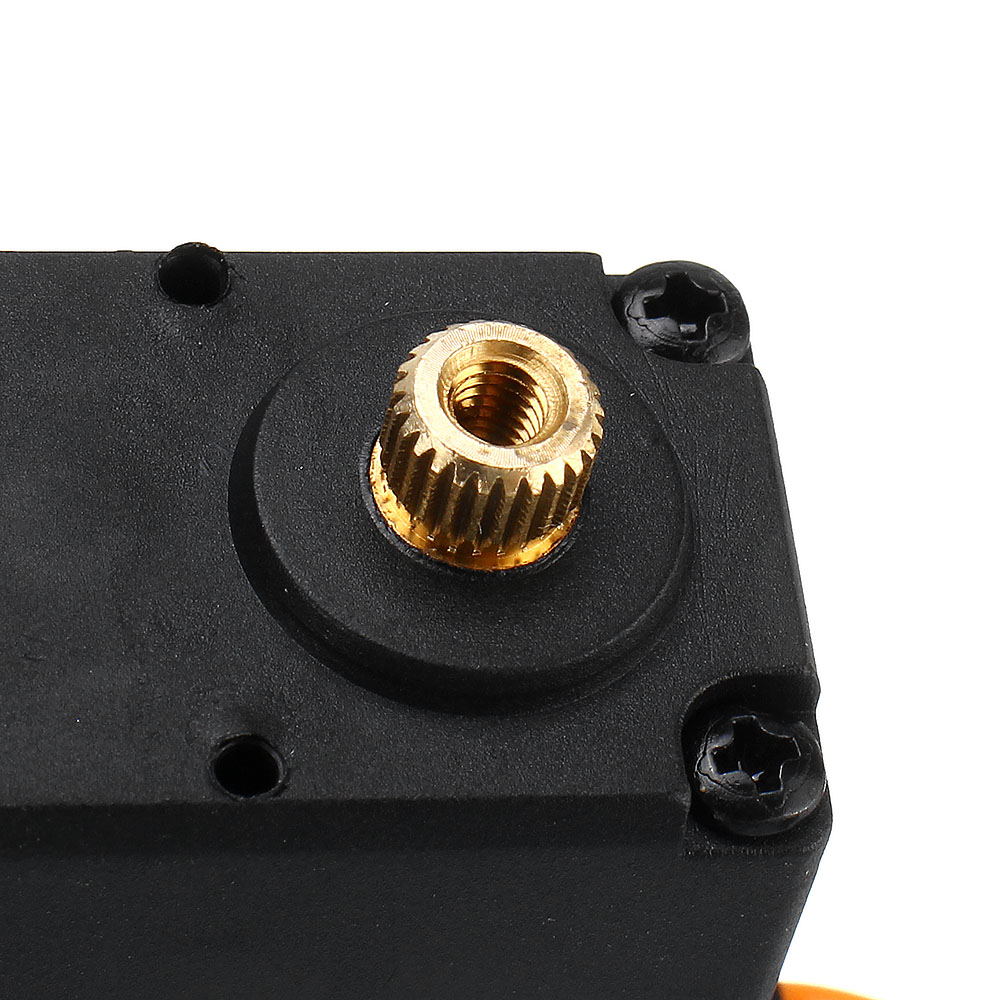

Teeth: 25T

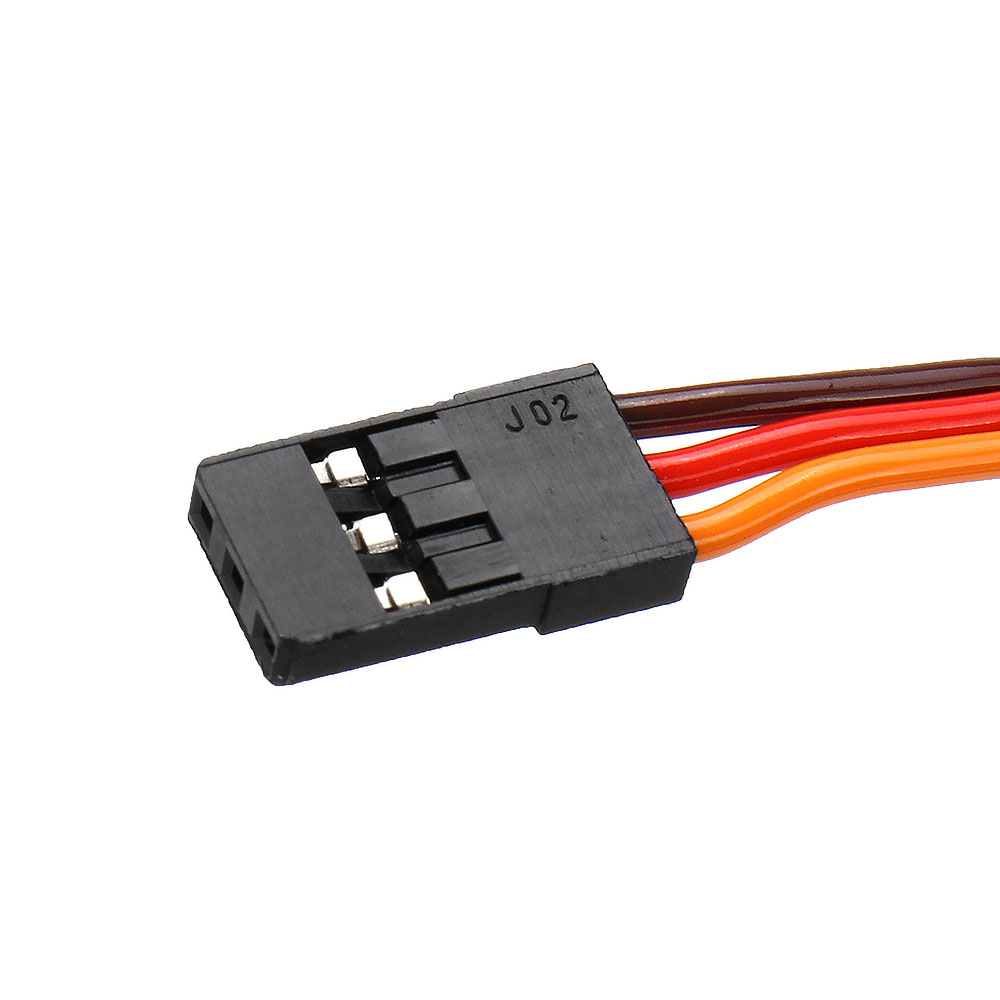

Wire: JR 260mm
Servo Dimention: 40*20*40 mm
Application: For RC Robot DIY
Note: different type with different Holder servo is the same one.

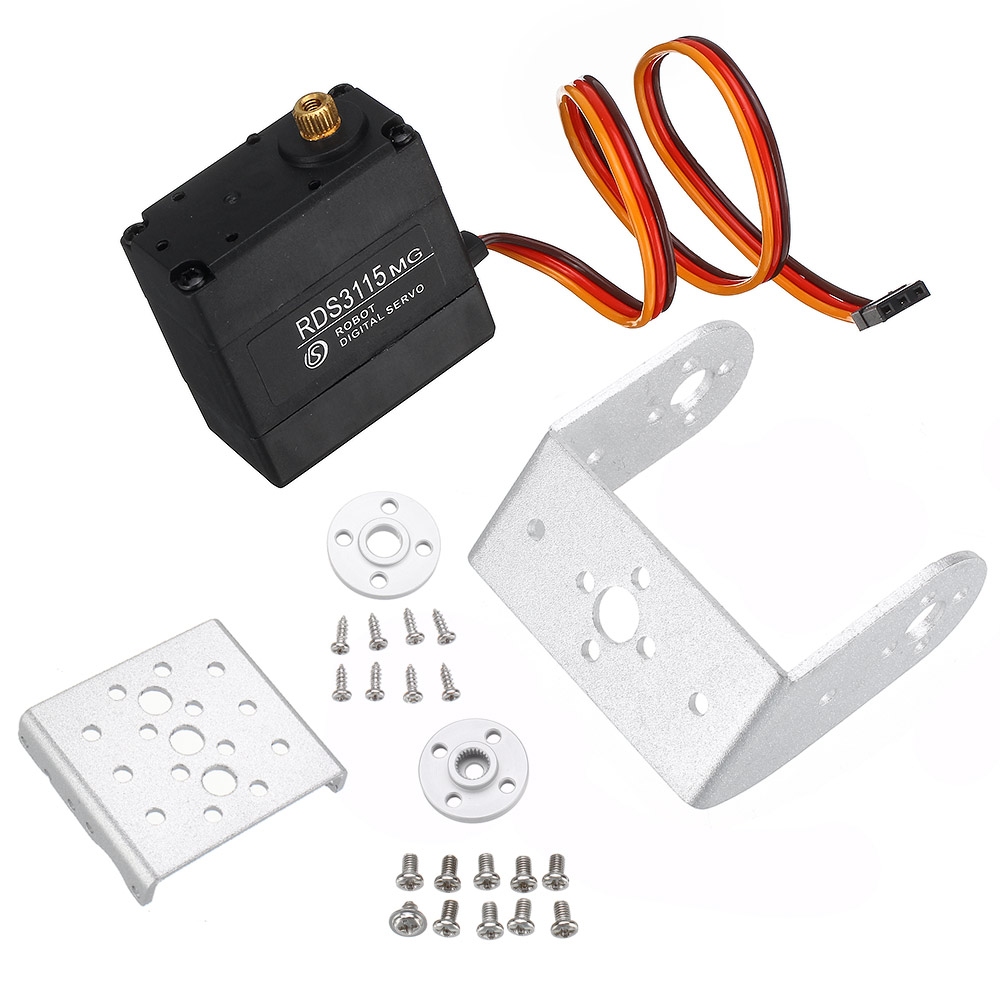

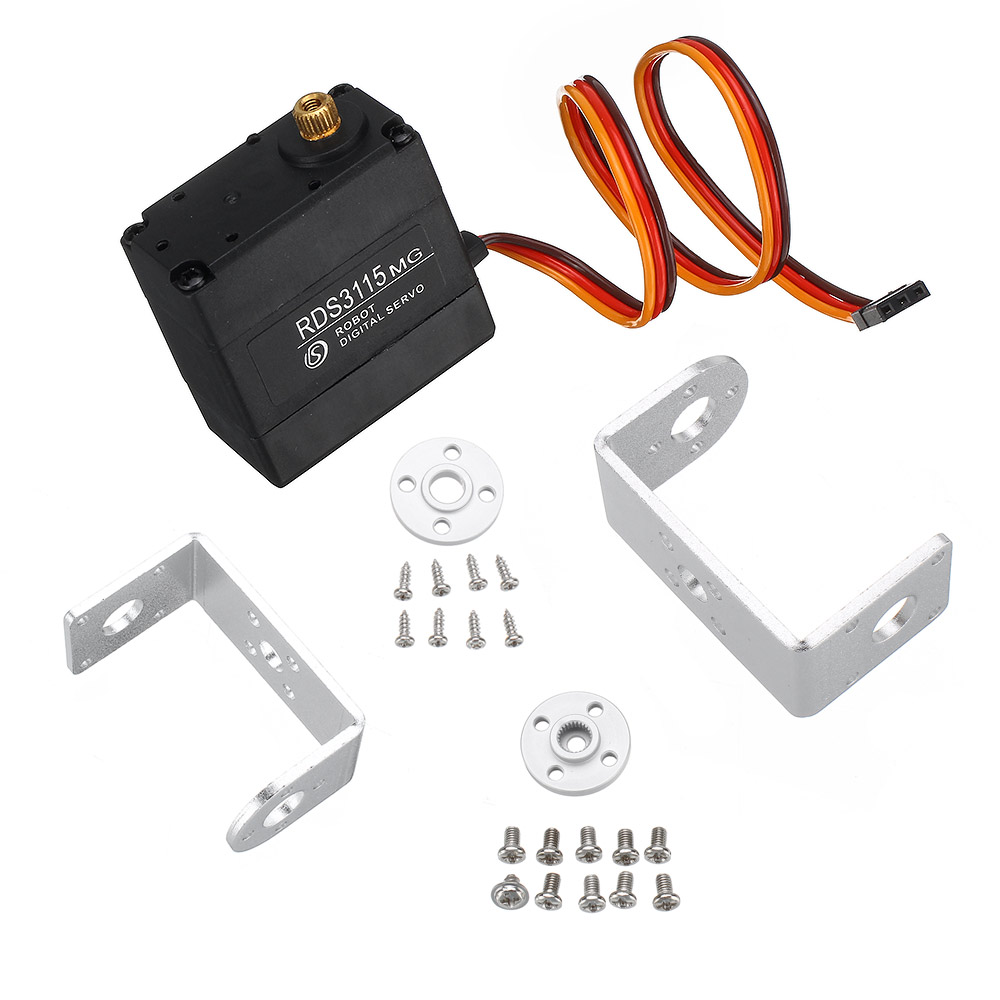

Package Included:

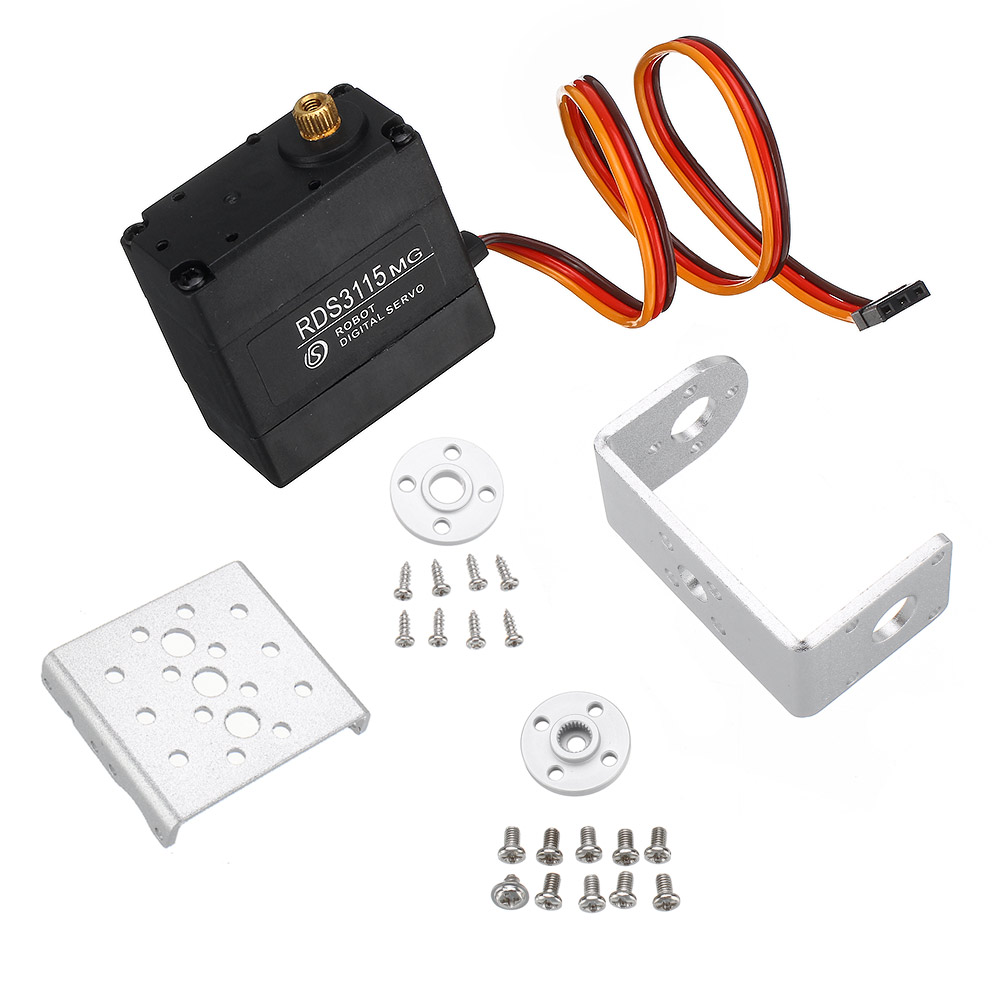

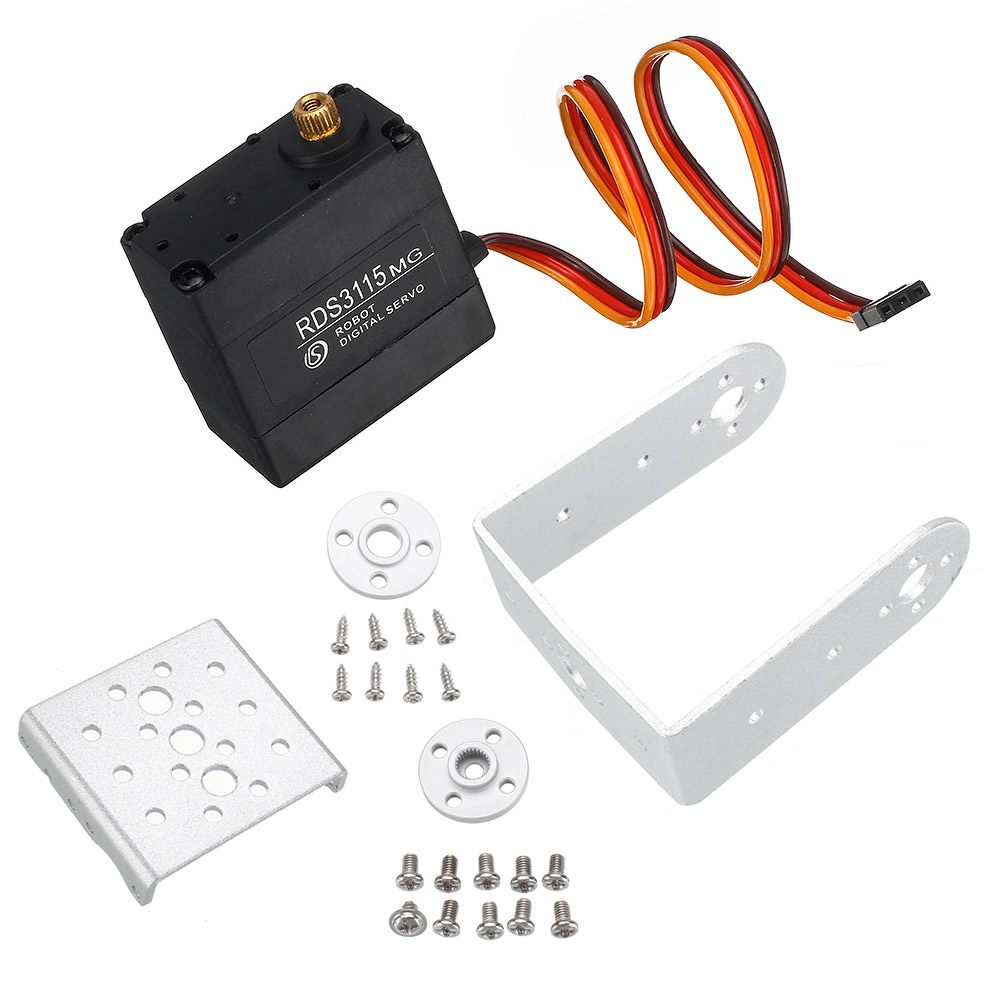

1 x DSSERVO RDS3115MG Digital Servo(with holder)
