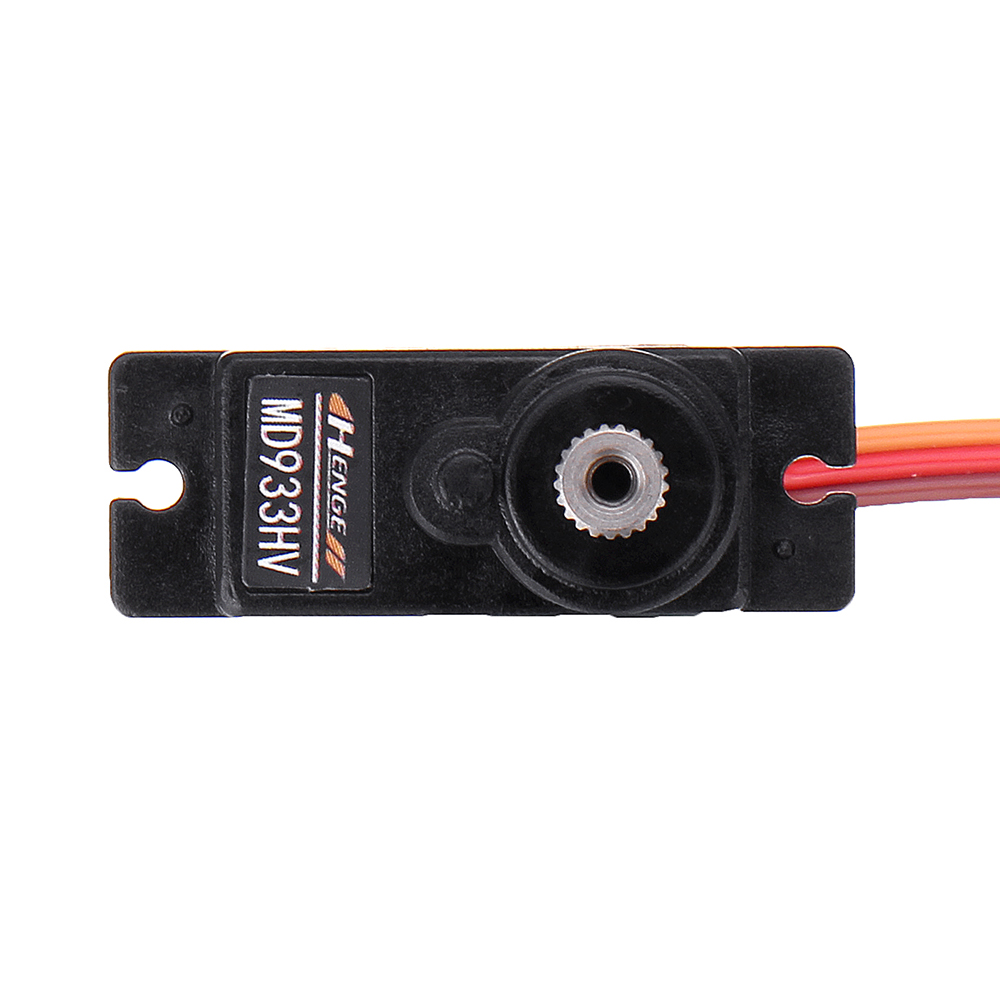

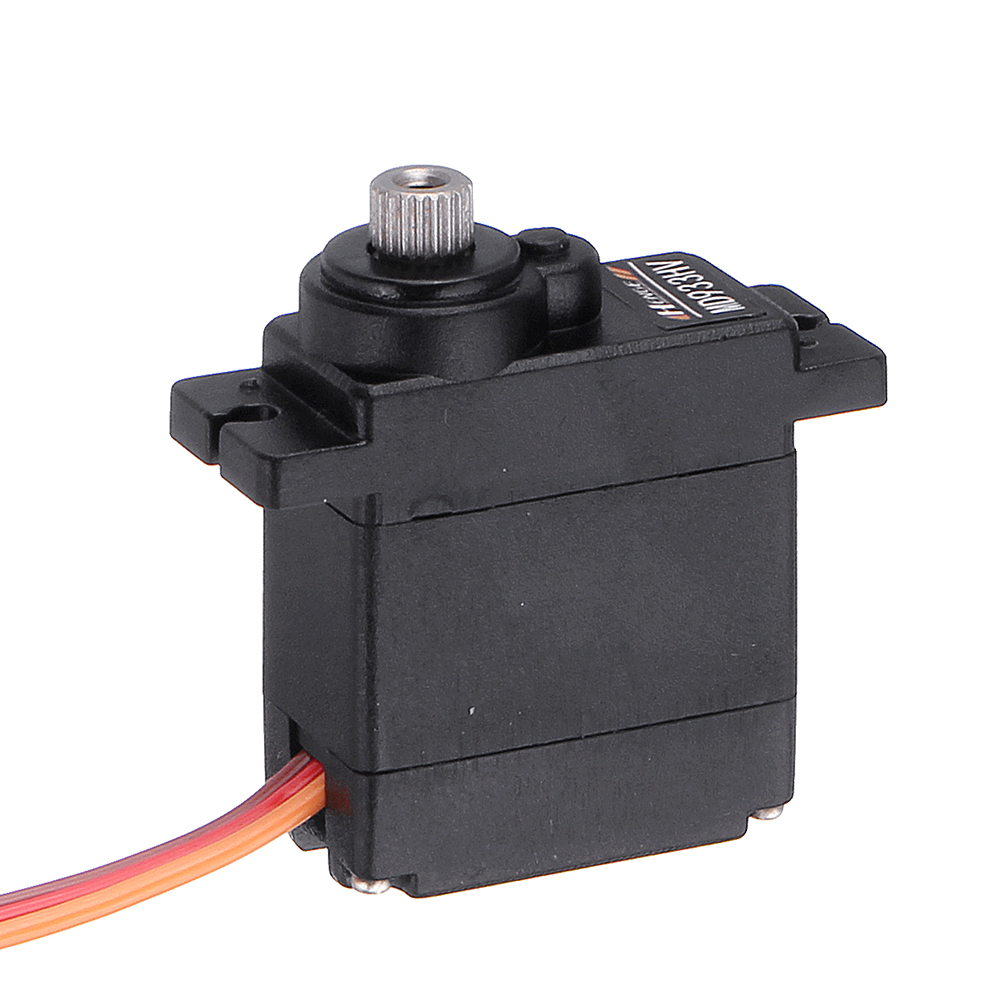

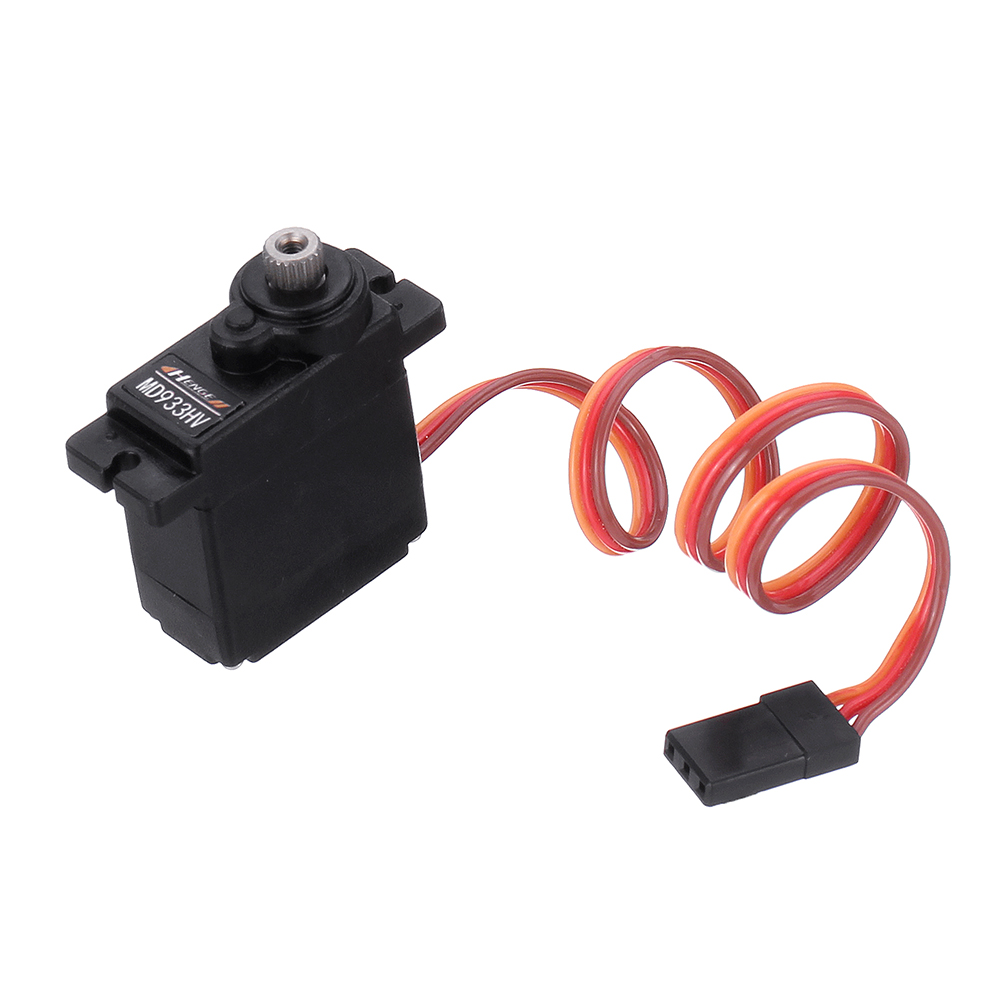

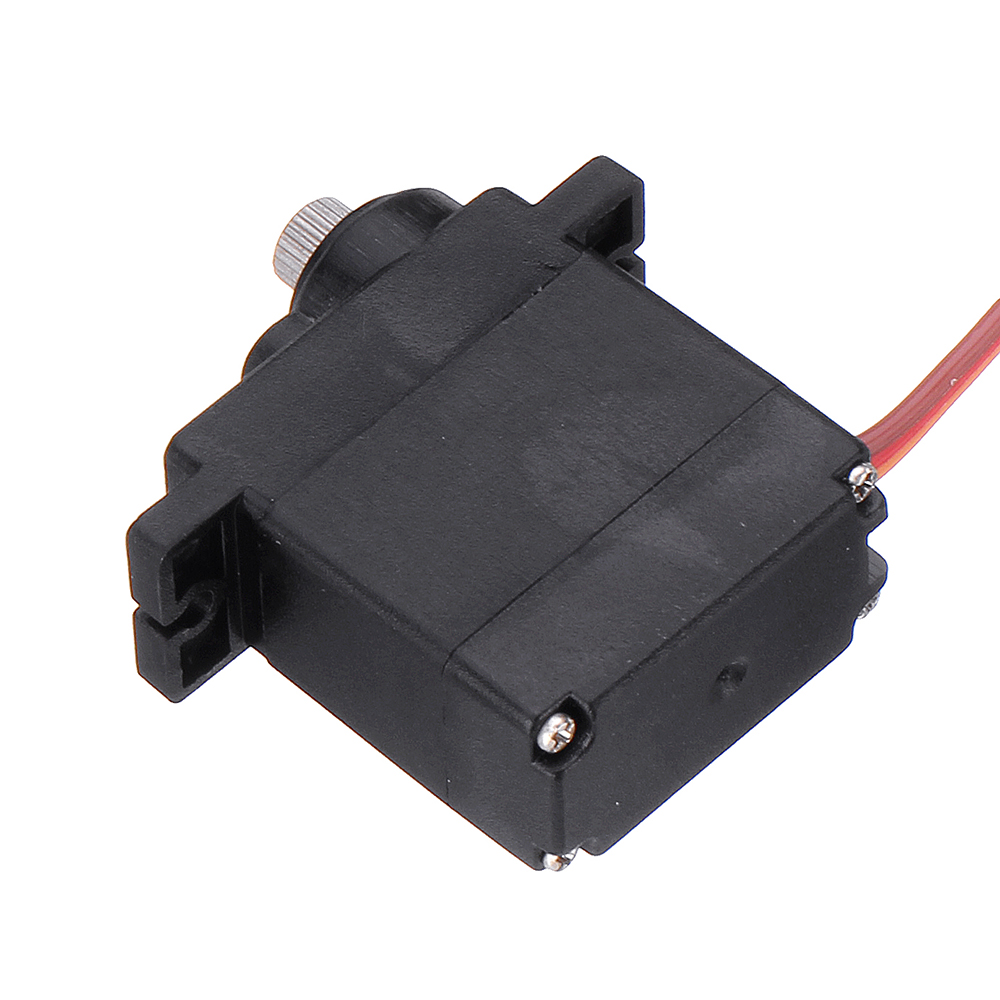

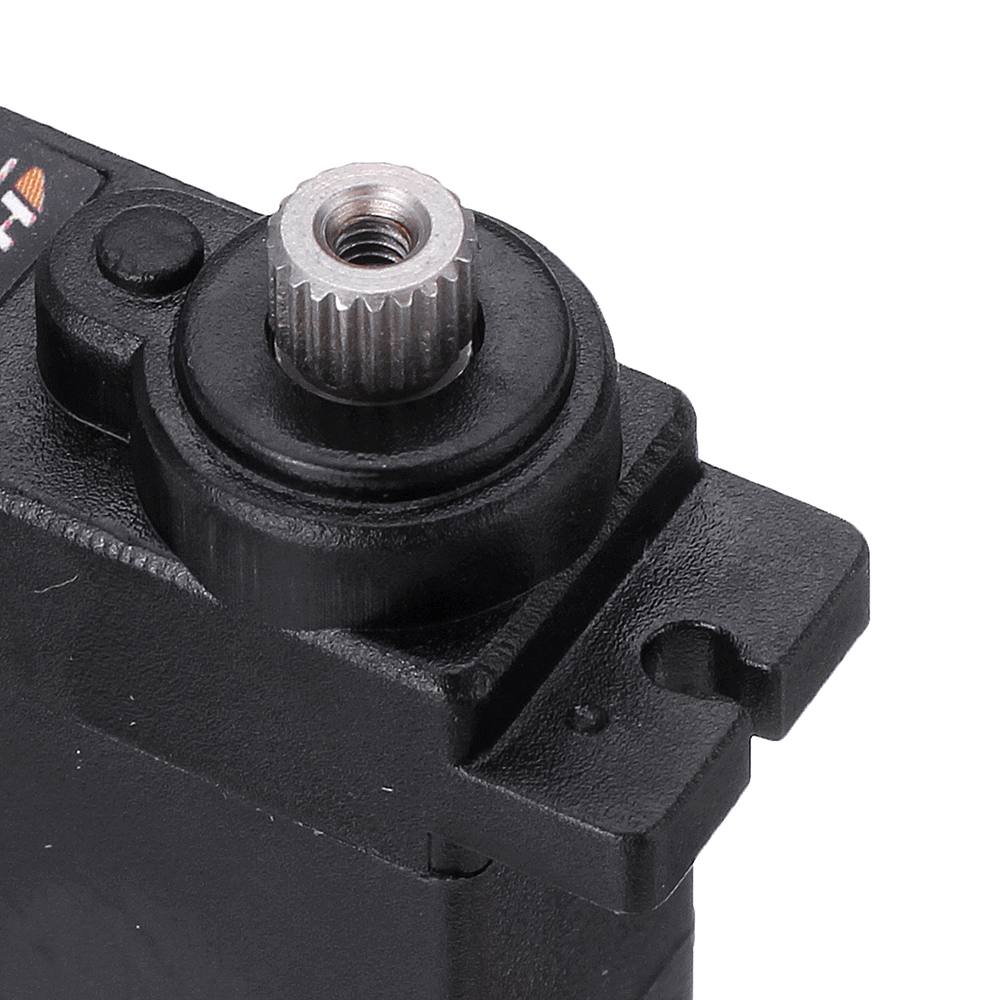

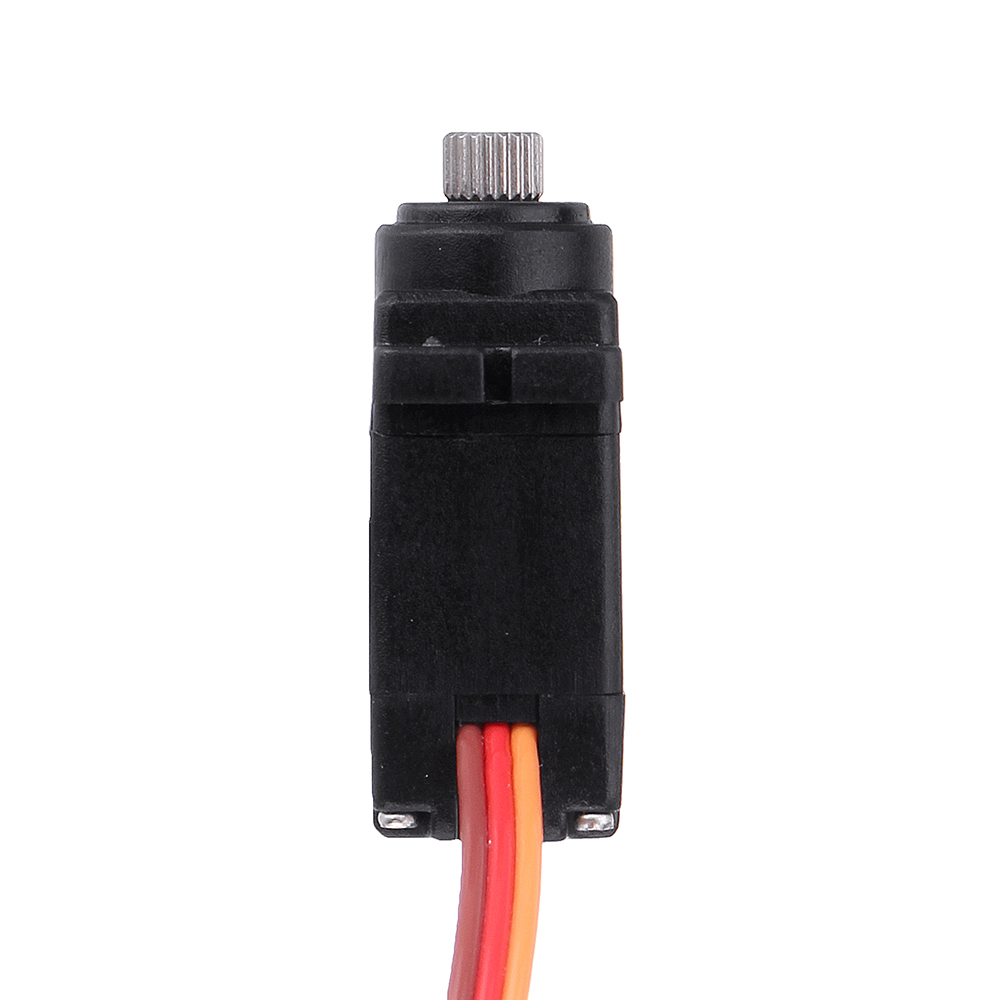

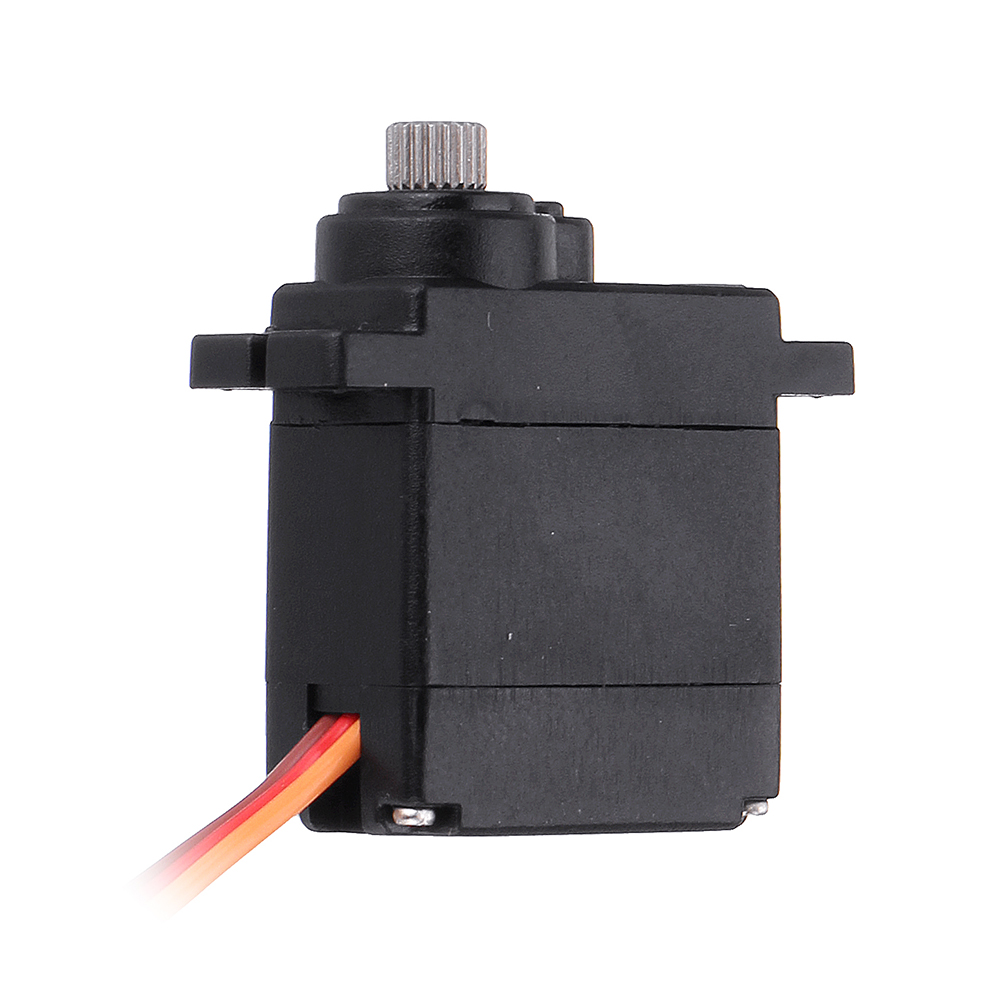

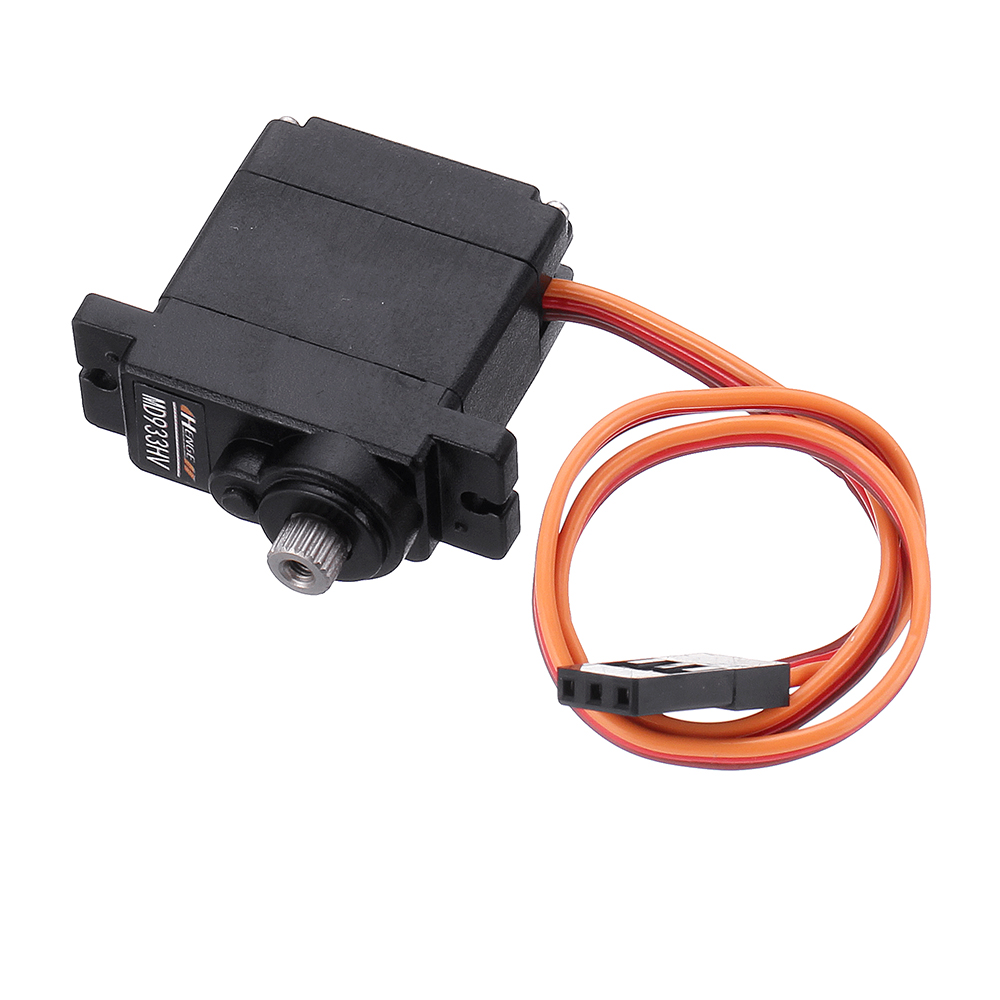

HENGE MD933 12g HV 7.4V Metal Gear Swashplate Digital Servo For 450 Class RC Helicopter RC Airplane
Description:
Brand: HENGE
Product: MD933 Digital Servo
Operating Voltage Range: 6.0-7.4V
Operating Temperature Range: -20 ~ +60
Operating Speed:
0.10 sec/60@6.0V
0.08 sec/60@7.4V
Torque:
2.5kg.cm @6.0V
2.7kg.cm @7.4V
Idle Current: 5mA at stopped
Running Current Range: 50-150mA
Stall Current: 700mA
Dead Band: 4usec
Rotation: 40°±0.5°
Size: 22.5×11.5×24.6mm
Weight: 12g
Bearing Material: Metal
Gear Material: 4 Metal Gears and 1 Nylon gear

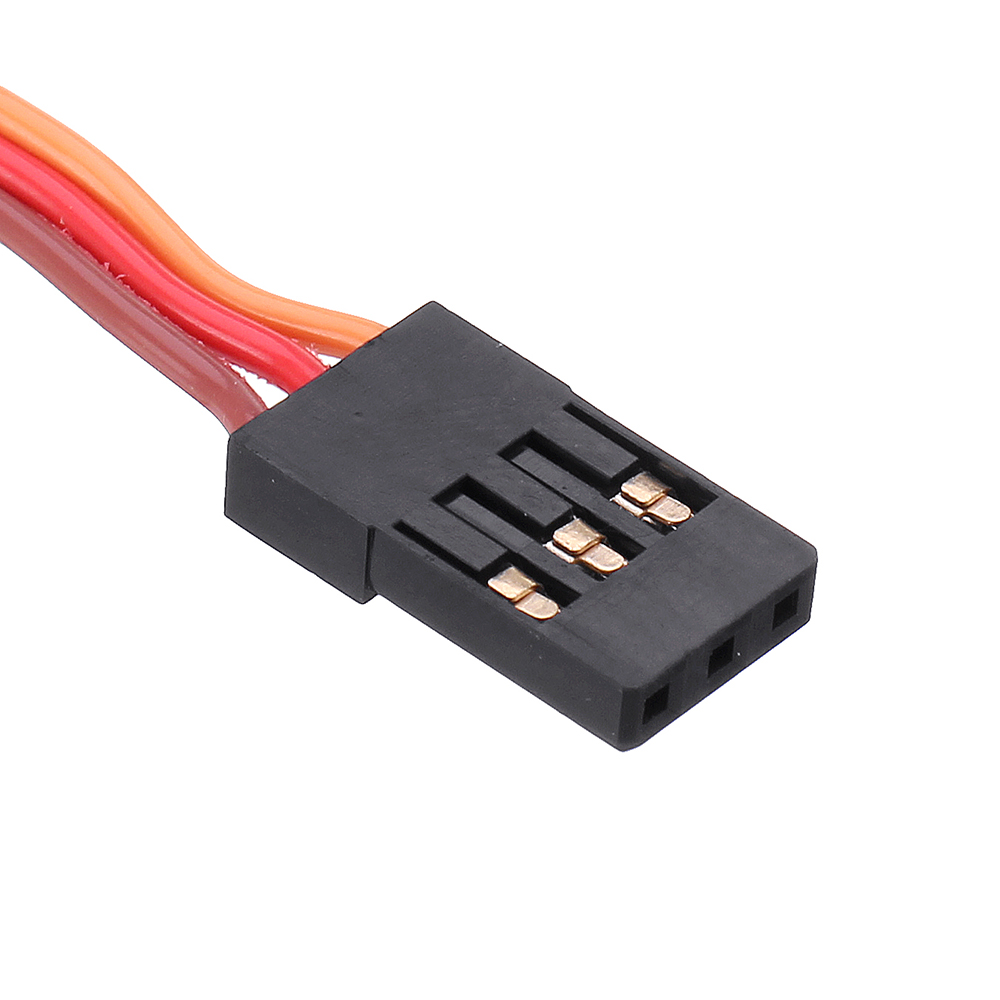

Connector Wire Length: 21cm
Application: For 450 RC Helicopter RC Airplane
Package:
1* HENGE MD933 Digital Servo
