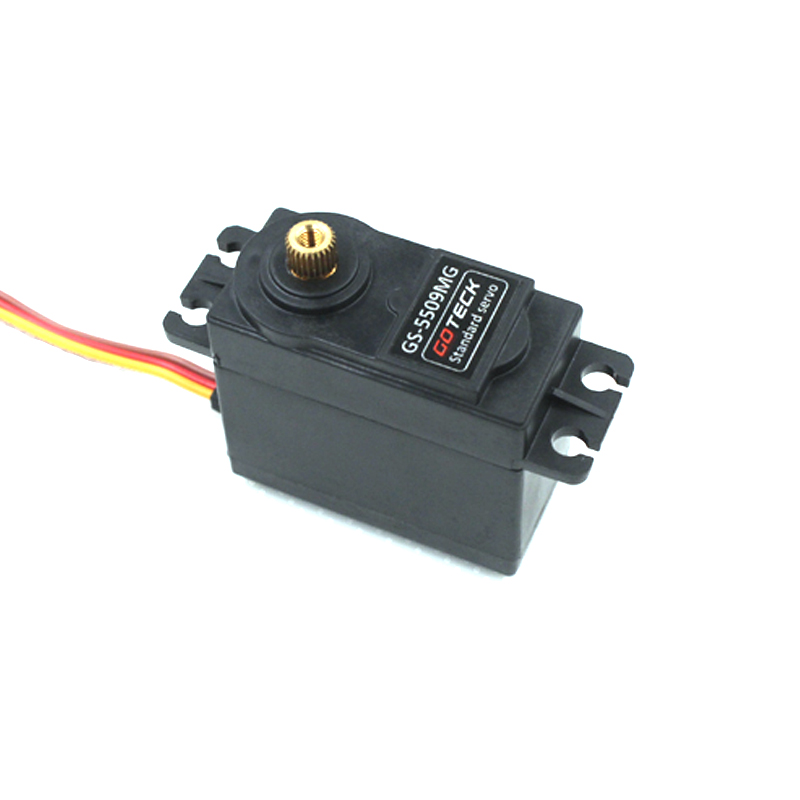

Goteck GS-5509MG 9KG Metal Gear Throttle Steering Servo for RC Car Model Fixed-wing Aircraft Helicopter
Description:
Brand: Goteck
Item: GS-5509MG

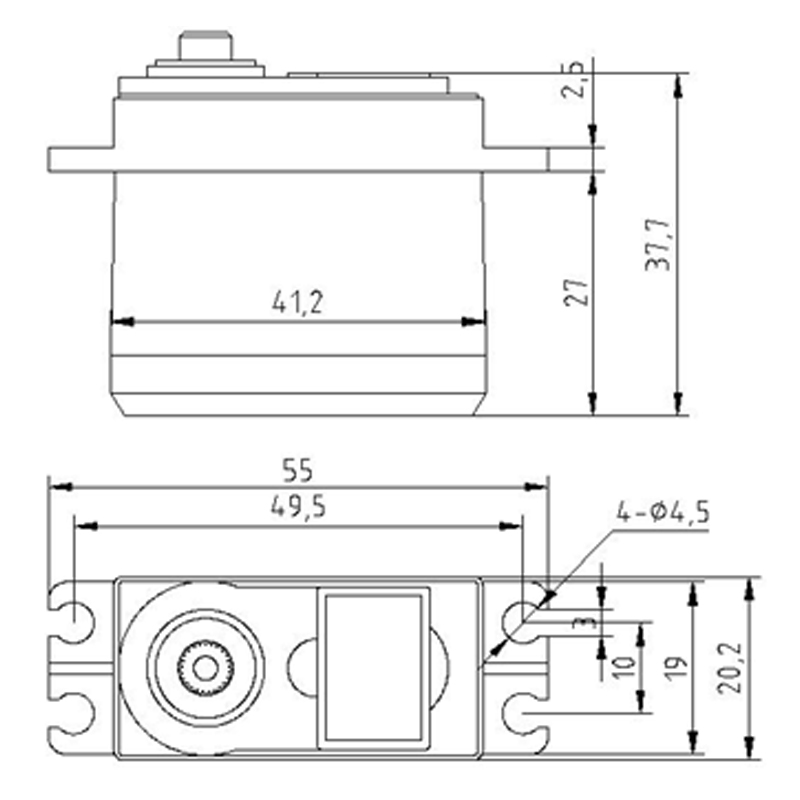

Size: 40.8*20.1*38mm
Weight: 55g(without splined horn)
Torque: 11kg/ 0.23sec
Control System: Positive PWM control 1500 usec Neutral
Operation Voltage Range: 4.8V ~6.0V
Operation Temperature Range : -20Cdeg ~ + 60Cdeg
Idle Speed: 0.25-0.23 sec/ 60deg
Idle Current: 300mA at stopped
Running Current: 2200mA at no load
Dead band width: 8 usec
Circle: 10000 times
Operation Travel: 60deg+-10deg
Direction: Re-clock wise/ Pulse Travel 1500 to 1900 usec
Drive Type: FET drive
Motor Type: Carbon Brush
Potentiometer Type: Indirect drive
Amplifier Type: Analog Control
Ball Bearing: Double ball bearing
Gear Material: Metal gear
Case Material: Nylon plus fiber
Connector Wire Length: 300mm
Connector Wire Gauge: 22AWG heavy duty(JR Universal)
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Orange): Single
Features:
- Metal gear throttle steering.
- High torque servo.
- Suitable for Car model Fixed-wing Aircraft and Helicopter.
Package Included:
1* Goteck GS-5509MG 9KG Metal Digital Servo
