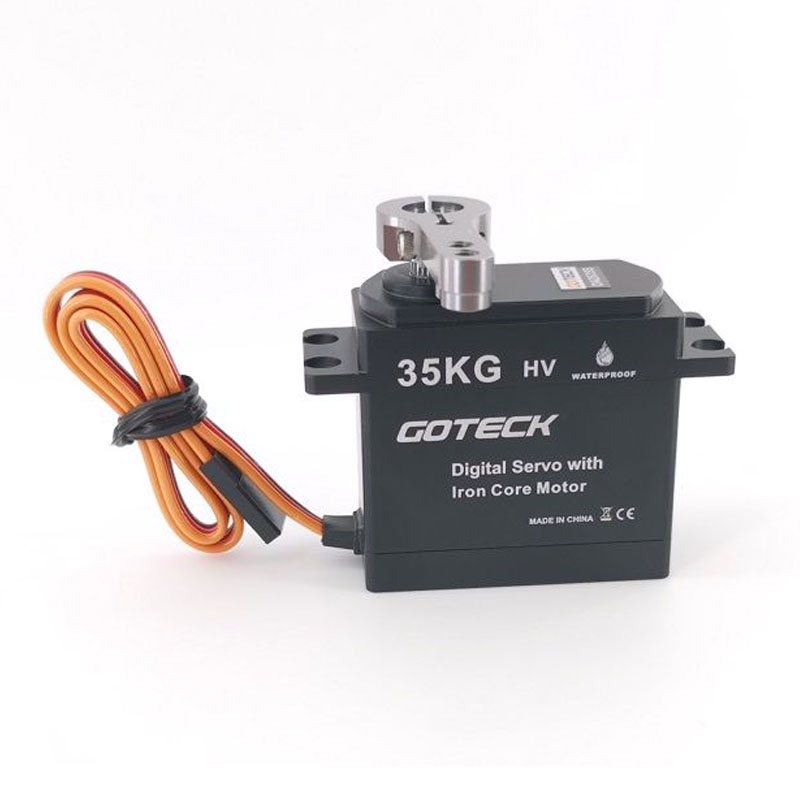

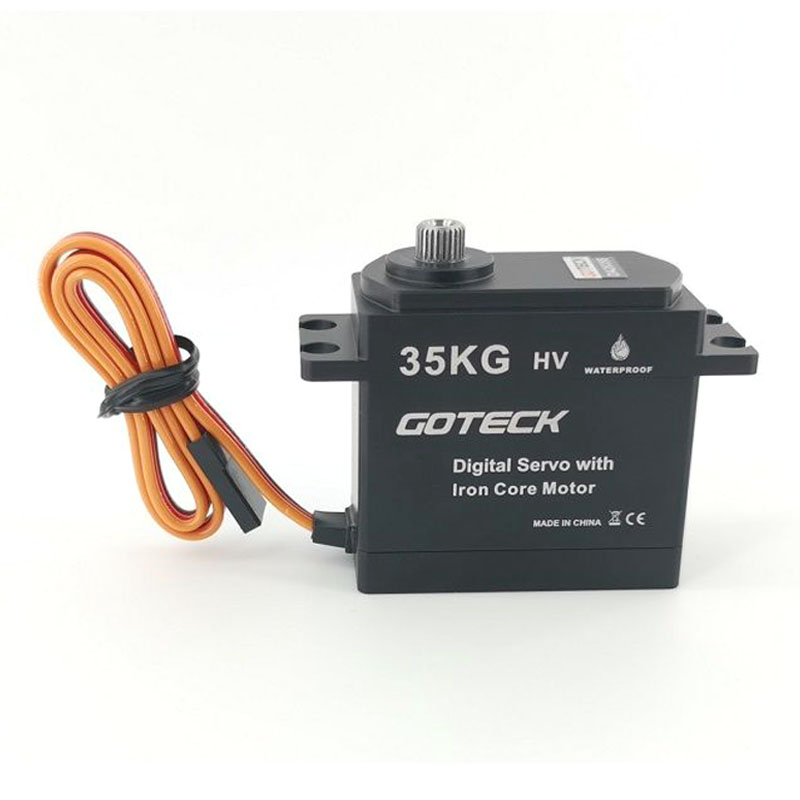

Goteck DA2635SG 35KG Waterproof High Pressure High Speed Aluminum Alloy Digital Servo for RC Fixed Wing Aircraft Helicopter Ship Robot
Specification:
Icontrol System: Positive PWM control ( 1500 usec / 330hz Neutral )
Operation Voltage Rang: 4.8V-7.4V
Operation Temperature Range: -20Cdeg~+ 60Cdeg
Death Band width: 1usec
Circle: > 15000 times / idle load
Operation Travel: 55deg +- 5deg
Direction: Anti-clockwise / pulse travel 1500 to 2100 usec
Waterproof Level: IP67
Drive Type: FET drive
motor Type: Lron core
Potentiometer Type: Indirect drive
Amplifier Type: Digital
Size: 40.8* 20.5 *40.2mm
Weight: 73g ( without accessories )
Ball Bearing: Double ball bearing
Gear Material: Import steel gear
Case Material: Nylon plus fiber / Aluminum Medium
Connector Wire Length: 300mm
Connector Wire Gauge: 22AWG JR Universal
Brown: Negative
Red: Positive
Orange: Signal
Application: Car model; fixed-wing aircraft; helicopter; robot
Features:
- With high pressure high speed.
- Suitable for Car model Fixed-wing Aircraft and Helicopter.
Package Included:

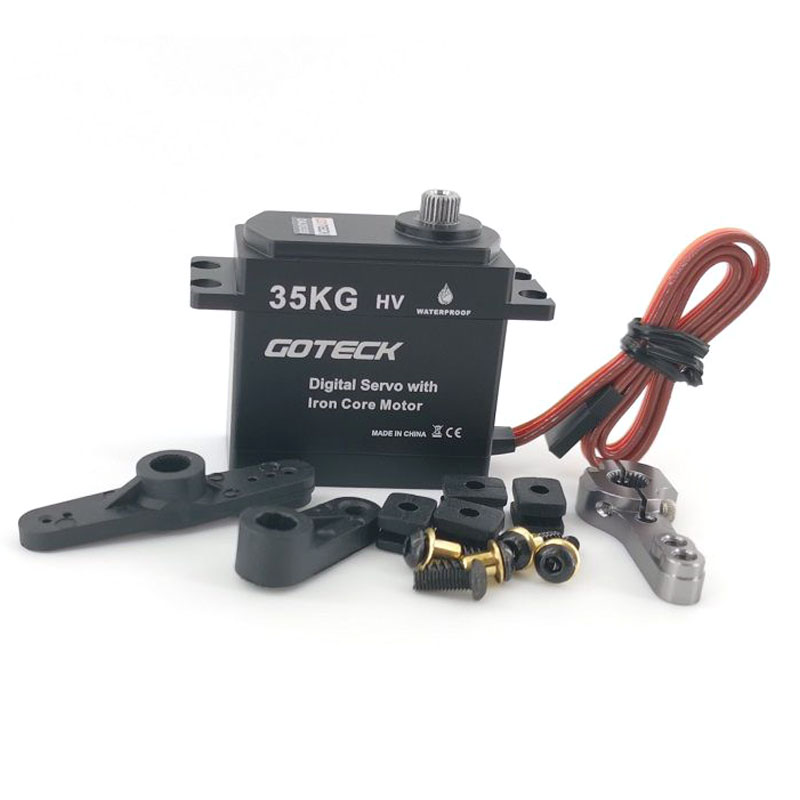

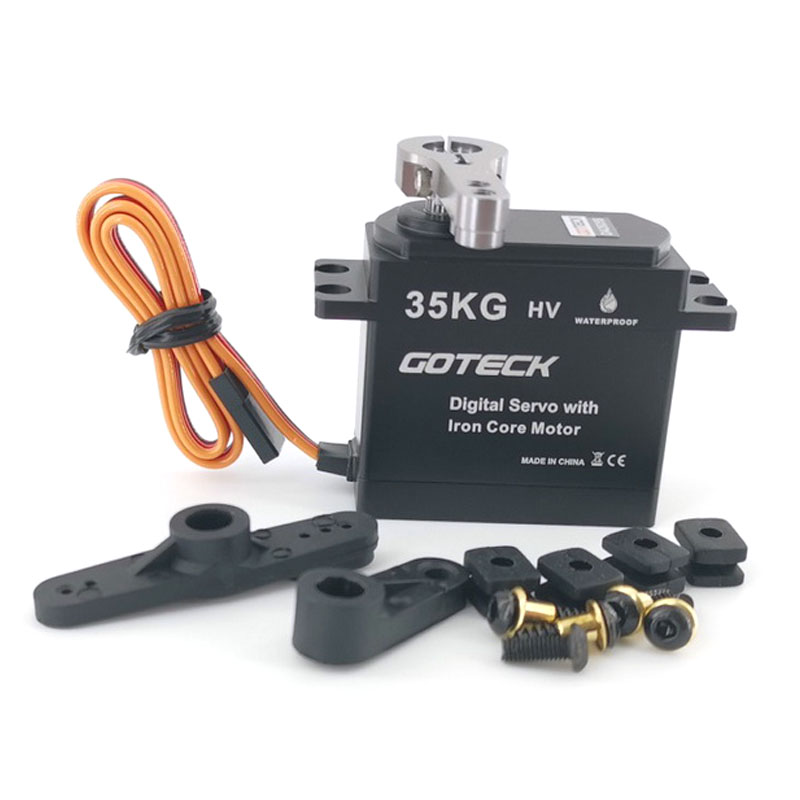

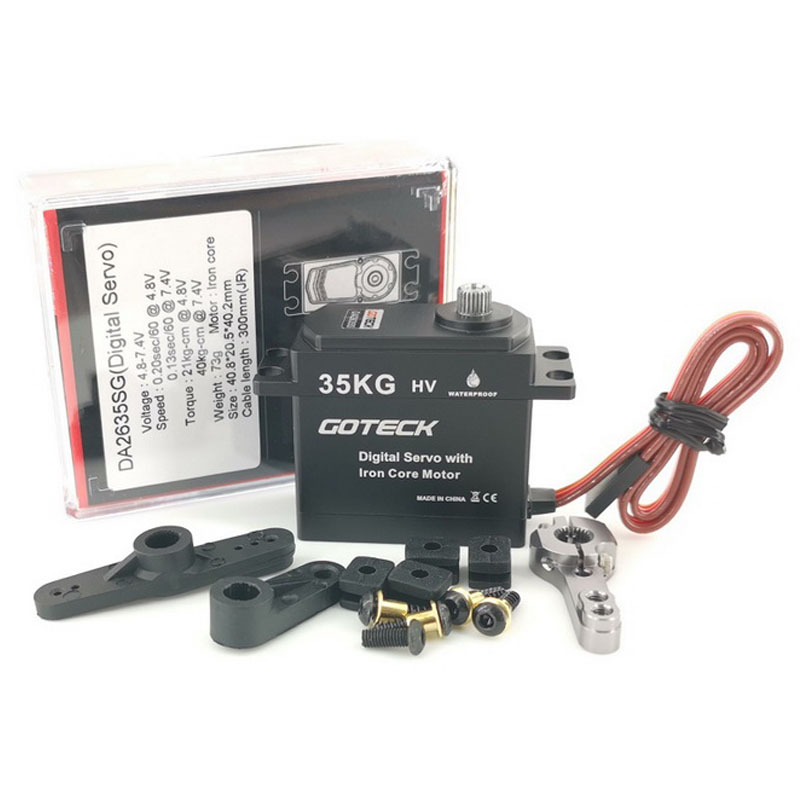

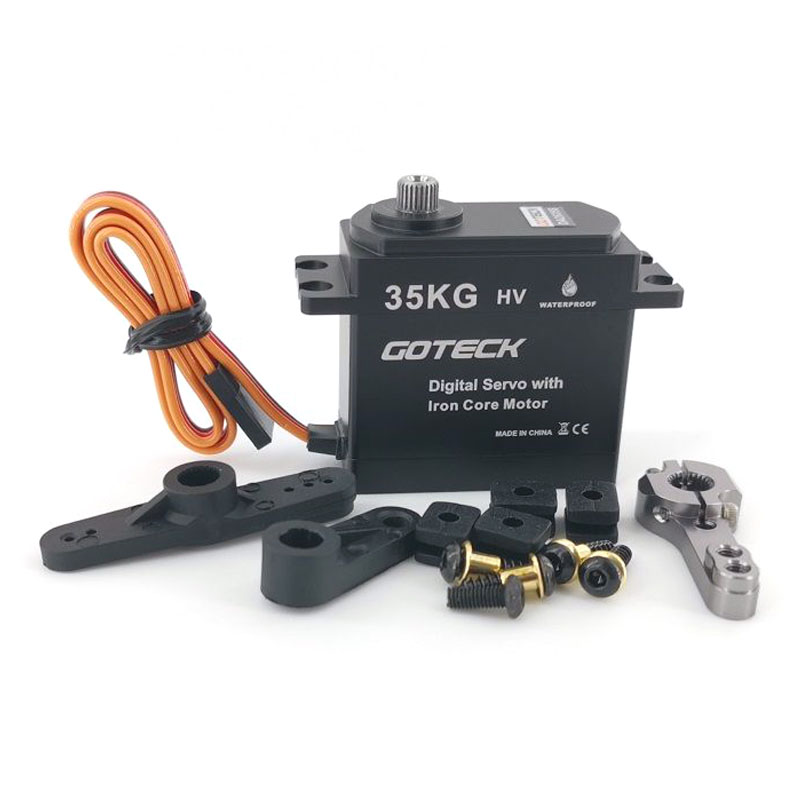

1* Goteck DA2635SG 35kg Digital Servo
