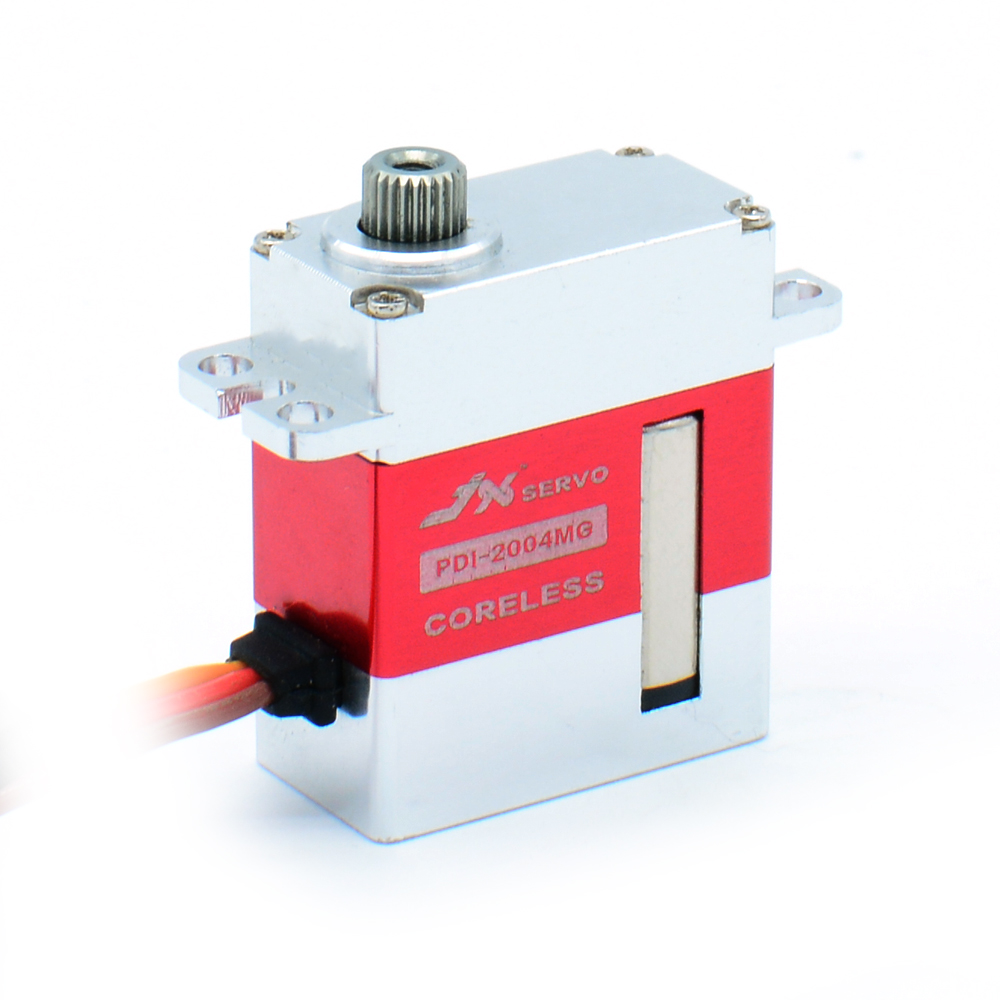

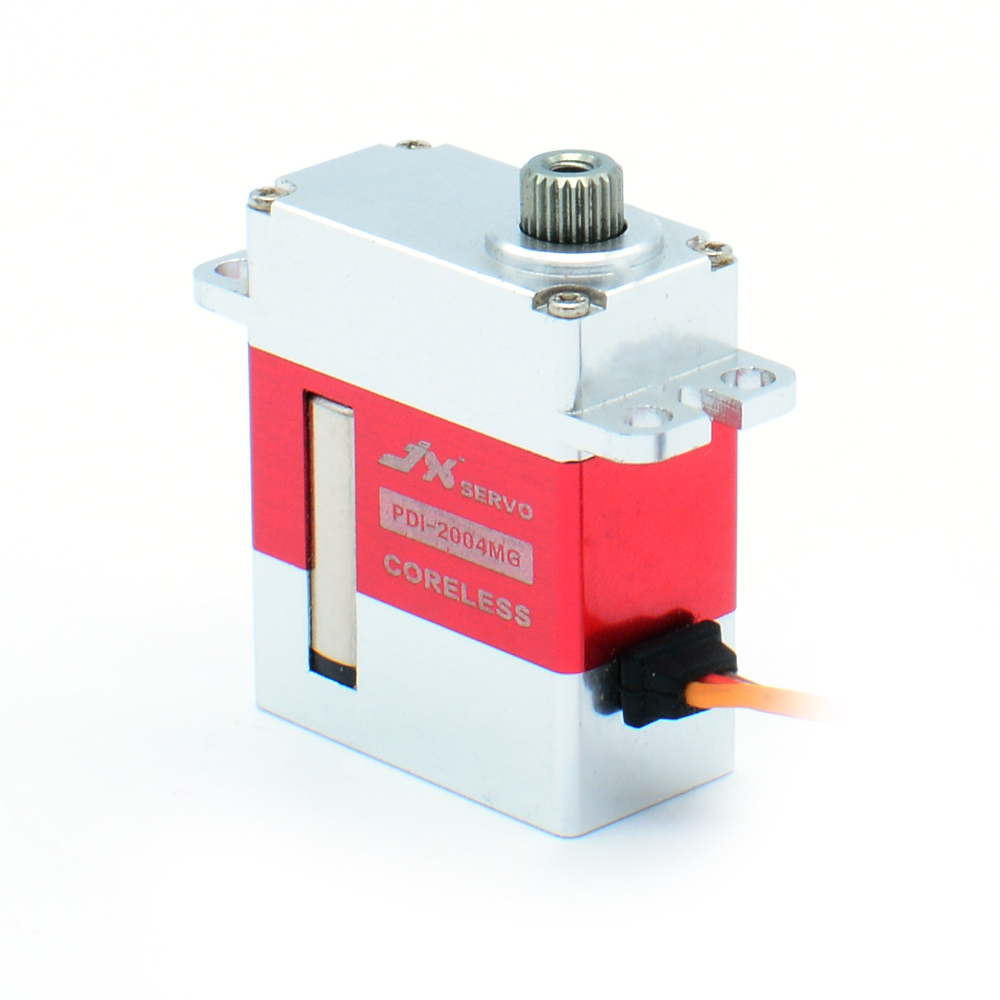

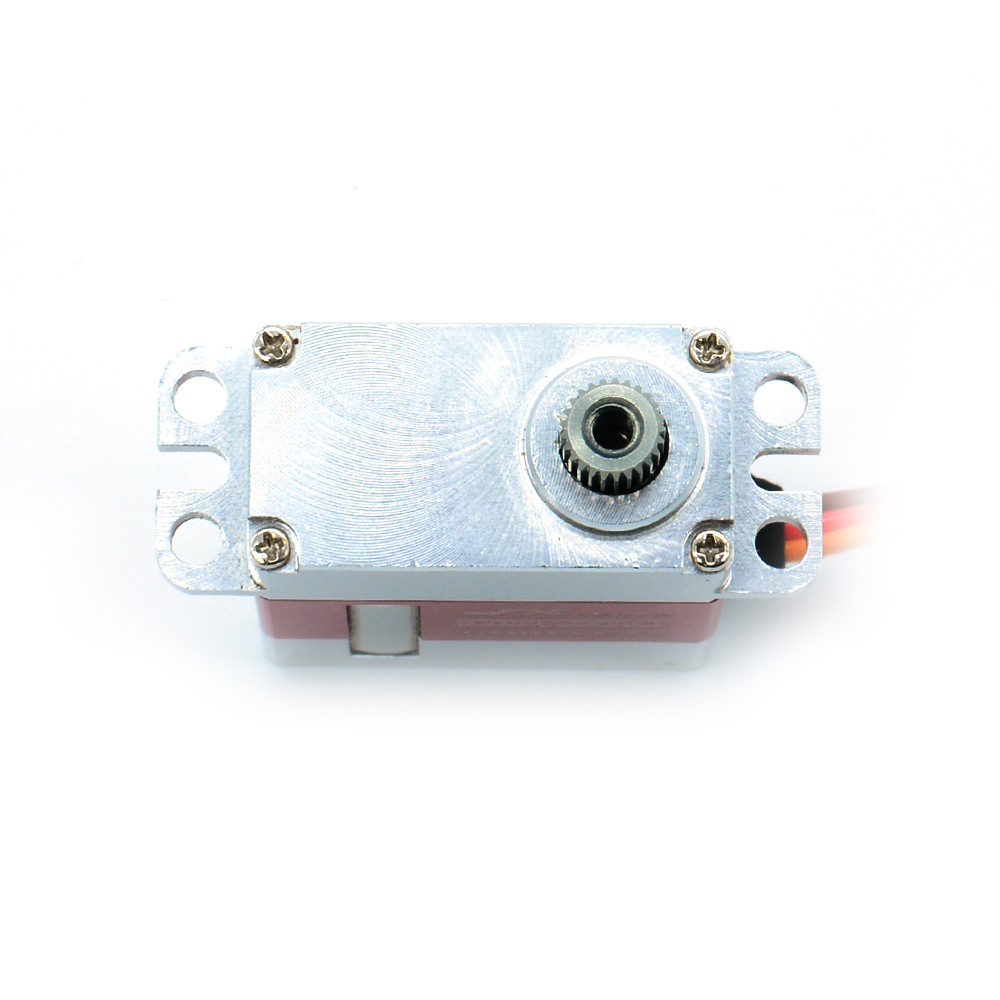

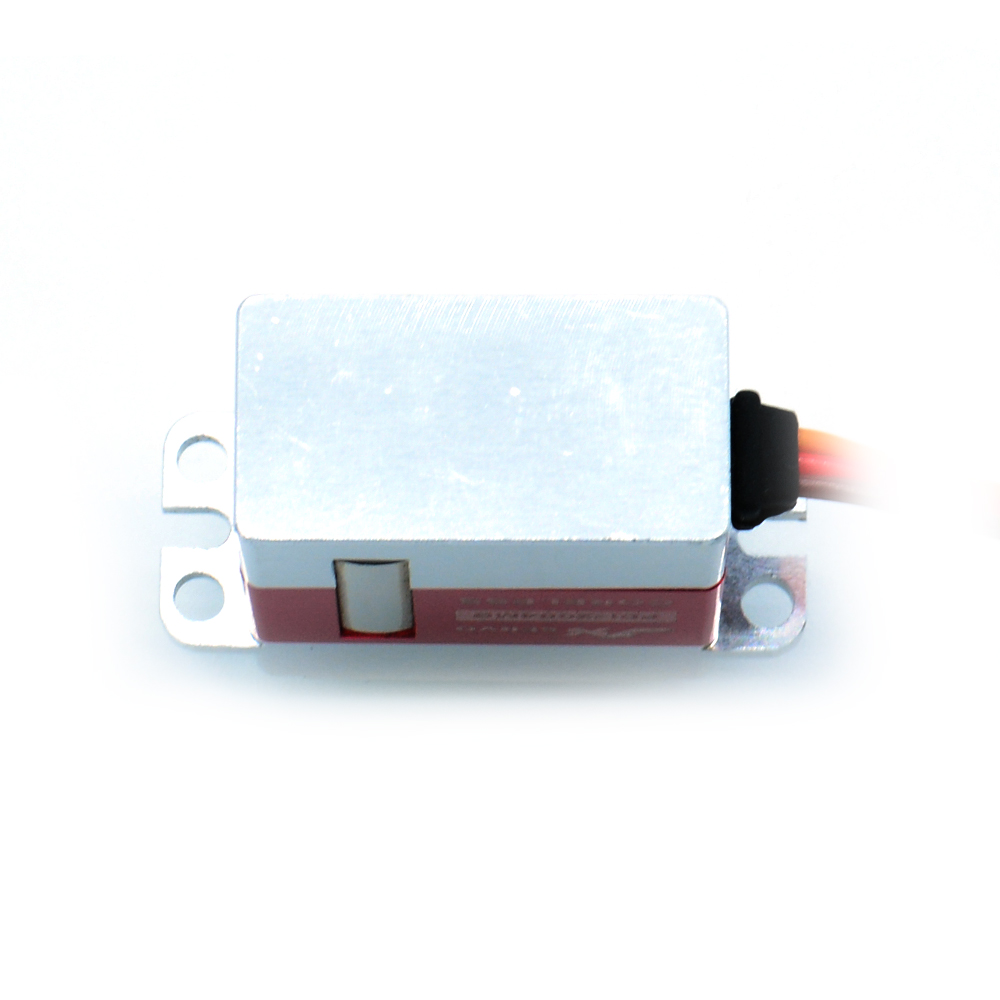

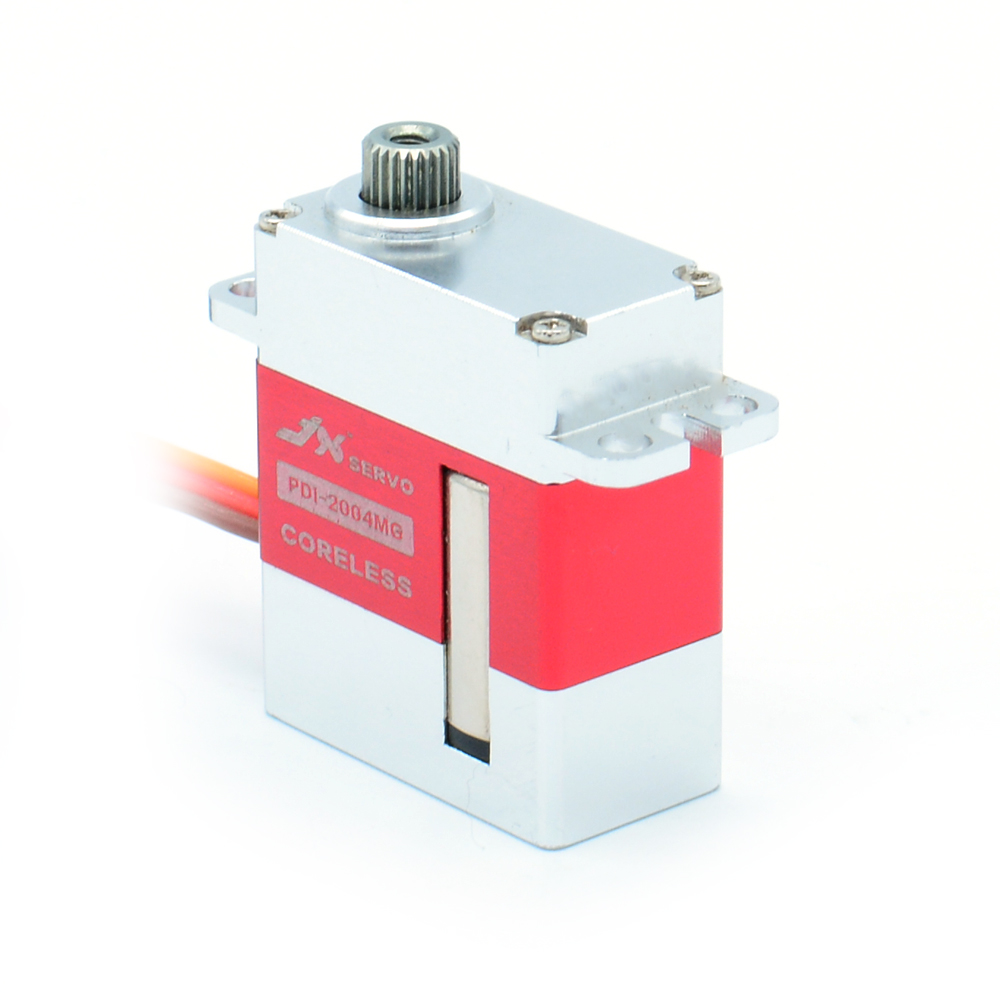

JX PDI-2004MG 4.2KG 0.08sec Digital Servo Coreless Motor Full Metal Aluminium Case For RC Helicopter

This combination does not exist.

ADD TO CART

Specification:

Brand:JX

Model:PDI-2004MG

Dead band: 2ms

Motor: coreless motor

Working frequence: 1520ms / 330hz

Operating Voltage: DC4.8~6.0 V

Operating Temperature Range: -10 to + 60deg

Operating Speed (4.8V): 0.09sec/60deg

Operating Speed (6V): 0.08 sec/60deg

Stall Torque (4.8V): 3.2kg.cm

Stall Torque (6V): 4.2kg-cm

Potentiometer Drive: Direct Drive

Dimensions: 23X12X27.6 mm

Weight: 20.3 g (0.72oz)

Connector Wire Length: JR 220 mm

Bearing: 2BB

Package Included:
1 x Servo
1 x Bag of Accessories

JX PDI-2004MG 4.2KG 0.08sec Digital Servo Coreless Motor Full Metal Aluminium Case For RC Helicopter
