DasMikro V3 Micro Brushless 18A Brushless ESC V3 DIY for 1/28 1/24 1/18 RC Car Vehicles Model Spare Parts

"

Description:

This is a micro Sensor-less ESC designed for Brushless Motor. It could be used for 1/28 1/24 and 1/18 2WD or AWD micro RC car.

Features:

* Specially designed for RC car and truck with excellent starting up acceleration and linearity features.

*Compatible with sensor-less brushless motor.

*3 running modes suitable for different applications

*Forward with brake mode / Forward-Backward with Brake mode / Forward-Backward no Brake Mode

*4 steps of maximum reverse force adjustment.

*Proportional ABS brake function with 4 steps of maximum brake force adjustment 8 steps of drag brake force adjustment and 4 steps of initial brake force adjustment.

*9 start modes from ""Short"" to ""Smooth"" to be suitable for different chassis tires and tracks.

* 7 multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

* 8 steps of timing adjustment.

* User programmable. Supported as: The ""SET"" button on the ESC the digital LED Programmer

Specification:

Continues Current:18A

Burst Current:48A

Resistance:0.01 ohm

Battery:2S Li-Po/Li-Ion or 4-6 cells NiMH

BEC Output:5V/3A

Size:25mm x 20 mm x 7mm

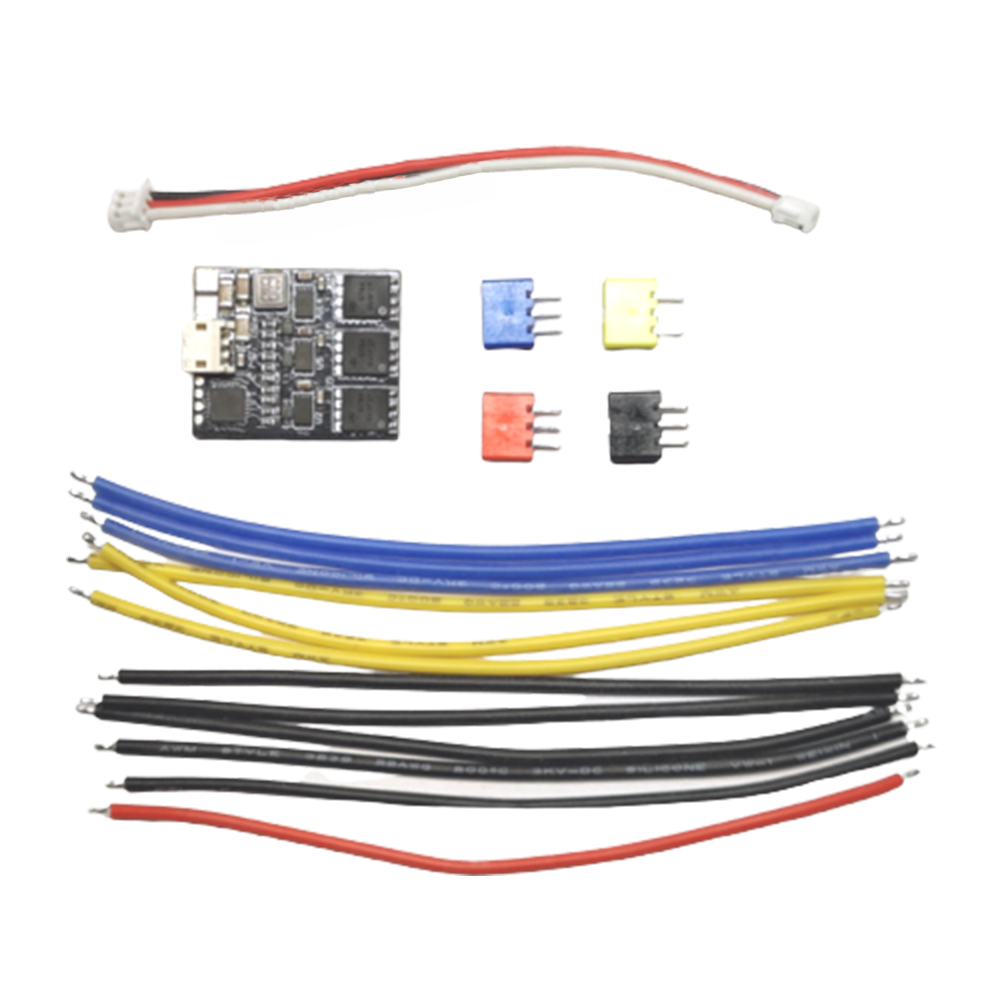

Package Included:

1X ESC

1X 1.5mm 3P JST Plug with High Quality Silicon Cable

12X 100mm High Quality Silicon Cable (3 blue 3 yellow 5 black 1 red)

4X PH2.0 3P Plug (for battery connection)
