JX PDI-HV2006MG HV 7.4V 20.3g 6.2KG High Torgue Metal Gear Coreless Digital Servo for RC Airplane

Features:

High-performance hollow cup digital servo

20.3g/6.2kg torque digital servo

High-precision gears made in Taiwan

Double ball bearing

Description:

Brand: JX Servo

Item Name: PDI-HV2006MG

Dead band: 2ms
Motor: Coreless motor
Working Frequence: 1520ms / 330hz
Operating Voltage: DC6.0~8.4 V
Operating Temperature Range: -10 to +60degc
Operating Speed (6.0V): 0.07sec/60deg
Operating Speed (7.4V): 0.05sec/60deg
Stall Torque (6.0V): 4.8kg.cm (67.09oz/in)
Stall Torque (7.4V): 6.2kg.cm (86.81oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 23X12X27.6 mm
Weight: 20.3g (0.72oz)
Connector Wire: Futaba/JR 220 mm
Bearing: 2BB

Gear Teeth: 25T

1 Piece Version Included:

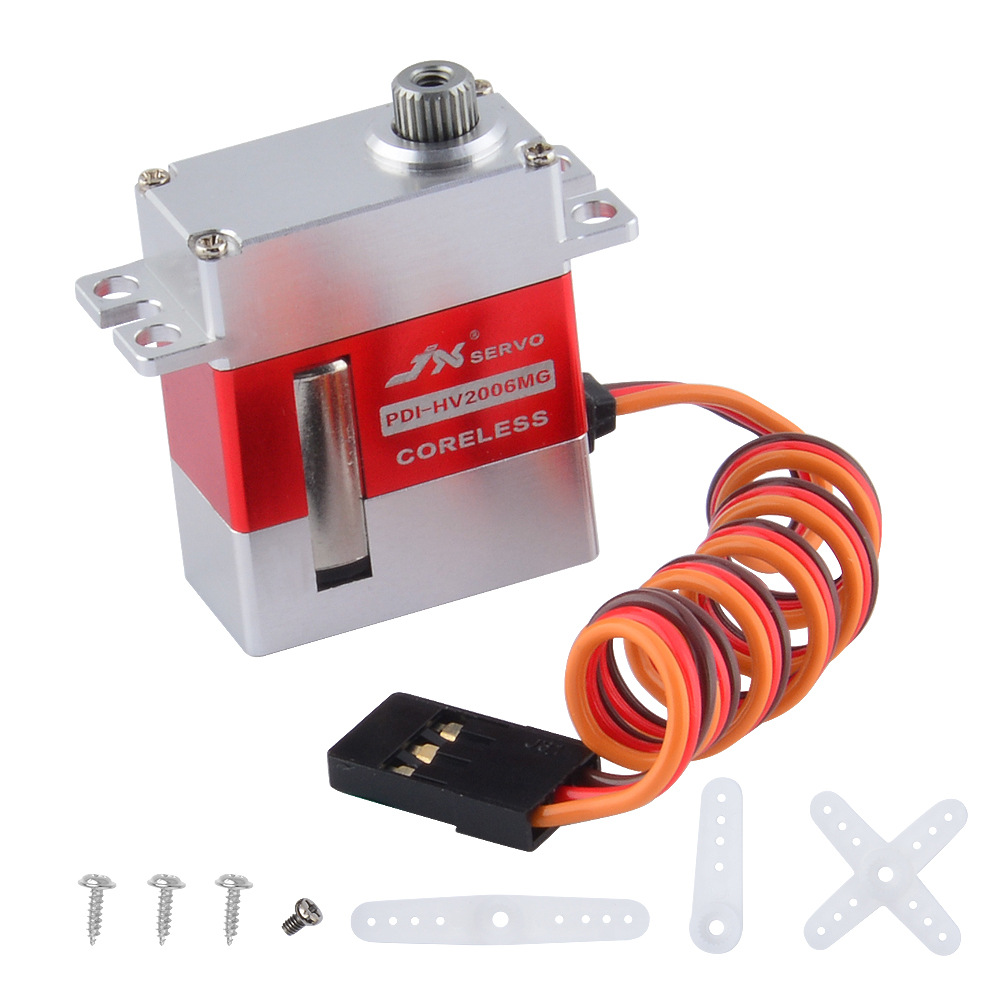

1x JX PDI-HV2006MG High Torgue Metal Gear Coreless Digital Servo

4 Pieces Version Included:

4x JX PDI-HV2006MG High Torgue Metal Gear Coreless Digital Servo
