Surpass Hobby Diamond Seriers Waterproof 3660 3500KV Shaft 5mm Brushless Motor with 80A ESC for 1/10 RC Vehicles
Description:
Item Brand:Surpass Hobby
Item Number:3660 3500KV Brushless Motor with 80A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 60mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 25mm
The Size of the ESC:51.5*38.5*.38.5mm
The Weight of the Motor/ESC:About 261g/84g
Fit For:1/10 1/8 brushless rc cars

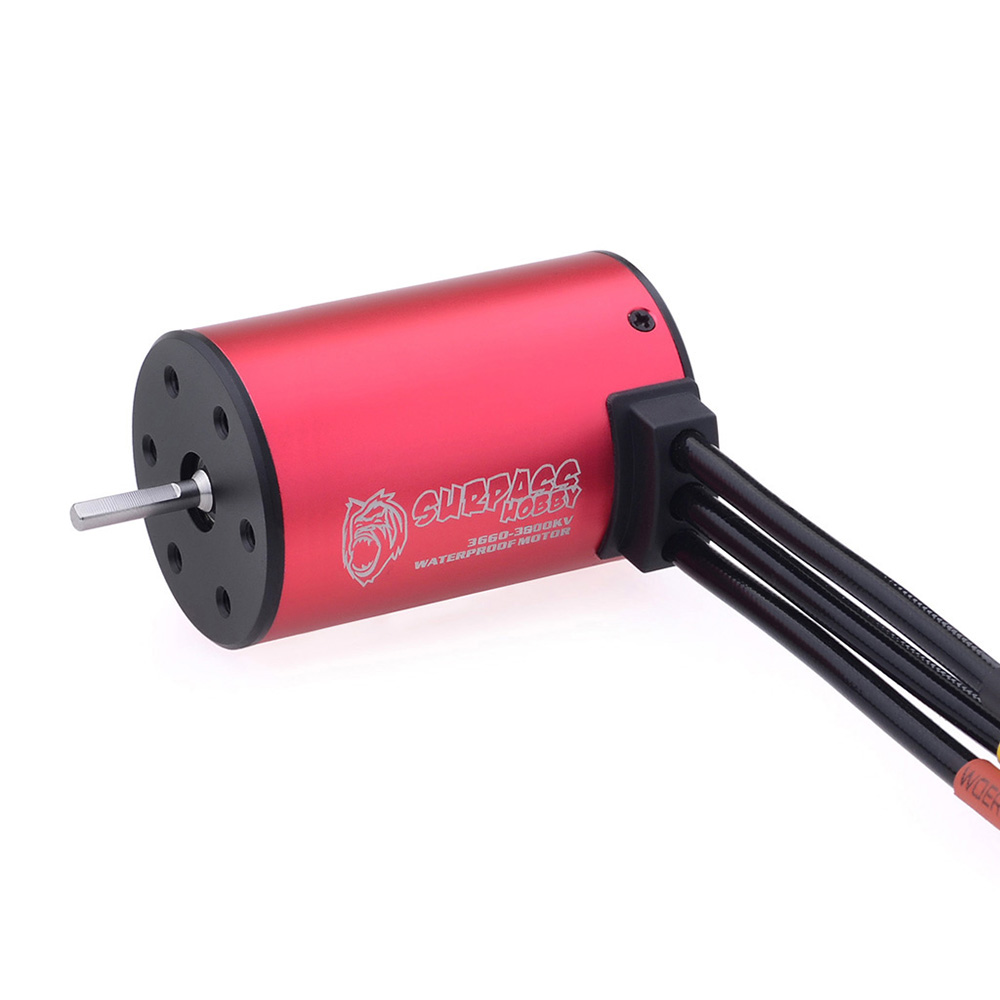

The Specification of the Motor:
KV:3500KV
Watts:1200
Max Voltage:<13V
Max Amps:92A
Rotor Poles:4
IO:2.8A
Resistance:0.0083
Max RPM:50000
Connector:4.0mm gold

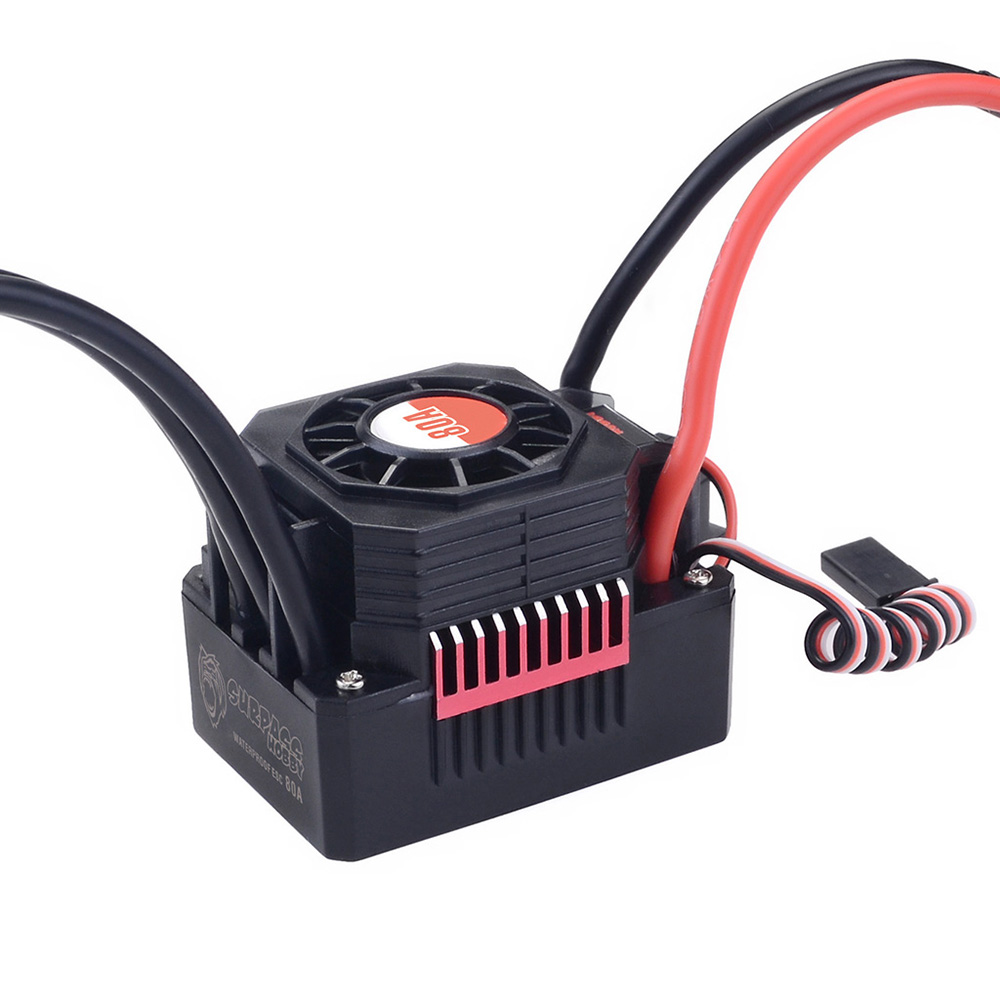

The Specification of the ESC:
Cont.Current:80A
Burst Current:480A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 3670-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 3670-size or smaller motor with the kv <3000
For 3s lipo or 9 cells NiMH
1.On-road 3670-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 3670-size or smaller motor with the kv <2500
Suitable Car:1/10 1/8 car
Resistance:0.0005ohm
Battery:2-4 cells lipo/4-12 cells NiMH
BEC Output:6.1V/3A(switch mode)
Features:

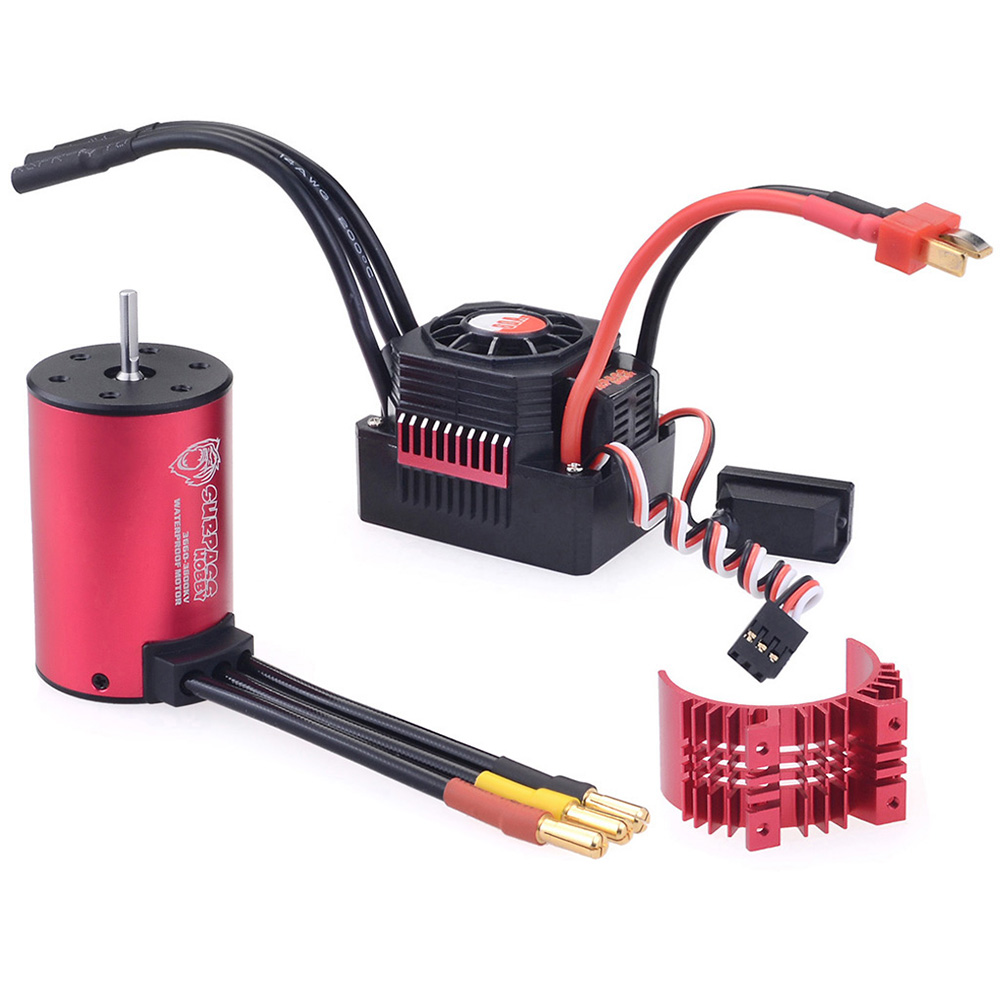

1X 3660 3500KV Brushless Motor
1X 80A ESC
1X Manual
Item Brand:Surpass Hobby
Item Number:3660 3500KV Brushless Motor with 80A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 60mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 25mm
The Size of the ESC:51.5*38.5*.38.5mm
The Weight of the Motor/ESC:About 261g/84g
Fit For:1/10 1/8 brushless rc cars
The Specification of the Motor:
KV:3500KV
Watts:1200
Max Voltage:<13V
Max Amps:92A
Rotor Poles:4
IO:2.8A
Resistance:0.0083
Max RPM:50000
Connector:4.0mm gold
The Specification of the ESC:
Cont.Current:80A
Burst Current:480A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 3670-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 3670-size or smaller motor with the kv <3000
For 3s lipo or 9 cells NiMH
1.On-road 3670-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 3670-size or smaller motor with the kv <2500
Suitable Car:1/10 1/8 car
Resistance:0.0005ohm
Battery:2-4 cells lipo/4-12 cells NiMH
BEC Output:6.1V/3A(switch mode)
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/10 1/8 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion

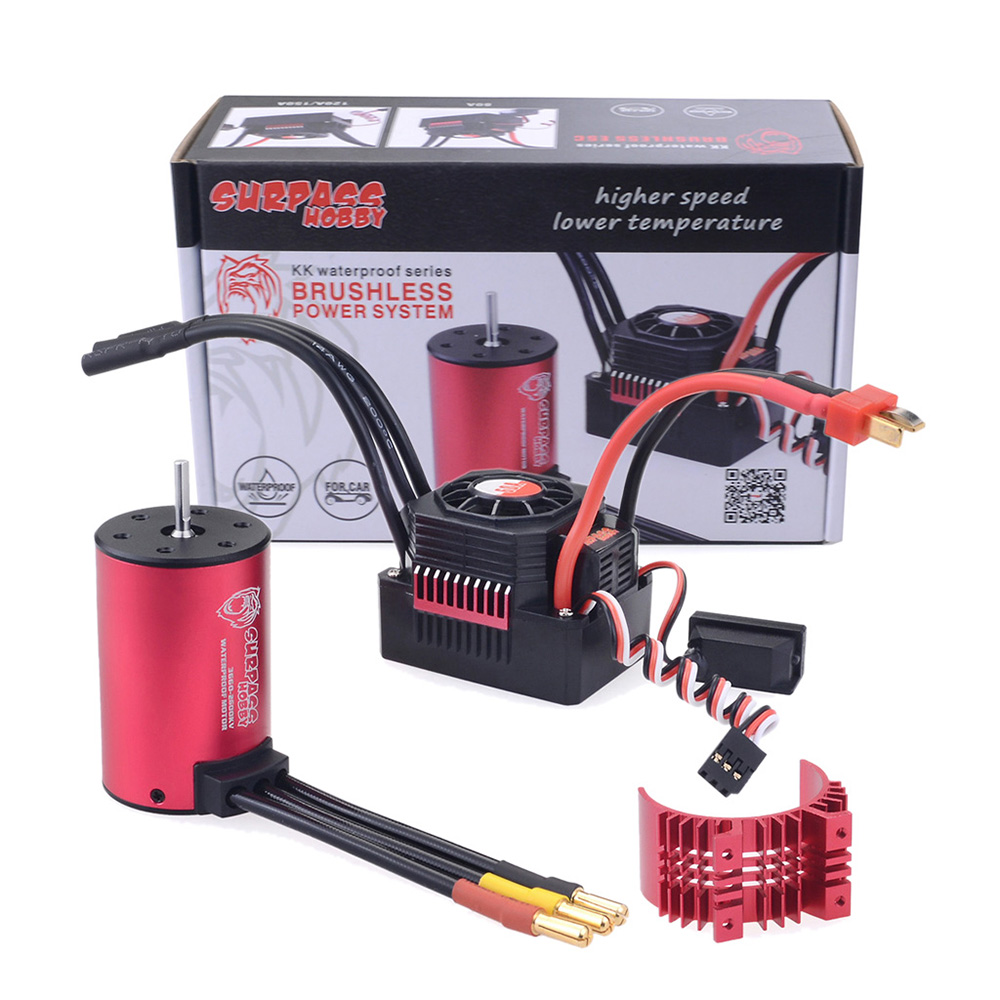

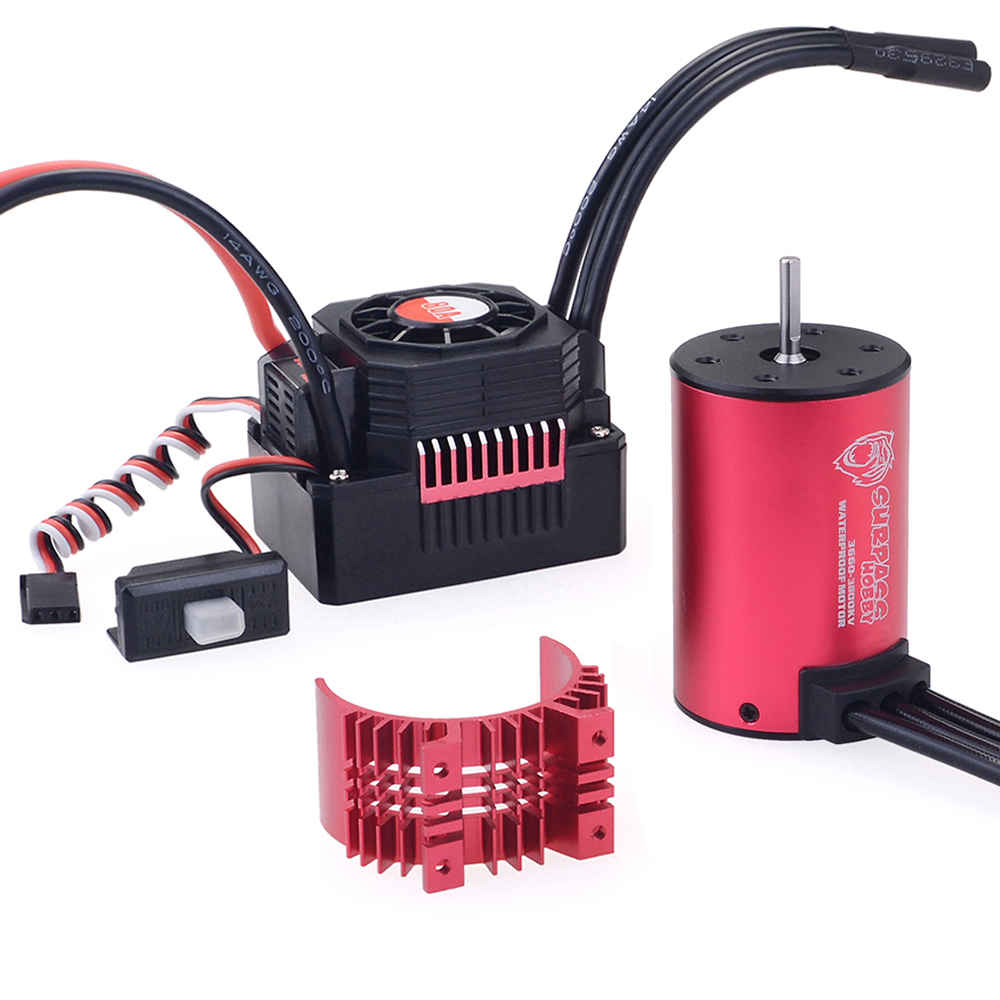

Package included:1X 3660 3500KV Brushless Motor
1X 80A ESC
1X Manual
