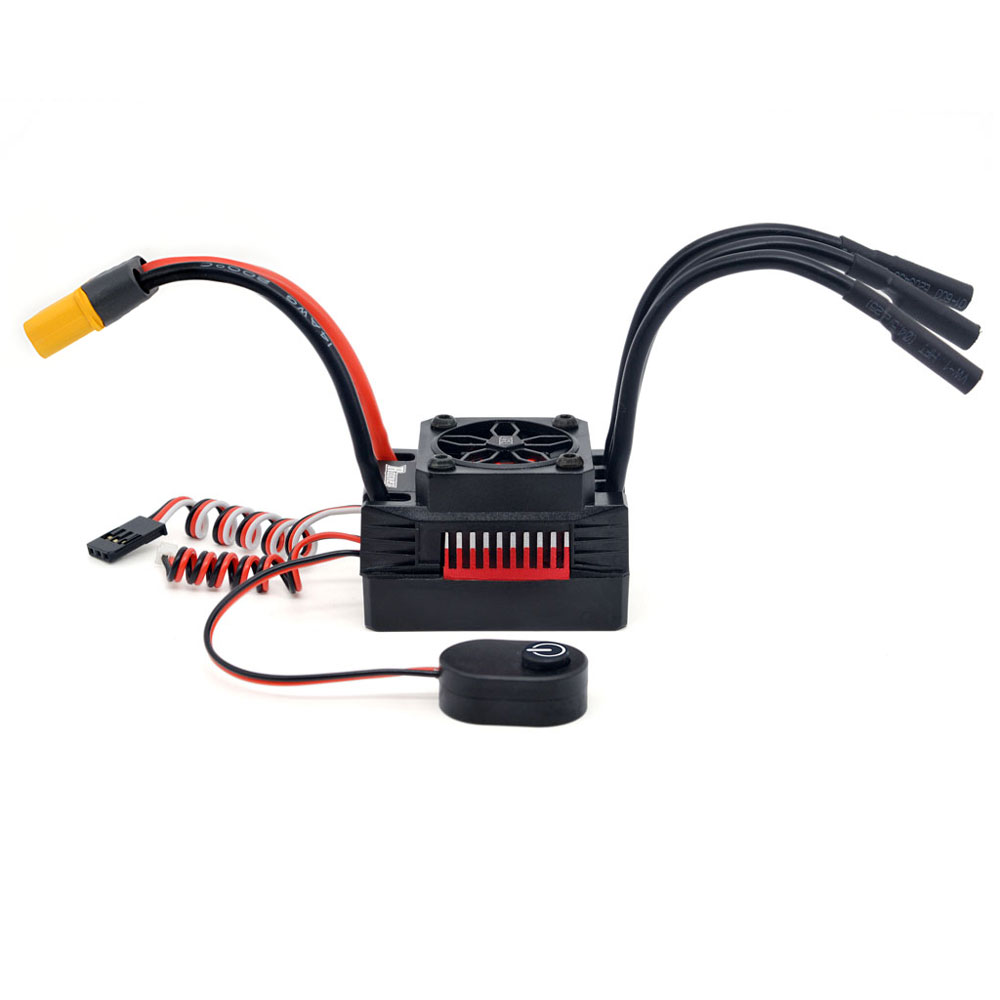

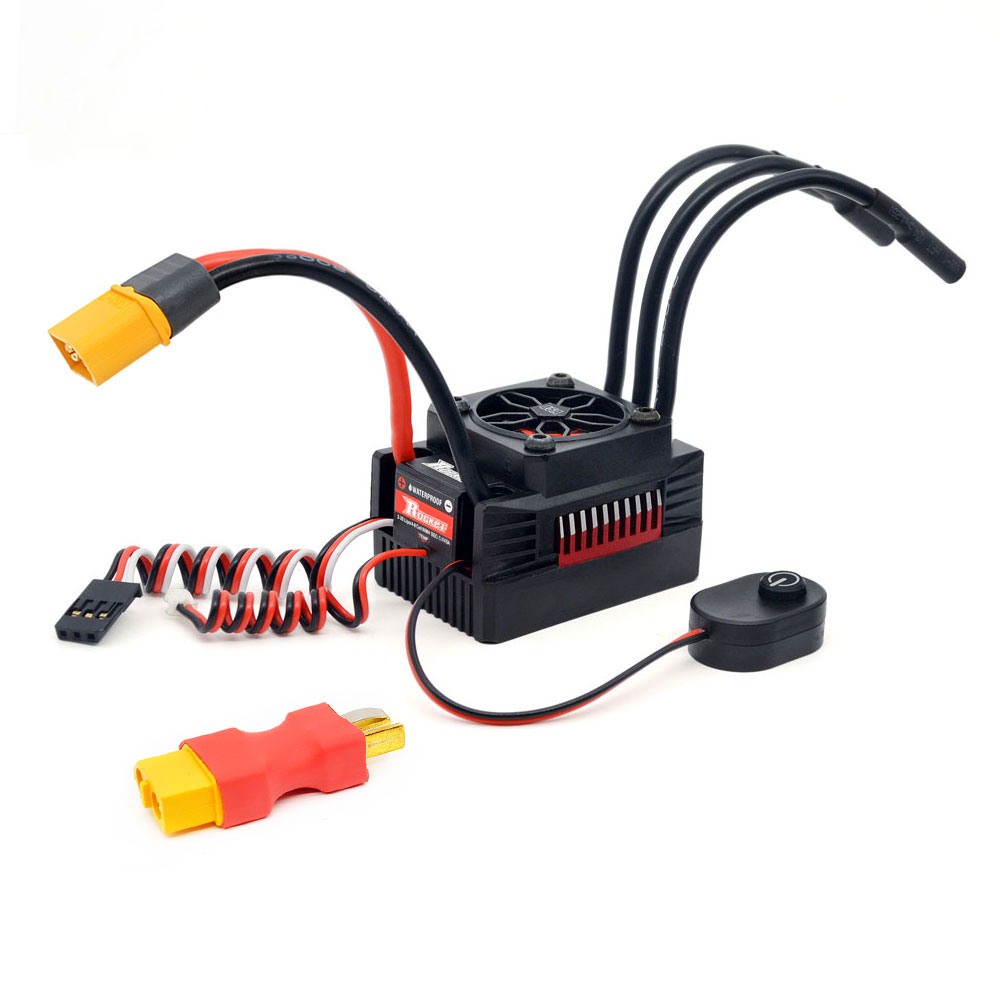

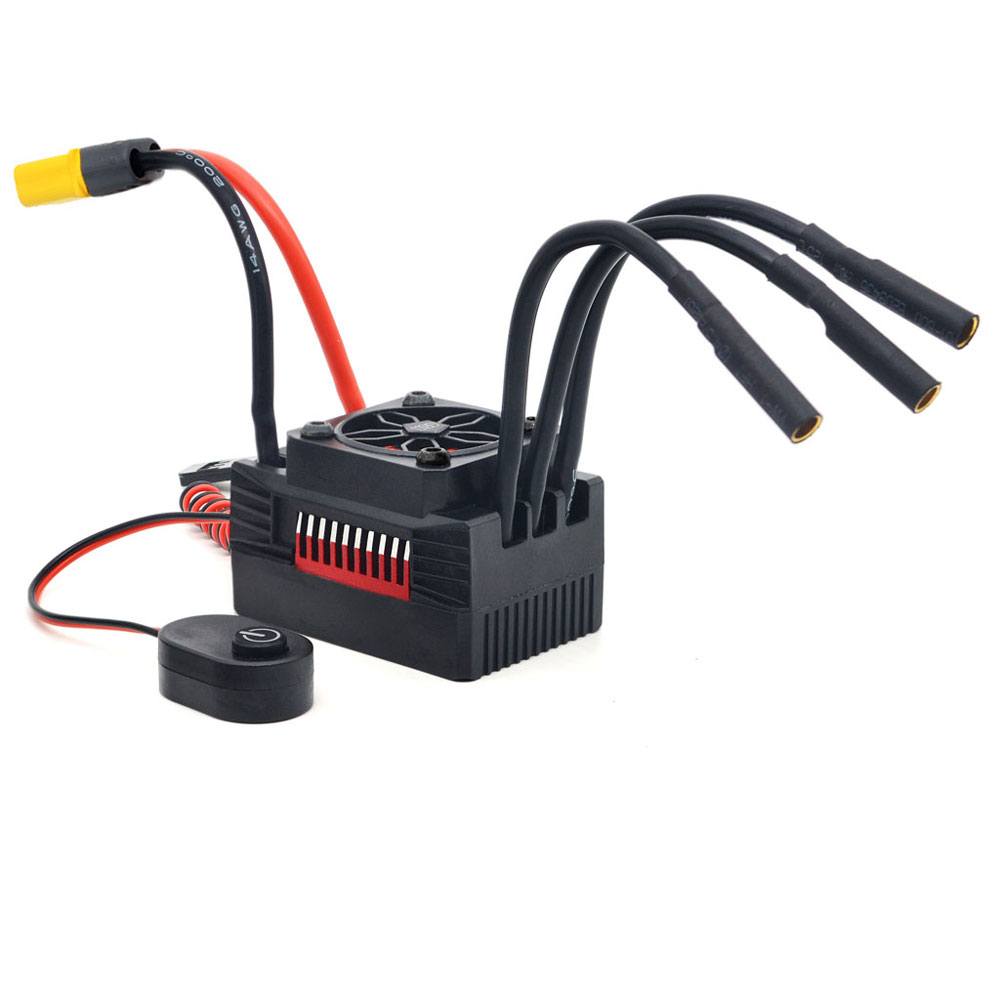

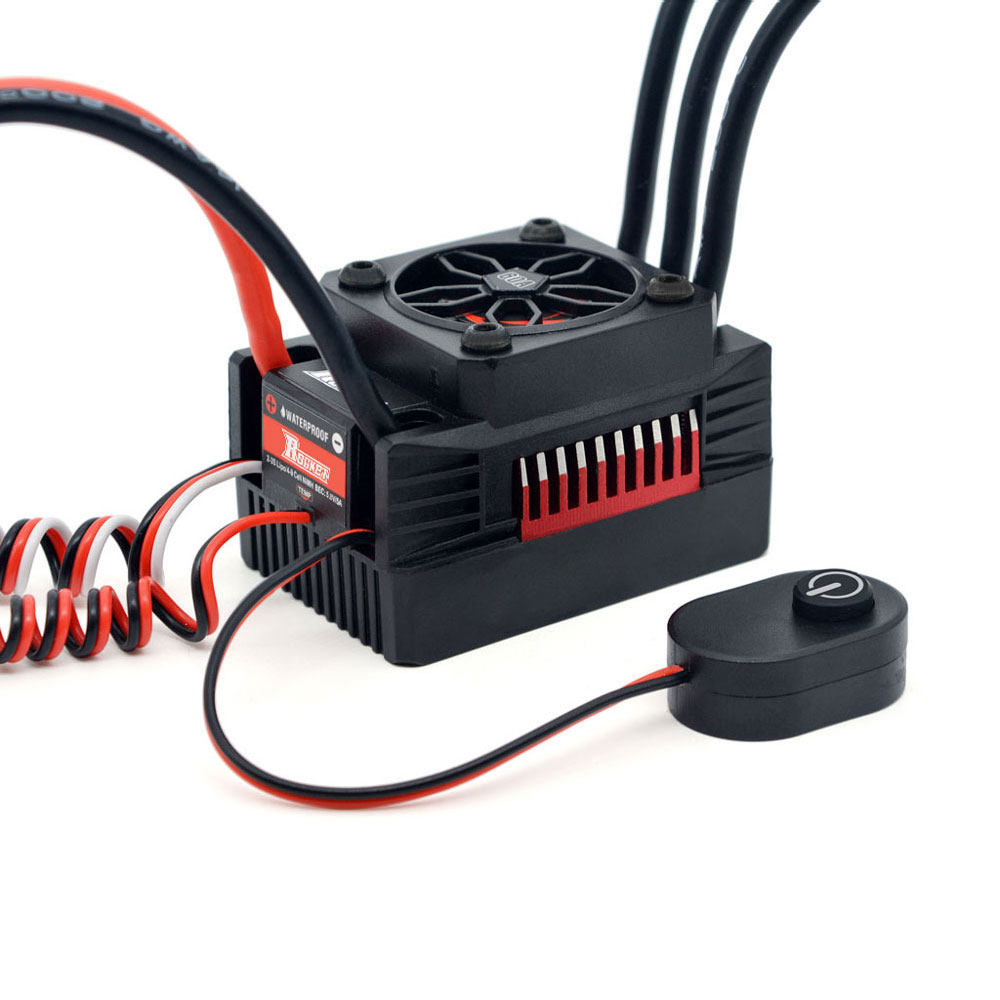

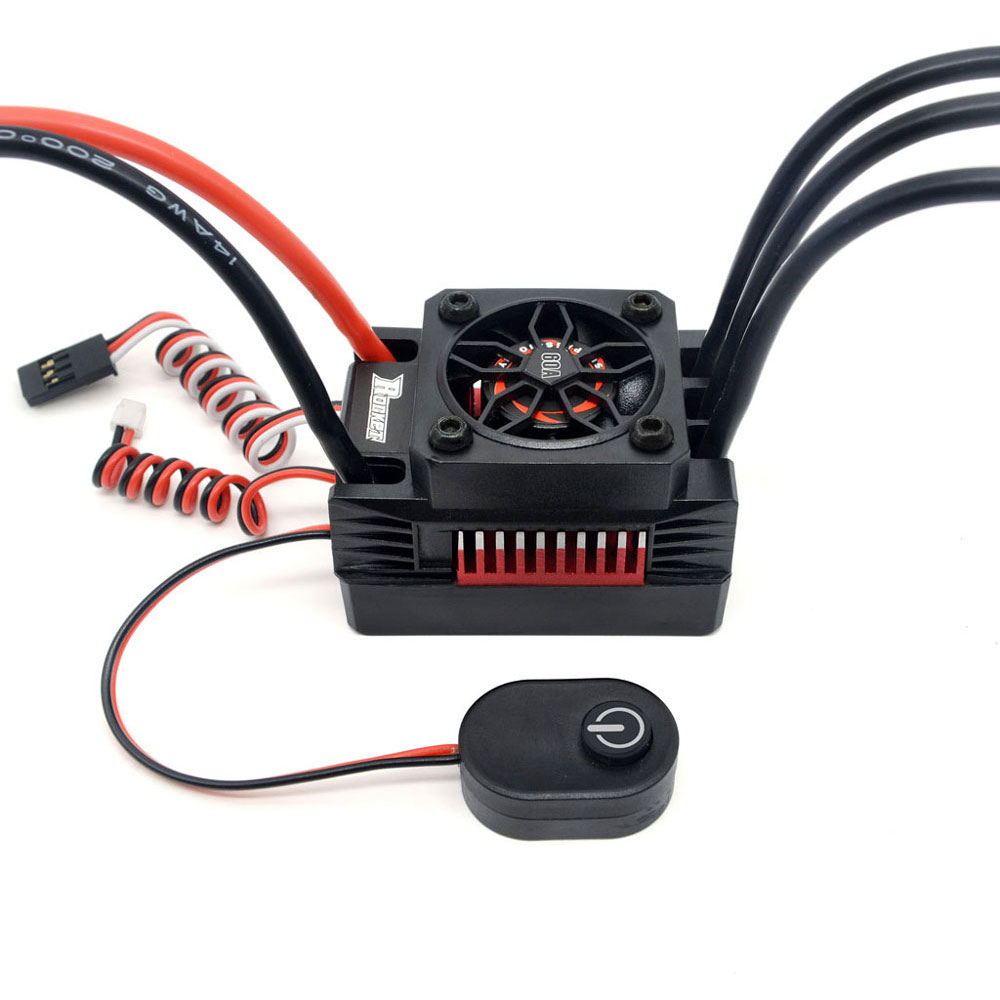

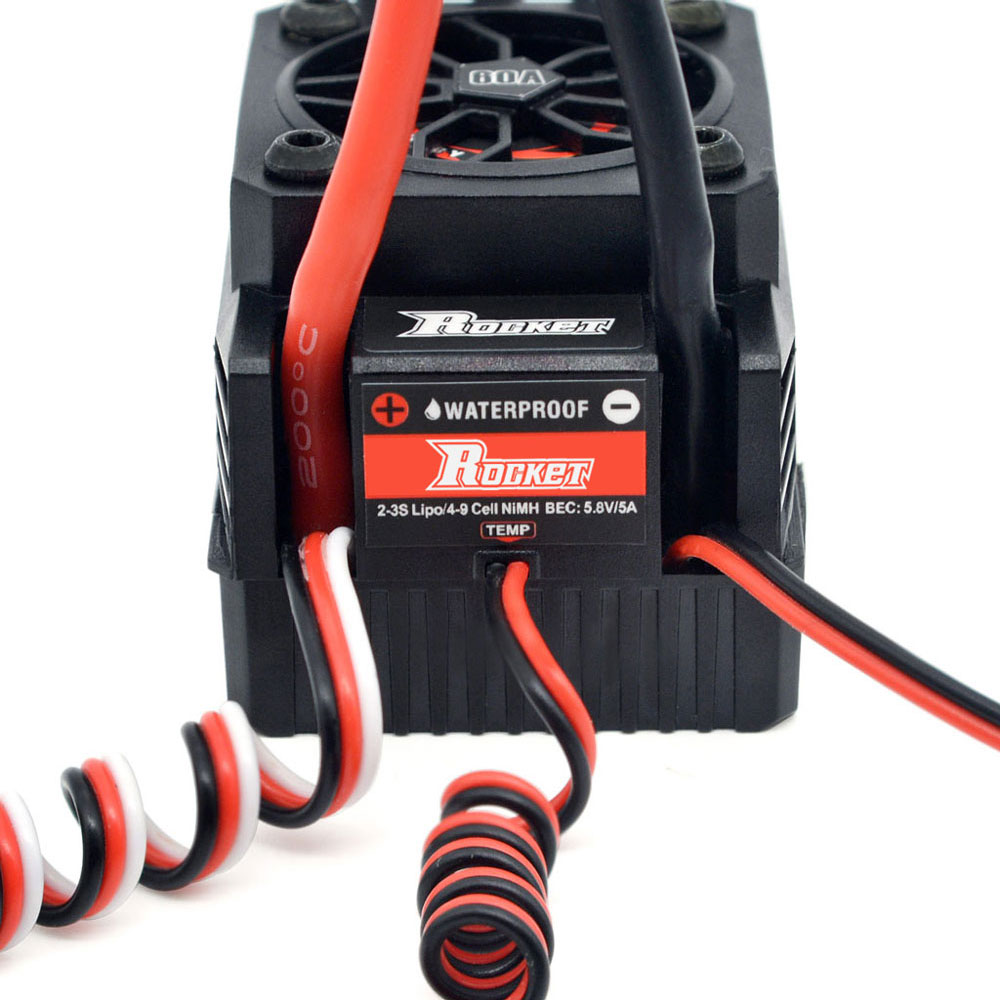

Surpass Hobby Rocket V2 Waterproof 45A/60A/80A Brushless ESC for 1/10 RC Car Vehicles Model Parts

https://www.rcwarehouse.nl/web/image/product.template/6408/image_1920?unique=99f63ba

40.00 € 40.0 EUR 40.00 €

37.94 €

  • Ampere

This combination does not exist.

Description:

Item Brand:Surpass hobby

Item Name:45A/60A/80A Brushless ESC

Material:Metal and plastic

Color:Black

Product Size:50*35*32mm

Product Weight:About 81g

Compatible Cars:1/10 rc cars


Specification:

45A ESC

Continue Current: 45A
Burst Current:240A
Motor Type:Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH:
1.on-road:3650-size or smaller motor with the KV<5600
2. Off-road / Monster:3650-size or smaller motor with the KV<3900
For 3S Lipo or 9 cells NiMH:
1. On-road:3650-size or smaller motor with the KV<3800
2. Off-road / Monster:3650-size or smaller motor with the KV<2700.
Resistance:0.0014ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:5.8V/5A(switch mode)

60A ESC
Continue Current: 60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.on-road:3660-size or smaller motor with the KV<6000
2. Off-road / Monster:3660-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3660-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000.
Resistance:0.0007ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:5.8V/5A(switch mode)

80A ESC
Continue Current: 80A
Burst Current:480A
Motor Type:Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.on-road:3665-size or smaller motor with the KV<6000
2. Off-road / Monster:3665-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3665-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000.
Resistance:0.0005ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:5.8V/5A(switch mode)

Features:
1.Water-proof and dust-proof for all-weather races;   (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
6.Built-in switch-mode BEC 5.8V/5A for usage with high torque and high voltage servos.
6. Easily programmed and compatible with pocket-sized program card.

Package Included:(Optional)
1X Brushless ESC 45A/60A/80A(Each amps is optioal chosen by yourself)


Specifications

Ampere 60A or 80A or 45A
