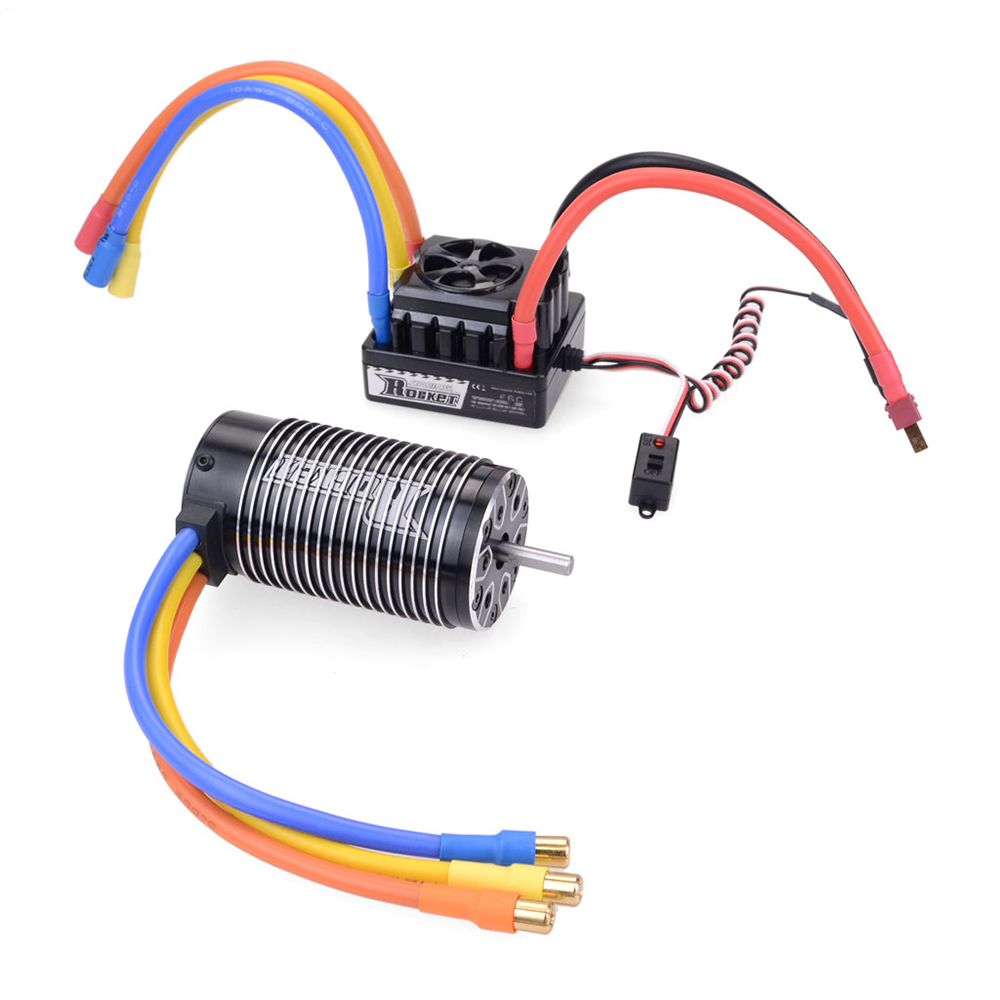

Surpass Hobby ROCKET 4076 2000KV/2250KV Brushless Motor 150A ESC Combo Set for 1/8 RC Car Model Parts
Description:
Item Brand:Surpass Hobby
Item Number:4076 2000KV/2250KV Brushless Motor with 150A ESC
Item Name:RC car motor +esc set
Material:Metal and electronic components
Color:Black
The Size of the Motor:Length 76mm diameter 40mm shaft diameter is 5mm length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 400g/148g
Fit For:1/8 brushless rc cars
The Specification of the Motor:
The Specification of the ESC:
Cont.Current:150A
Burst Current:720A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00030ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1or7.4V/3A(switch mode)
For the esc manual please click here
Features:
Package included:

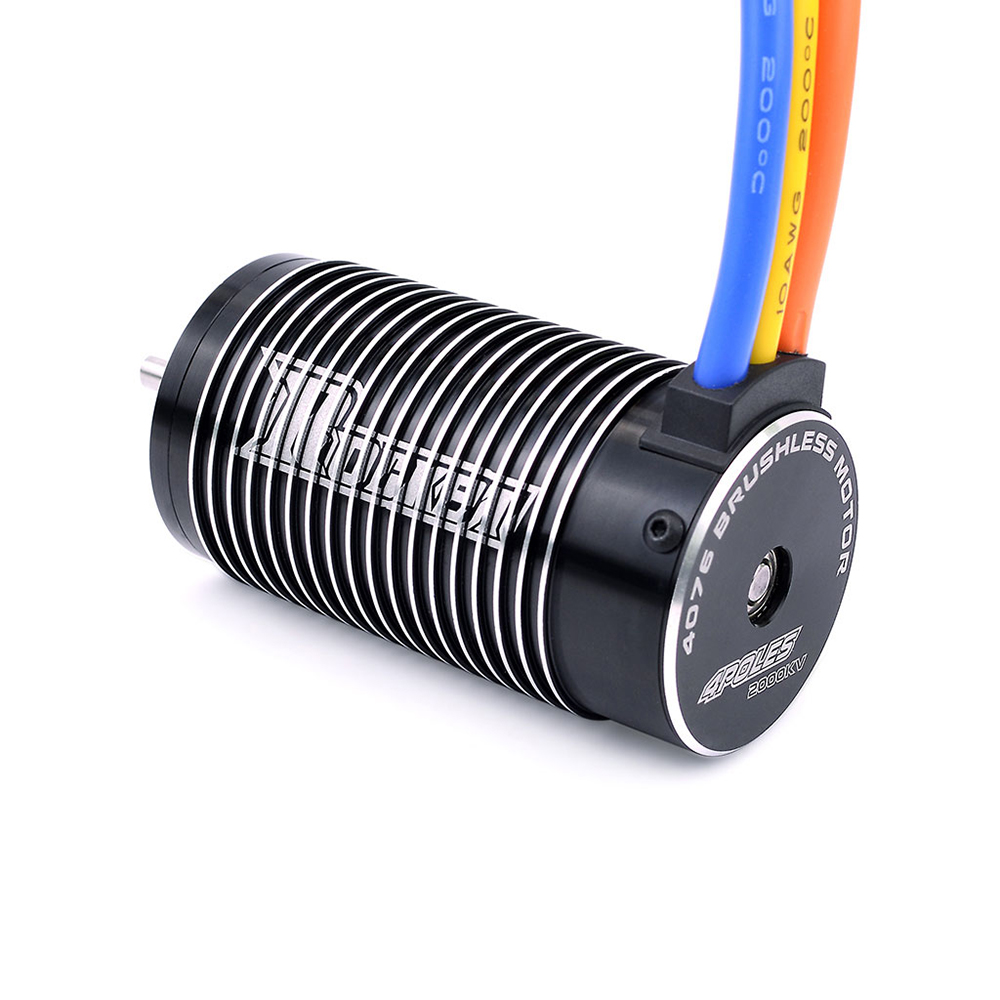

1X 4076 2000KV/2250KV Brushless Motor
1X 150A ESC
1X Manual
Item Brand:Surpass Hobby
Item Number:4076 2000KV/2250KV Brushless Motor with 150A ESC
Item Name:RC car motor +esc set
Material:Metal and electronic components
Color:Black
The Size of the Motor:Length 76mm diameter 40mm shaft diameter is 5mm length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 400g/148g
Fit For:1/8 brushless rc cars

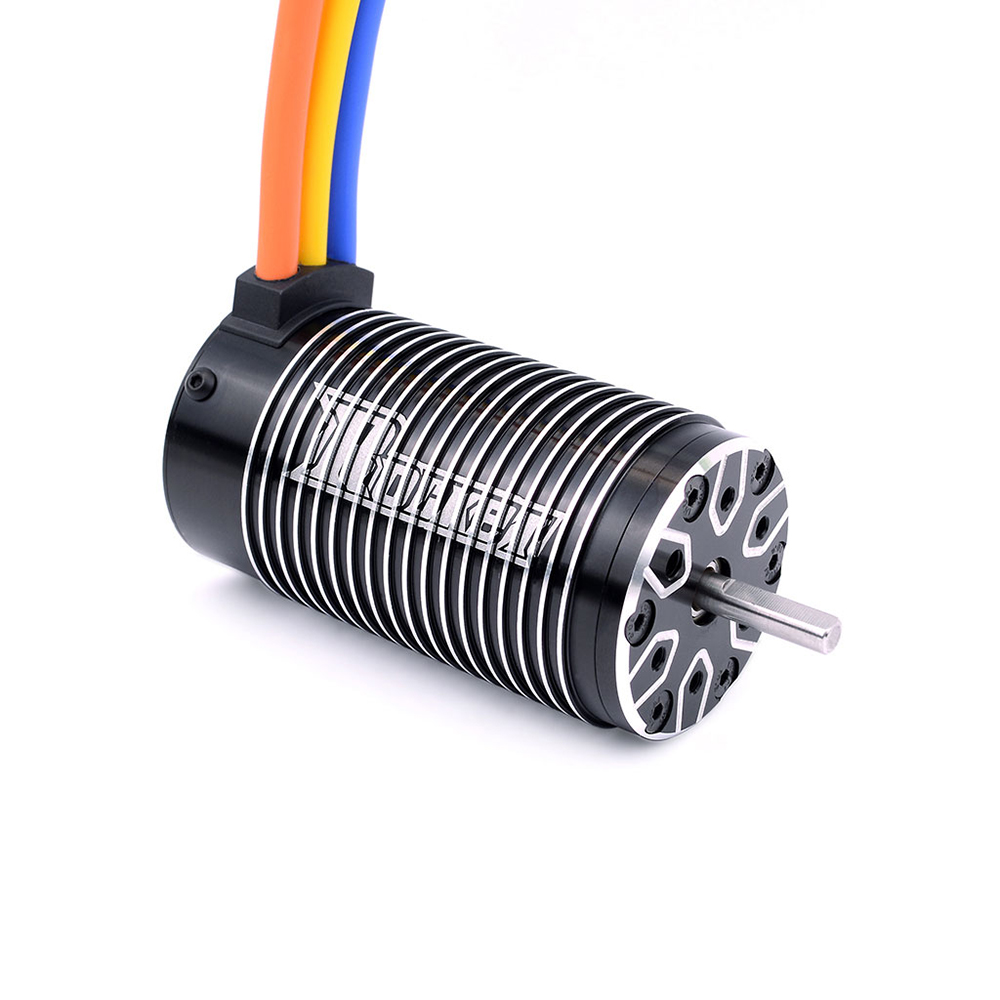

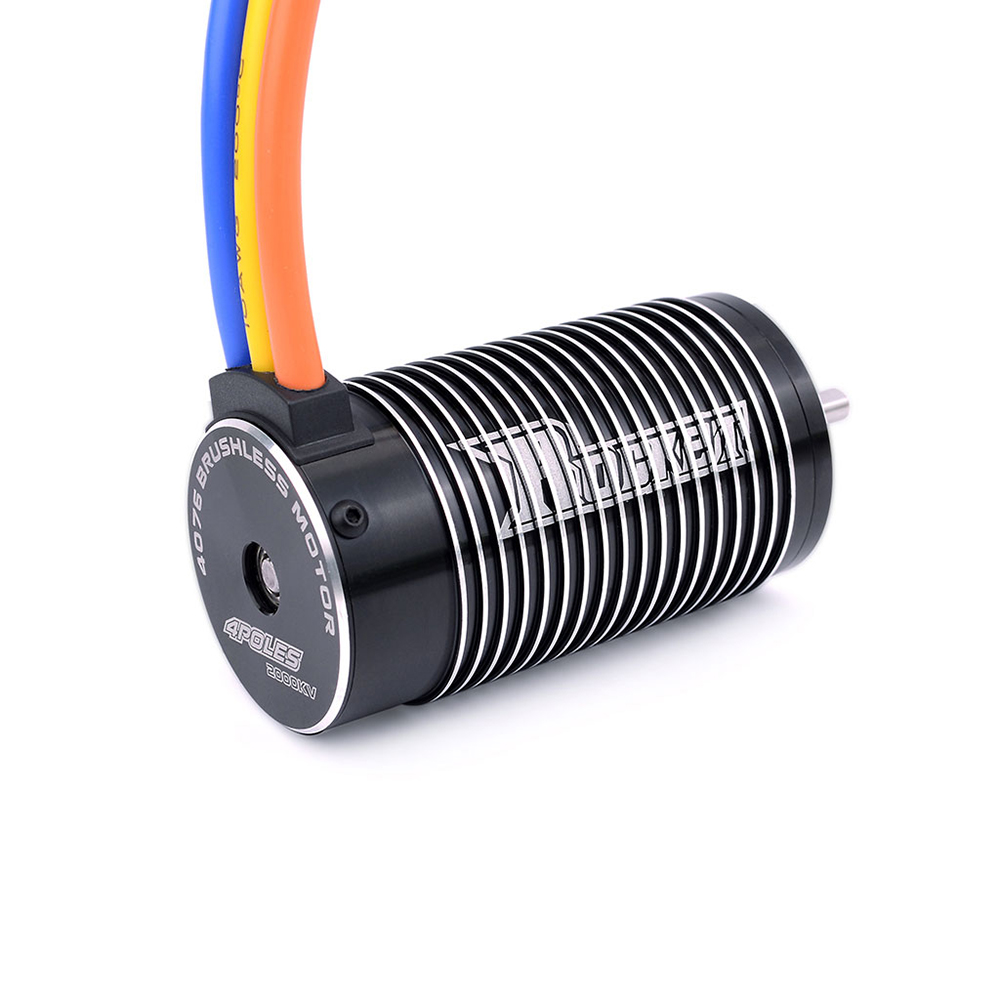

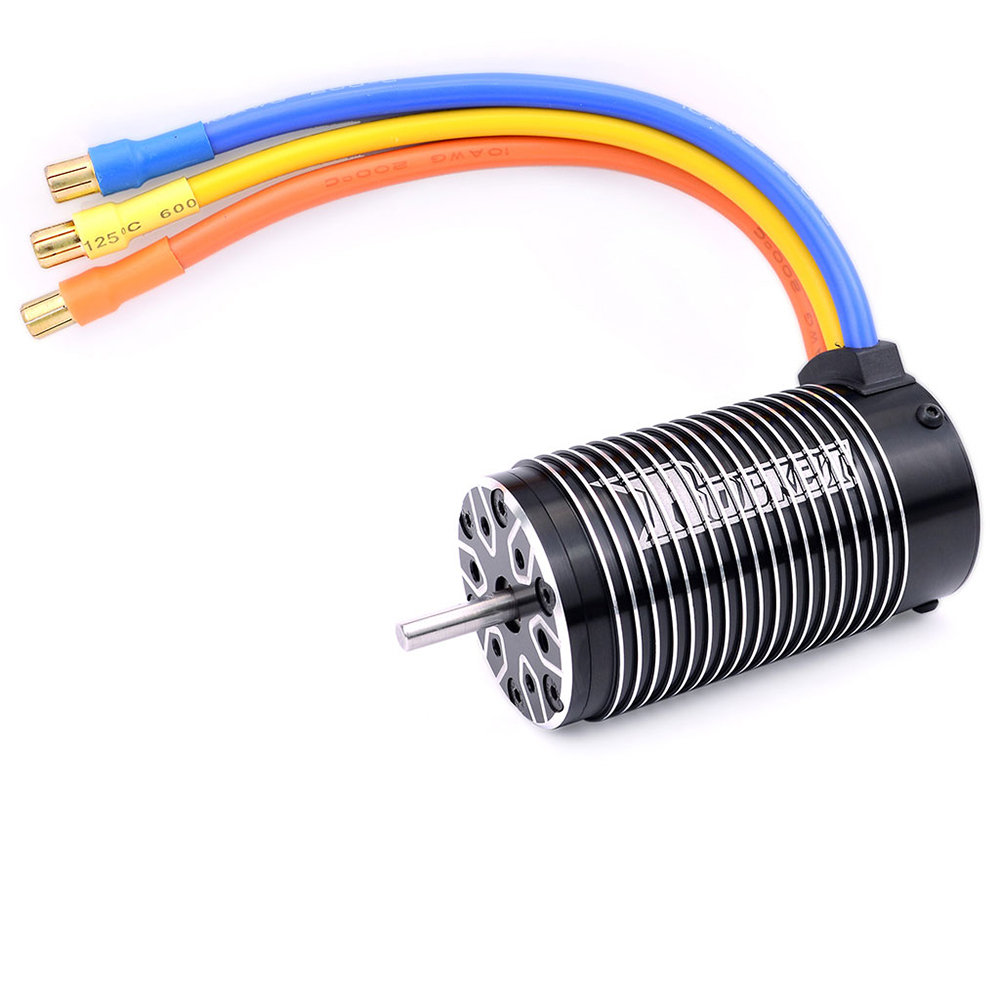

The Specification of the Motor:
KV:2250
Watts:2800W
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000
Diameters:40/42mm with fins

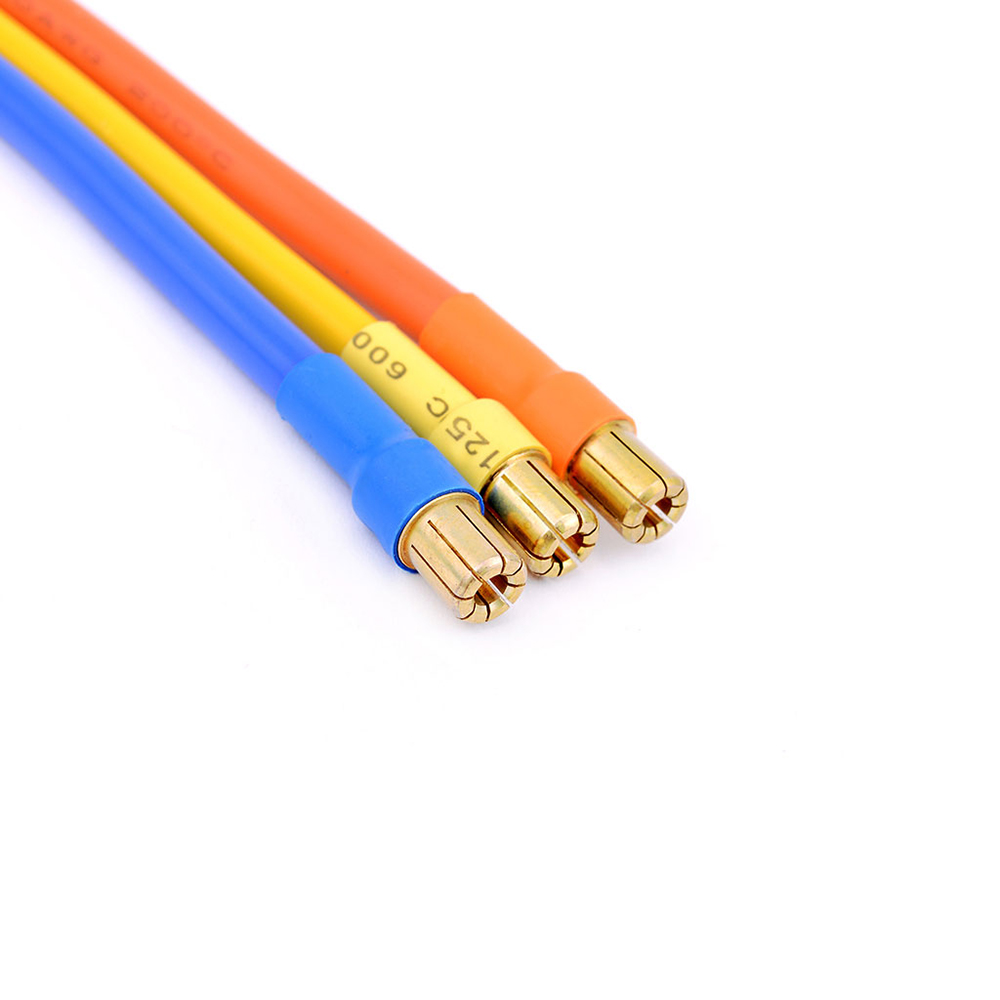

Connector:6.5mm gold
KV:2000
Watts:2800W
Max Voltage:<21V
Max Amps:135A
Rotor Poles:4
IO:2.3A
Resistance:0.0079
Max RPM:50000
Diameters:40/42mm with fins
Connector:6.5mm gold

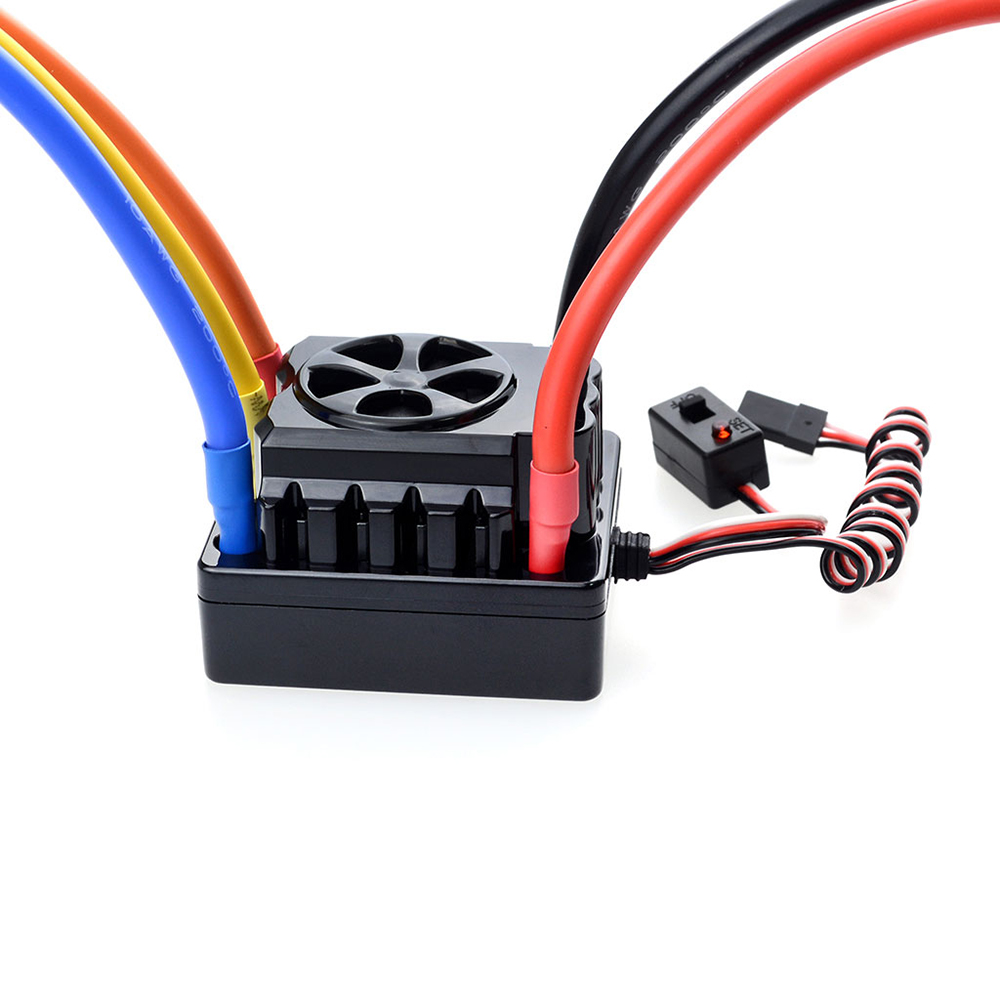

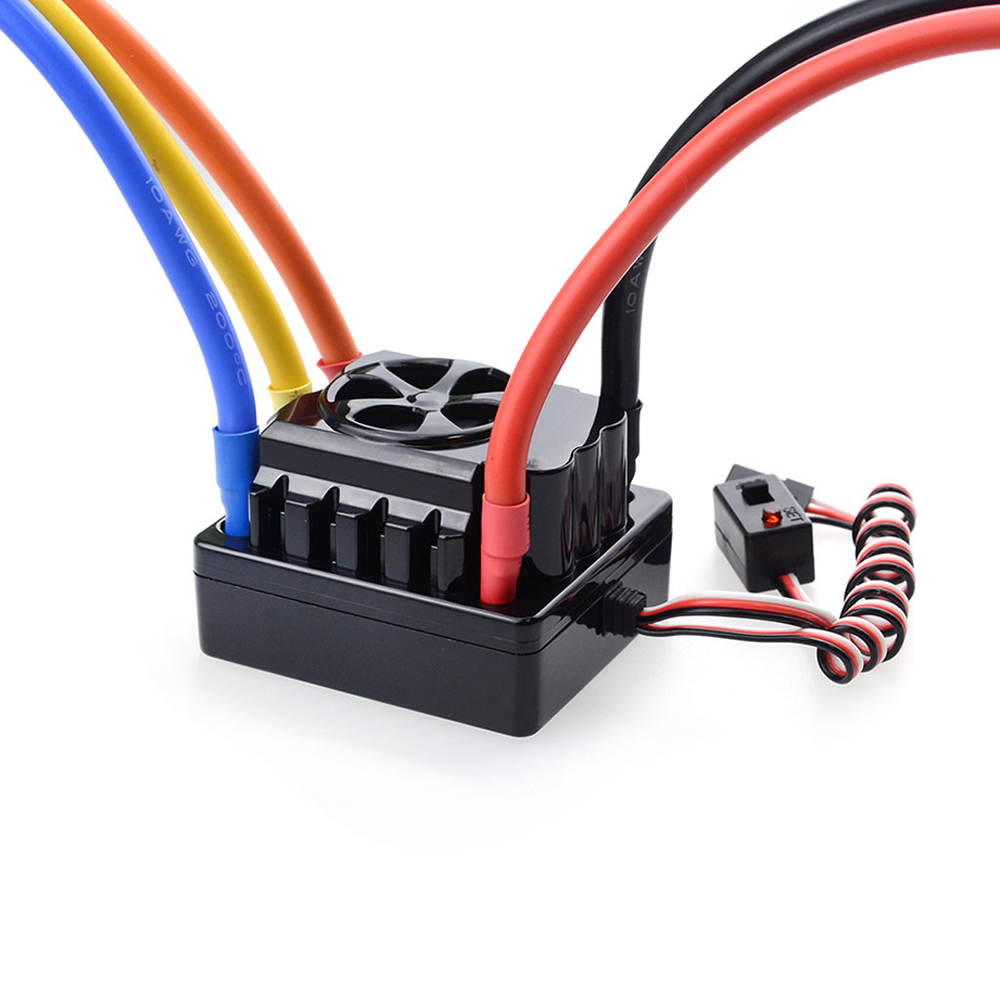

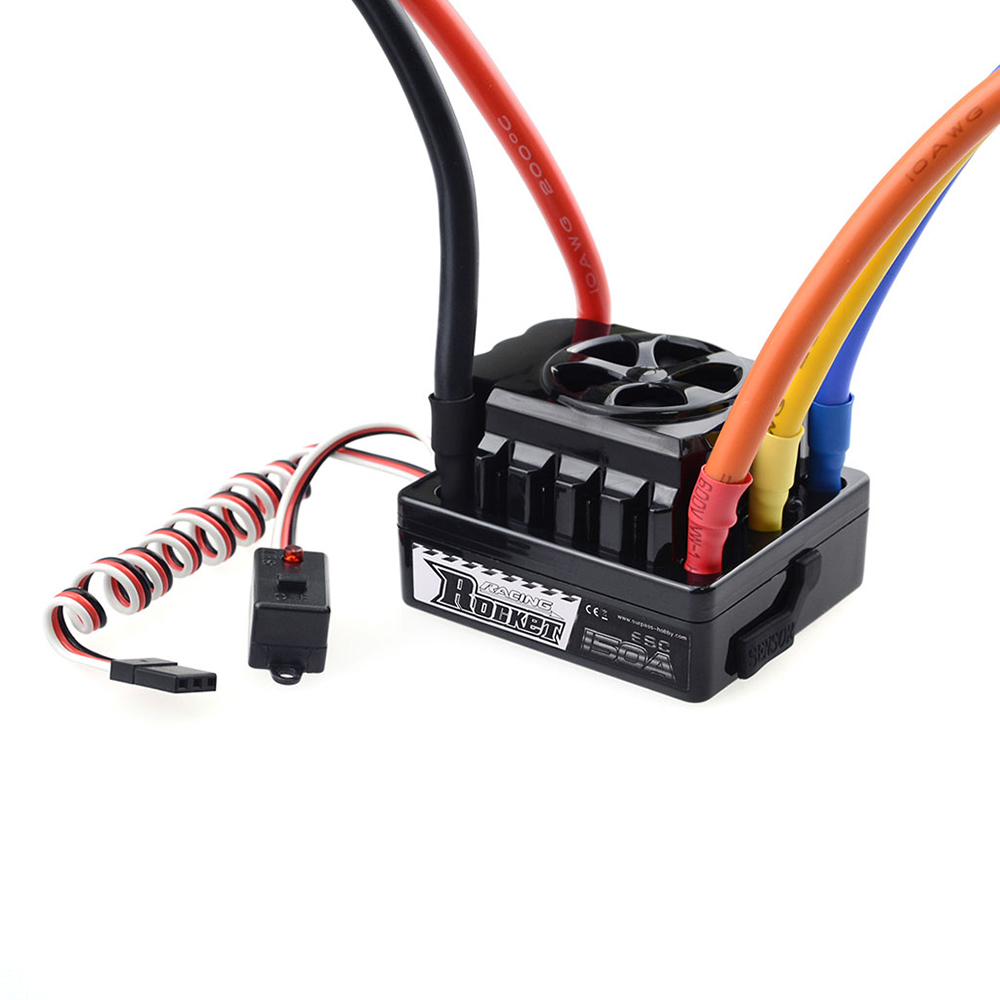

The Specification of the ESC:
Cont.Current:150A
Burst Current:720A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00030ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1or7.4V/3A(switch mode)
For the esc manual please click here
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/8 brushless cars-multi-mounting system for M3 or M4 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.2mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
ROAR legal
1X 4076 2000KV/2250KV Brushless Motor
1X 150A ESC
1X Manual
Specifications
| KV | 2000KV or 2250KV |
