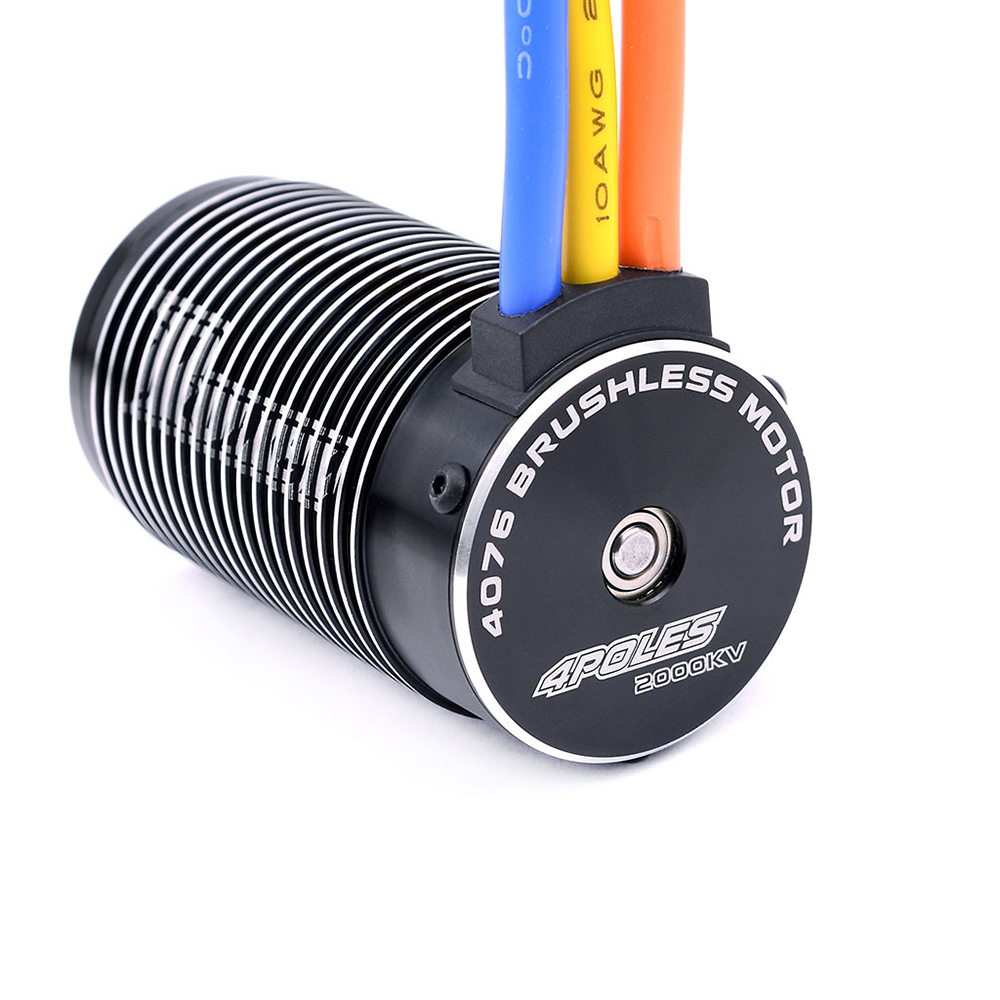

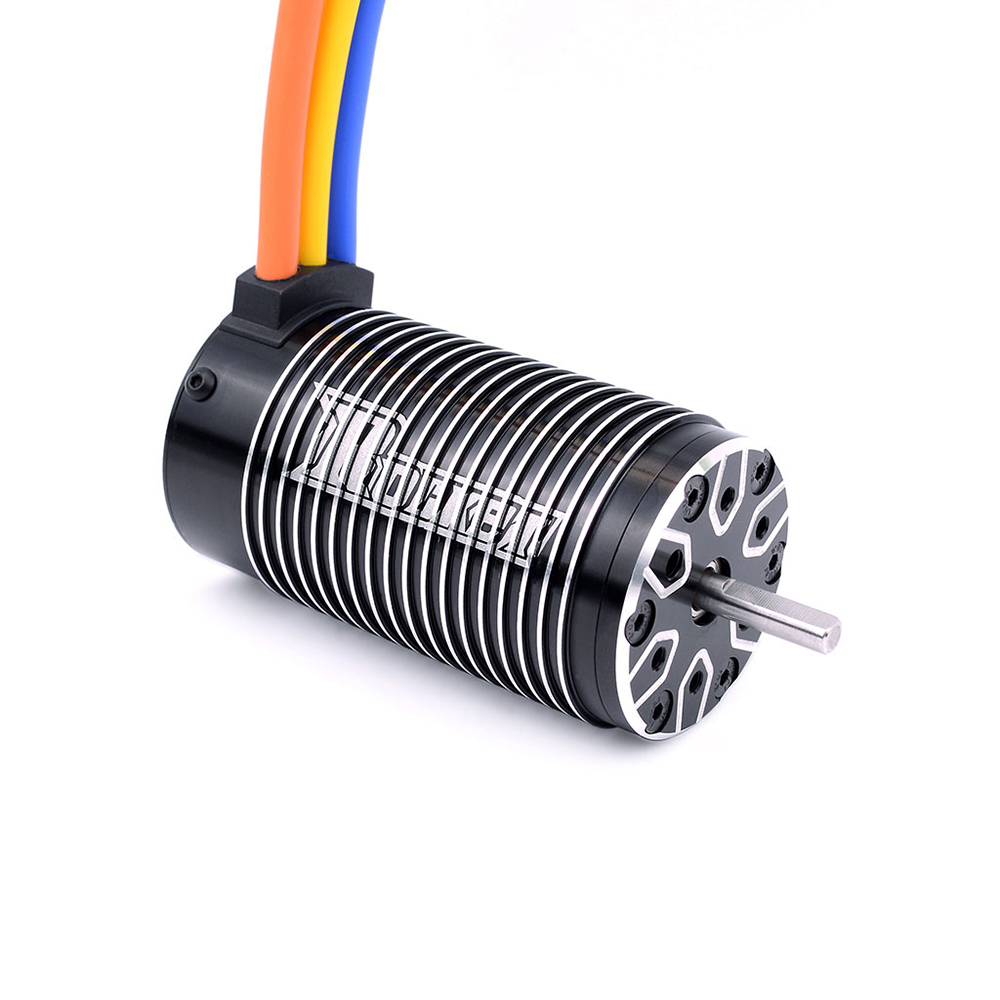

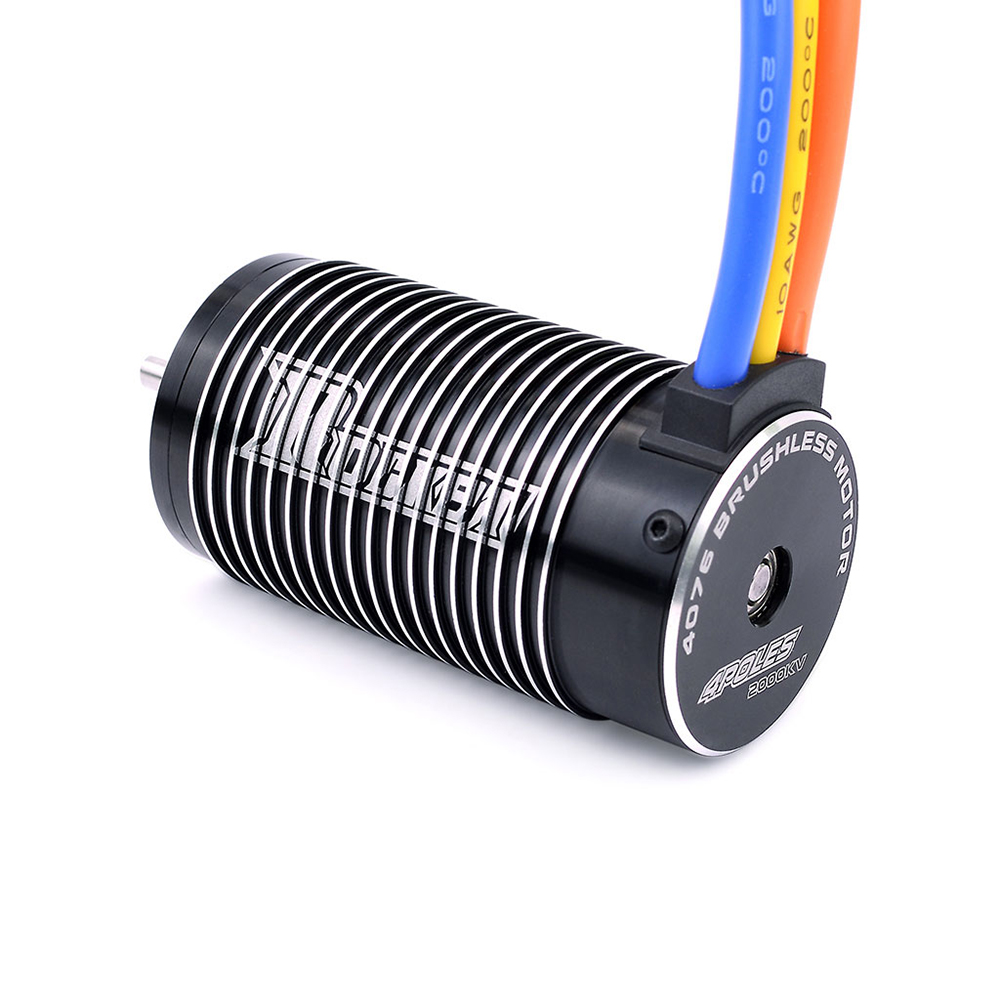

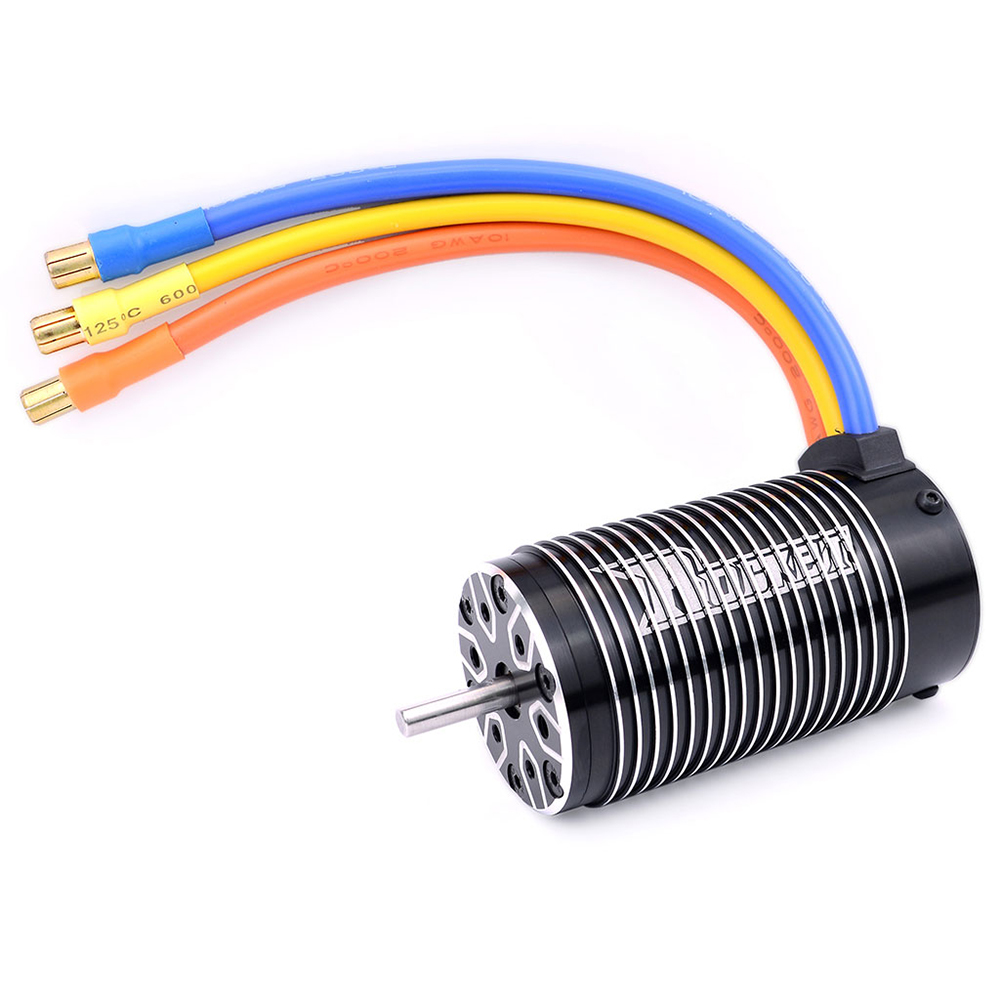

Surpass Hobby Rocket 4076 1700KV/2000KV/2250KV Brushless Motor for 1/8 RC Car Vehicles Model Parts

https://www.rcwarehouse.nl/web/image/product.template/6431/image_1920?unique=9558a26

64.39 € 64.39 EUR 64.39 €

64.39 €

  • KV

This combination does not exist.

Description:
Item Brand:Surpass Hobby
Item Number:4076
Item Name:RC car motor
Material:Metal and plastic
Color:Black
Product Size:Length 76mm diameter 40mm shaft diameter is 5mm length of extended shaft is 18mm

Product Weight:About 400g
Fit For:1/8 brushless rc cars

Specification:
KV:2250
Watts:2800W
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000

Diameters:40/42mm with fins

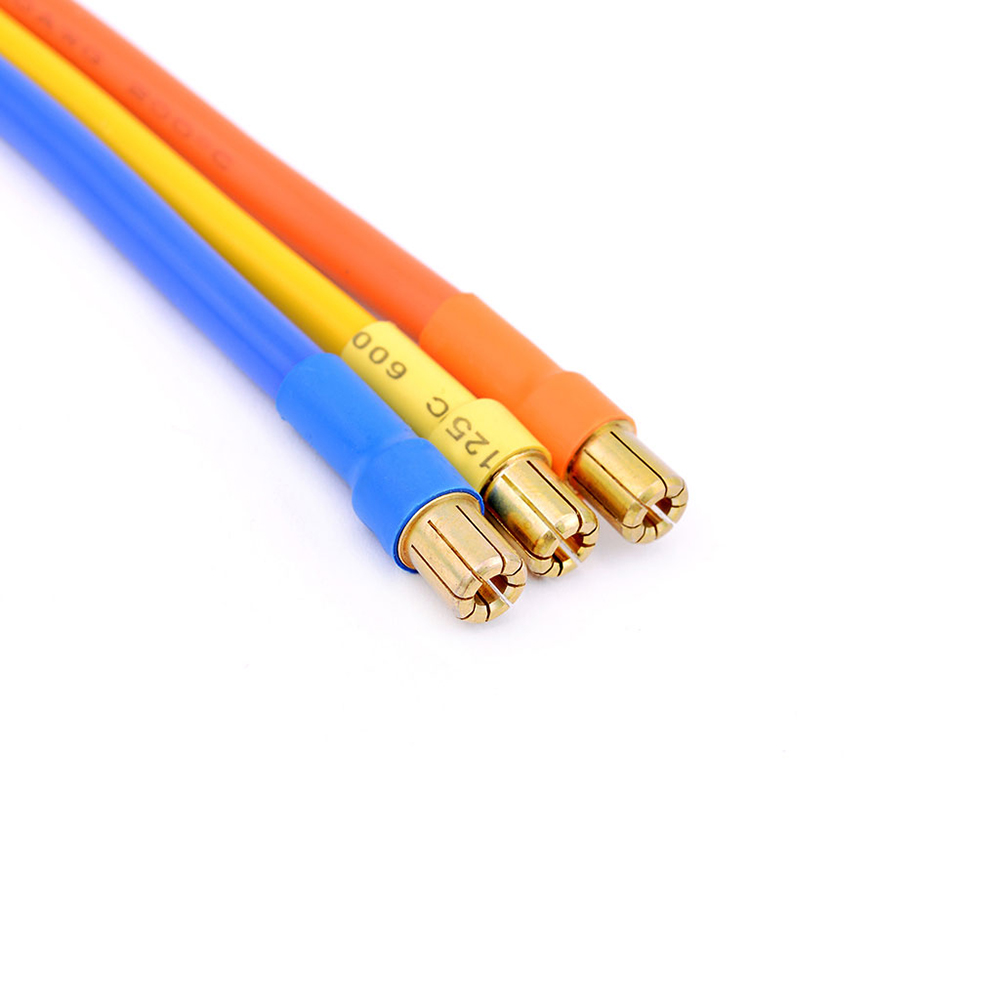

Connector:6.5mm gold


KV:2000
Watts:2800W
Max Voltage:<21V
Max Amps:135A
Rotor Poles:4
IO:2.3A
Resistance:0.0079
Max RPM:50000

Diameters:40/42mm with fins
Connector:6.5mm gold


KV:1700
Watts:2800W
Max Voltage:<23V
Max Amps:116A
Rotor Poles:4
IO:1.9A
Resistance:0.0111
Max RPM:50000

Diameters:40/42mm with fins
Connector:6.5mm gold


Features:

4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/8 brushless cars-multi-mounting system for M3 or M4 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.2mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
ROAR legal


Package included:
1x Rocket 4076 1700KV/2000KV/2250KV Brushless Motor




Specifications

KV 2000KV or 1700KV or 2250KV
