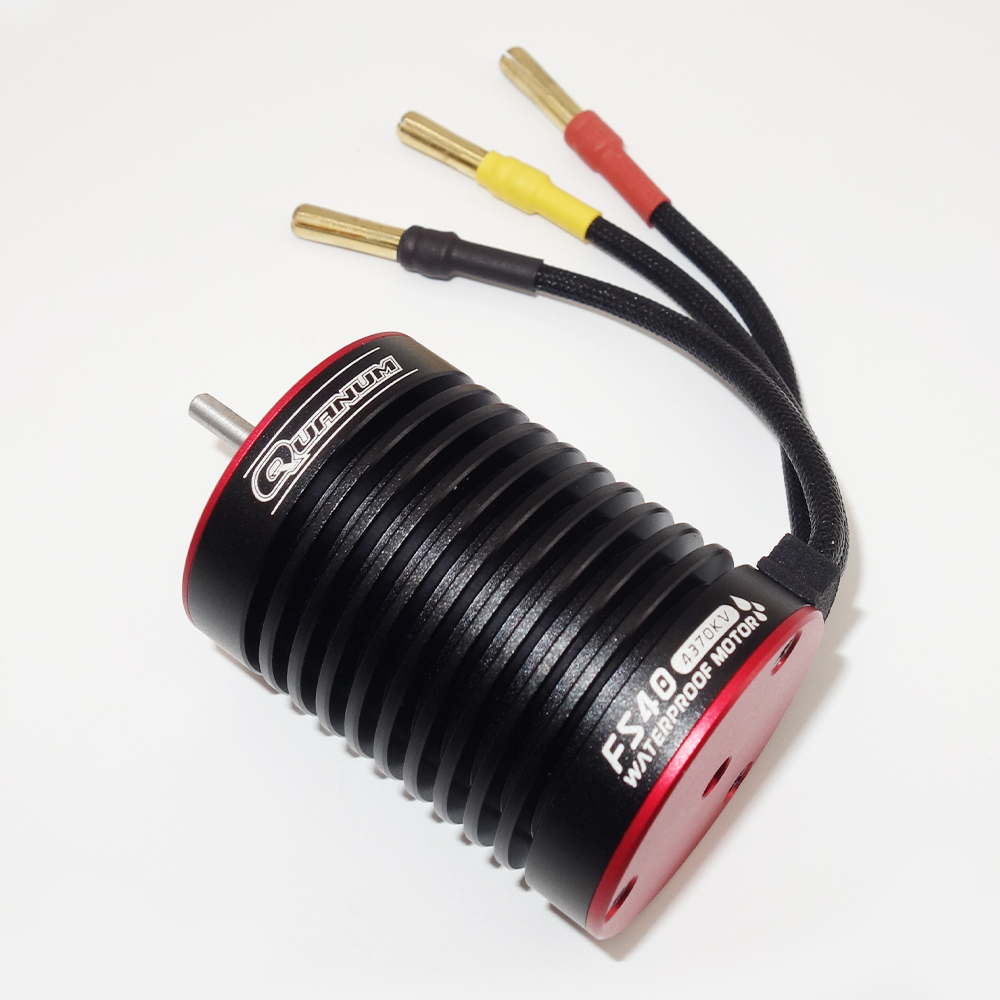

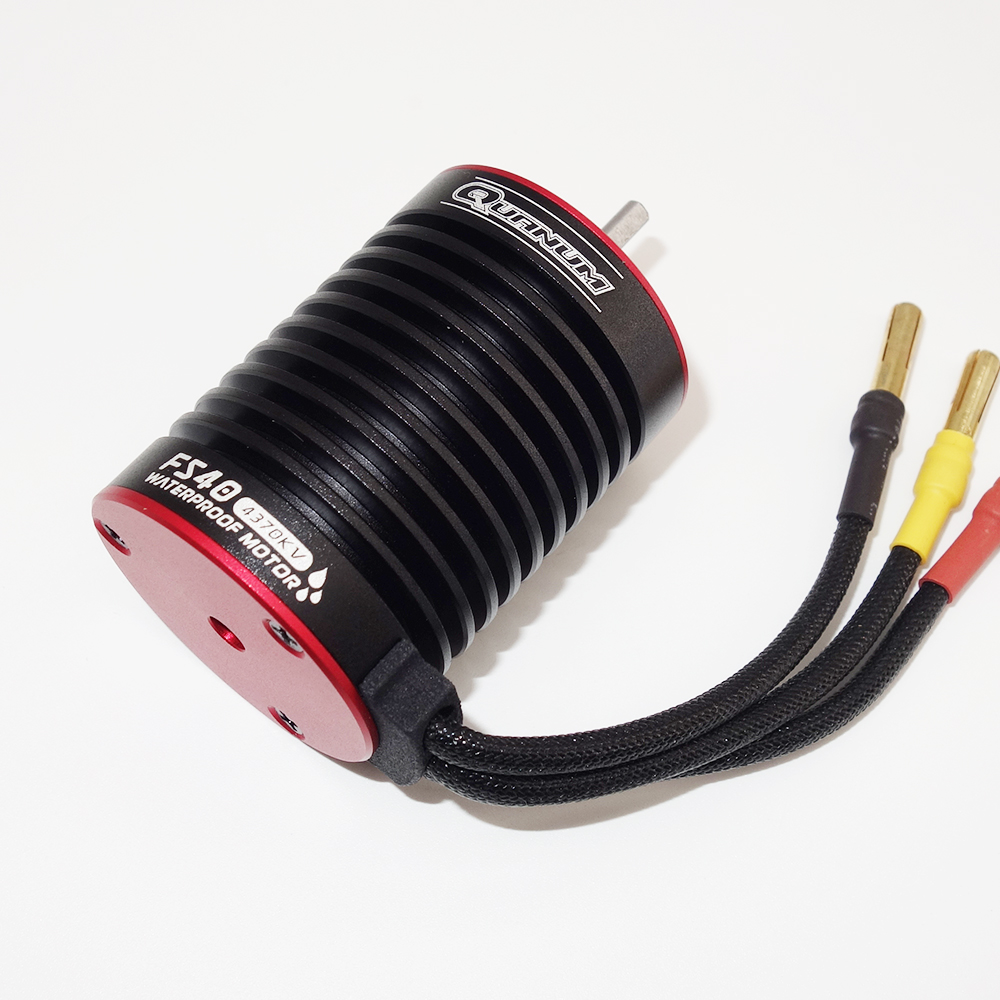

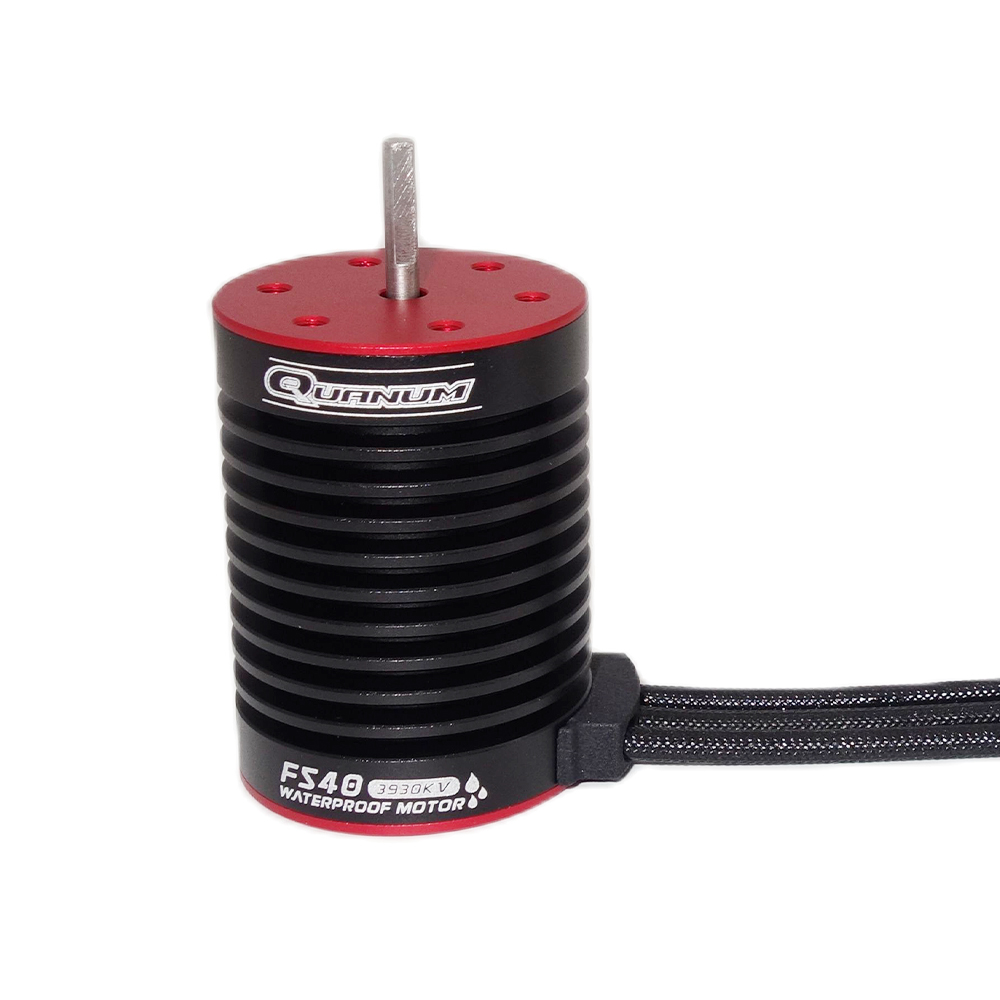

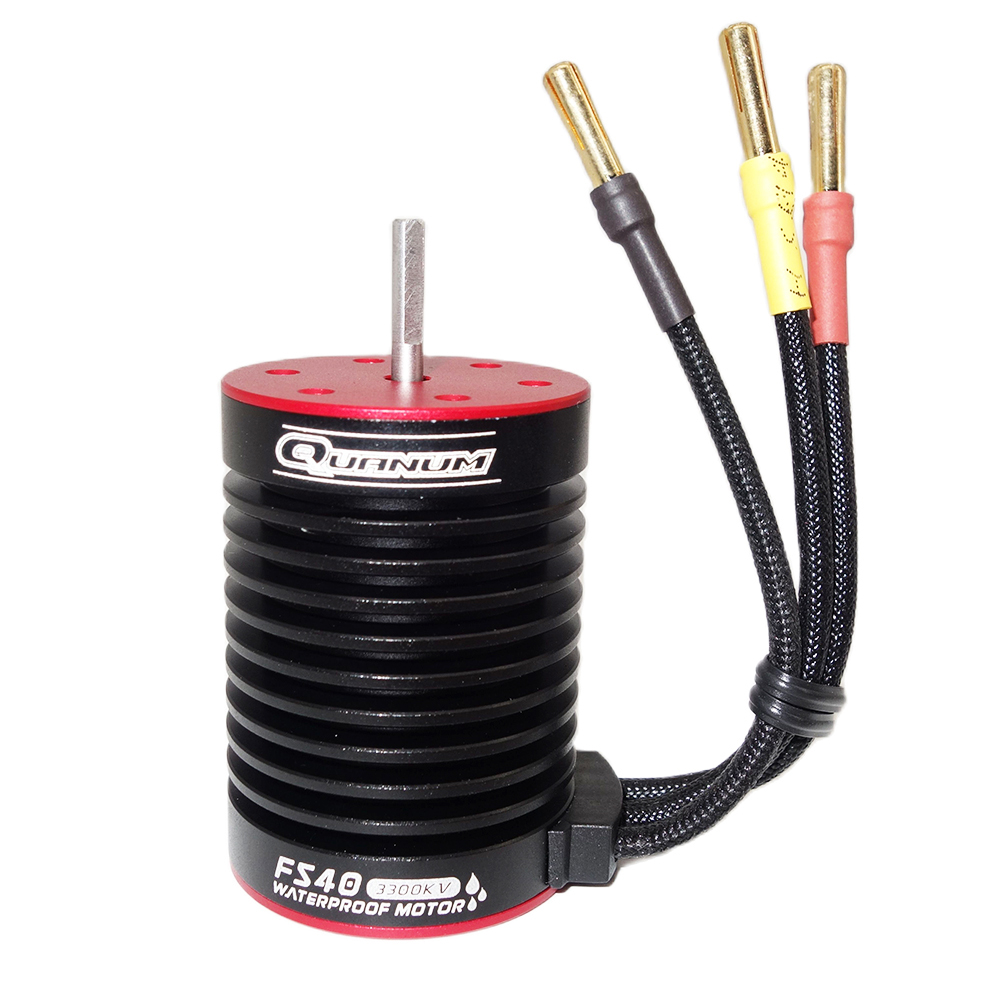

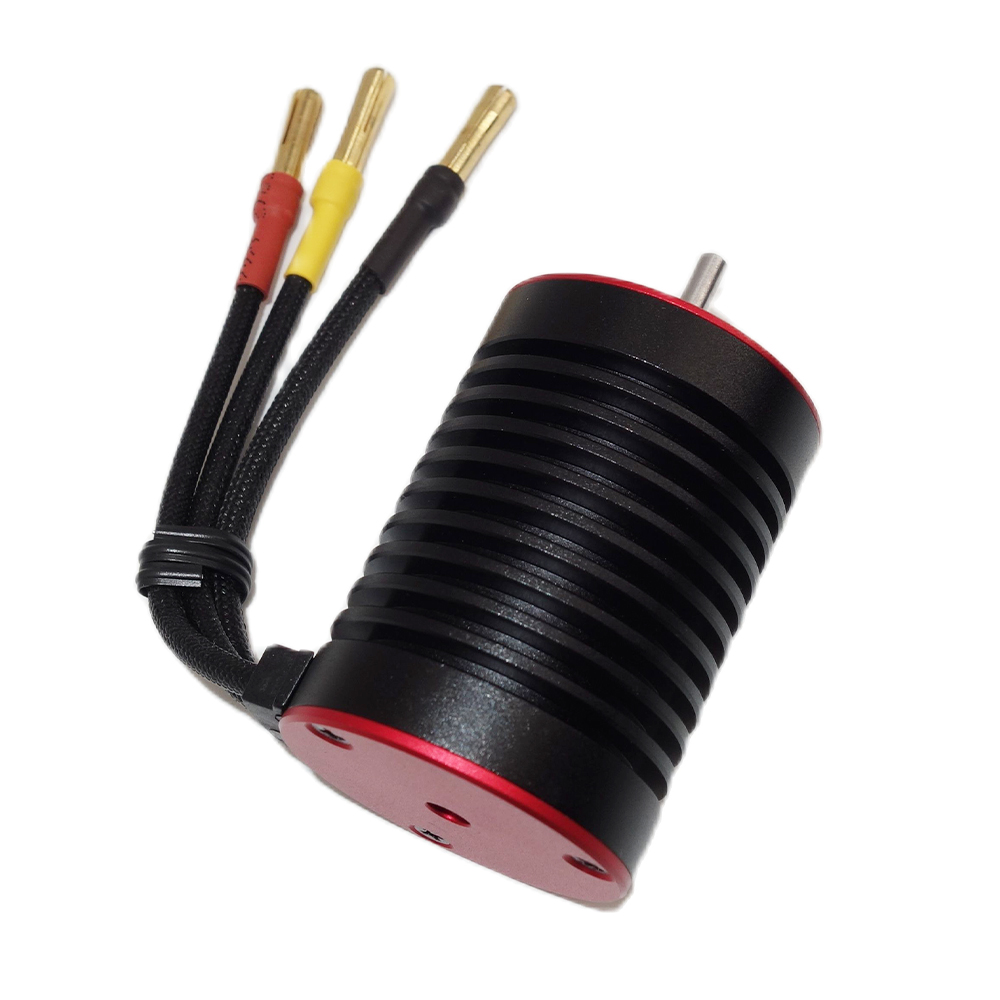

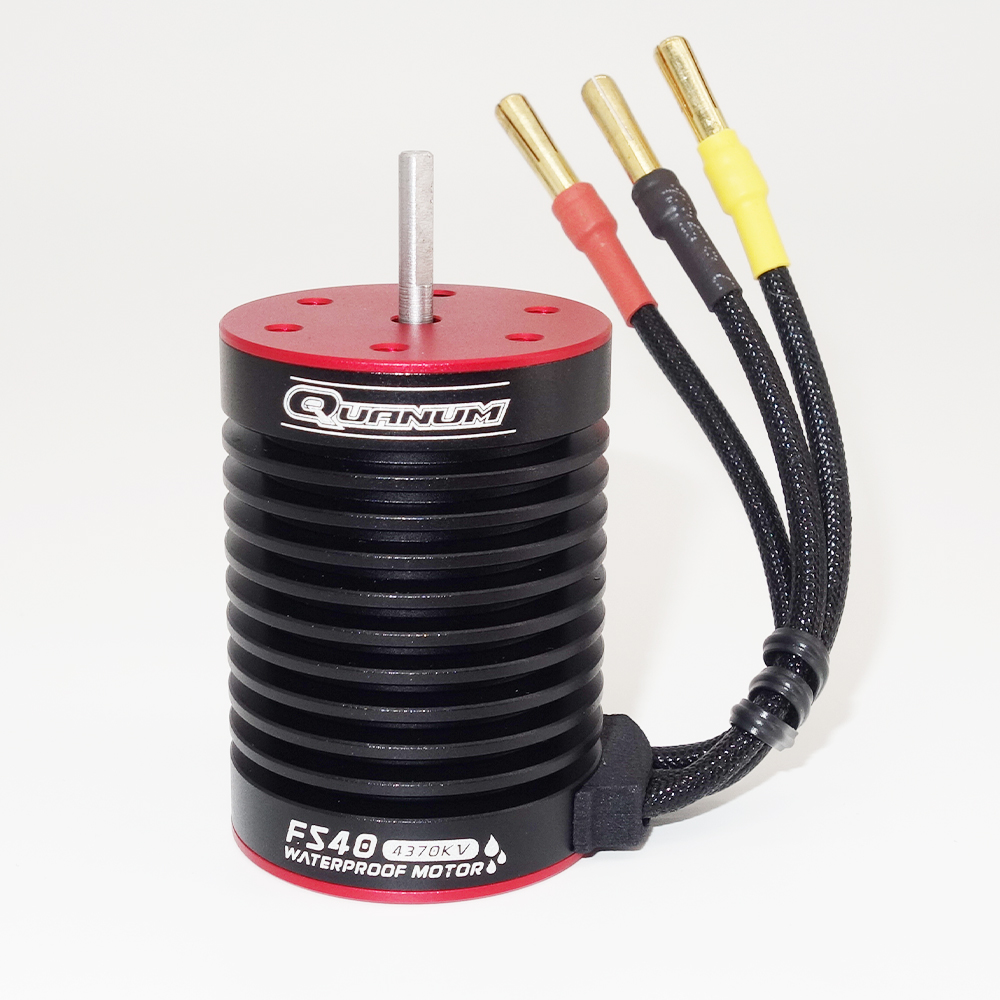

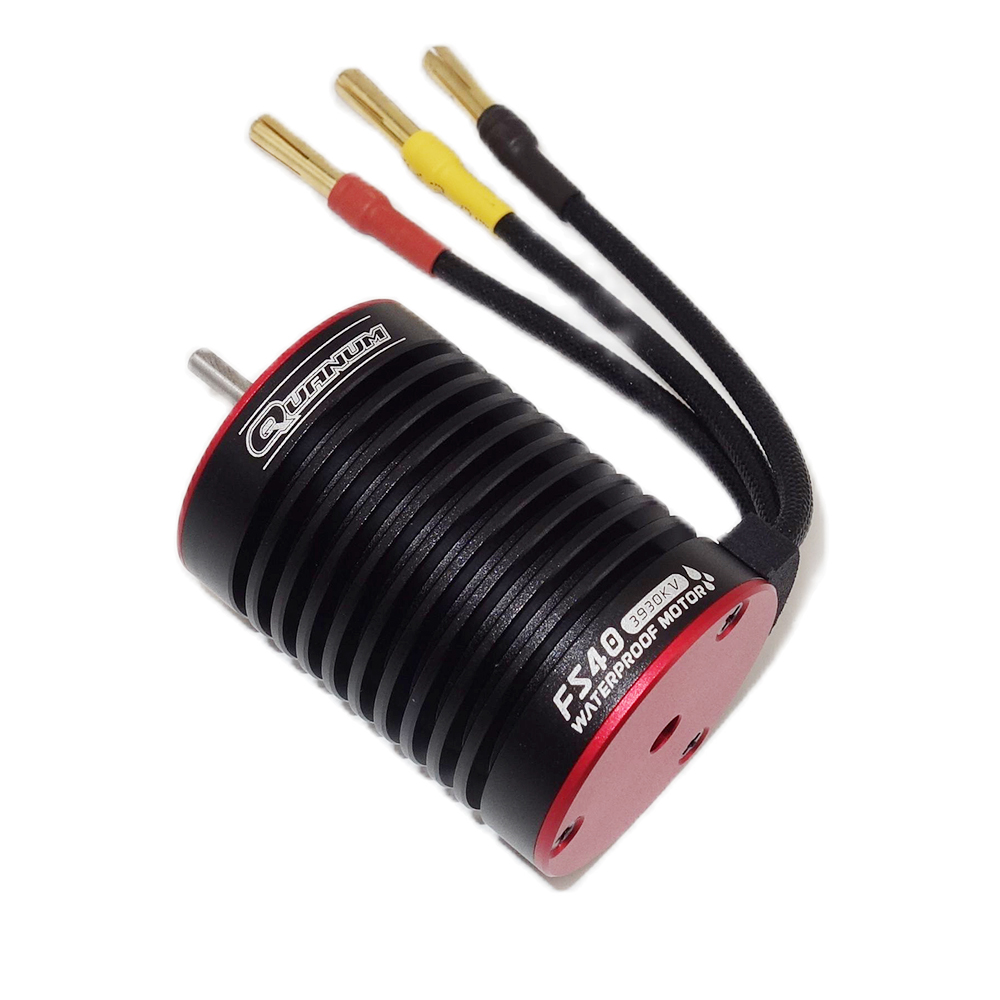

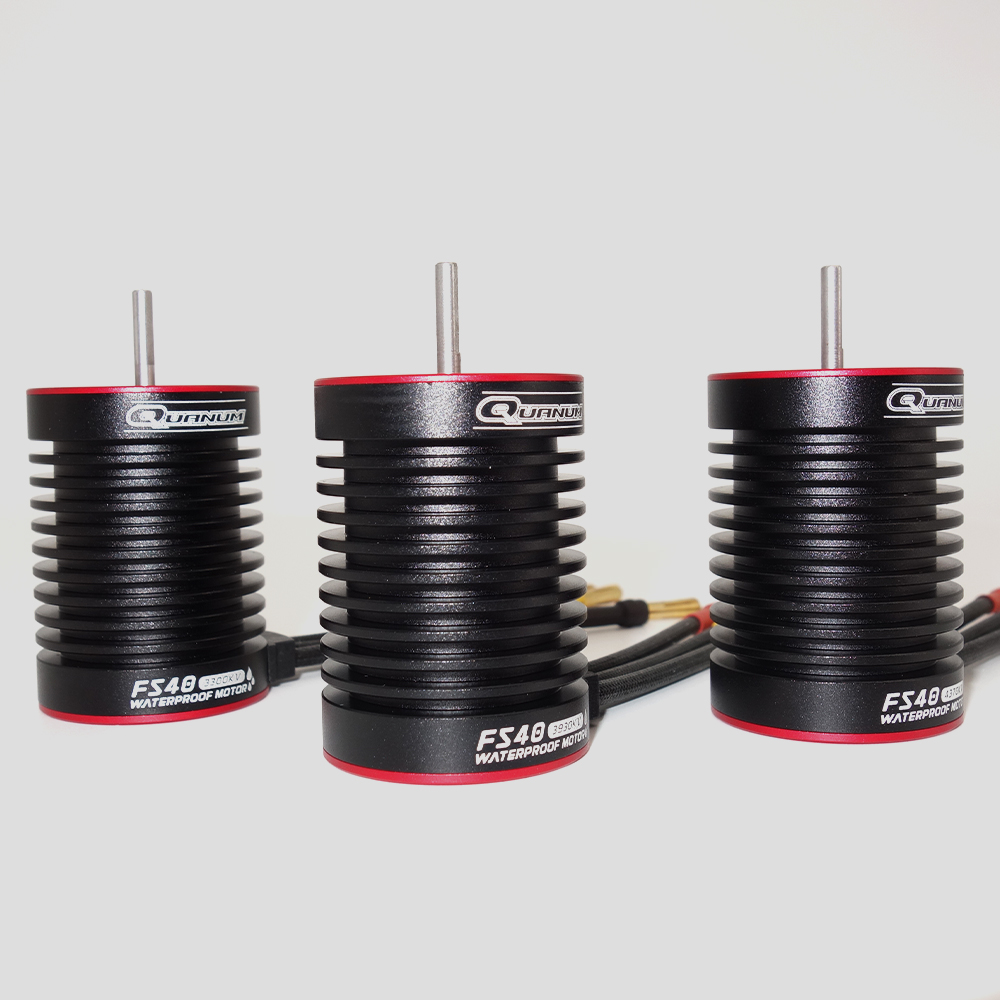

Quanum F540 Waterproof Brushless Motor 3300KV/3930KV/4370KV for 1/10 1/12 1/14 RC Cars Boats Vehicles Model Parts
Description:
Item Brand:Quanum
Item Number:F540
Item Name:Motor
Material:Metal
Color:Black
The Size of the Motor:Length 50mm diameter 35.8mm shaft diameter is 3.175mm length of extended shaft is 15mm
The Weight of the Motor:About 148g
Recommended ESC:45A ESC(not included)
Fit For:1/10 1/12 1/14 rc cars boats vehicles models
The Specification of the Motor:
KV:4370KV/3300KV/3930KV
Watts:820W
Max Voltage:<12V/<17V/<13V(4370KV/3300KV/3930KV)
Max Amps:66A/47A/60A(4370KV/3300KV/3930KV)
Rotor Poles:4
Resistance:0.0185/0.0285/0.0196(4370KV/3300KV/3930KV)
Max RPM:50000
Connector:4mm golden banana plug
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/16th 1/18th brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package Included:
1X F540 Brushed Motor
Specifications
| KV | 3300KV or 3930KV or 4370KV |
