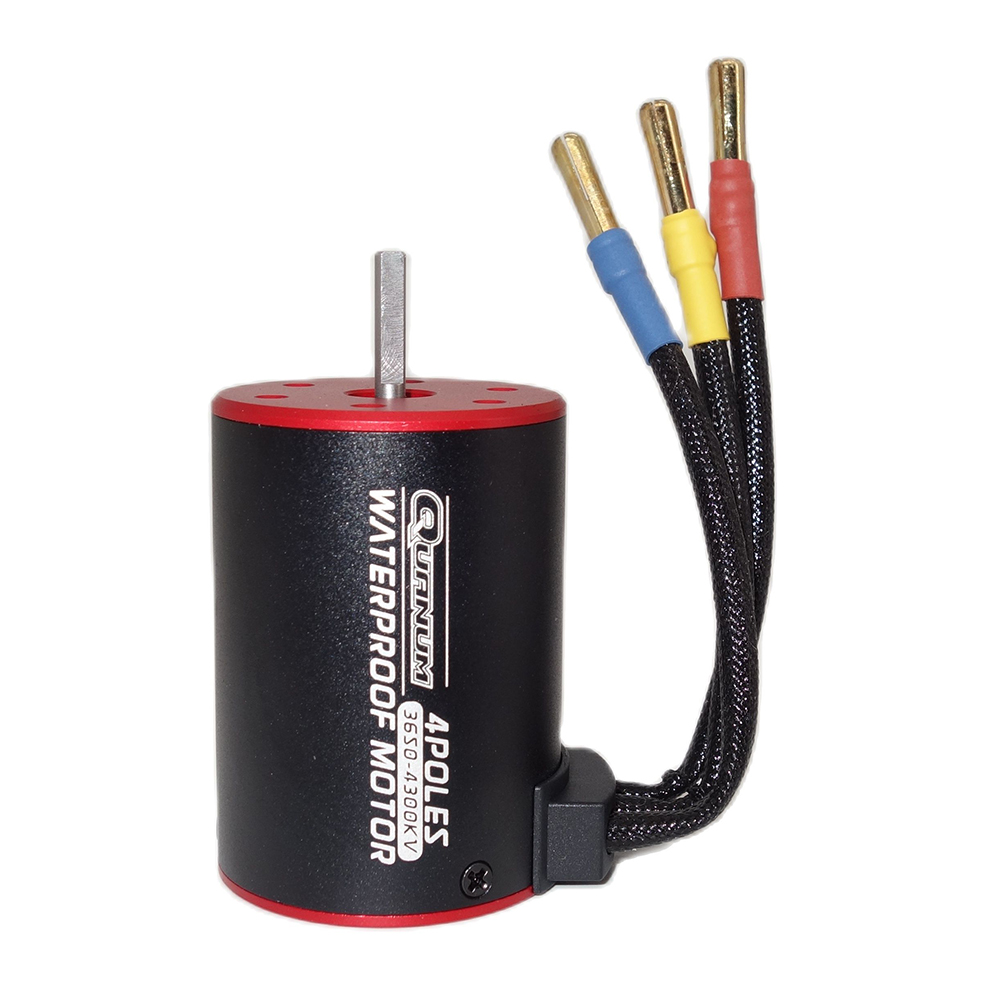

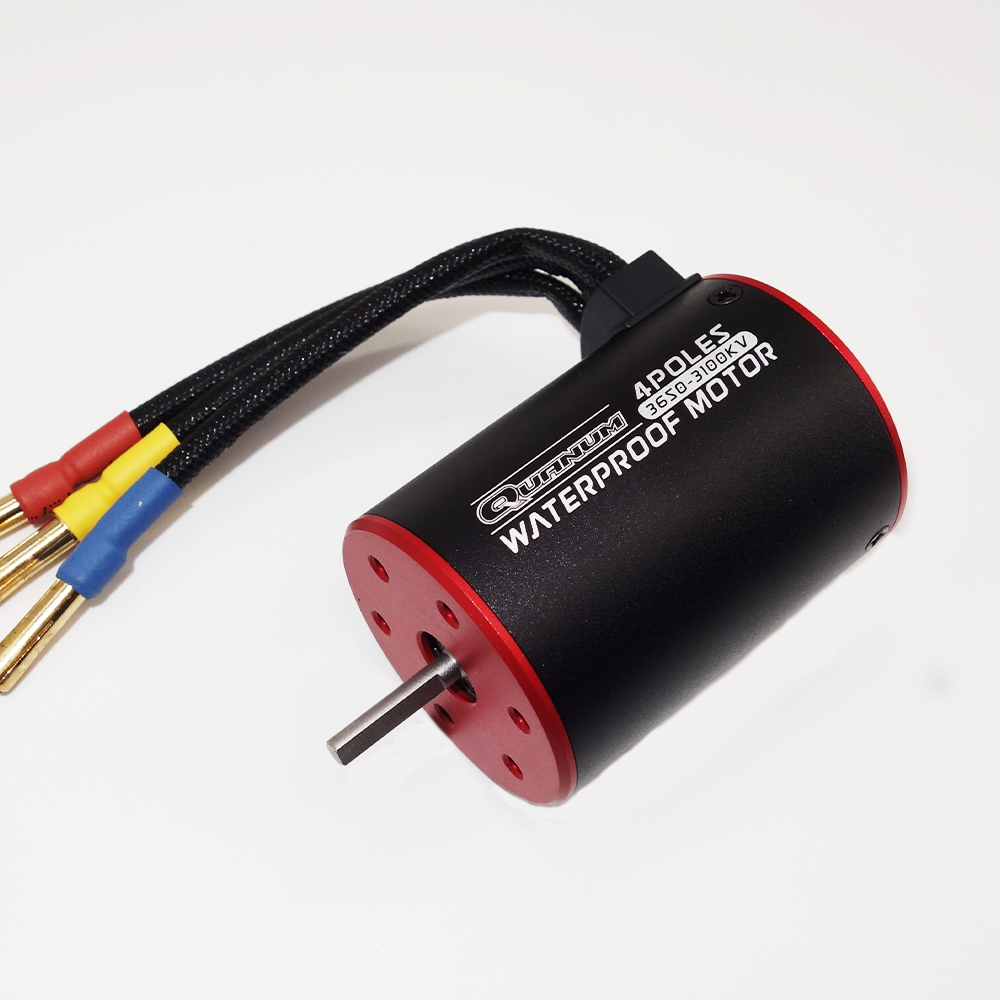

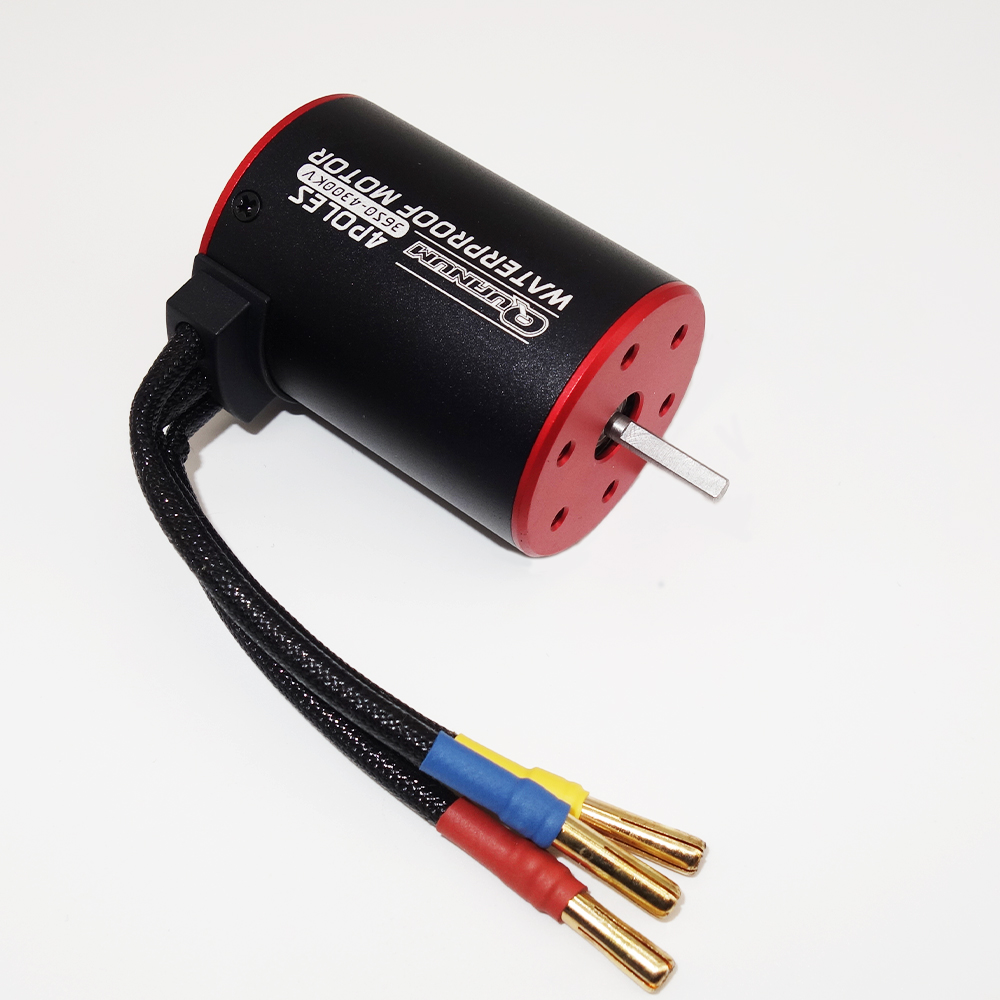

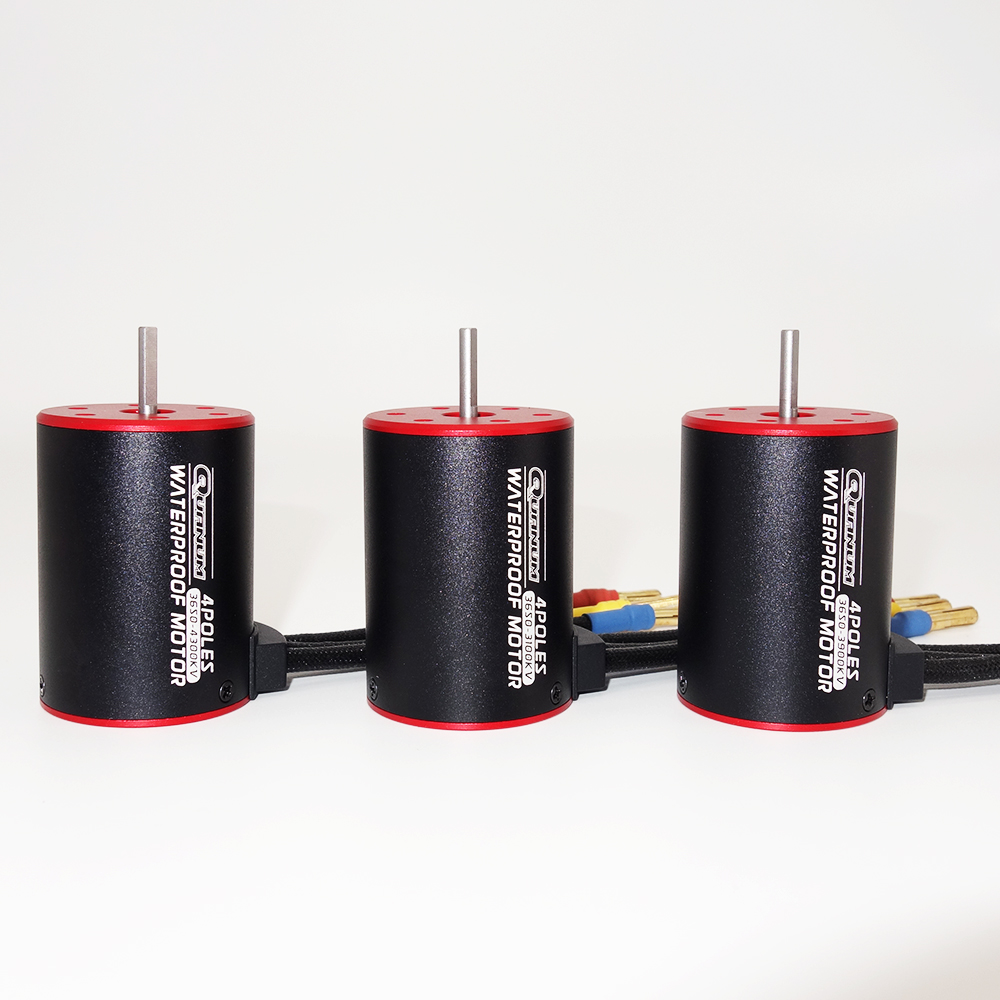

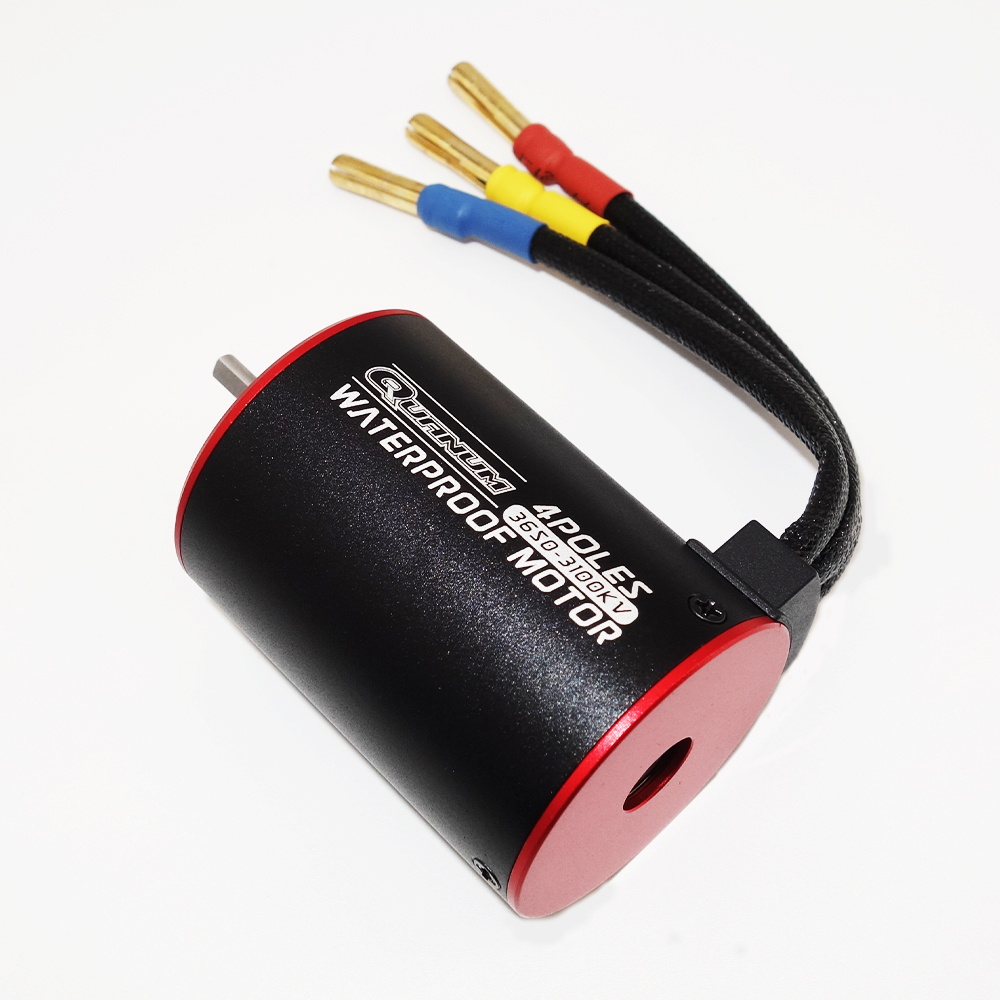

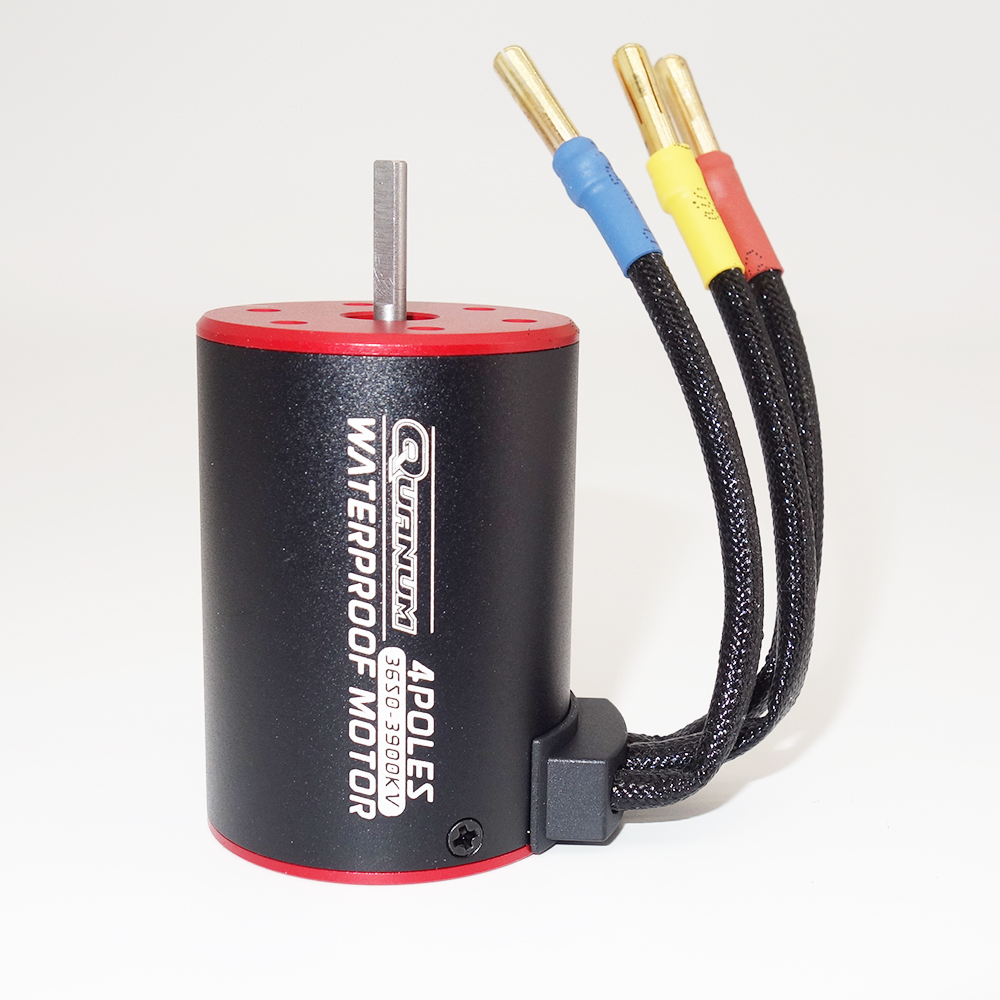

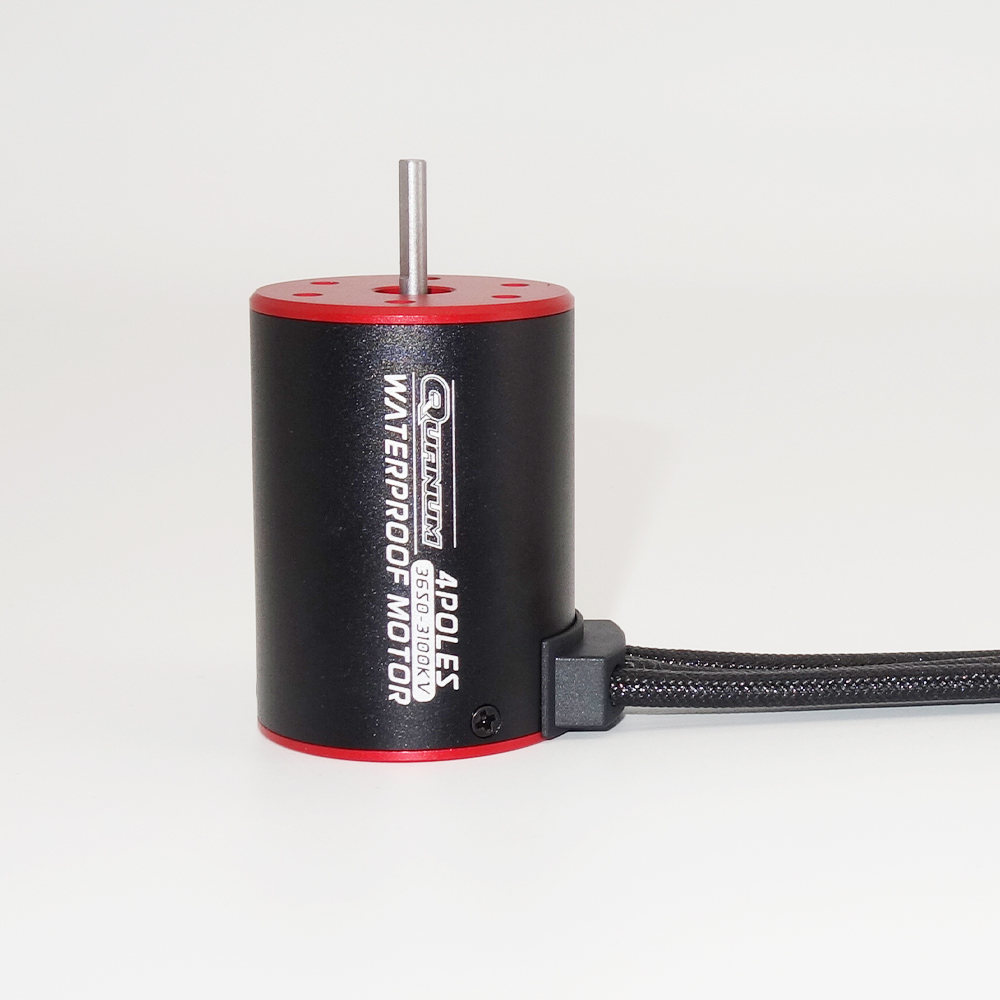

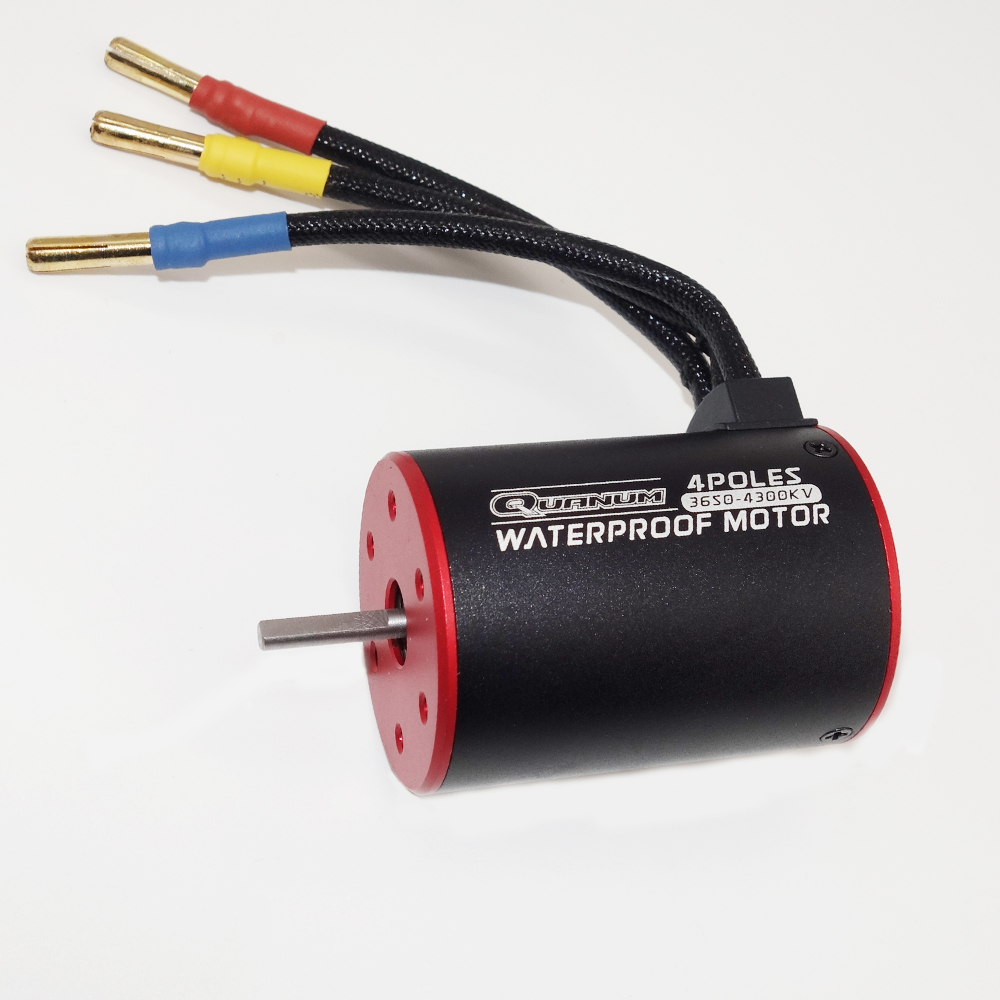

Quanum 3650 Waterproof Brushless Motor 3100KV/3900KV/4300KV 4mm Plug for 1/10 1/12 1/14 RC Cars Boats Vehicles Model Parts
Description:
Item Brand:Quanum
Item Number:3650
Item Name:Motor
Material:Metal
Color:Black
The Size of the Motor:Length 50mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 15mm
The Weight of the Motor:About 176g
Recommended ESC:60A ESC(not included)
Fit For:1/10 1/12 1/14 rc cars boats vehicles models
The Specification of the Motor:
KV:4370KV/3100KV/3900KV
Watts:900W
Max Voltage:<12V/<16V/<13V(4370KV/3100KV/3900KV)
Max Amps:75A/56A/69A(4370KV/3100KV/3900KV)
Rotor Poles:4
Resistance:0.0075/0.0126/0.0081(4370KV/3100KV/3900KV)
Max RPM:50000
Connector:4mm golden banana plug
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/16th 1/18th brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package Included:
1X 3650 Brushless Motor
Specifications
| KV | 4300KV or 3100KV or 3900KV |
