  2. Flipsky 75100 With Aluminum PCB Based on VESC for Electric Skateboard / Scooter / Ebike Speed Controller RC Models Parts
Allgemeine Preisliste

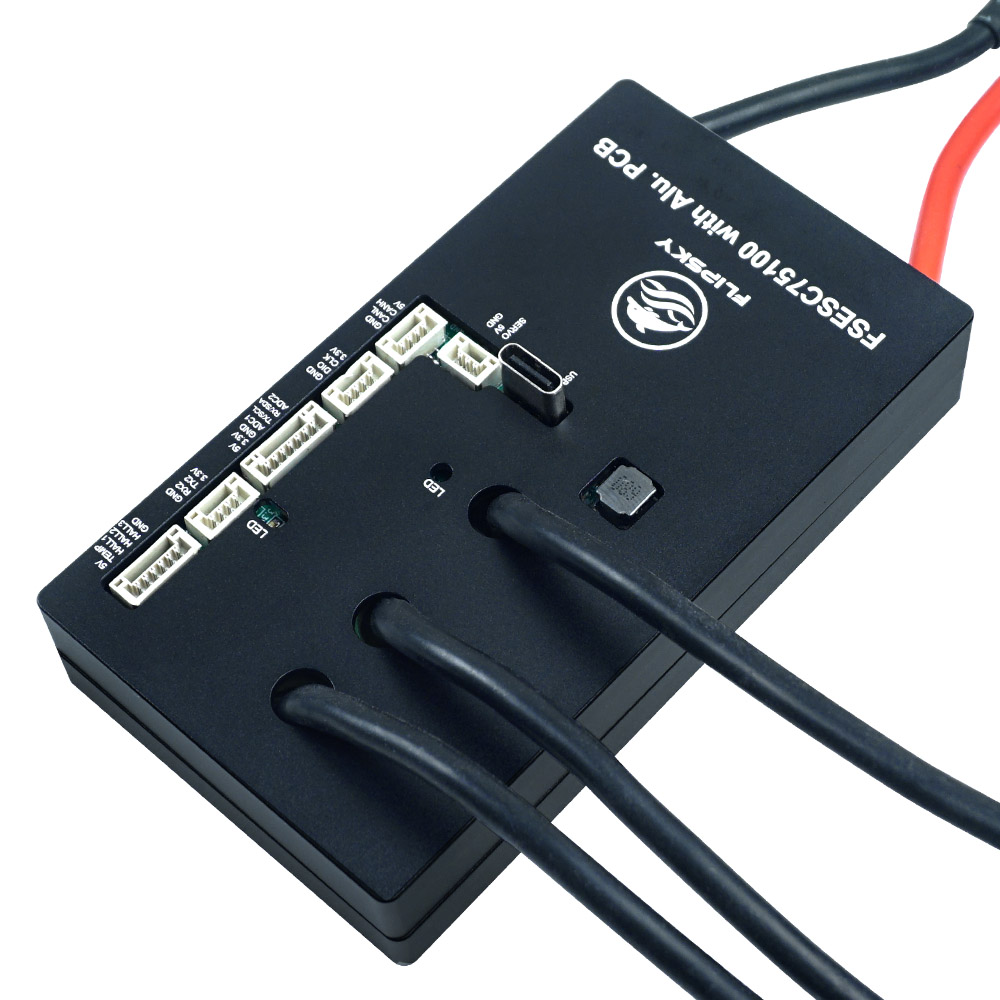

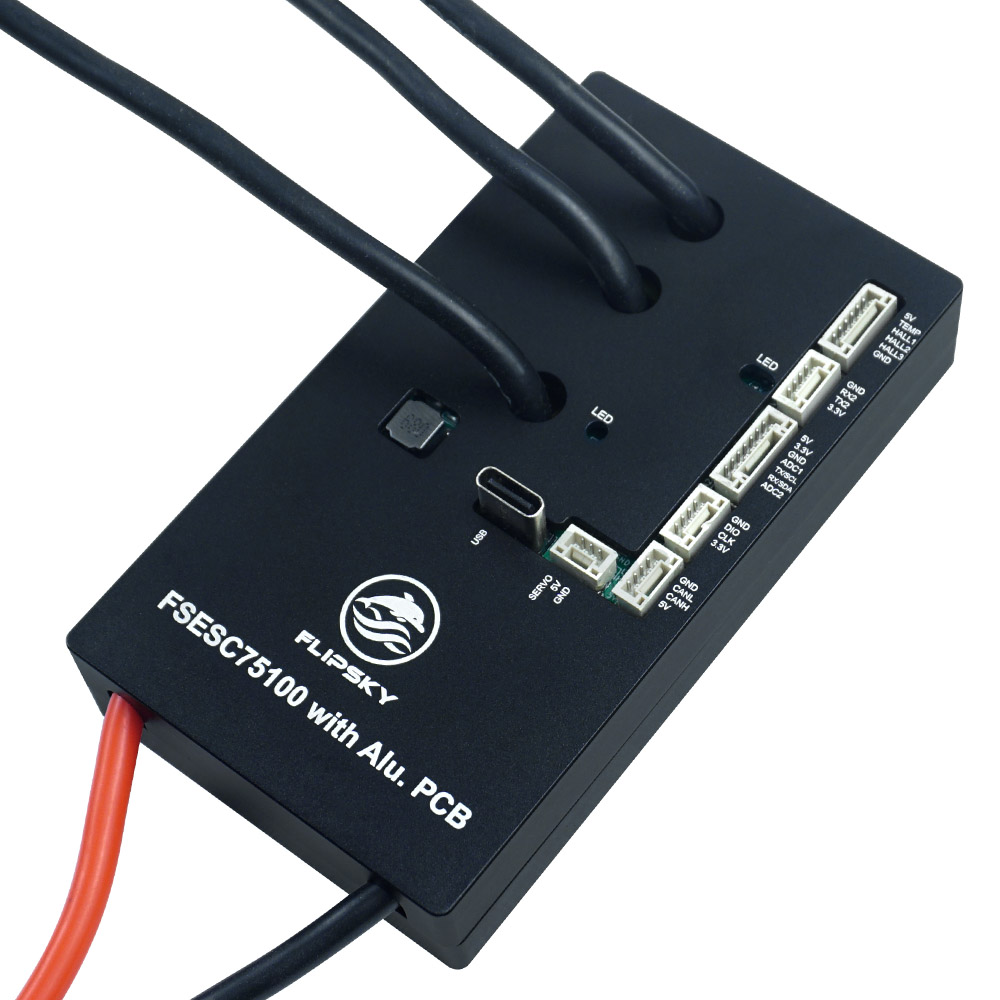

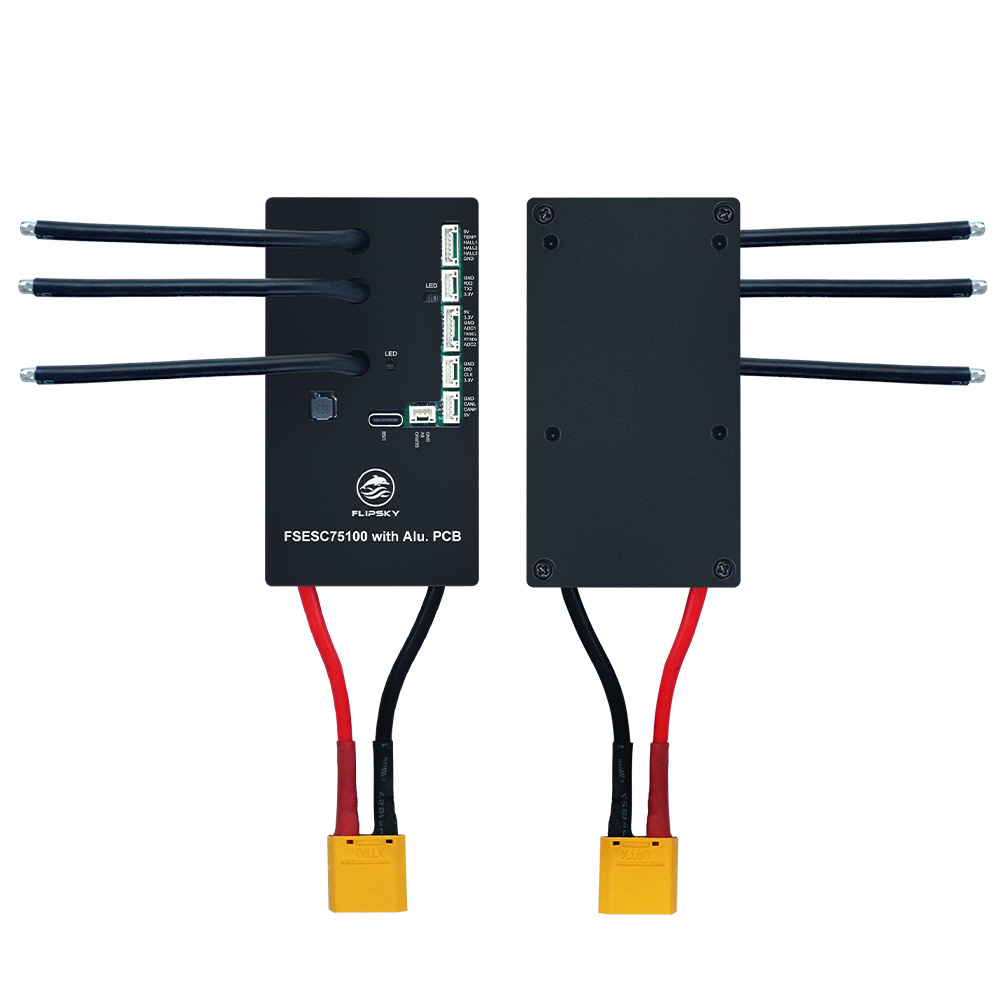

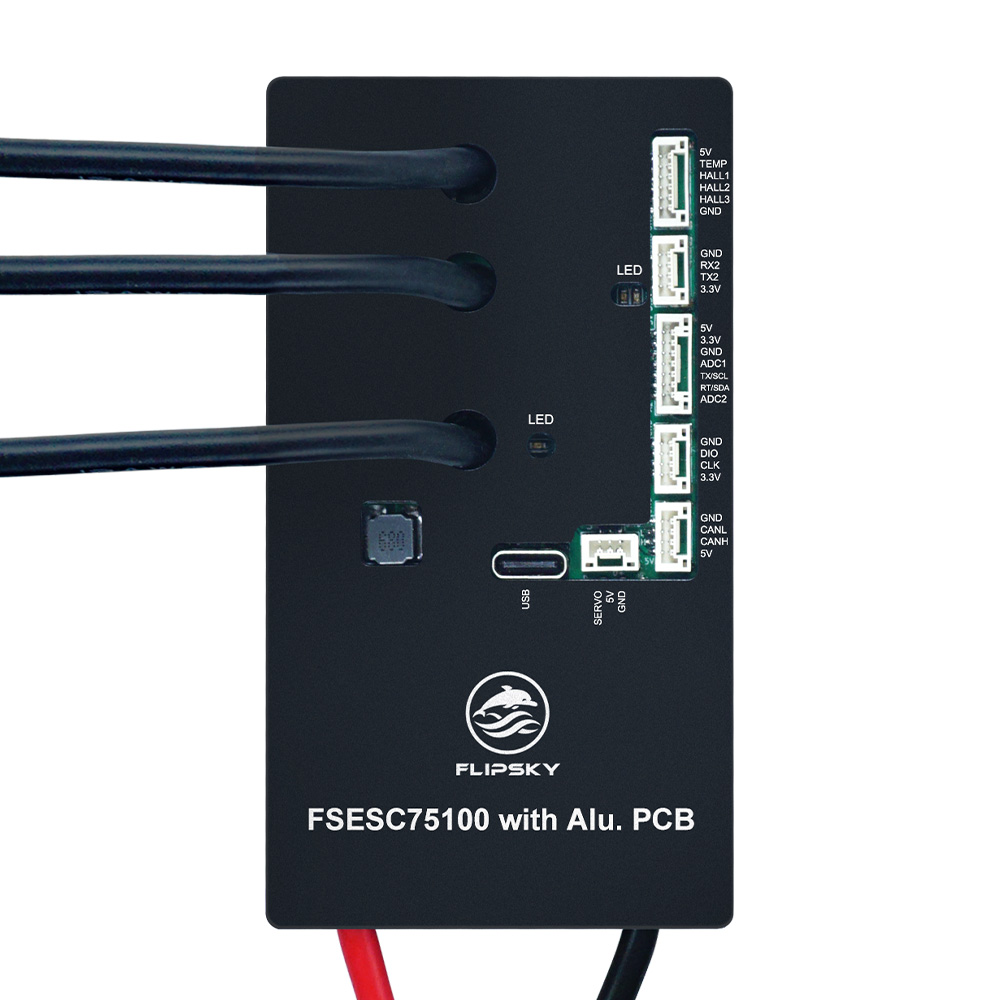

Flipsky 75100 With Aluminum PCB Based on VESC for Electric Skateboard / Scooter / Ebike Speed Controller RC Models Parts

https://www.rcwarehouse.nl/web/image/product.template/6595/image_1920?unique=7d0437a

172.49 € 172.49 EUR 172.49 €

172.49 €

    This combination does not exist.

    Description:
    Specs:
    Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE
    Voltage:14-84V (4-20S)
    Current:100A Continuous burst 120A
    BEC:5V@1.5A
    Support BLDC square wave mode control and FOC sine wave mode
    Firmware:latest (firmware update supported)
    ERPM:150000
    Control Interface Ports:USB CAN UART
    Supported Sensors:ABI HALL AS5047 AS5048A
    Input Set Support:PPM ADC NRF UART
    Wire Size:12AWG
    Programmable:Yes
    Regenerative Capacity:Yes


    Warm Tips:
    Phase filering is not available for Flipsky ESC75100 and 75200!
    Please turn off the phase filter function and choose 'false' in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
    Here below video and blog links FYI.
    YouTube:https://bit.ly/3IIV0ci

    Blog:https://bit.ly/3JBRRMR


    Package Included:
    1X 75100 ESC
