JX PDI-6221MG 20KG Large Torque Digital Standard Servo 120 Degree For RC Model

https://www.rcwarehouse.nl/web/image/product.template/288/image_1920?unique=6c16aba

19.54 € 19.54 EUR 19.54 €

19.54 €

    This combination does not exist.


    Description:
    Brand:JX
    Item:PDI-6221MG 20KG Large Torque Digital Standard Servo
    Degree: 120°
    Dead band: 2μs
    Working frequence: 1520μs / 330hz
    Operating Speed (4.8V): 0.18 sec/60°
    Operating Speed (6V): 0.16 sec/60°
    Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
    Stall Torque (6V):  20.32 kg-cm (281.89 oz/in)
    Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
    Weight:  62 g (2.18oz)
    Connector Wire Length: JR  265 mm (10.43in)
    Bearing: 2BB
    Usage:For RC Models

    Features:
    - High performance  digital  standard servo
    - High-precision aluminium gears with hard anodizing
    - CNC aluminium middle Shel
    - Dual ball bearings

    180 Degree Version please Click Here
    360 Degree CW Version please Click Here
    360 Degree CCW Version please Click Here

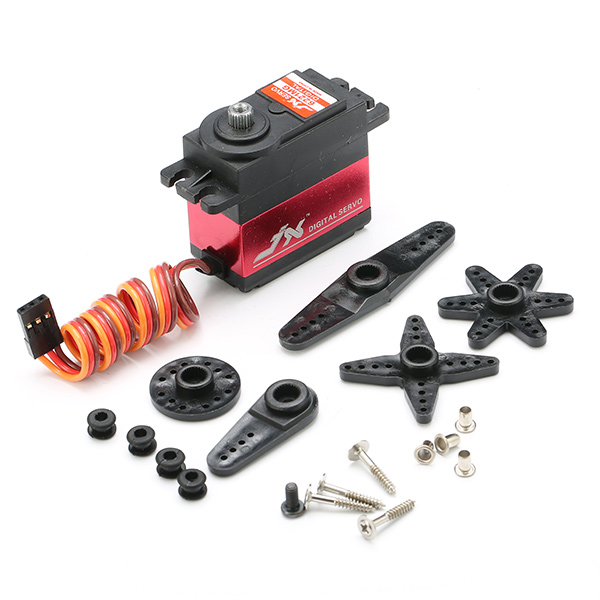

    Package Included:
    1 x PDI-6221MG 20KG Large Torque Digital Standard Servo
