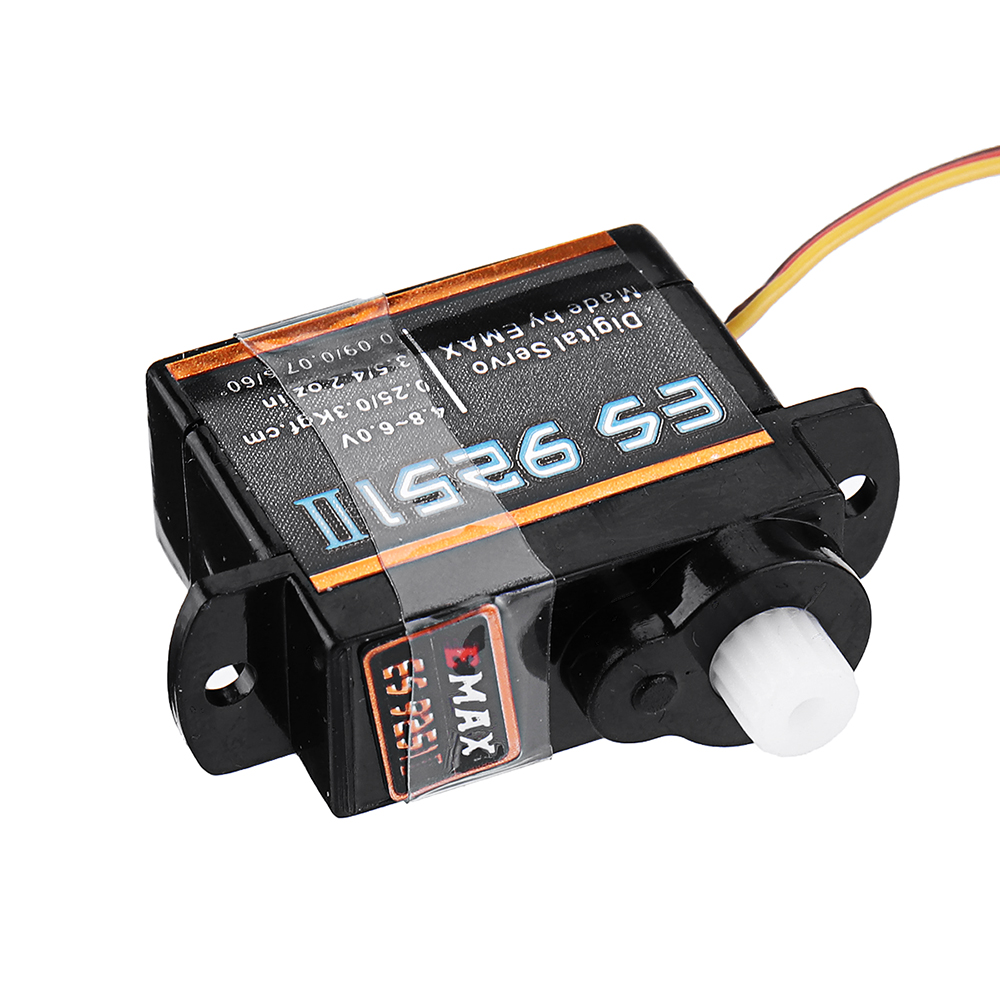

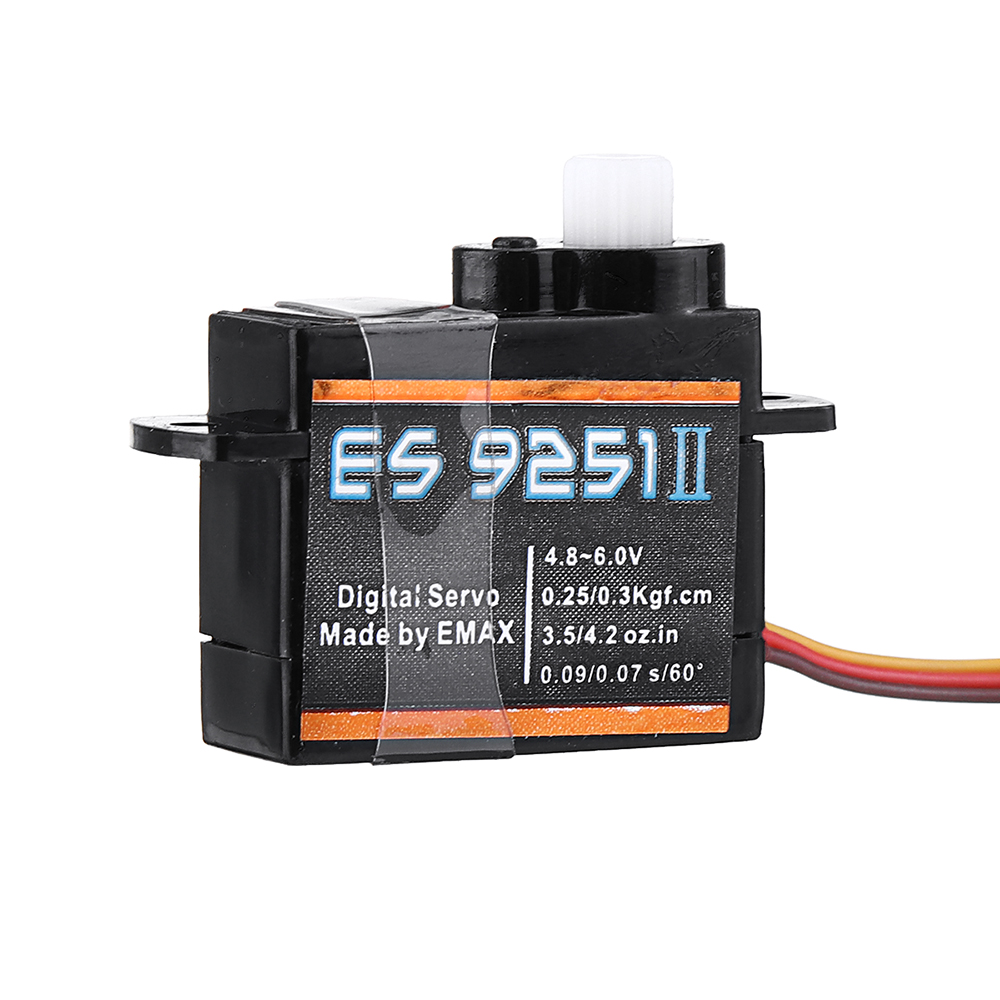

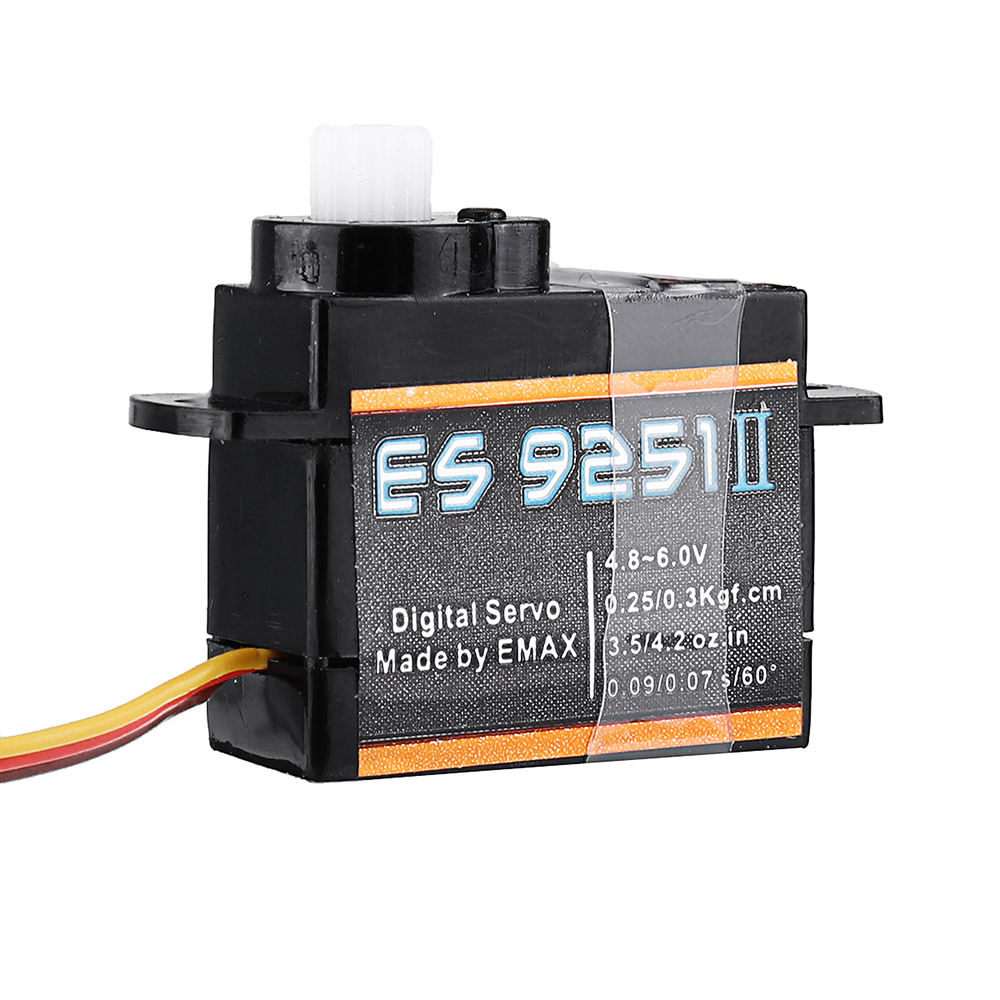

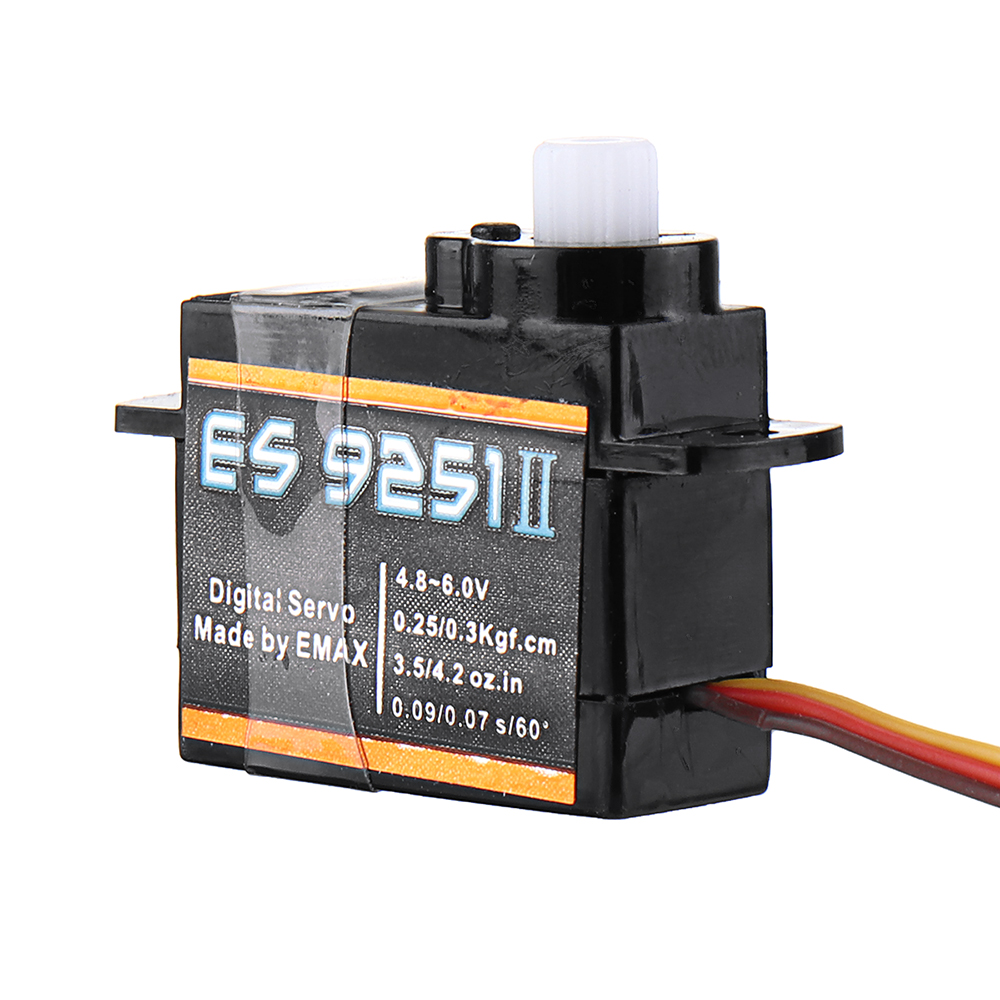

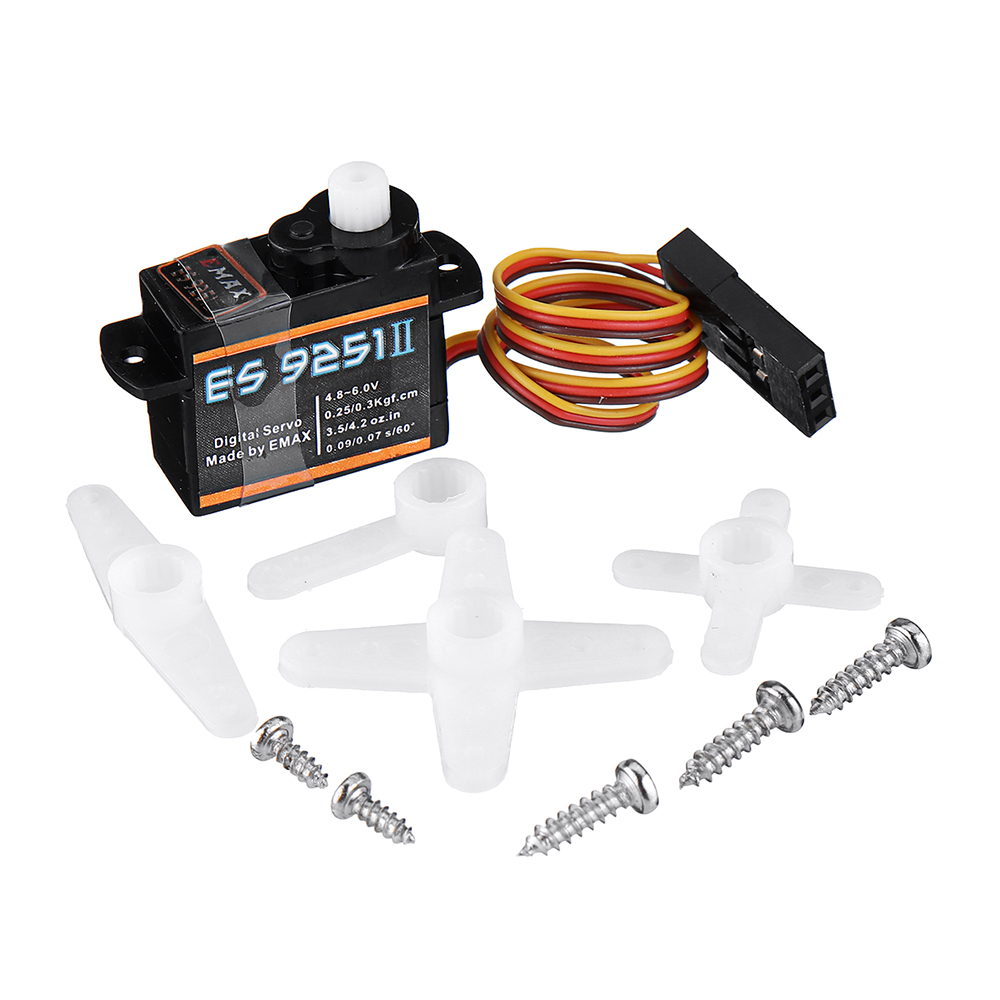

Emax ES9251II Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model
Description:
Brand: Emax
Item: ES9251II Digital Servo
Operating Voltage: 4.8V~6.0V
Operating Speed (at no load): 0.09 sec/60deg(4.8v) 0.08 sec/60deg(6.0v)
Running Current (at no load):25mA Max(4.8v) 315mA Max(6.0v)
Stall Torque: 0.25kg.cm Max(4.8v) 0.3kg.cm Max(6.0v)
Maximum Current: 120mA Max(4.8v) 140mA Max(6.0v)
Idle Current: 2.2mA
Storage Temperature Range: -20 C~70'C
Operating Temperature Range: -10C~60C
Size: 25.49*8.25*20.25mm
Weight: 3.0+-0.5g

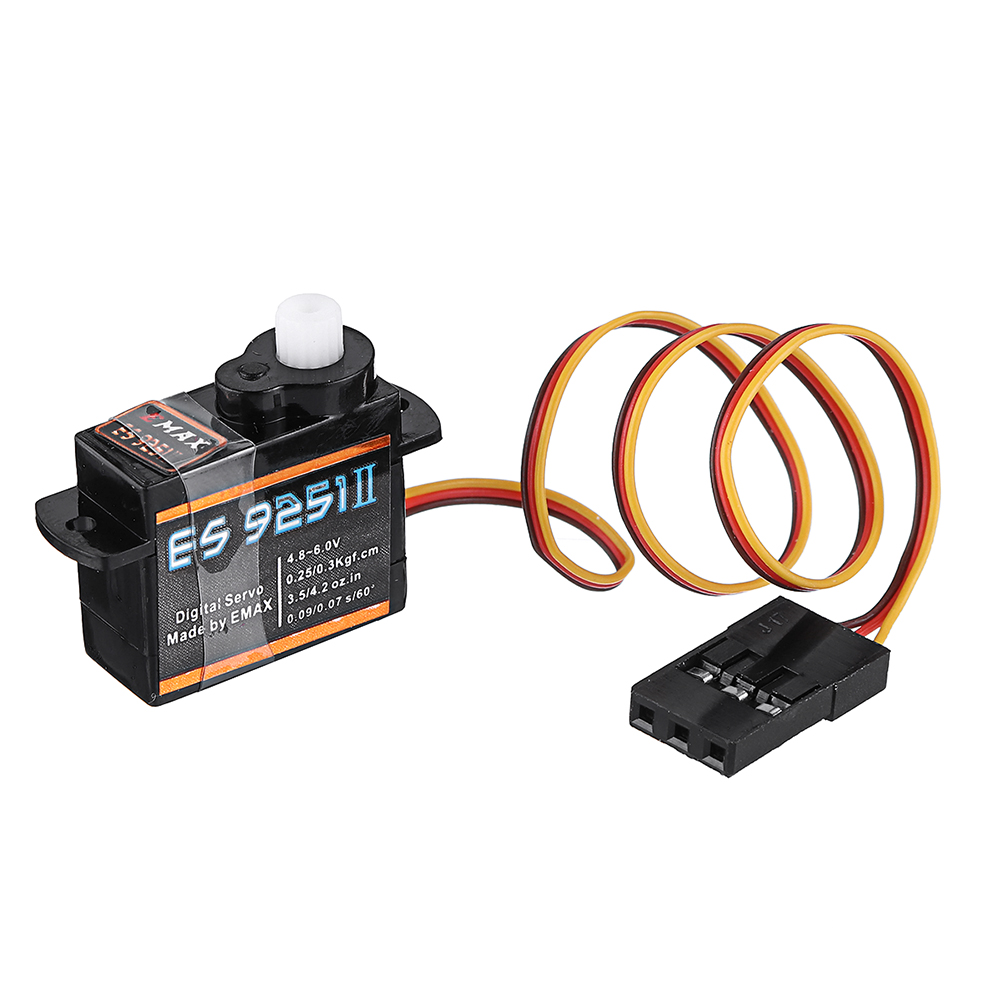

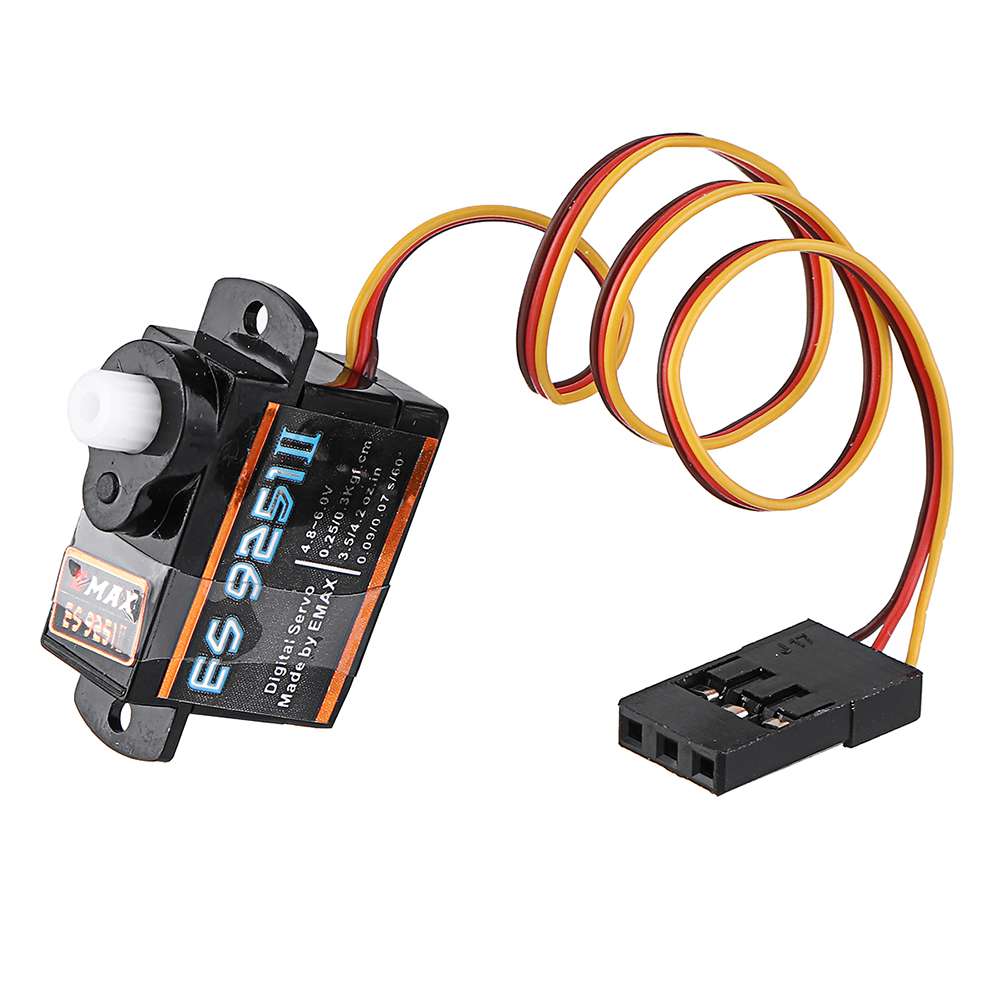

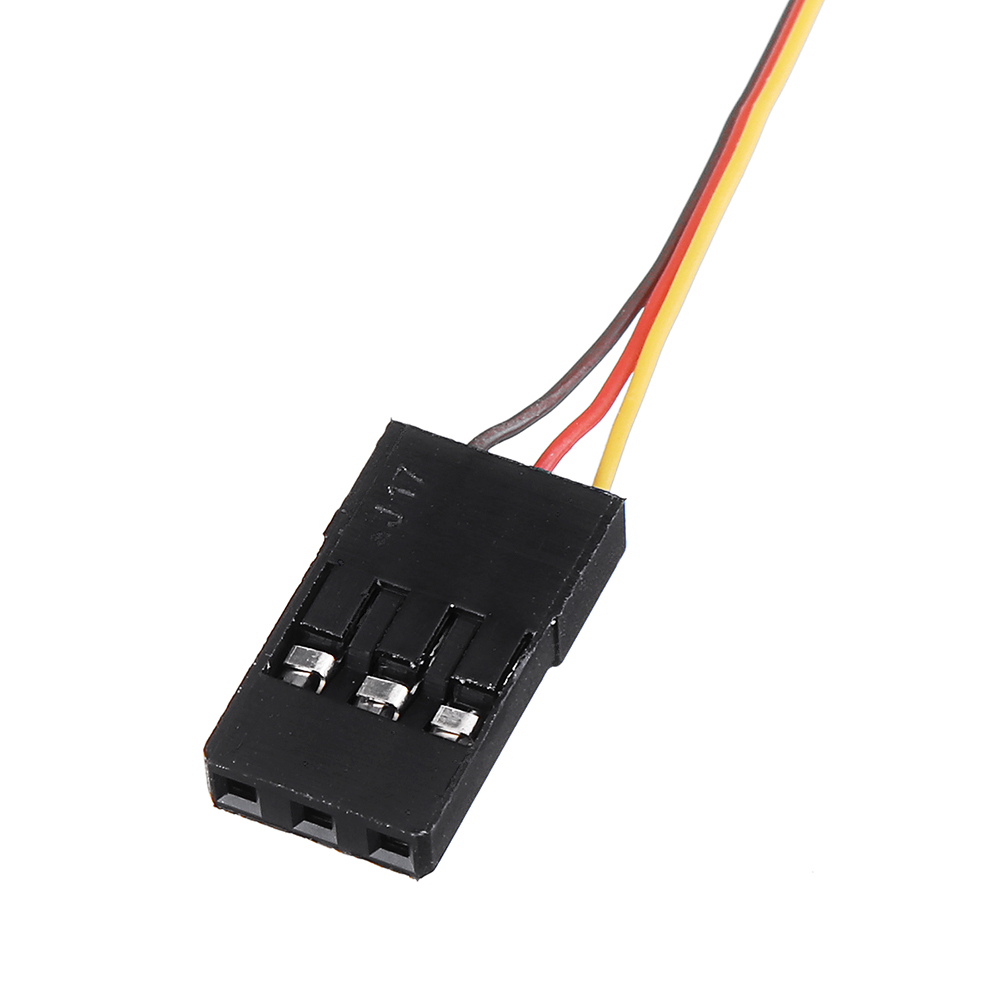

Connector Wire Gauge: JR

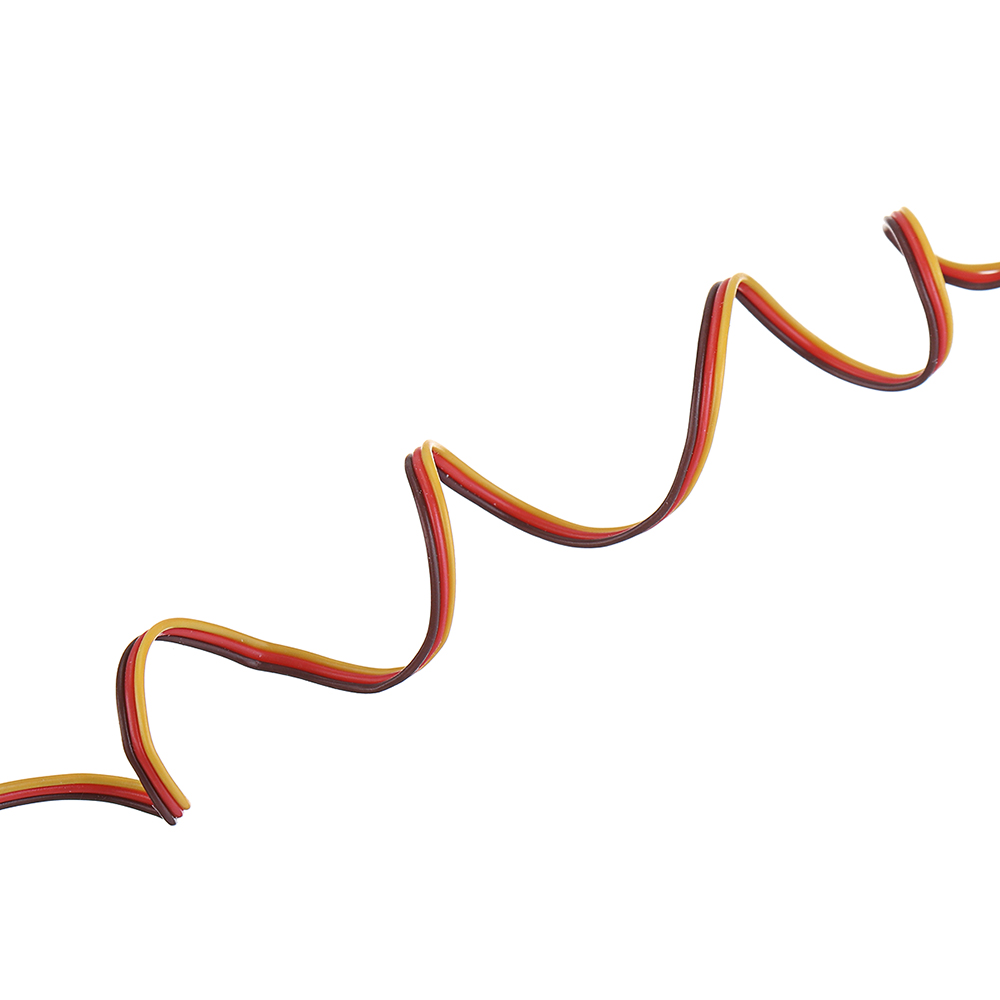

Connector Wire Length: 180+-8mm
Flower Head: 15T
Bearing: NO
Gear Type: 1 metal gear + 5 plastic gear
Extreme Angle: 360deg
Control System:PWM
Operating Travel: 90deg+-10deg (when 1000-2000 msec)
Neutral Position: 1500 m sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 m sec
Pulse Width Range: 700- 2300 m sec
Maximum Travel: 145deg+-10deg (700-2300m sec )
Usage:For RC Airplane RC Aircraft RC HelicopterEnglish Manual Click Here
Package Included:
1 x ES9251II Digital Servo
